Investigation of Colour Reconnection in WW Events with the DELPHI detector at LEP-2

TL;DR

This study investigates Colour Reconnection effects in WW events at LEP-2 using DELPHI data, analyzing particle flow and W mass estimators, and compares results to models to understand soft gluon exchange during hadronization.

Contribution

It provides the first detailed experimental investigation of Colour Reconnection effects in fully hadronic W pair decays at LEP-2, constraining model parameters.

Findings

Reconnection probability P_reco estimated between 0.31 and 0.68.

Best-fit SK-I model parameter kappa_{SK-I} = 2.2^{+2.5}_{-1.3}.

Results support soft gluon exchange influence during hadronization.

Abstract

In the reaction e+e- -> WW -> (q_1 qbar_2)(q_3 qbar_4) the usual hadronization models treat the colour singlets q_1 qbar_2 and q_3 qbar_4 coming from two W bosons independently. However, since the final state partons may coexist in space and time, cross-talk between the two evolving hadronic systems may be possible during fragmentation through soft gluon exchange. This effect is known as Colour Reconnection. In this article the results of the investigation of Colour Reconnection effects in fully hadronic decays of W pairs in DELPHI at LEP are presented. Two complementary analyses were performed, studying the particle flow between jets and W mass estimators, with negligible correlation between them, and the results were combined and compared to models. In the framework of the SK-I model, the value for its kappa parameter most compatible with the data was found to be: kappa_{SK-I} = 2.2^{+2.5}_{-1.3} corresponding to the probability of reconnection P_{reco} to be in the range 0.31 < P_{reco} < 0.68 at 68% confidence level with its best value at 0.52.

Figures

Tables

Table 1. Table 1: Centre-of-mass energy ( s 𝑠 \sqrt{s} in GeV), integrated luminosity ( ℒ ℒ \cal L in pb -1 ), efficiency and purity of the data samples, number of selected events, number of expected events from 4-jet WW and background processes (total and separated by process), and efficiency of correct pairing of jets to the same W boson.

$\sqrt{s}$	$ℒ$	Eff.	Pur.	$N_{\mathrm{sel}}$	MC tot.	WW 4j	$q\overline{q}\left(\gamma \right)$	ZZ	W lep.	${\epsilon }_{\mathrm{PAIR}}$
183	52.7	22%	74%	127	114.2	84.4	22.3	0.7	7.0	69%
189	157.6	21%	75%	340	341.4	255.9	56.8	2.4	26.4	75%
192	25.9	21%	75%	61	56.1	41.9	9.4	0.4	4.4	77%
196	77.3	19%	74%	176	159.2	117.6	26.2	1.3	14.0	79%
200	83.4	18%	72%	173	165.0	119.5	27.8	1.3	16.4	82%
202	40.6	17%	72%	82	75.7	54.6	12.5	0.7	8.0	82%
206	163.9	15%	70%	282	274.7	193.1	47.8	2.7	31.1	79%
207	59.4	15%	70%	102	99.7	70.1	17.6	1.0	11.1	80%

Table 2. Table 2: Values of the ratio R 𝑅 R for each energy (errors are statistical only), and expected values with errors due to limited statistics of the simulation, all from DELPHI WPHACT  WW samples.

$\sqrt{s}$ (GeV)	$R_{\mathrm{Data}}$	$R_{\mathrm{no}\mathrm{CR}}$	$R_{\text{SK-I}:100\%}$
183	0.889 $\pm$ 0.084	0.928 $\pm$ 0.005	-
189	1.025 $\pm$ 0.063	0.966 $\pm$ 0.006	0.864 $\pm$ 0.005
192	1.008 $\pm$ 0.150	0.970 $\pm$ 0.006	-
196	1.041 $\pm$ 0.093	0.995 $\pm$ 0.006	-
200	0.922 $\pm$ 0.084	1.022 $\pm$ 0.007	0.889 $\pm$ 0.006
202	0.952 $\pm$ 0.126	1.015 $\pm$ 0.008	-
206	1.116 $\pm$ 0.088	1.012 $\pm$ 0.008	0.889 $\pm$ 0.006
207	1.039 $\pm$ 0.135	1.019 $\pm$ 0.008	-

Table 3. Table 3: Results of the fit to the evolution of R 𝑅 R with ( s ​ ( GeV ) − 197.5 ) s GeV 197.5 \mathrm{(\sqrt{s}(\mathrm{GeV})-197.5)} .

MC Sample	${\chi }^2/DF$	$\alpha$,A	$\beta$,B	$\gamma$
no CR	7.31/5	$1.001\pm 0.003$	$\left(3.20\pm 0.36\right)\times {10}^{-3}$	$\left(-1.35\pm 0.40\right)\times {10}^{-4}$
SK-I 100%	1.46/1	$0.880\pm 0.003$	$\left(1.68\pm 0.44\right)\times {10}^{-3}$	-

Table 4. Table 4: Ratio of data to MC fitted values of R 𝑅 R in mixed semi-leptonic samples, used to calibrate the R 4 ​ q ​ MC subscript 𝑅 4 q MC R_{\mathrm{4q\,MC}} values for different models (upper line), and calibrated values of R 4 ​ q ​ MC subscript 𝑅 4 q MC R_{\mathrm{4q\,MC}} . All values were computed at s = 189 𝑠 189 \sqrt{s}=189  GeV.

MC sample	PYTHIA	ARIADNE	HERWIG
$R_{\mathrm{mixed}\mathrm{SL}\mathrm{Data}}/R_{\mathrm{mixed}\mathrm{SL}\mathrm{MC}}$	$1.053$	$1.044$	$0.997$
$R_{4q\mathrm{MC}}^{\mathrm{Calibrated}}$	$1.018$	$1.011$	$1.004$

Table 5. Table 5: R 𝑅 R ratios for the Cetraro samples at 189 GeV, calibrated with the mixed semi-leptonic events.

MC Sample	$R$
PYTHIA  no CR	$1.037\pm 0.004$
PYTHIA  SK-I 100%	$0.917\pm 0.003$
ARIADNE no CR	$1.053\pm 0.004$
ARIADNE AR2	$1.021\pm 0.004$
HERWIG  no CR	$1.059\pm 0.004$
HERWIG  1/9 CR	$1.040\pm 0.003$

Table 6. Table 6: Breakdown of the total uncertainty on both relevant observables.

	Uncertainty contribution (MeV/c2)
Source	$\Delta M_W\left(\mathrm{std},R_{\mathrm{cone}}=0.5\mathrm{rad}\right)$	$\Delta M_W\left(\mathrm{std},p_{\mathrm{cut}}=2\mathrm{GeV}/c\right)$
Fragmentation	11	27
Calibration	3	3
Background	3	3
BEI-BEA	8	9
Total systematic	14	29
Statistical Error	35	61
Total	38	67

Equations

$${\kappa }_{\mathrm{SK}-\mathrm{I}}=2.2_{-1.3}^{+2.5}$$

$${\mathcal{P}}_{\mathrm{reco}}(\kappa )=1-e^{-\kappa V_{\mathrm{overlap}}}.$$

$${\Phi }_{\mathrm{rescaled}}={\Phi }_i/{\Phi }_r,$$

$$R=\frac{{\int }_{0.2}^{0.8}d{n}_{\mathrm{ch}}/d\Phi (A+C)d\Phi }{{\int }_{0.2}^{0.8}d{n}_{\mathrm{ch}}/d\Phi (B+D)d\Phi }.$$

$$⟨R⟩=0.979\pm 0.032(\mathrm{stat}).$$

$$⟨R_{\mathrm{CR}\mathrm{rescale}}⟩=0.987\pm 0.032(\mathrm{stat}).$$

$$⟨R_{\mathrm{no}\mathrm{rescale}}⟩=0.999\pm 0.033(\mathrm{stat}).$$

$$⟨R_{\mathrm{mixed}\mathrm{SL}\mathrm{Data}}⟩=1.052\pm 0.027(\mathrm{stat}).$$

$$⟨R⟩=0.979\pm 0.032(\mathrm{stat})\pm 0.035(\mathrm{syst}).$$

$$r_{\mathrm{no}\mathrm{CR}}^{\mathrm{data}}=\frac{⟨R{⟩}_{\mathrm{data}}}{R_{\mathrm{no}\mathrm{CR}}}=0.944\pm 0.031(\mathrm{stat})\pm 0.034(\mathrm{syst}),$$

$$r_{\mathrm{CR}}^{\mathrm{data}}=\frac{⟨R{⟩}_{\mathrm{data}}}{R_{\mathrm{CR}}}=1.067\pm 0.035(\mathrm{stat})\pm 0.039(\mathrm{syst}).$$

$$\delta r=\frac{⟨R_{\mathrm{data}}⟩-R_{\mathrm{no}\mathrm{CR}}}{R_{\mathrm{CR}}-R_{\mathrm{no}\mathrm{CR}}}=0.49\pm 0.27(\mathrm{stat})\pm 0.29(\mathrm{syst}),$$

$${\kappa }_{\text{mbox}\text{mbox}\mathrm{SK}-\mathrm{I}}=4.13_{-3.46}^{+20.97}.$$

$${\vec{\mathrm{p}}}_{\mathrm{cone}}^{\mathrm{jet}}\to {\vec{\mathrm{p}}}_{\mathrm{cone}}^{\mathrm{jet}}\cdot \frac{{\mathrm{E}}^{\mathrm{jet}}}{{{\mathrm{E}}^{\mathrm{jet}}}_{\mathrm{cone}}}.$$

$${\mathrm{L}}_i({\mathrm{M}}_{\mathrm{W}}|\kappa )=[1-{\mathcal{P}}_i(\kappa )]\cdot {\mathrm{L}}_i({\mathrm{M}}_{\mathrm{W}}|\text{mbox}eventwithoutCR)+{\mathcal{P}}_i(\kappa )\cdot {\mathrm{L}}_i({\mathrm{M}}_{\mathrm{W}}|\text{mbox}eventwithCR)$$

$${\Delta }_{\mathrm{syst}}(\mathrm{MC},\mathrm{DA})=\left|[{{\mathrm{M}}_{\mathrm{W}}}^{\mathrm{std}}(\mathrm{MC})-{{\mathrm{M}}_{\mathrm{W}}}^{\mathrm{std}}(\mathrm{DA})]-[{{\mathrm{M}}_{\mathrm{W}}}^i(\mathrm{MC})-{{\mathrm{M}}_{\mathrm{W}}}^i(\mathrm{DA})]\right|$$

$$\begin{array}[]{lcrcr}\Delta_{\mathrm{syst}}({\mathrm{\mbox{ARIADNE}\ ,DA}})&=&-1.9&\pm&3.9\mathrm{(stat)}{{\mathrm{MeV/c{{}^{2}}}}}\\ \Delta_{\mathrm{syst}}({\mathrm{\mbox{PYTHIA}\ ,DA}})&=&-5.7&\pm&3.9\mathrm{(stat)}{{\mathrm{MeV/c{{}^{2}}}}}\\ \Delta_{\mathrm{syst}}({\mathrm{\mbox{HERWIG}\ ,DA}})&=&-10.6&\pm&3.9\mathrm{(stat)}{{\mathrm{MeV/c{{}^{2}}}}}\end{array}$$

$$\begin{array}[]{lclclcrcl}\Delta{\mathrm{M_{W}}}({\mathrm{std}},{\mathrm{R_{cone}}})&=&{\mathrm{M_{W}}}^{{\mathrm{std}}}&-&{\mathrm{M_{W}}}^{{\mathrm{R_{cone}}}}&=&(8&\pm&56\mathrm{(stat)}){\mathrm{MeV/c{{}^{2}}}}\\ \end{array}$$

$$\begin{array}[]{lclclcrcrcl}{\Delta\mathrm{M_{W}}({\mathrm{std}},\mathrm{R_{cone}})}&=&{\mathrm{M_{W}}}^{{\mathrm{std}}}&-&{\mathrm{M_{W}}^{\mathrm{R_{cone}}}}&=&(59&\pm&35\mathrm{(stat)}&\pm&14\mathrm{(syst)}){\mathrm{MeV/c{{}^{2}}}}\\ {\Delta\mathrm{M_{W}}({\mathrm{std}},\mathrm{p_{cut}})}&=&{\mathrm{M_{W}}}^{{\mathrm{std}}}&-&{\mathrm{M_{W}}^{\mathrm{p_{cut}}}}&=&(143&\pm&61\mathrm{(stat)}&\pm&29\mathrm{(syst)}){\mathrm{MeV/c{{}^{2}}}}\\ \end{array}$$

$${\kappa }_{\text{mbox}\text{mbox}\mathrm{SK}-\mathrm{I}}=1.75_{-1.30}^{+2.60}.$$

$$\begin{array}[]{lclcrcrl}{\mathrm{M_{W}}^{\mathrm{p_{cut}}}}&-&{\mathrm{M_{W}}^{\mathrm{R_{cone}}}}&=&(-84&\pm&59\mathrm{(stat)}){\mathrm{MeV/c{{}^{2}}}}&.\end{array}$$

$$\begin{array}[]{lclclcrcrlc}{\mathrm{\mbox{ARIADNE}}}&\rightarrow&{\mathrm{M_{W}}}^{{\mathrm{std}}}&-&{\mathrm{M_{W}}^{\mathrm{R_{cone}}}}&=&(7.2&\pm&4.1)&{\mathrm{MeV/c{{}^{2}}}}&\\ {\mathrm{\mbox{ARIADNE}}}&\rightarrow&{\mathrm{M_{W}}}^{{\mathrm{std}}}&-&{\mathrm{M_{W}}^{\mathrm{p_{cut}}}}&=&(9.4&\pm&7.0)&{\mathrm{MeV/c{{}^{2}}}}&\\ {\mathrm{\mbox{HERWIG}}}&\rightarrow&{\mathrm{M_{W}}}^{{\mathrm{std}}}&-&{\mathrm{M_{W}}^{\mathrm{R_{cone}}}}&=&(19.7&\pm&4.0)&{\mathrm{MeV/c{{}^{2}}}}&\\ {\mathrm{\mbox{HERWIG}}}&\rightarrow&{\mathrm{M_{W}}}^{{\mathrm{std}}}&-&{\mathrm{M_{W}}^{\mathrm{p_{cut}}}}&=&(22.8&\pm&6.9)&{\mathrm{MeV/c{{}^{2}}}}&.\\ \end{array}$$

$${\kappa }_{\text{mbox}\text{mbox}\mathrm{SK}-\mathrm{I}}=2.2_{-1.3}^{+2.5}.$$

$$⟨R⟩=0.979\pm 0.032(\mathrm{stat})\pm 0.035(\mathrm{syst}).$$

$$\Delta {\mathrm{M}}_{\mathrm{W}}(\mathrm{std},{\mathrm{R}}_{\mathrm{cone}})={{\mathrm{M}}_{\mathrm{W}}}^{\mathrm{std}}-{{\mathrm{M}}_{\mathrm{W}}}^{{\mathrm{R}}_{\mathrm{cone}}=0.5\mathrm{rad}}=(59\pm 35(\mathrm{stat})\pm 14(\mathrm{syst}))MeV/c{}^2.$$

$${\kappa }_{\text{mbox}\text{mbox}\mathrm{SK}-\mathrm{I}}=2.2_{-1.3}^{+2.5}$$

Full text

CERN–PH-EP/2006-037

22 November 2006

DELPHI Collaboration

Abstract

In the reaction $\mathrm{e^{+}e^{-}\rightarrow WW\rightarrow(q_{1}\bar{q}_{2})(q_{3}\bar{q}_{4})}$ the usual hadronization models treat the colour singlets $\mathrm{q_{1}\bar{q}_{2}}$ and $\mathrm{q_{3}\bar{q}_{4}}$ coming from two W bosons independently. However, since the final state partons may coexist in space and time, cross-talk between the two evolving hadronic systems may be possible during fragmentation through soft gluon exchange. This effect is known as Colour Reconnection. In this article the results of the investigation of Colour Reconnection effects in fully hadronic decays of W pairs in DELPHI at LEP are presented. Two complementary analyses were performed, studying the particle flow between jets and W mass estimators, with negligible correlation between them, and the results were combined and compared to models. In the framework of the SK-I model, the value for its $\kappa$ parameter most compatible with the data was found to be:

[TABLE]

corresponding to the probability of reconnection ${\cal P}_{\mathrm{reco}}$ to be in the range $\mathrm{0.31<{\cal P}_{reco}<0.68}$ at 68% confidence level with its best value at 0.52.

(Accepted by Eur. Phys. J. C)

J.Abdallah${}^{\ref{LPNHE}}$, P.Abreu${}^{\ref{LIP}}$, W.Adam${}^{\ref{VIENNA}}$, P.Adzic${}^{\ref{DEMOKRITOS}}$, T.Albrecht${}^{\ref{KARLSRUHE}}$, R.Alemany-Fernandez${}^{\ref{CERN}}$, T.Allmendinger${}^{\ref{KARLSRUHE}}$, P.P.Allport${}^{\ref{LIVERPOOL}}$, U.Amaldi${}^{\ref{MILANO2}}$, N.Amapane${}^{\ref{TORINO}}$, S.Amato${}^{\ref{UFRJ}}$, E.Anashkin${}^{\ref{PADOVA}}$, A.Andreazza${}^{\ref{MILANO}}$, S.Andringa${}^{\ref{LIP}}$, N.Anjos${}^{\ref{LIP}}$, P.Antilogus${}^{\ref{LPNHE}}$, W-D.Apel${}^{\ref{KARLSRUHE}}$, Y.Arnoud${}^{\ref{GRENOBLE}}$, S.Ask${}^{\ref{LUND}}$, B.Asman${}^{\ref{STOCKHOLM}}$, J.E.Augustin${}^{\ref{LPNHE}}$, A.Augustinus${}^{\ref{CERN}}$, P.Baillon${}^{\ref{CERN}}$, A.Ballestrero${}^{\ref{TORINOTH}}$, P.Bambade${}^{\ref{LAL}}$, R.Barbier${}^{\ref{LYON}}$, D.Bardin${}^{\ref{JINR}}$, G.J.Barker${}^{\ref{WARWICK}}$, A.Baroncelli${}^{\ref{ROMA3}}$, M.Battaglia${}^{\ref{CERN}}$, M.Baubillier${}^{\ref{LPNHE}}$, K-H.Becks${}^{\ref{WUPPERTAL}}$, M.Begalli${}^{\ref{BRASIL-IFUERJ}}$, A.Behrmann${}^{\ref{WUPPERTAL}}$, E.Ben-Haim${}^{\ref{LAL}}$, N.Benekos${}^{\ref{NTU-ATHENS}}$, A.Benvenuti${}^{\ref{BOLOGNA}}$, C.Berat${}^{\ref{GRENOBLE}}$, M.Berggren${}^{\ref{LPNHE}}$, L.Berntzon${}^{\ref{STOCKHOLM}}$, D.Bertrand${}^{\ref{BRUSSELS}}$, M.Besancon${}^{\ref{SACLAY}}$, N.Besson${}^{\ref{SACLAY}}$, D.Bloch${}^{\ref{CRN}}$, M.Blom${}^{\ref{NIKHEF}}$, M.Bluj${}^{\ref{WARSZAWA}}$, M.Bonesini${}^{\ref{MILANO2}}$, M.Boonekamp${}^{\ref{SACLAY}}$, P.S.L.Booth†${}^{\ref{LIVERPOOL}}$, G.Borisov${}^{\ref{LANCASTER}}$, O.Botner${}^{\ref{UPPSALA}}$, B.Bouquet${}^{\ref{LAL}}$, T.J.V.Bowcock${}^{\ref{LIVERPOOL}}$, I.Boyko${}^{\ref{JINR}}$, M.Bracko${}^{\ref{SLOVENIJA1}}$, R.Brenner${}^{\ref{UPPSALA}}$, E.Brodet${}^{\ref{OXFORD}}$, P.Bruckman${}^{\ref{KRAKOW1}}$, J.M.Brunet${}^{\ref{CDF}}$, B.Buschbeck${}^{\ref{VIENNA}}$, P.Buschmann${}^{\ref{WUPPERTAL}}$, M.Calvi${}^{\ref{MILANO2}}$, T.Camporesi${}^{\ref{CERN}}$, V.Canale${}^{\ref{ROMA2}}$, F.Carena${}^{\ref{CERN}}$, N.Castro${}^{\ref{LIP}}$, F.Cavallo${}^{\ref{BOLOGNA}}$, M.Chapkin${}^{\ref{SERPUKHOV}}$, Ph.Charpentier${}^{\ref{CERN}}$, P.Checchia${}^{\ref{PADOVA}}$, R.Chierici${}^{\ref{CERN}}$, P.Chliapnikov${}^{\ref{SERPUKHOV}}$, J.Chudoba${}^{\ref{CERN}}$, S.U.Chung${}^{\ref{CERN}}$, K.Cieslik${}^{\ref{KRAKOW1}}$, P.Collins${}^{\ref{CERN}}$, R.Contri${}^{\ref{GENOVA}}$, G.Cosme${}^{\ref{LAL}}$, F.Cossutti${}^{\ref{TRIESTE}}$, M.J.Costa${}^{\ref{VALENCIA}}$, D.Crennell${}^{\ref{RAL}}$, J.Cuevas${}^{\ref{OVIEDO}}$, J.D’Hondt${}^{\ref{BRUSSELS}}$, J.Dalmau${}^{\ref{STOCKHOLM}}$, T.da Silva${}^{\ref{UFRJ}}$, W.Da Silva${}^{\ref{LPNHE}}$, G.Della Ricca${}^{\ref{TRIESTE}}$, A.De Angelis${}^{\ref{UDINE}}$, W.De Boer${}^{\ref{KARLSRUHE}}$, C.De Clercq${}^{\ref{BRUSSELS}}$, B.De Lotto${}^{\ref{UDINE}}$, N.De Maria${}^{\ref{TORINO}}$, A.De Min${}^{\ref{PADOVA}}$, L.de Paula${}^{\ref{UFRJ}}$, L.Di Ciaccio${}^{\ref{ROMA2}}$, A.Di Simone${}^{\ref{ROMA3}}$, K.Doroba${}^{\ref{WARSZAWA}}$, J.Drees${}^{\ref{WUPPERTAL},\ref{CERN}}$, G.Eigen${}^{\ref{BERGEN}}$, T.Ekelof${}^{\ref{UPPSALA}}$, M.Ellert${}^{\ref{UPPSALA}}$, M.Elsing${}^{\ref{CERN}}$, M.C.Espirito Santo${}^{\ref{LIP}}$, G.Fanourakis${}^{\ref{DEMOKRITOS}}$, D.Fassouliotis${}^{\ref{DEMOKRITOS},\ref{ATHENS}}$, M.Feindt${}^{\ref{KARLSRUHE}}$, J.Fernandez${}^{\ref{SANTANDER}}$, A.Ferrer${}^{\ref{VALENCIA}}$, F.Ferro${}^{\ref{GENOVA}}$, U.Flagmeyer${}^{\ref{WUPPERTAL}}$, H.Foeth${}^{\ref{CERN}}$, E.Fokitis${}^{\ref{NTU-ATHENS}}$, F.Fulda-Quenzer${}^{\ref{LAL}}$, J.Fuster${}^{\ref{VALENCIA}}$, M.Gandelman${}^{\ref{UFRJ}}$, C.Garcia${}^{\ref{VALENCIA}}$, Ph.Gavillet${}^{\ref{CERN}}$, E.Gazis${}^{\ref{NTU-ATHENS}}$, R.Gokieli${}^{\ref{CERN},\ref{WARSZAWA}}$, B.Golob${}^{\ref{SLOVENIJA1},\ref{SLOVENIJA3}}$, G.Gomez-Ceballos${}^{\ref{SANTANDER}}$, P.Goncalves${}^{\ref{LIP}}$, E.Graziani${}^{\ref{ROMA3}}$, G.Grosdidier${}^{\ref{LAL}}$, K.Grzelak${}^{\ref{WARSZAWA}}$, J.Guy${}^{\ref{RAL}}$, C.Haag${}^{\ref{KARLSRUHE}}$, A.Hallgren${}^{\ref{UPPSALA}}$, K.Hamacher${}^{\ref{WUPPERTAL}}$, K.Hamilton${}^{\ref{OXFORD}}$, S.Haug${}^{\ref{OSLO}}$, F.Hauler${}^{\ref{KARLSRUHE}}$, V.Hedberg${}^{\ref{LUND}}$, M.Hennecke${}^{\ref{KARLSRUHE}}$, H.Herr†${}^{\ref{CERN}}$, J.Hoffman${}^{\ref{WARSZAWA}}$, S-O.Holmgren${}^{\ref{STOCKHOLM}}$, P.J.Holt${}^{\ref{CERN}}$, M.A.Houlden${}^{\ref{LIVERPOOL}}$, J.N.Jackson${}^{\ref{LIVERPOOL}}$, G.Jarlskog${}^{\ref{LUND}}$, P.Jarry${}^{\ref{SACLAY}}$, D.Jeans${}^{\ref{OXFORD}}$, E.K.Johansson${}^{\ref{STOCKHOLM}}$, P.D.Johansson${}^{\ref{STOCKHOLM}}$, P.Jonsson${}^{\ref{LYON}}$, C.Joram${}^{\ref{CERN}}$, L.Jungermann${}^{\ref{KARLSRUHE}}$, F.Kapusta${}^{\ref{LPNHE}}$, S.Katsanevas${}^{\ref{LYON}}$, E.Katsoufis${}^{\ref{NTU-ATHENS}}$, G.Kernel${}^{\ref{SLOVENIJA1}}$, B.P.Kersevan${}^{\ref{SLOVENIJA1},\ref{SLOVENIJA3}}$, U.Kerzel${}^{\ref{KARLSRUHE}}$, B.T.King${}^{\ref{LIVERPOOL}}$, N.J.Kjaer${}^{\ref{CERN}}$, P.Kluit${}^{\ref{NIKHEF}}$, P.Kokkinias${}^{\ref{DEMOKRITOS}}$, C.Kourkoumelis${}^{\ref{ATHENS}}$, O.Kouznetsov${}^{\ref{JINR}}$, Z.Krumstein${}^{\ref{JINR}}$, M.Kucharczyk${}^{\ref{KRAKOW1}}$, J.Lamsa${}^{\ref{AMES}}$, G.Leder${}^{\ref{VIENNA}}$, F.Ledroit${}^{\ref{GRENOBLE}}$, L.Leinonen${}^{\ref{STOCKHOLM}}$, R.Leitner${}^{\ref{NC}}$, J.Lemonne${}^{\ref{BRUSSELS}}$, V.Lepeltier${}^{\ref{LAL}}$, T.Lesiak${}^{\ref{KRAKOW1}}$, W.Liebig${}^{\ref{WUPPERTAL}}$, D.Liko${}^{\ref{VIENNA}}$, A.Lipniacka${}^{\ref{STOCKHOLM}}$, J.H.Lopes${}^{\ref{UFRJ}}$, J.M.Lopez${}^{\ref{OVIEDO}}$, D.Loukas${}^{\ref{DEMOKRITOS}}$, P.Lutz${}^{\ref{SACLAY}}$, L.Lyons${}^{\ref{OXFORD}}$, J.MacNaughton${}^{\ref{VIENNA}}$, A.Malek${}^{\ref{WUPPERTAL}}$, S.Maltezos${}^{\ref{NTU-ATHENS}}$, F.Mandl${}^{\ref{VIENNA}}$, J.Marco${}^{\ref{SANTANDER}}$, R.Marco${}^{\ref{SANTANDER}}$, B.Marechal${}^{\ref{UFRJ}}$, M.Margoni${}^{\ref{PADOVA}}$, J-C.Marin${}^{\ref{CERN}}$, C.Mariotti${}^{\ref{CERN}}$, A.Markou${}^{\ref{DEMOKRITOS}}$, C.Martinez-Rivero${}^{\ref{SANTANDER}}$, J.Masik${}^{\ref{FZU}}$, N.Mastroyiannopoulos${}^{\ref{DEMOKRITOS}}$, F.Matorras${}^{\ref{SANTANDER}}$, C.Matteuzzi${}^{\ref{MILANO2}}$, F.Mazzucato${}^{\ref{PADOVA}}$, M.Mazzucato${}^{\ref{PADOVA}}$, R.Mc Nulty${}^{\ref{LIVERPOOL}}$, C.Meroni${}^{\ref{MILANO}}$, E.Migliore${}^{\ref{TORINO}}$, W.Mitaroff${}^{\ref{VIENNA}}$, U.Mjoernmark${}^{\ref{LUND}}$, T.Moa${}^{\ref{STOCKHOLM}}$, M.Moch${}^{\ref{KARLSRUHE}}$, K.Moenig${}^{\ref{CERN},\ref{DESY}}$, R.Monge${}^{\ref{GENOVA}}$, J.Montenegro${}^{\ref{NIKHEF}}$, D.Moraes${}^{\ref{UFRJ}}$, S.Moreno${}^{\ref{LIP}}$, P.Morettini${}^{\ref{GENOVA}}$, U.Mueller${}^{\ref{WUPPERTAL}}$, K.Muenich${}^{\ref{WUPPERTAL}}$, M.Mulders${}^{\ref{NIKHEF}}$, L.Mundim${}^{\ref{BRASIL-IFUERJ}}$, W.Murray${}^{\ref{RAL}}$, B.Muryn${}^{\ref{KRAKOW2}}$, G.Myatt${}^{\ref{OXFORD}}$, T.Myklebust${}^{\ref{OSLO}}$, M.Nassiakou${}^{\ref{DEMOKRITOS}}$, F.Navarria${}^{\ref{BOLOGNA}}$, K.Nawrocki${}^{\ref{WARSZAWA}}$, R.Nicolaidou${}^{\ref{SACLAY}}$, M.Nikolenko${}^{\ref{JINR},\ref{CRN}}$, A.Oblakowska-Mucha${}^{\ref{KRAKOW2}}$, V.Obraztsov${}^{\ref{SERPUKHOV}}$, A.Olshevski${}^{\ref{JINR}}$, A.Onofre${}^{\ref{LIP}}$, R.Orava${}^{\ref{HELSINKI}}$, K.Osterberg${}^{\ref{HELSINKI}}$, A.Ouraou${}^{\ref{SACLAY}}$, A.Oyanguren${}^{\ref{VALENCIA}}$, M.Paganoni${}^{\ref{MILANO2}}$, S.Paiano${}^{\ref{BOLOGNA}}$, J.P.Palacios${}^{\ref{LIVERPOOL}}$, H.Palka${}^{\ref{KRAKOW1}}$, Th.D.Papadopoulou${}^{\ref{NTU-ATHENS}}$, L.Pape${}^{\ref{CERN}}$, C.Parkes${}^{\ref{GLASGOW}}$, F.Parodi${}^{\ref{GENOVA}}$, U.Parzefall${}^{\ref{CERN}}$, A.Passeri${}^{\ref{ROMA3}}$, O.Passon${}^{\ref{WUPPERTAL}}$, L.Peralta${}^{\ref{LIP}}$, V.Perepelitsa${}^{\ref{VALENCIA}}$, A.Perrotta${}^{\ref{BOLOGNA}}$, A.Petrolini${}^{\ref{GENOVA}}$, J.Piedra${}^{\ref{SANTANDER}}$, L.Pieri${}^{\ref{ROMA3}}$, F.Pierre${}^{\ref{SACLAY}}$, M.Pimenta${}^{\ref{LIP}}$, E.Piotto${}^{\ref{CERN}}$, T.Podobnik${}^{\ref{SLOVENIJA1},\ref{SLOVENIJA3}}$, V.Poireau${}^{\ref{CERN}}$, M.E.Pol${}^{\ref{BRASIL-CBPF}}$, G.Polok${}^{\ref{KRAKOW1}}$, V.Pozdniakov${}^{\ref{JINR}}$, N.Pukhaeva${}^{\ref{JINR}}$, A.Pullia${}^{\ref{MILANO2}}$, J.Rames${}^{\ref{FZU}}$, A.Read${}^{\ref{OSLO}}$, P.Rebecchi${}^{\ref{CERN}}$, J.Rehn${}^{\ref{KARLSRUHE}}$, D.Reid${}^{\ref{NIKHEF}}$, R.Reinhardt${}^{\ref{WUPPERTAL}}$, P.Renton${}^{\ref{OXFORD}}$, F.Richard${}^{\ref{LAL}}$, J.Ridky${}^{\ref{FZU}}$, M.Rivero${}^{\ref{SANTANDER}}$, D.Rodriguez${}^{\ref{SANTANDER}}$, A.Romero${}^{\ref{TORINO}}$, P.Ronchese${}^{\ref{PADOVA}}$, P.Roudeau${}^{\ref{LAL}}$, T.Rovelli${}^{\ref{BOLOGNA}}$, V.Ruhlmann-Kleider${}^{\ref{SACLAY}}$, D.Ryabtchikov${}^{\ref{SERPUKHOV}}$, A.Sadovsky${}^{\ref{JINR}}$, L.Salmi${}^{\ref{HELSINKI}}$, J.Salt${}^{\ref{VALENCIA}}$, C.Sander${}^{\ref{KARLSRUHE}}$, A.Savoy-Navarro${}^{\ref{LPNHE}}$, U.Schwickerath${}^{\ref{CERN}}$, R.Sekulin${}^{\ref{RAL}}$, M.Siebel${}^{\ref{WUPPERTAL}}$, A.Sisakian${}^{\ref{JINR}}$, G.Smadja${}^{\ref{LYON}}$, O.Smirnova${}^{\ref{LUND}}$, A.Sokolov${}^{\ref{SERPUKHOV}}$, A.Sopczak${}^{\ref{LANCASTER}}$, R.Sosnowski${}^{\ref{WARSZAWA}}$, T.Spassov${}^{\ref{CERN}}$, M.Stanitzki${}^{\ref{KARLSRUHE}}$, A.Stocchi${}^{\ref{LAL}}$, J.Strauss${}^{\ref{VIENNA}}$, B.Stugu${}^{\ref{BERGEN}}$, M.Szczekowski${}^{\ref{WARSZAWA}}$, M.Szeptycka${}^{\ref{WARSZAWA}}$, T.Szumlak${}^{\ref{KRAKOW2}}$, T.Tabarelli${}^{\ref{MILANO2}}$, A.C.Taffard${}^{\ref{LIVERPOOL}}$, F.Tegenfeldt${}^{\ref{UPPSALA}}$, J.Timmermans${}^{\ref{NIKHEF}}$, L.Tkatchev${}^{\ref{JINR}}$, M.Tobin${}^{\ref{LIVERPOOL}}$, S.Todorovova${}^{\ref{FZU}}$, B.Tome${}^{\ref{LIP}}$, A.Tonazzo${}^{\ref{MILANO2}}$, P.Tortosa${}^{\ref{VALENCIA}}$, P.Travnicek${}^{\ref{FZU}}$, D.Treille${}^{\ref{CERN}}$, G.Tristram${}^{\ref{CDF}}$, M.Trochimczuk${}^{\ref{WARSZAWA}}$, C.Troncon${}^{\ref{MILANO}}$, M-L.Turluer${}^{\ref{SACLAY}}$, I.A.Tyapkin${}^{\ref{JINR}}$, P.Tyapkin${}^{\ref{JINR}}$, S.Tzamarias${}^{\ref{DEMOKRITOS}}$, V.Uvarov${}^{\ref{SERPUKHOV}}$, G.Valenti${}^{\ref{BOLOGNA}}$, P.Van Dam${}^{\ref{NIKHEF}}$, J.Van Eldik${}^{\ref{CERN}}$, N.van Remortel${}^{\ref{HELSINKI}}$, I.Van Vulpen${}^{\ref{CERN}}$, G.Vegni${}^{\ref{MILANO}}$, F.Veloso${}^{\ref{LIP}}$, W.Venus${}^{\ref{RAL}}$, P.Verdier${}^{\ref{LYON}}$, V.Verzi${}^{\ref{ROMA2}}$, D.Vilanova${}^{\ref{SACLAY}}$, L.Vitale${}^{\ref{TRIESTE}}$, V.Vrba${}^{\ref{FZU}}$, H.Wahlen${}^{\ref{WUPPERTAL}}$, A.J.Washbrook${}^{\ref{LIVERPOOL}}$, C.Weiser${}^{\ref{KARLSRUHE}}$, D.Wicke${}^{\ref{CERN}}$, J.Wickens${}^{\ref{BRUSSELS}}$, G.Wilkinson${}^{\ref{OXFORD}}$, M.Winter${}^{\ref{CRN}}$, M.Witek${}^{\ref{KRAKOW1}}$, O.Yushchenko${}^{\ref{SERPUKHOV}}$, A.Zalewska${}^{\ref{KRAKOW1}}$, P.Zalewski${}^{\ref{WARSZAWA}}$, D.Zavrtanik${}^{\ref{SLOVENIJA2}}$, V.Zhuravlov${}^{\ref{JINR}}$, N.I.Zimin${}^{\ref{JINR}}$, A.Zintchenko${}^{\ref{JINR}}$, M.Zupan${}^{\ref{DEMOKRITOS}}$

11footnotetext: Department of Physics and Astronomy, Iowa State University, Ames IA 50011-3160, USA 22footnotetext: IIHE, ULB-VUB, Pleinlaan 2, B-1050 Brussels, Belgium 33footnotetext: Physics Laboratory, University of Athens, Solonos Str. 104, GR-10680 Athens, Greece 44footnotetext: Department of Physics, University of Bergen, Allégaten 55, NO-5007 Bergen, Norway 55footnotetext: Dipartimento di Fisica, Università di Bologna and INFN, Via Irnerio 46, IT-40126 Bologna, Italy 66footnotetext: Centro Brasileiro de Pesquisas Físicas, rua Xavier Sigaud 150, BR-22290 Rio de Janeiro, Brazil 77footnotetext: Inst. de Física, Univ. Estadual do Rio de Janeiro, rua São Francisco Xavier 524, Rio de Janeiro, Brazil 88footnotetext: Collège de France, Lab. de Physique Corpusculaire, IN2P3-CNRS, FR-75231 Paris Cedex 05, France 99footnotetext: CERN, CH-1211 Geneva 23, Switzerland 1010footnotetext: Institut de Recherches Subatomiques, IN2P3 - CNRS/ULP - BP20, FR-67037 Strasbourg Cedex, France 1111footnotetext: Now at DESY-Zeuthen, Platanenallee 6, D-15735 Zeuthen, Germany 1212footnotetext: Institute of Nuclear Physics, N.C.S.R. Demokritos, P.O. Box 60228, GR-15310 Athens, Greece 1313footnotetext: FZU, Inst. of Phys. of the C.A.S. High Energy Physics Division, Na Slovance 2, CZ-180 40, Praha 8, Czech Republic 1414footnotetext: Dipartimento di Fisica, Università di Genova and INFN, Via Dodecaneso 33, IT-16146 Genova, Italy 1515footnotetext: Institut des Sciences Nucléaires, IN2P3-CNRS, Université de Grenoble 1, FR-38026 Grenoble Cedex, France 1616footnotetext: Helsinki Institute of Physics and Department of Physical Sciences, P.O. Box 64, FIN-00014 University of Helsinki,   Finland 1717footnotetext: Joint Institute for Nuclear Research, Dubna, Head Post Office, P.O. Box 79, RU-101 000 Moscow, Russian Federation 1818footnotetext: Institut für Experimentelle Kernphysik, Universität Karlsruhe, Postfach 6980, DE-76128 Karlsruhe, Germany 1919footnotetext: Institute of Nuclear Physics PAN,Ul. Radzikowskiego 152, PL-31142 Krakow, Poland 2020footnotetext: Faculty of Physics and Nuclear Techniques, University of Mining and Metallurgy, PL-30055 Krakow, Poland 2121footnotetext: Université de Paris-Sud, Lab. de l’Accélérateur Linéaire, IN2P3-CNRS, Bât. 200, FR-91405 Orsay Cedex, France 2222footnotetext: School of Physics and Chemistry, University of Lancaster, Lancaster LA1 4YB, UK 2323footnotetext: LIP, IST, FCUL - Av. Elias Garcia, 14-$1^{o}$, PT-1000 Lisboa Codex, Portugal 2424footnotetext: Department of Physics, University of Liverpool, P.O. Box 147, Liverpool L69 3BX, UK 2525footnotetext: Dept. of Physics and Astronomy, Kelvin Building, University of Glasgow, Glasgow G12 8QQ 2626footnotetext: LPNHE, IN2P3-CNRS, Univ. Paris VI et VII, Tour 33 (RdC), 4 place Jussieu, FR-75252 Paris Cedex 05, France 2727footnotetext: Department of Physics, University of Lund, Sölvegatan 14, SE-223 63 Lund, Sweden 2828footnotetext: Université Claude Bernard de Lyon, IPNL, IN2P3-CNRS, FR-69622 Villeurbanne Cedex, France 2929footnotetext: Dipartimento di Fisica, Università di Milano and INFN-MILANO, Via Celoria 16, IT-20133 Milan, Italy 3030footnotetext: Dipartimento di Fisica, Univ. di Milano-Bicocca and INFN-MILANO, Piazza della Scienza 3, IT-20126 Milan, Italy 3131footnotetext: IPNP of MFF, Charles Univ., Areal MFF, V Holesovickach 2, CZ-180 00, Praha 8, Czech Republic 3232footnotetext: NIKHEF, Postbus 41882, NL-1009 DB Amsterdam, The Netherlands 3333footnotetext: National Technical University, Physics Department, Zografou Campus, GR-15773 Athens, Greece 3434footnotetext: Physics Department, University of Oslo, Blindern, NO-0316 Oslo, Norway 3535footnotetext: Dpto. Fisica, Univ. Oviedo, Avda. Calvo Sotelo s/n, ES-33007 Oviedo, Spain 3636footnotetext: Department of Physics, University of Oxford, Keble Road, Oxford OX1 3RH, UK 3737footnotetext: Dipartimento di Fisica, Università di Padova and INFN, Via Marzolo 8, IT-35131 Padua, Italy 3838footnotetext: Rutherford Appleton Laboratory, Chilton, Didcot OX11 OQX, UK 3939footnotetext: Dipartimento di Fisica, Università di Roma II and INFN, Tor Vergata, IT-00173 Rome, Italy 4040footnotetext: Dipartimento di Fisica, Università di Roma III and INFN, Via della Vasca Navale 84, IT-00146 Rome, Italy 4141footnotetext: DAPNIA/Service de Physique des Particules, CEA-Saclay, FR-91191 Gif-sur-Yvette Cedex, France 4242footnotetext: Instituto de Fisica de Cantabria (CSIC-UC), Avda. los Castros s/n, ES-39006 Santander, Spain 4343footnotetext: Inst. for High Energy Physics, Serpukov P.O. Box 35, Protvino, (Moscow Region), Russian Federation 4444footnotetext: J. Stefan Institute, Jamova 39, SI-1000 Ljubljana, Slovenia 4545footnotetext: Laboratory for Astroparticle Physics, University of Nova Gorica, Kostanjeviska 16a, SI-5000 Nova Gorica, Slovenia 4646footnotetext: Department of Physics, University of Ljubljana, SI-1000 Ljubljana, Slovenia 4747footnotetext: Fysikum, Stockholm University, Box 6730, SE-113 85 Stockholm, Sweden 4848footnotetext: Dipartimento di Fisica Sperimentale, Università di Torino and INFN, Via P. Giuria 1, IT-10125 Turin, Italy 4949footnotetext: INFN,Sezione di Torino and Dipartimento di Fisica Teorica, Università di Torino, Via Giuria 1, IT-10125 Turin, Italy 5050footnotetext: Dipartimento di Fisica, Università di Trieste and INFN, Via A. Valerio 2, IT-34127 Trieste, Italy 5151footnotetext: Istituto di Fisica, Università di Udine and INFN, IT-33100 Udine, Italy 5252footnotetext: Univ. Federal do Rio de Janeiro, C.P. 68528 Cidade Univ., Ilha do Fundão BR-21945-970 Rio de Janeiro, Brazil 5353footnotetext: Department of Radiation Sciences, University of Uppsala, P.O. Box 535, SE-751 21 Uppsala, Sweden 5454footnotetext: IFIC, Valencia-CSIC, and D.F.A.M.N., U. de Valencia, Avda. Dr. Moliner 50, ES-46100 Burjassot (Valencia), Spain 5555footnotetext: Institut für Hochenergiephysik, Österr. Akad. d. Wissensch., Nikolsdorfergasse 18, AT-1050 Vienna, Austria 5656footnotetext: Inst. Nuclear Studies and University of Warsaw, Ul. Hoza 69, PL-00681 Warsaw, Poland 5757footnotetext: Now at University of Warwick, Coventry CV4 7AL, UK 5858footnotetext: Fachbereich Physik, University of Wuppertal, Postfach 100 127, DE-42097 Wuppertal, Germany

† deceased

1 Introduction

The space-time development of a hadronic system is still poorly understood, and models are necessary to transform a partonic system, governed by perturbative QCD, to final state hadrons observed in the detectors.

WW events produced in $e^{+}e^{-}$ collisions at LEP-2 constitute a unique laboratory to study and test the evolution of such hadronic systems, because of the clean environment and the well-defined initial energy in the process. Of particular interest is the possibility to study separately one single evolving hadronic system (one of the W bosons decaying semi-leptonically, the other decaying hadronically), and compare it with two hadronic systems evolving at the same time (both W bosons decaying hadronically).

Interconnection effects between the products of the hadronic decays of the two W bosons (in the same event) are expected since the lifetime of the W bosons ($\tau_{{\mathrm{W}}}\simeq\hbar/\Gamma_{{\mathrm{W}}}\simeq 0.1$ fm/c) is an order of magnitude smaller than the typical hadronization times. These effects can happen at two levels:

• •

in the evolution of the parton shower, between partons from different hadronic systems by exchanging coloured gluons [1] (this effect is called Colour Reconnection (CR) for historical reasons);

• •

between the final state hadrons, due to quantum-mechanical interference, mainly due to Bose-Einstein Correlations (BEC) between identical bosons (e.g. pions with the same charge).

A detailed study by DELPHI of this second effect was recently published [2].

The first effect, the possible presence of colour flow between the two W hadronization systems, is the topic studied in this paper. This effect is worthy of study in its own right and for the possible effects induced on the W mass measurement in fully hadronic events (see for instance [3] for an introduction and [4] for an experimental review).

The effects at the perturbative level are expected to be small [3], whereas they may be large at the hadronization level (many soft gluons sharing the space-time) for which models have to be used to compare with the data.

The most tested model is the Sjöstrand-Khoze “Type 1” CR model SK-I [5]. This model of CR is based on the Lund string fragmentation phenomenology. The strings are considered as colour flux tubes with some volume, and reconnection occurs when these tubes overlap. The probability of reconnection in an event is parameterised by the value $\kappa$, set globally by the user, according to the space-time volume overlap of the two strings, $V_{\mathrm{overlap}}\,$:

[TABLE]

The parameter $\kappa$ was introduced in the SK-I model to allow a variation of the percentage of reconnected events and facilitate studies of sensitivity to the effect. In this model only one string reconnection per event was allowed. The authors of the model propose the value of $\kappa=0.66$ to give similar amounts of reconnection as other models of Colour Reconnection. By comparing the data with the model predictions evaluated at several $\kappa$ values, it is possible to determine the value of $\kappa$ most consistent with the data and extract the corresponding reconnection probability. Another model was proposed by the same authors, considering the colour flux tubes as infinitely thin, which allows for Colour Reconnection in the case the tubes cross each other and provided the total string length is reduced (SK-II′). This last model was not tested.

Two further models are tested here, these are the models implemented in HERWIG [6] and ARIADNE [7] Monte Carlo programs. In HERWIG the partons are reconnected, with a reconnection probability of 1/9, if the reconnection results in a smaller total cluster mass. In ARIADNE, which implements an adapted version of the Gustafson-Häkkinen model [8], the model used [9] allows for reconnections between partons originating in the same W boson, or from different W bosons if they have an energy smaller than the width of the W boson (this model will be referred as ‘AR-2’).

Colour Reconnection has been previously investigated in DELPHI by comparing inclusive distributions of charged particles, such as the charged-particle multiplicity distribution or the production of identified (heavy) particles, in fully hadronic WW events and the distributions in semi-leptonic WW events. The investigations did not show any effect as they were limited by statistical and systematic errors and excluded only the most extreme models of CR (see [10]).

This article presents the results of the investigations of Colour Reconnection effects in hadronically decaying W pairs using two techniques. The first, proposed by L3 in [11], looks at the particle flow between the jets in a 4-jet WW event. The second, proposed by DELPHI in [12], takes into account the different sensitivity to Colour Reconnection of several W mass estimators. The first technique is more independent of the model and it can provide comparisons based on data. The second technique is more dependent on the model tested, but has a much larger sensitivity to the models SK-I and HERWIG. Since the particle flow and W mass estimator methods were found to be largely uncorrelated a combination of the results of these two methods is provided.

The paper is organised as follows. In the next section, the LEP operation and the components of the DELPHI detector relevant to the analyses are briefly described. In section 3 data and simulation samples are explained. Then both of the analysis methods discussed above are described and their results presented in sections 4 and 5. The combination of the results is given in section 6 and conclusions are drawn in the seventh and final section.

2 LEP Operation and Detector Description

At LEP-2, the second phase of the ${\mathrm{e^{+}e^{-}}}$ collider at CERN, the accelerator was operated at centre-of-mass energies above the threshold for double W boson production from 1996 to 2000. In this period, the DELPHI experiment collected about 12000 WW events corresponding to a total integrated luminosity of 661 pb*-1*. About 46% of the WW events are WW $\rightarrow{\mathrm{q_{1}\bar{q}_{2}q_{3}\bar{q}_{4}}}$ events (fully hadronic), and 44% are WW $\rightarrow{\mathrm{q_{1}\bar{q}_{2}\ell\bar{\nu}}}$, where $\ell$ is a lepton (semi-leptonic).

The detailed description of the DELPHI detector and its performance is provided in [13, 14]. A brief summary of the main characteristics of the detector important for the analyses follows.

The tracking system of DELPHI consisted of a Time Projection Chamber (TPC), the main tracking device of DELPHI, and was complemented by a Vertex Detector (VD) closest to the beam pipe, the Inner and the Outer Detectors in the barrel region, and two Forward Chambers in the end caps. It was embedded in a 1.2 T magnetic field, aligned parallel to the beam axis.

The electromagnetic calorimeter consisted of the High density Projection Chamber (HPC) in the barrel region, the Forward Electromagnetic Calorimeter (FEMC) and the Small angle Tile Calorimeter (STIC) in the forward regions, complemented by detectors to tag the passage of electron-positron pairs from photons converted in the regions between the FEMC and the HPC. The total depths of the calorimeters corresponded to about 18 radiation lengths. The hadronic calorimeter was composed of instrumented iron with a total depth along the shortest trajectory for a neutral particle of 6 interaction lengths, and covered 98% of the total solid angle. Embedded in the hadronic calorimeter were two planes of muon drift chambers to tag the passage of muons. The whole detector was surrounded by a further double plane of staggered muon drift chambers.

For LEP-2, the DELPHI detector was upgraded as described in the following.

Changes were made to some of the subdetectors, the trigger system [15], the run control and the algorithms used in the offline reconstruction of tracks, which improved the performance compared to the earlier LEP-1 period.

The major changes were the extensions of the Vertex Detector (VD) and the Inner Detector (ID), and the inclusion of the Very Forward Tracker (VFT) [16], which increased the coverage of the silicon tracker to polar angles with respect to the $z$-axis111The DELPHI coordinate system is a right-handed system with the $z$-axis collinear with the incoming electron beam, and the $x$ axis pointing to the centre of the LEP accelerator. of $11{{}^{\circ}}<\theta<169{{}^{\circ}}$. To further improve the track reconstruction efficiency in the forward regions of DELPHI, the tracking algorithms and the alignment and calibration procedures were optimised for LEP-2.

Changes were also made to the electronics of the trigger and timing system which improved the stability of the running during data taking. The trigger conditions were optimised for LEP-2 running, to give high efficiency for 2- and 4-fermion processes in the Standard Model and also to give sensitivity to events which may have been signatures of new physics. In addition, improvements were made to the operation of the detector during the LEP operating states, to prepare the detector for data taking at the very start of stable collisions of the ${\mathrm{e^{+}e^{-}}}$ beams, and to respond to adverse background from LEP when it arose. These changes led to an overall improvement in the efficiency for collecting the delivered luminosity from about $85\%$ in 1995, before the start of LEP-2, to about $95\%$ at the end in 2000.

During the operation of the DELPHI detector in 2000 one of the 12 sectors of the central tracking chamber, the TPC, failed. After $1^{\mathrm{st}}$ September it was not possible to detect the tracks left by charged particles inside the broken sector. The data affected corresponds to around $1/4$ of the data collected in 2000. Nevertheless, the redundancy of the tracking system of DELPHI meant that tracks passing through the sector could still be reconstructed from signals in any of the other tracking detectors. As a result, the track reconstruction efficiency was only slightly reduced in the region covered by the broken sector, but the track parameter resolutions were degraded compared with the data taken prior to the failure of this sector.

3 Data and Simulation Samples

The analyses presented here use the data collected by DELPHI in the years 1997 to 2000, at centre-of-mass energies $\sqrt{s}$ between 183 and 209 GeV. The data collected in the year 2000 with the TPC working in full, with centre-of-mass energies from 200 to 208 GeV and a integrated luminosity weighted average centre-of-mass energy of 206 GeV, were analysed together. Data acquired with the TPC with a broken sector, corresponding to a integrated luminosity weighted average centre-of-mass energy of 207 GeV, were analysed separately and included in the results presented here.

The total integrated luminosity of the data sample is 660.8 pb*-1*, and the integrated luminosity weighted average centre-of-mass energy of the data is 197.1 GeV.

To compare with the expected results from processes in the Standard Model including or not including CR, Monte Carlo (MC) simulation was used to generate events and simulate the response of the DELPHI detector. These events were reconstructed and analysed with the same programs as used for the real data.

The 4-fermion final states were generated with the code described in [17], based on WPHACT [18], for the WW signal (charged currents) and for the ZZ background (neutral currents), after which the events were fragmented with PYTHIA [19] tuned to DELPHI data [20]. The same WW events generated at 189, 200 and 206 GeV were also fragmented with PYTHIA implementing the SK-I model, with 100% reconnection probability. The systematic effects of fragmentation were studied using the above WW samples and WW samples generated with WPHACT and fragmented with either ARIADNE [7] or HERWIG [6] at 183, 189, 200 and 206 GeV. For systematic studies of Bose-Einstein Correlations (BEC), WW samples generated with WPHACT and fragmented with PYTHIA implementing the BE32 model [21] of BEC, were used at all energies, except at 207 GeV. The integrated luminosity of the simulated samples was at least 10 times that of the data of the corresponding year, and the majority corresponded to 100 times that of the data.

To test the consistency of the SK-I model and measure the $\kappa$ parameter, large WW samples were generated in an early stage of this work with EXCALIBUR [22] at 200 and 206 GeV, keeping only the fully hadronic decays. These samples were then fragmented with PYTHIA. It was verified for smaller subsets that the results using these large samples and the samples generated later with WPHACT are compatible.

The ${\mathrm{q}}\bar{\mathrm{q}}(\gamma)$ background events were generated at all energies with KK2f [23] and fragmented with PYTHIA. For systematic studies, similar KK2f samples fragmented with ARIADNE [7] were used at 183, 189, 200 and 206 GeV.

These samples will be referred to as “DELPHI samples”.

At 189 GeV, to compare with the other LEP experiments and with different CR models, 6 samples generated with KORALW [24] for the 4-fermion final states were also used. These samples 222produced by ALEPH after the LEP-W Physics Workshop in Cetraro, Italy, October 2001 will be referred to as “Cetraro samples”. The events in the different samples have the final state quarks generated with the same kinematics, and differ only in the parton shower evolution and fragmentation. Three samples were fragmented respectively with PYTHIA, ARIADNE and HERWIG (using the tuning of the ALEPH collaboration), with no CR implementation. Three other samples were fragmented in the same manner but now implementing several CR models: the SK-I model with 100% reconnection probability, the AR-2 model, and the HERWIG implementation of CR with $1/9$ of reconnected events, respectively.

4 The Particle Flow Method

The first of the two analyses presented in this paper is based on the so-called “particle flow method”. The particle flow algorithm is based on the selection of special event topologies, in order to obtain well defined regions between any two jets originating from the same W (called the Inside-W region) or from different Ws (called the Between-W region). It is expected that Colour Reconnection decreases (increases) particle production in the Inside-W (Between-W) region. Hence, by studying the particle production in the inter-jet regions it is possible to measure the effects of Colour Reconnection. However, this method requires a selection of events with a suitable topology (see below) which has a low efficiency ($\stackrel{{\scriptstyle<}}{{\sim}}$25%).

4.1 Event and Particle Selection

Events with both Ws decaying into $\mathrm{q_{1}\bar{q}_{2}}$ are characterised by high multiplicity, large visible energy, and the tendency of the particles to be grouped in 4 jets. The background is dominated by q$\bar{\mathrm{q}}(\gamma)$ events.

Charged particles were required to have momentum $p$ larger than 100 ${\mathrm{MeV/c}}$ and below 1.5 times the beam energy, a relative error on the momentum measurement $\Delta p/p<1$, and polar angle $\theta$ with respect to the beam axis between $20^{\circ}$ and 160∘. To remove tracks from secondary interactions, the distance of closest approach of the extrapolated track to the interaction point was required to be less than 4 cm in the plane perpendicular to the beam axis and less than 4/$\sin\theta$ cm along the beam axis, and the reconstructed track length was required to be larger than 30 cm.

Clusters in the electromagnetic or hadronic calorimeters with energy larger than 0.5 GeV and polar angle in the interval $10^{\circ}<\theta<170^{\circ}$, not associated to charged particles, were considered as neutral particles.

The events were pre-selected by requiring at least 12 charged particles, with a sum of the modulus of the momentum transverse to the beam axis, of charged and neutral particles, above 20% of the centre-of-mass energy. These cuts reduced the contributions from gamma-gamma processes and beam-gas interactions to a negligible amount. The momentum distribution of the charged particles for the pre-selected events is shown in Figure 1 and compared to the expected distribution from the simulation. A good agreement between data and simulation is observed.

About half of the ${{\mathrm{e^{+}e^{-}}}{\rightarrow}\mathrm{q{\bar{q}}(\gamma)}}$ events at high-energy are associated with an energetic photon emitted by one of the beam electrons or positrons (radiative return events), thus reducing the energy available in the hadronic system to the ${\mathrm{Z}}$ mass. To remove these radiative return events, the effective centre-of-mass energy $\sqrt{s^{\prime}}$, computed as described in [25], was required to be above 110 ${\mathrm{GeV}}$. It was verified that this cut does not affect the signal from W pairs, but reduces significantly the contribution from the q$\bar{\mathrm{q}}(\gamma)$ process.

In the WW fully hadronic decays four well separated energetic jets are expected which balance the momentum of the event and have a total energy near to the centre-of-mass energy. The charged and neutral particles in the event were thus clustered using the DURHAM algorithm [26], for a separation value of $y_{\mathrm{cut}}=0.005$, and the events were kept if there were 4 and only 4 jets and a multiplicity (charged plus neutral) in each jet larger than 3. The combination of these two cuts removed most of the semi-leptonic WW decays and the 2-jet and 3-jet events of the q$\bar{\mathrm{q}}(\gamma)$ background. The charged-particle multiplicity distribution for the selected events at 189 GeV is given in Figure 2, with data points compared to the histogram from simulation of signal and background processes.

For the study of the charged-particle flow between jets, the initial quark configuration should be well reconstructed with a good quark-jet association. At 183 GeV and above, the produced W bosons are significantly boosted. This produces smaller angles in the laboratory frame of reference between the jets into which the W decays, when compared to these angles at threshold (back-to-back). Hence, this property tends to reduce the ambiguity in the definition of the Between-W and Inside-W regions. The selection criteria were designed in order to minimize the situation of one jet from one W boson appearing in the Inside-W region of the other W boson.

The selection criteria are based on the event topology, with cuts in 4 of the 6 jet-jet angles. The smallest and the second smallest jet-jet angle should be below 100∘ and not adjacent (not have a common jet). Two other jet-jet angles should be between 100∘ and 140∘ and not adjacent (large angles).

In the case that there are two different combinations of jets satisfying the above criteria for the large angles, the combination with the highest sum of large angles is chosen. This selection increases the probability to have a correct pairing of jets to the same W boson.

The integrated luminosity, the efficiency to select 4-jet WW events and the purity of the selected data samples, estimated using simulation, and the number of selected events are summarised for each centre-of-mass energy in Table 1. The numbers of expected events are also given separately for the signal and the background processes, and were estimated using simulation. The efficiency to select the correct pairing of jets to the same W boson, estimated with simulation as the fraction of WW events for which the selected jets 1 and 2 (see later) correspond indeed to the same W boson, is given in the last column of the Table.

The efficiency of the event selection criteria decreases with increasing centre-of-mass energy. This is primarily due to the ‘large’ angles being reduced as a result of the increased boost (becoming lower than the cut value of $100^{\circ}$) and ‘small’ angles being increased due to the larger phase-space available (becoming higher than the cut value of $100^{\circ}$). Much for the same reason, the efficiency to assign two jets to the same W boson in the selected events increases slightly with increasing centre-of-mass energy, in opposition to what would happen at threshold with the W boson decaying into two back-to-back jets, that would never be selected to come from the same W boson by the requirement that their interjet angle should be between $100^{\circ}$ and $140^{\circ}$.

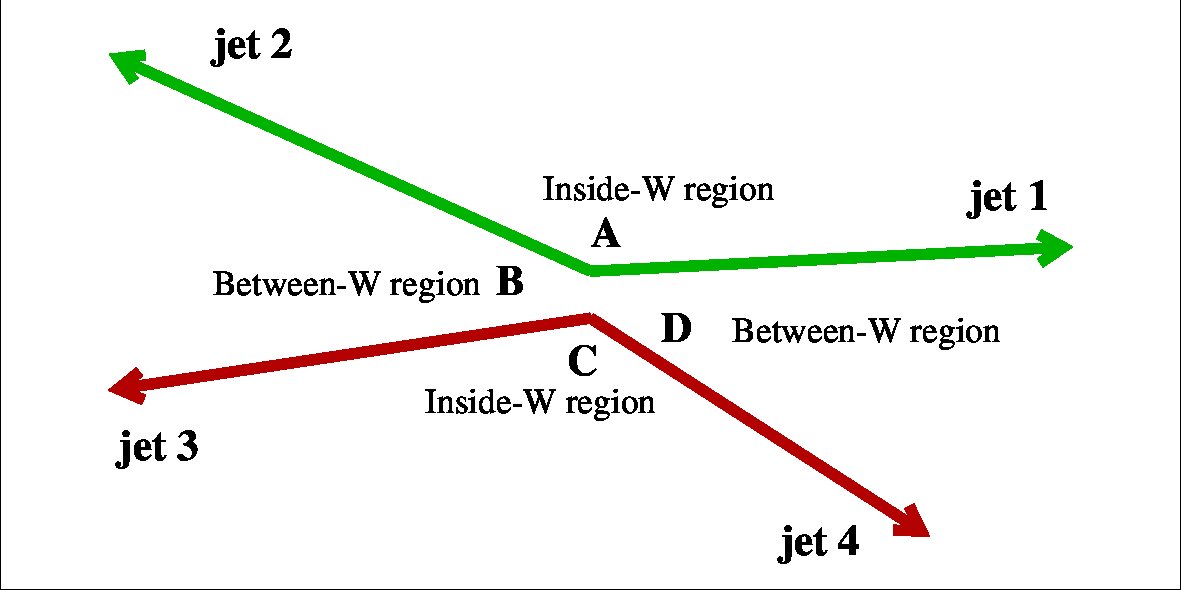

In the following analysis the jets and planar regions are labeled as shown in Figure 3: the planar region corresponding to the smallest jet-jet angle is region B in the plane made by jets 2 and 3; the second smallest jet-jet angle corresponds to the planar region D between jets 1 and 4 in the plane made by these two jets; the planar region corresponding to the greatest of the large jet-jet angles in this combination is region A and spans the angle between jets 1 and 2 in the plane made by these jets; and finally region C corresponds to the planar region spanned by the second large angle, between jets 3 and 4 in the plane made by these two jets. In general, the planar regions are not in the same plane, as the decay planes of the W bosons do not coincide, and the large angles in this combination are not necessarily the largest jet-jet angles in the event.

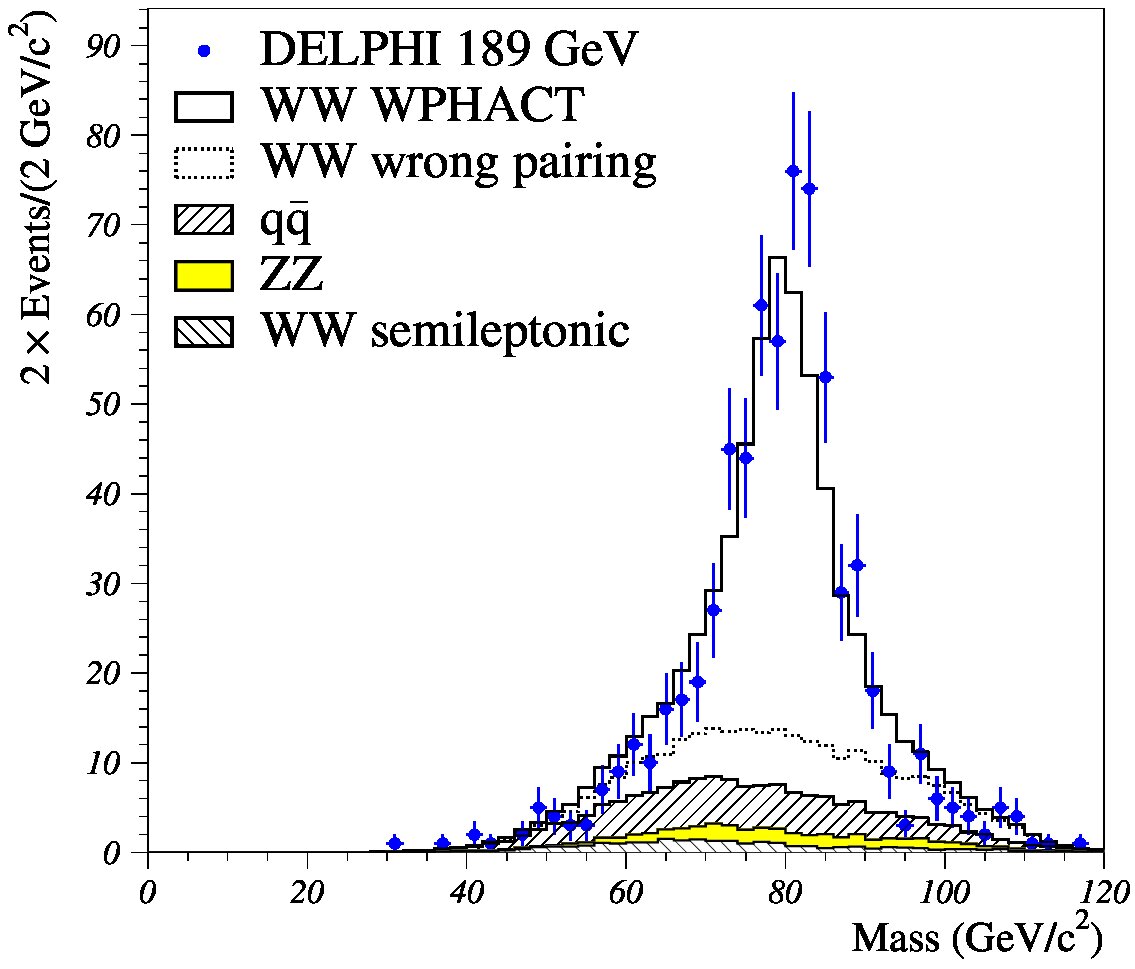

The distribution of the reconstructed masses of the jet pairings (1,2) and (3,4), after applying a 4C kinematic fit requiring energy and momentum conservation, is shown in Figure 4 (two entries per event). In the figure, data at 189 GeV (points) are compared to the expected distribution from the 4-jet WW signal without CR, plus background processes, estimated using the simulation (histograms). The contribution from the 4-jet WW signal simulation is split between the case in which the two pairs of jets making the large angles actually come from their parent W bosons and the case in which the jets of a pair come from different W bosons (mismatch).

4.2 Particle Flow Distribution

The particle flow analysis uses the number of particles in the Inside-W and the Between-W regions. An angular ordering of the jets is performed as in Figure 3. The two large jet-jet angles in the event are used to define the Inside-W regions, and the two smallest angles span the Between-W regions, the regions between the different Ws.

In general, the two W bosons will not decay in the same plane, and this must be accounted for when comparing the particle production in the Inside-W and Between-W regions. So, for each region (A, B, C and D) the particle momenta of all charged particles are projected onto the plane spanned by the jets of that region: jets 1 and 2 for region A; jets 2 and 3 for region B; jets 3 and 4 for region C; jets 4 and 1 for region D. Then, for each particle the rescaled angle $\Phi_{\mathrm{rescaled}}$ is determined as a ratio of two angles:

[TABLE]

when the particle momentum is projected onto the plane of the region $r$. The angle $\Phi_{i}$ is then the angle between the projected particle momentum and the first mentioned jet in the definition of the regions given above. The angle $\Phi_{r}$ is the full opening angle between the jets. Hence $\Phi_{\mathrm{rescaled}}$ varies between 0 and 1 for the particles whose momenta are projected between the pair of jets defining the plane.

However, due to the aplanarity of the event about 9% of the particles in the data and in the 4-jet WW simulation have projected angles outside all four regions. These particles were discarded from further analysis. In the case where a particle could be projected onto more than one region, with $0<\Phi_{\mathrm{rescaled}}<1$, the solution with the lower momentum transverse to the region was used. This happened for about 13% of the particles in data, after background subtraction, and in the 4-jet WW simulation.

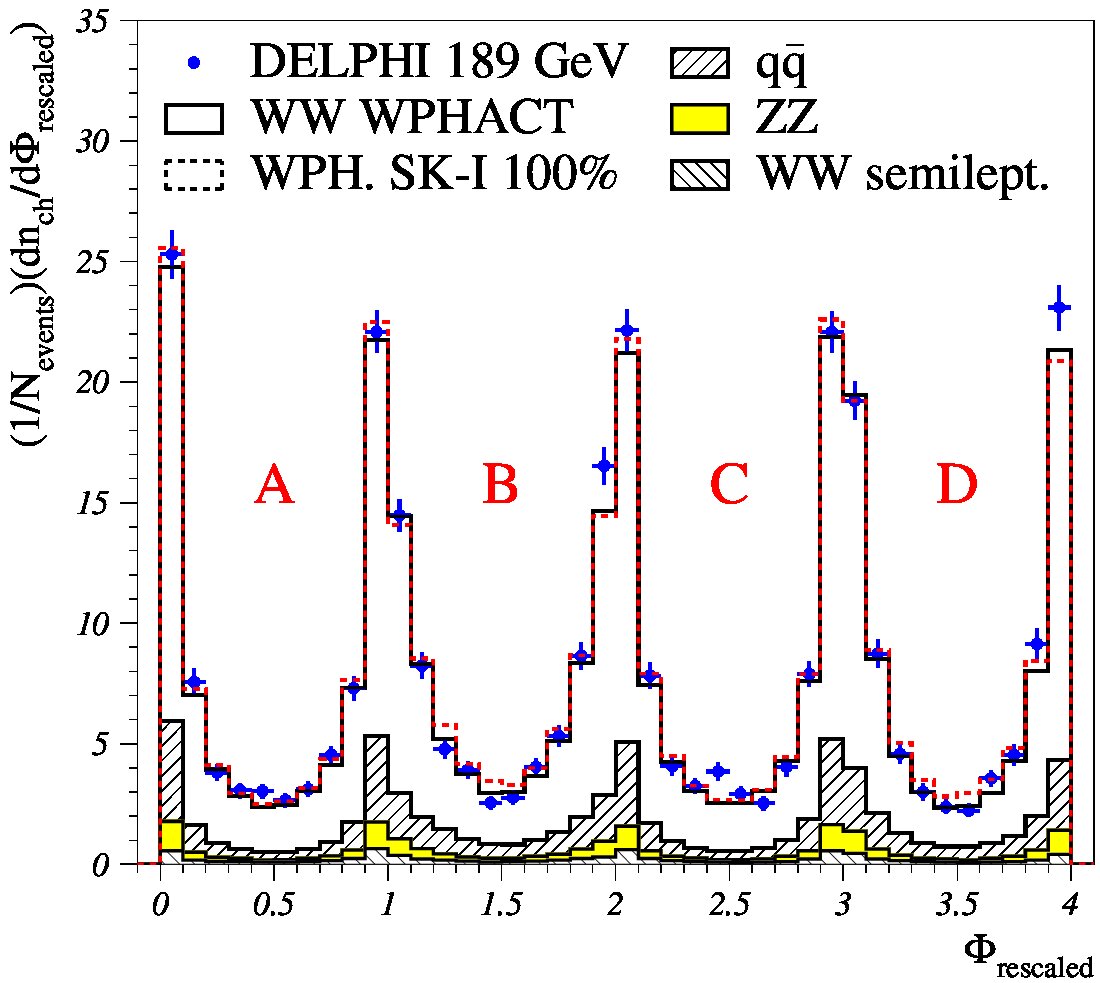

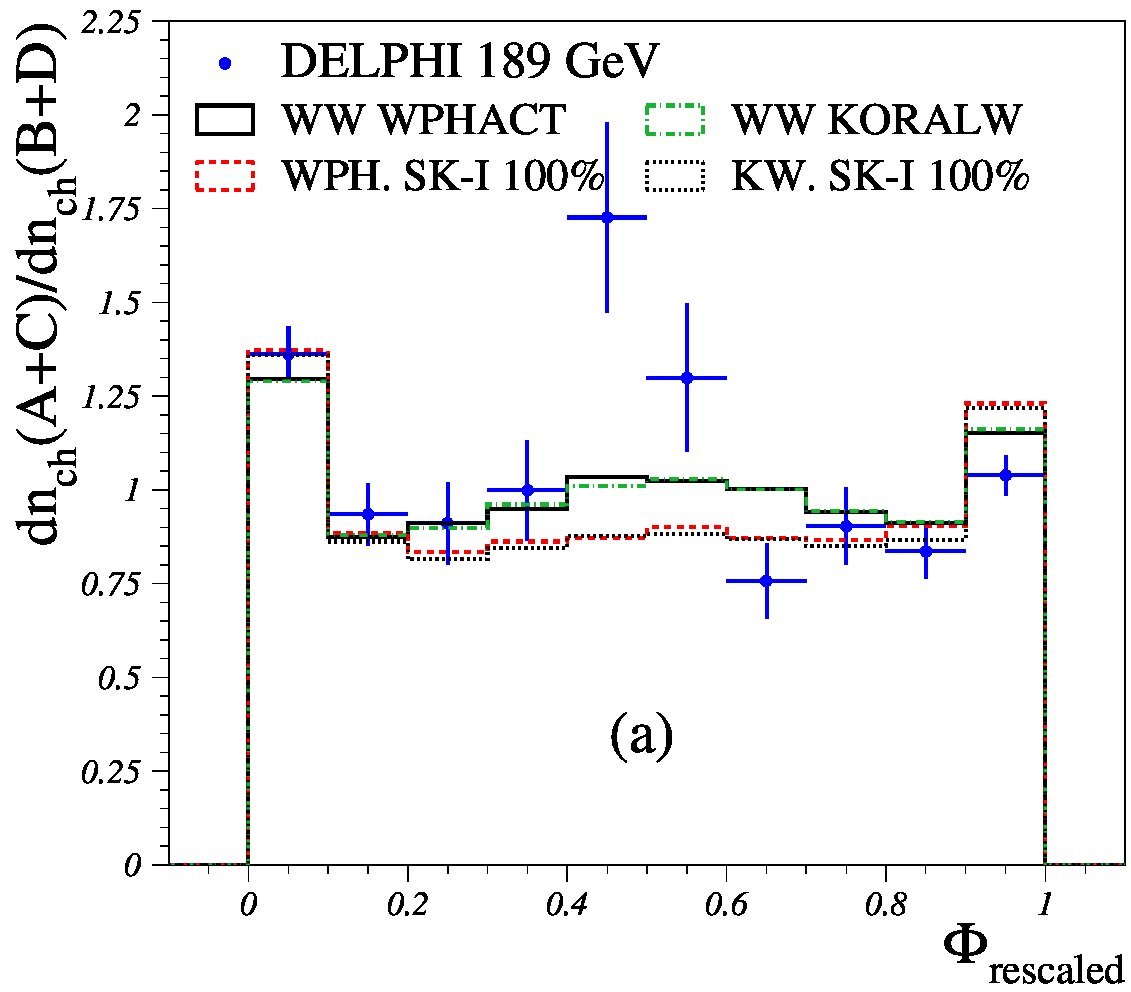

This leads to the normalised particle flow distribution shown in Figure 5 at 189 GeV, where the rescaled angle of region A is plotted from 0 to 1, region B from 1 to 2, region C from 2 to 3 and region D from 3 to 4. The statistical error on the bin contents (the average multiplicity per bin of $\Phi_{\mathrm{rescaled}}$ divided by the bin width) was estimated using the Jackknife method [27], to correctly account for correlations between different bins. In this distribution the regions between the jets coming from the same W bosons (A and C), and from different W bosons (B and D), have the same scale and thus can be easily compared.

After subtracting bin-by-bin the expected background from the observed distributions, we define the Inside-W (Between-W) particle flow as the bin-by-bin sum of regions A and C (B and D). These distributions are compared by performing the bin-by-bin ratio of the Inside-W particle flow to the Between-W particle flow. This ratio of distributions is shown for 189 GeV and 206 GeV in Figure 6. The data points are compared to several fully simulated WW MC samples with and without CR.

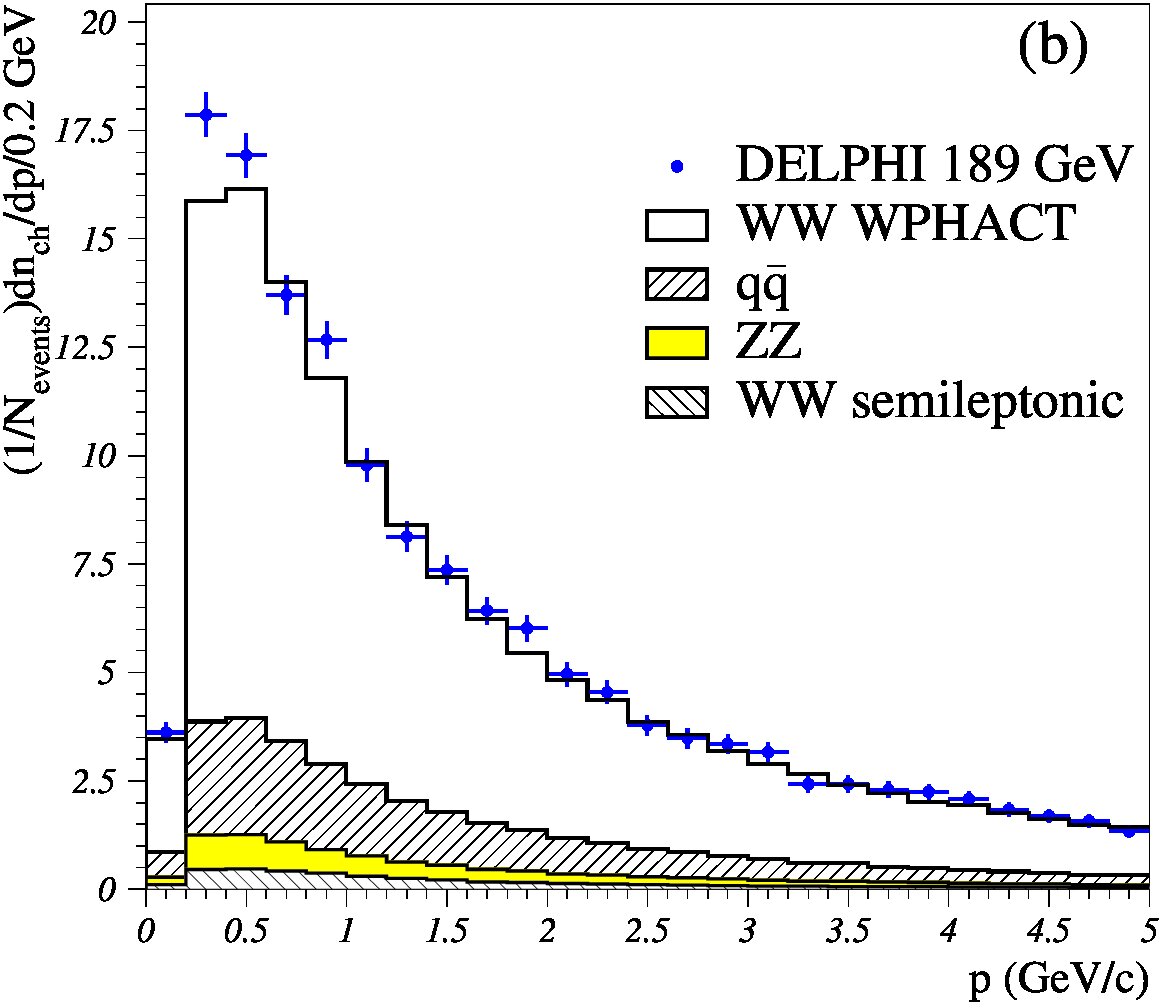

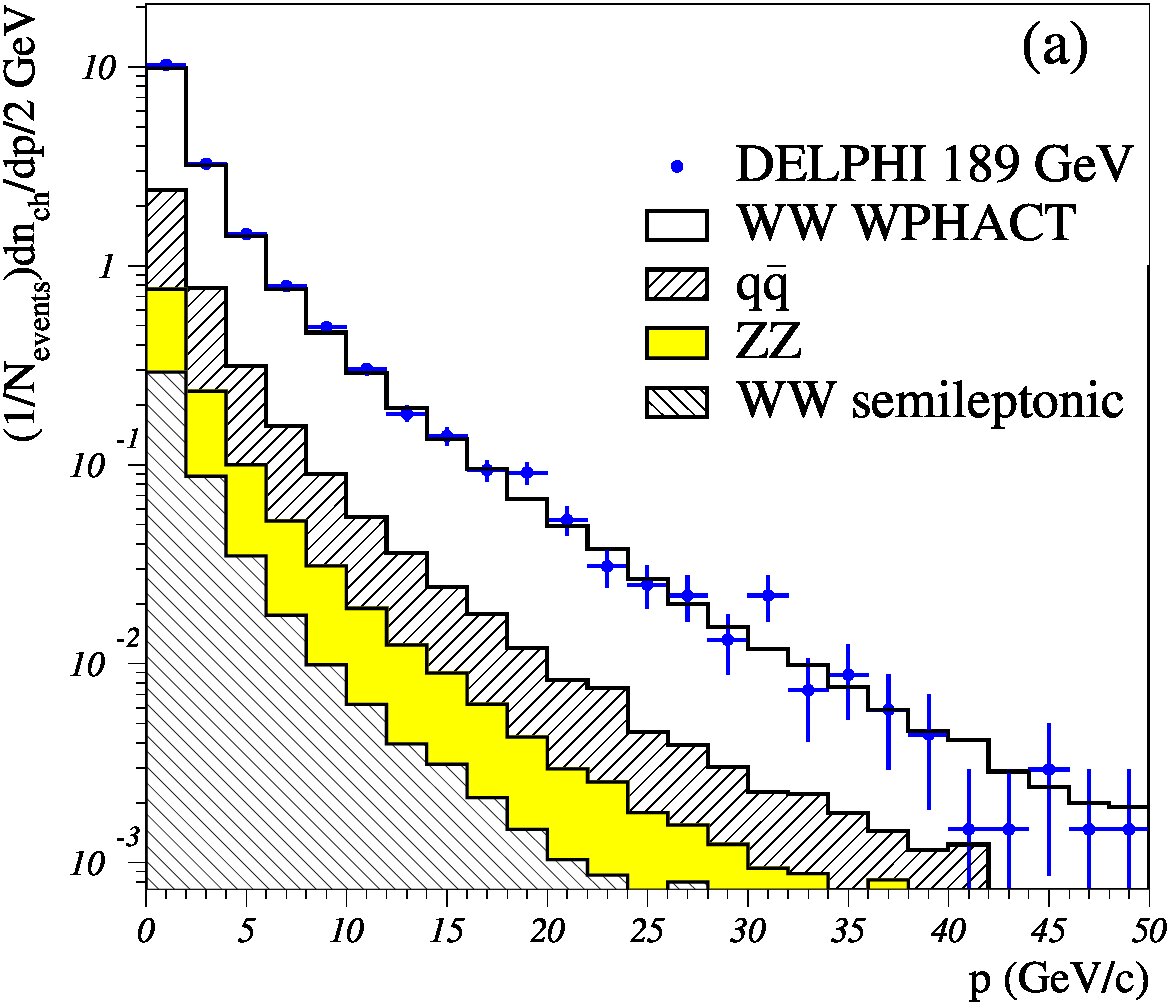

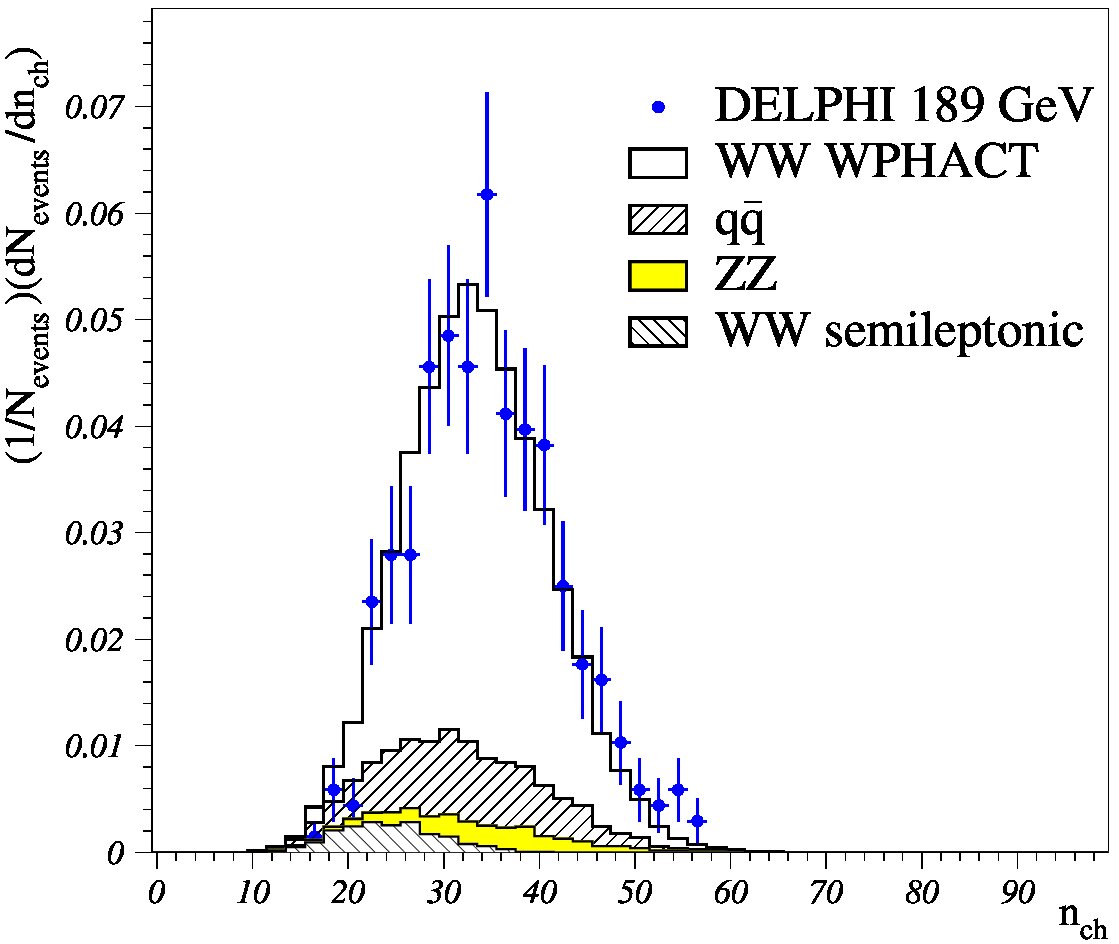

A good agreement was found between the predictions using the WPHACT WW MC samples and the predictions based on the KORALW WW MC samples, both for the scenario without CR and for the scenario with CR (SK-I model with 100% probability of reconnection). For both sets of predictions the regions of greatest difference between the two scenarios span the rescaled variable $\Phi_{\mathrm{rescaled}}$ from 0.2 to 0.8.

4.3 Particle Flow Ratio

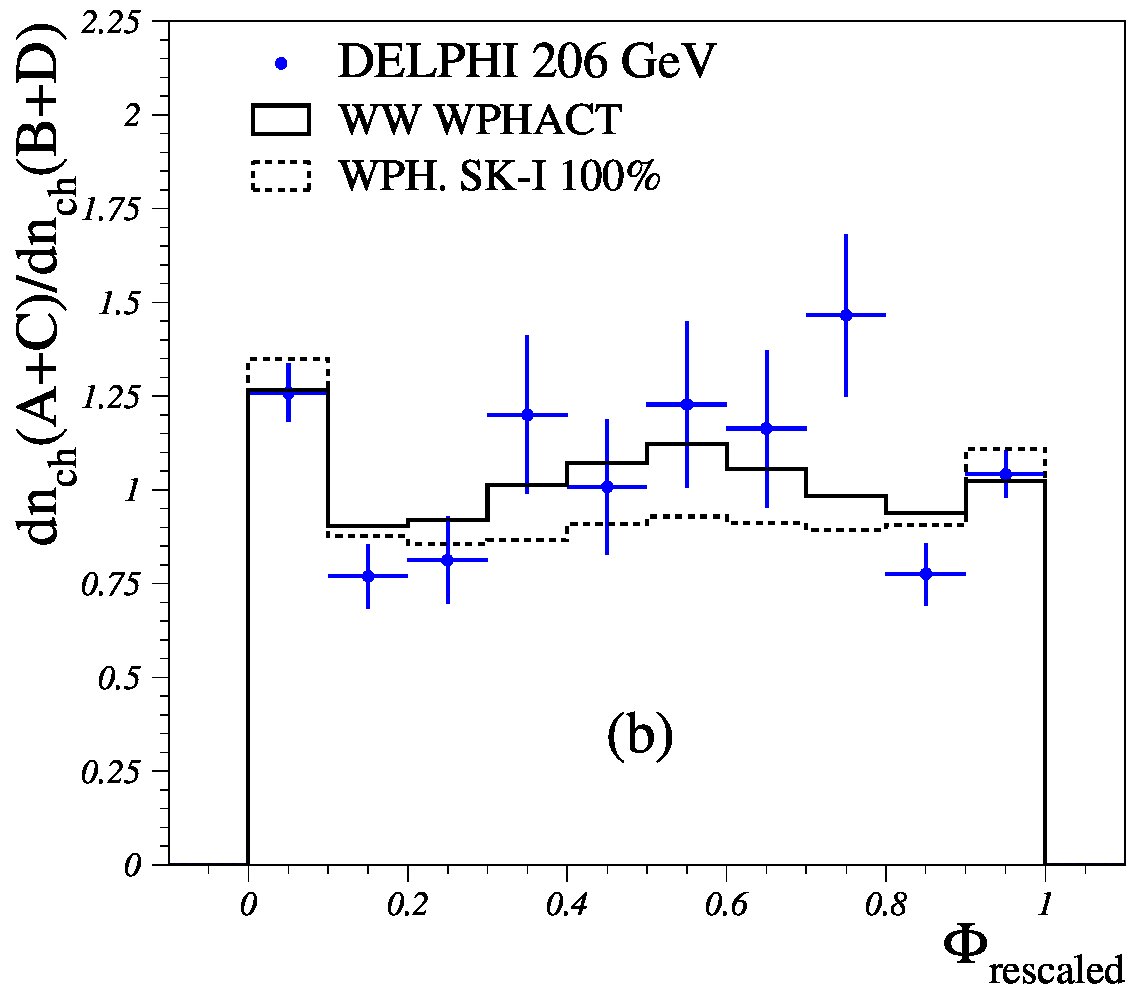

After summing the particle flow distributions for regions A and C, and regions B and D, the resulting distributions are integrated from 0.2 to 0.8. The ratio $R$ of the Inside-W to the Between-W particle flow is then defined as (with $\Phi$ being the rescaled variable $\Phi_{\mathrm{rescaled}}$):

[TABLE]

To take into account possible statistical correlations between particles in the Inside-W and Between-W regions, the statistical error on this ratio $R$ was again estimated through the Jackknife method [27].

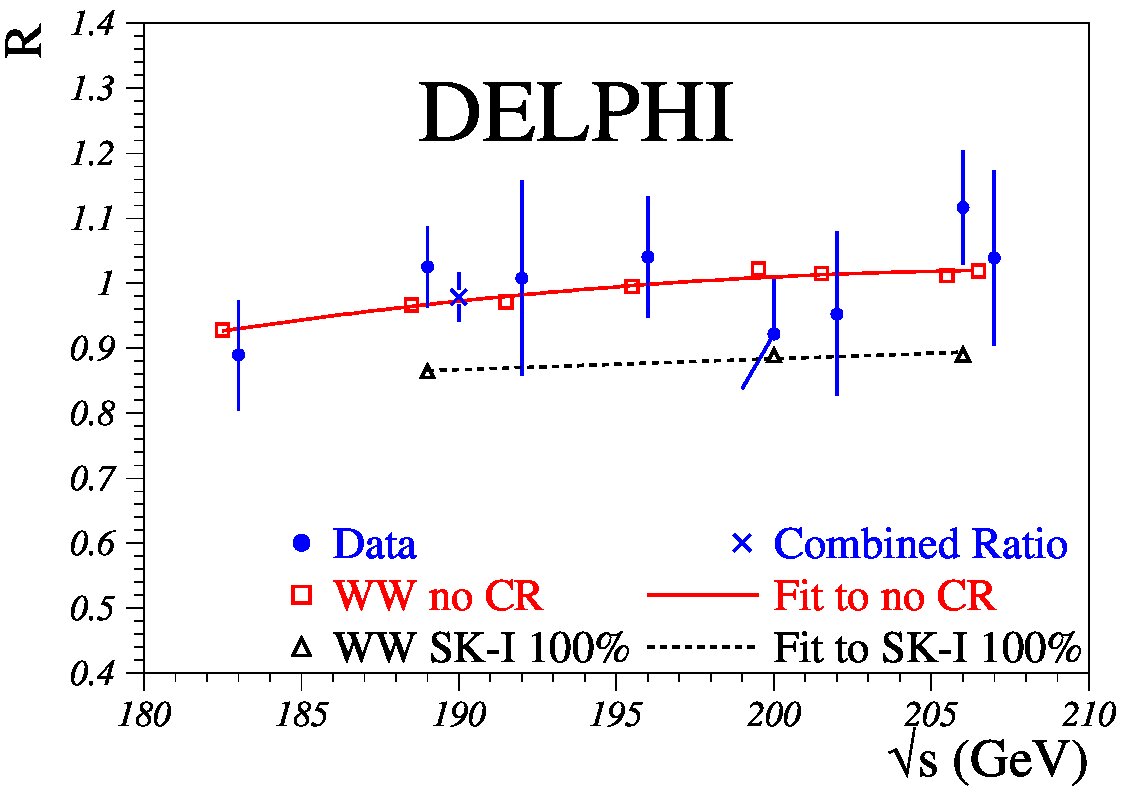

The values for $R$ obtained for the different centre-of-mass energies are shown in Table 2, and compared to the expectations from the DELPHI WPHACT WW samples without CR and implementing the SK-I model with 100% reconnection probability. These values for data and MC are plotted as function of the centre-of-mass energy in Figure 7.

The changes in the value of $R$ for the MC samples are mainly due to the different values of the boost of the W systems. In order to quantify this effect a linear function $\mathrm{R(\sqrt{s}-197.5)=A+B\cdot(\sqrt{s}-197.5)}$ was fitted to the MC points with CR (with $\sqrt{s}$ in GeV), while for the points without CR the quadratic function $\mathrm{R(\sqrt{s}-197.5)=\alpha+\beta\cdot(\sqrt{s}-197.5)+\gamma\cdot(\sqrt{s}-197.5)^{2}}$ was assumed (with $\sqrt{s}$ in GeV), giving reasonable $\chi^{2}/d.o.f.$ values. The fits yielded the results shown in Table 3.

The MC without CR shows a stronger dependence on $\sqrt{s}$. The function fitted to this sample was used to rescale the measured values of $R$ for the data collected at different energies to the energy of 189 GeV, the centre-of-mass energy at which the combination of the results of the LEP experiments was proposed in [4]. All the rescaled values were combined with a statistical error-weighted average. The average of the $R$ ratios rescaled to 189 GeV was found to be

[TABLE]

Performing the same weighted average when using for the rescaling the fit to the MC with CR, one obtains:

[TABLE]

Repeating the procedure, but now without rescaling the $R$ ratios, the result is:

[TABLE]

4.4 Study of the Systematic Errors in the Particle Flow

The following effects were studied as sources of systematic uncertainties in this analysis.

4.4.1 Fragmentation and Detector response

A direct comparison between the particle flow ratios measured in fully hadronic data and MC samples, $R_{\mathrm{4q\,Data}}$ and $R_{\mathrm{4q\,MC}}$, respectively, is hampered by the uncertainties associated with the modelling of the WW fragmentation and the detector response. These systematic uncertainties were estimated using mixed semi-leptonic events. In this technique, two hadronically decaying W bosons from semi-leptonic events were mixed together to emulate a fully hadronic WW decay.

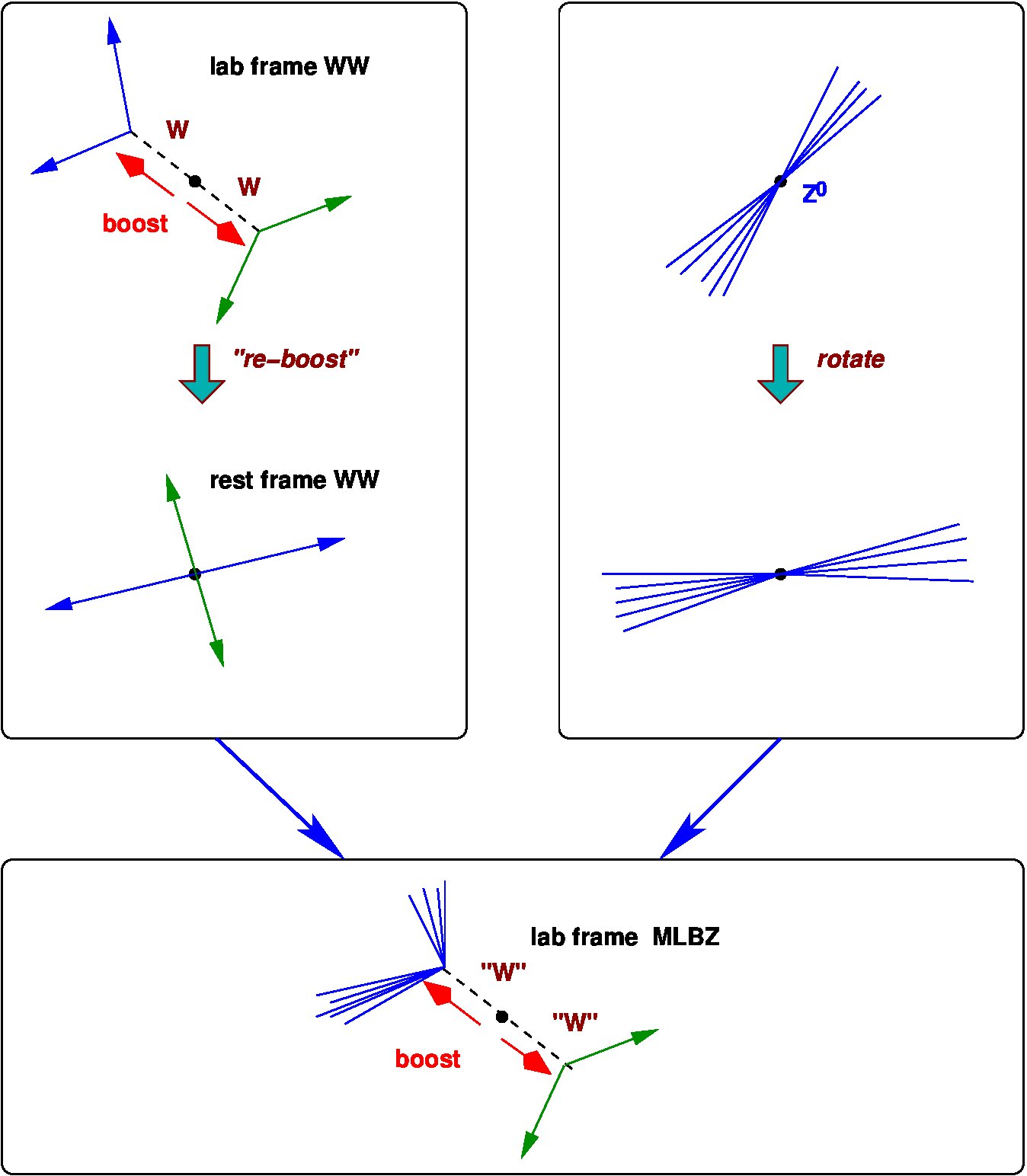

Mixing Technique

Semi-leptonic WW decays were selected from the data collected by DELPHI at centre-of-mass energies between 189 and 206 GeV, by requiring two hadronic jets, a well isolated identified muon or electron or, in case of a tau candidate, a well isolated particle, all associated with missing momentum (corresponding to the neutrino) pointing away from the beam pipe. A neural network selection, developed in [28], was used to select the events. The same procedure was applied to the WPHACT samples fragmented with PYTHIA and HERWIG at centre-of-mass energies of 189, 200 and 206 GeV and with ARIADNE at 189 and 206 GeV. The background to this selection was found to be of negligible importance in this analysis. Samples of mixed semi-leptonic events were built separately at each centre-of-mass energy for data and Monte Carlo semi-leptonic samples, following the mixing procedure developed in [2].

In each semi-leptonic event, the lepton (or tau-decay jet) was stripped off and the remaining particles constituted the hadronically decaying W boson. Two hadronically decaying W bosons were then mixed together to emulate a fully hadronic WW decay. The hadronic parts of W bosons were mixed in such a way as to have the parent W bosons back-to-back in the emulated fully hadronic WW decay. To increase the statistics of emulated events, and profiting from the cylindrical symmetry of the detector along the z axis, the hadronic parts of W bosons were rotated around the z axis, but were not moved from barrel to forward regions or vice-versa, as detailed in the following.

When mixing the hadronic parts of different W events it was required that the two Ws had reconstructed polar angles back-to-back or equal within 10 degrees. In the latter case, when both Ws are on the same side of the detector, the z component of the momentum is sign flipped for all the particles in one of the Ws.

The particles of one W event were then rotated around the beam axis, in order to have the two Ws also back-to-back in the transverse plane. Each semi-leptonic event was used in the mixing procedure between 4 and 9 times, to minimize the statistical error on the particle flow ratio $R$ measured in the mixed semi-leptonic data sample.

The mixed events were then subjected to the same event selection and particle flow analysis used for the fully hadronic events. The particle flow ratios $R_{\mathrm{mixed\,SL\,Data}}$ and $R_{\mathrm{mixed\,SL\,MC}}$ were measured in the mixed semi-leptonic data and MC samples, respectively, and are plotted as function of the centre-of-mass energy in Figure 8.

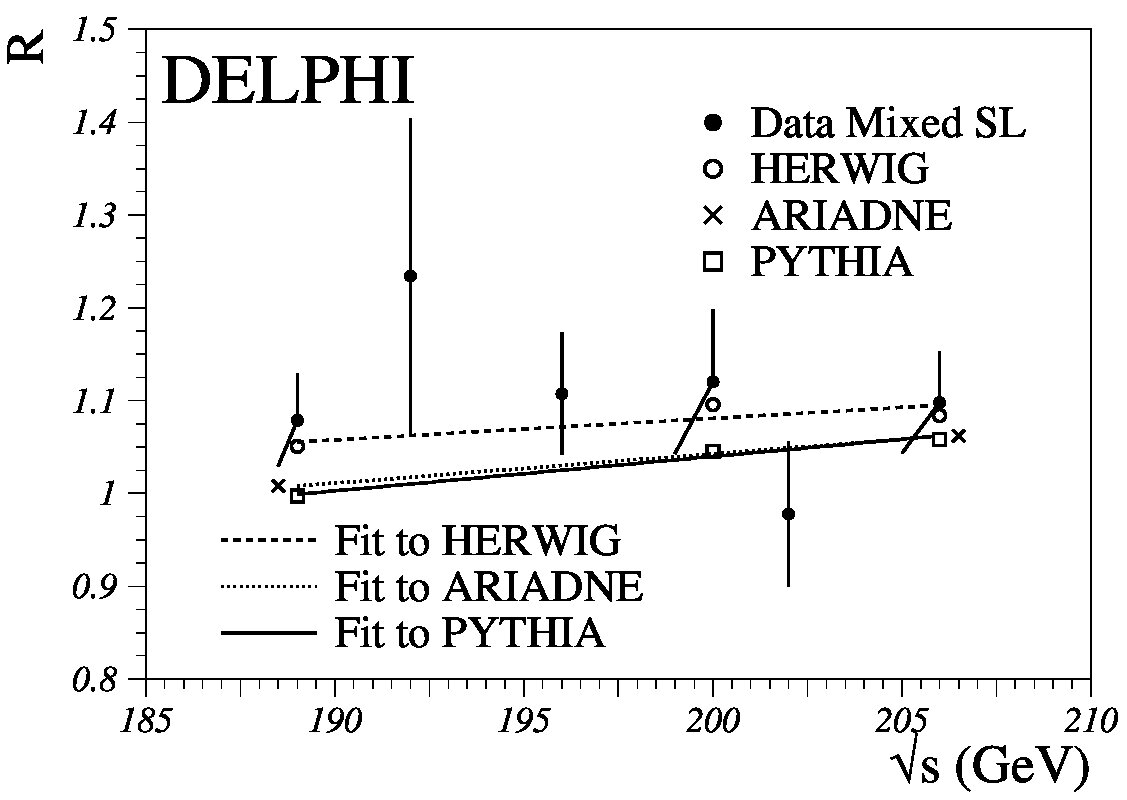

The values of $R_{\mathrm{mixed\,SL}}$ measured in MC show a dependence on $\sqrt{s}$. This effect is quantified by performing linear fits to the points measured with PYTHIA, ARIADNE and HERWIG, respectively. The differences between the measured slopes were found to be small. The function fitted to the PYTHIA points was used to rescale the values of $R$ measured in data at different energies to 189 GeV. The rescaled values were then combined using as weights the scaled statistical errors. The weighted average $R$ at 189 GeV for the mixed semi-leptonic events built from data was found to be

[TABLE]

For each MC sample, the ratio $R_{\mathrm{mixed\,SL\,Data}}/R_{\mathrm{mixed\,SL\,MC}}$ was used to calibrate the particle flow ratio measured in the corresponding fully hadronic sample, $R_{\mathrm{4q\,MC}}$, to compare it to the ratio measured in the data, $\langle R_{\mathrm{4q\,Data}}\rangle$. The correction factor $R_{\mathrm{mixed\,SL\,Data}}/R_{\mathrm{mixed\,SL\,MC}}$ was computed from the values of $R$ rescaled to 189 GeV, calculated from the fits to the mixed semi-leptonic samples built from the data and the MC. The values for $R_{\mathrm{mixed\,SL\,MC}}$ are presented in Table 4, for the different models, along with the calibrated values of $R_{\mathrm{4q}}$ for the same models.

The calibration factors differ from unity by less than 6%, and the largest difference of the calibrated $R_{\mathrm{4q\,MC}}$ values when changing the fragmentation model, $0.014$, was considered as an estimate of the systematic error due to simulation of the fragmentation and of the detector response, and was added in quadrature to the systematic error. The error in the calibrated $R_{\mathrm{4q\,MC}}$ values due to the statistical error on $\langle R_{\mathrm{mixed\,SL\,Data}}\rangle$ value used for the calibration, $0.026$, was also added in quadrature to the systematic error.

4.4.2 Bose-Einstein Correlations

Bose-Einstein correlations (BEC) between identical pions and kaons are known to exist and were established and studied in Z hadronic decays in [29]. They are expected to exist with a similar behaviour in the W hadronic decays, and this is studied in [2]. They are implemented in the MC simulation samples with BEC via the BE32 model of LUBOEI [21], which was tuned to describe the DELPHI data in [2]. However, the situation for the WW (ZZ) fully hadronic decays is not so clear, i.e. whether there are correlations only between pions and kaons coming from the same W(Z) boson or also between pions and kaons from different W(Z) bosons. The analyses of Bose-Einstein correlations between identical particles coming from the decay of different W bosons do not show a significant effect [30] for three of the LEP experiments, whereas for DELPHI, an effect was found at the level of 2.4 standard deviations [2]. Thus, a comparison was made between the WPHACT samples without CR and with BEC only between the identical pions coming from the same W boson (BEC only inside), to the samples without CR and with BEC allowed for all the particles stemming from both W bosons, implemented with the BE32 variant of the LUBOEI model (BEC all). The $R$ values were obtained at each centre-of-mass energy, after which a linear fit was performed for each model to obtain a best prediction at 189 GeV. The fit values were found to be in agreement to the estimate at 189 GeV alone, and for simplicity this estimate was used. The measurement of BEC from DELPHI of 2.4 standard deviations above zero (corresponding to BEC only inside), was used to interpolate the range of 4.1 standard deviations of separation between BEC only inside and BEC all. To include the error on the measured BEC effect, one standard deviation was added to the effect before the interpolation. The difference in the estimated values of $R$ at $\sqrt{s}=189$ GeV, between the model with BEC only inside and the model with partial BEC all (at the interpolated point of 3.4/4.1), -0.013, was added in quadrature to the systematic error.

4.4.3 $\mathrm{q\bar{q}}(\gamma)$ Background Shape

The fragmentation effects, in the shape of the $\mathrm{q\bar{q}}(\gamma)$ background, were estimated by comparing the values of $R$ obtained when the subtracted $\mathrm{q\bar{q}}(\gamma)$ sample was fragmented with ARIADNE instead of PYTHIA at the centre-of-mass energy of 189 GeV, and the difference, 0.003, was added in quadrature to the systematic error.

4.4.4 $\mathrm{q\bar{q}}(\gamma)$ and ZZ Background Contribution

At the centre-of-mass energy of 189 GeV, the $\mathrm{q\bar{q}}(\gamma)$ cross-section in the 4-jet region is poorly known, due to the difficulty in isolating the $\mathrm{q\bar{q}}(\gamma)\rightarrow$ 4-jet signal from other 4-jet processes such as WW and ZZ. The study performed in [31] has shown that the maximal difference in the estimated $\mathrm{q\bar{q}}(\gamma)$ background rate is 10% coming from changing from PYTHIA to HERWIG as the hadronization model, with the ARIADNE model giving intermediate results. Conservatively, at each centre-of-mass energy a variation of 10% on the $\mathrm{q\bar{q}}(\gamma)$ cross-section was assumed, and the largest shift in $R$, 0.011, was added in quadrature to the systematic error.

The other background process considered is the Z pair production. The Standard Model predicted cross-sections are in agreement with the data at an error level of 10% [32]. The cross-section was thus varied by $\pm 10\%$ at each energy and the effect in $R$ was found to be negligible.

4.4.5 Evolution of $R$ with Energy

The $R$ ratios were rescaled to $\sqrt{s}=189$ GeV using the fit to the MC without CR, however the correct behaviour might be given by the MC with CR. Hence, the difference of 0.009 between the R values obtained using the two rescaling methods, using MC without CR $\langle R\rangle$ and with CR $\langle R_{\mathrm{CR\>rescale}}\rangle$, was added in quadrature to the systematic error.

4.5 Results of the Particle Flow Analysis

The final result for the average of the ratios $R$ rescaled to 189 GeV is

[TABLE]

In order to facilitate comparisons between the four LEP experiments, this value can be normalised by the one determined from simulation samples produced with the full detector simulation and analysed with the same method. The LEP experiments agreed to use for this purpose the Cetraro PYTHIA samples. These events were generated with the ALEPH fragmentation tuning but have been reconstructed with the DELPHI detector simulation and analysed with this analysis. The values of the $R$ ratios obtained from the Cetraro samples at 189 GeV, calibrated using the mixed semi-leptonic events from these samples, are given in Table 5.

The value of $\langle R\rangle$ measured from data is between the expected $R$ ratios from PYTHIA without CR and with the SK-I model with 100% fraction of reconnection. The error of this measurement is larger than the difference between the values of $R$ from ARIADNE samples without and with CR, and than the difference between values of $R$ from the HERWIG samples without CR and with 1/9 of reconnected events.

The following normalised ratios are obtained for the sample without CR and implementing the SK-I model with 100% CR probability, respectively:

[TABLE]

In the above expressions, the statistical errors in the MC predicted values were propagated and added quadratically to the systematic errors on the ratios.

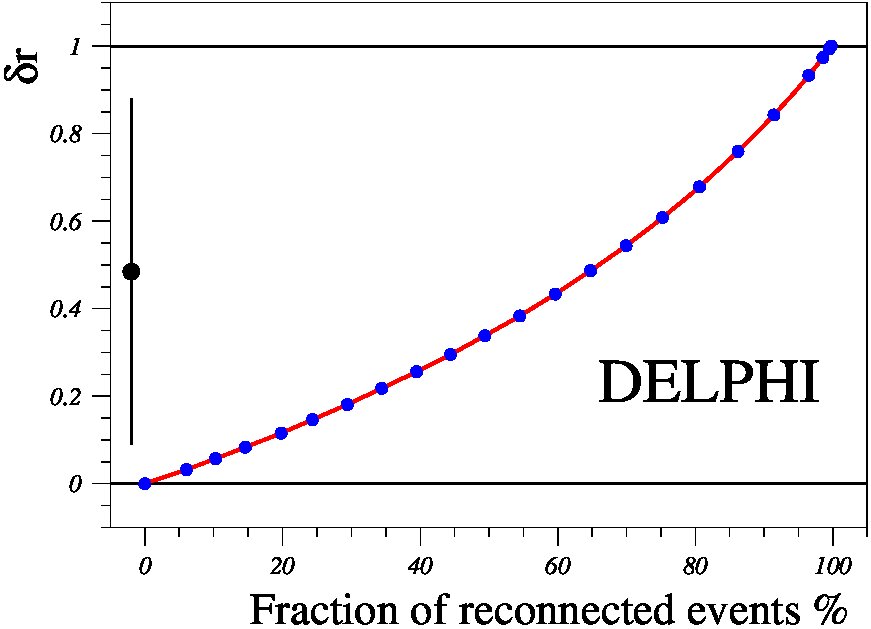

It is also possible to define the following quantity, taking the predictions for $R_{\mathrm{CR}}$ and $R_{\mathrm{no\>CR}}$ at $\sqrt{s}=189$ GeV from the PYTHIA samples in Table 5,

[TABLE]

from which it can be concluded that the measured $\langle R_{\mathrm{data}}\rangle$ is compatible with intermediate probability of CR, and differs from the CR in the SK-I model at 100% at the level of 1.3 standard deviations. The ability to distinguish between these two models can be computed from the inverse of the sum in quadrature of the statistical and systematic errors; it amounts to be 2.5 standard deviations. In Figure 9 the result of $\delta r$ is compared to the predicted values, in the scope of the SK-I model, as a funtion of the fraction of reconnected events.

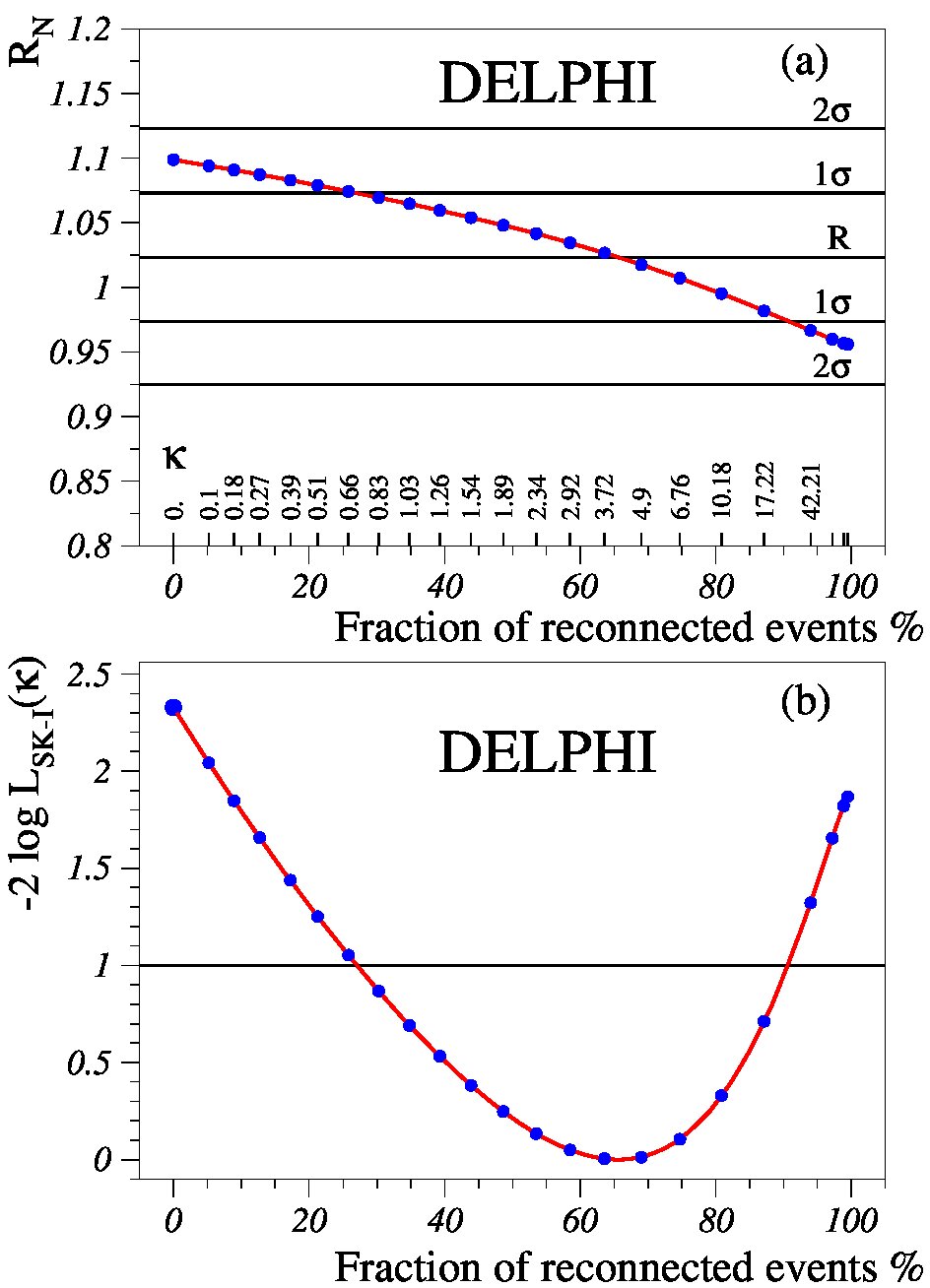

The result for the value of $\langle R\rangle$ can also be used to test for consistency with the SK-I model as a function of $\kappa$ and a log-likelihood curve was obtained. This also facilitates combination with the result obtained in the analysis in the following section, and for this reason the value of $\langle R\rangle$ is rescaled with PYTHIA without CR to a centre-of-mass energy of 200 GeV: the value obtained at 200 GeV is $\langle R\rangle(200\;{\mathrm{GeV}})=1.024\pm 0.050$. The values obtained for the predicted ratios $R_{N}$ at 200 GeV and the log-likelihood curve, as a function of $\kappa$, are shown in Figure 10. The value of $\kappa$ most compatible with the data within one standard deviation is

[TABLE]

5 Different ${\mathrm{M_{W}}}$ Estimators as Observables

It has been shown [12] that the ${\mathrm{M_{W}}}$ measurement inferred from hadronically decaying $\mathrm{W^{+}W^{-}}$ events at LEP-2, by the method of direct reconstruction, is influenced by CR effects, most visible when changing the value of $\mathrm{\kappa}$ in the SK-I model. For the $\mathrm{M_{W}(4q)}$ estimator within DELPHI this is shown in [33]. Other published ${\mathrm{M_{W}}}$ estimators in LEP experiments are equally sensitive to $\mathrm{\kappa}$ [34].

To probe this sensitivity to CR effects, alternative estimators for the ${\mathrm{M_{W}}}$ measurement were designed which have different sensitivity to $\mathrm{\kappa}$. In the following, the standard estimator and two alternative estimators, studied in this paper, are presented. The standard estimator corresponds to that previously used in the measurement of the W mass by DELPHI [33]. Note that in the final DELPHI W mass analysis [35] results are given for the standard and hybrid cone estimators, with the hybrid cone estimator used to provide the primary result. The data samples, efficiencies and purities for the analysis corresponding to the standard estimator are provided in [33, 35].

• •

The standard ${\mathrm{M_{W}}}$ estimator :

This estimator is described in  [33] and was optimised to obtain the smallest statistical uncertainty for the W mass measurement. It results in an event-by-event likelihood ${\mathrm{L}}_{i}({\mathrm{M_{W}}})$ for the parameter ${\mathrm{M_{W}}}$.

• •

The momentum cut ${\mathrm{M_{W}}}$ estimator :

For this alternative ${\mathrm{M_{W}}}$ estimator the event selection was performed in exactly the same way as for the standard ${\mathrm{M_{W}}}$ estimator. The particle-jet association was also taken from this analysis. However, when reconstructing the event for the ${\mathrm{M_{W}}}$ extraction a tighter track selection was applied. The momentum and energy of the jets were calculated only from those tracks having a momentum higher than a certain ${\mathrm{p_{cut}}}$ value. An event-by-event likelihood $\mathrm{L}^{{\mathrm{p_{cut}}}}_{i}({\mathrm{M_{W}}})$ was then calculated.

• •

The hybrid cone ${\mathrm{M_{W}}}$ estimator :

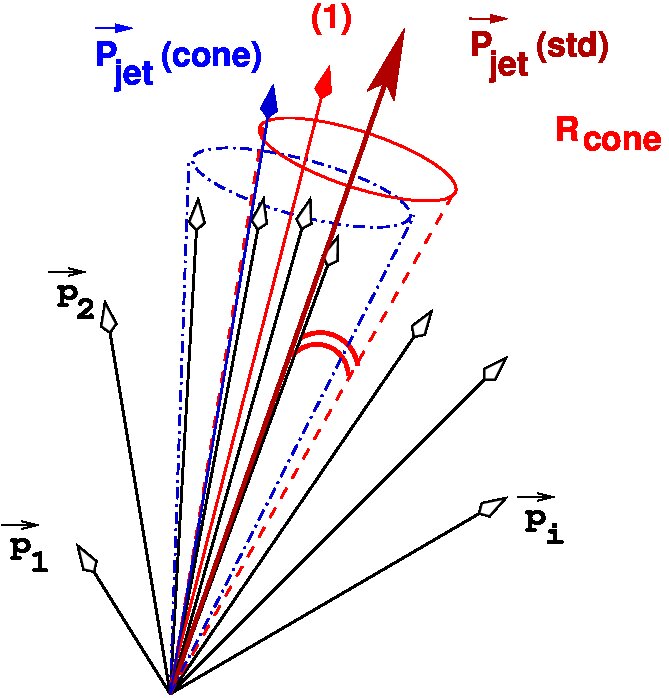

In this second alternative ${\mathrm{M_{W}}}$ estimator the reconstruction of the event is the same as for the standard analysis, except when calculating the jet momenta used for the ${\mathrm{M_{W}}}$ extraction.

An iterative procedure was used within each jet (defined by the clustering algorithm used in the standard analysis) to find a stable direction of a cone excluding some particles in the calculation of the jet momentum, illustrated in Figure 11. Starting with the direction of the original jet ${\vec{p}}^{\mathrm{\,jet}}_{{\mathrm{std}}}$ , the jet direction was recalculated (direction (1) on the Figure) only from those particles which have an opening angle smaller than ${\mathrm{R_{cone}}}$ with this original jet. This process was iterated by constructing a second cone (of the same opening angle) around this new jet direction and the jet direction was recalculated again. The iteration was continued until a stable jet direction ${\vec{p}}^{\mathrm{\,jet}}_{{\mathrm{cone}}}$ was found. The jet momenta obtained, ${\vec{\mathrm{p}}}^{\mathrm{\,jet}}_{\mathrm{cone}}$, were rescaled to compensate for the lost energy of particles outside the stable cone,

[TABLE]

The energies of the jets were taken to be the same as those obtained with the standard clustering algorithm ($\mathrm{E^{\,jet}}_{{\mathrm{cone}}}\rightarrow\mathrm{E^{\,jet}}$). This was done to increase the correlation of this estimator with the standard one. The rescaling was not done for the ${\mathrm{p_{cut}}}$ estimator as it will be used in a cross-check observable with different systematic properties. Again the result is an event-by-event likelihood $\mathrm{{L}^{{\mathrm{R_{cone}}}}_{i}({\mathrm{M_{W}}})}$.

Each of these previously defined ${\mathrm{M_{W}}}$ likelihoods had to be calibrated. The slope of the linear calibration curve for the ${\mathrm{M_{W}}}$ estimators is tuned to be unity, therefore only a bias correction induced by the reconstruction method has to be applied. This bias is estimated with the nominal WPHACT Monte Carlo events and the dependence on the value of $\mathrm{\kappa}$ is estimated with the EXCALIBUR simulation. It was verified for smaller subsets that the results using these large EXCALIBUR samples and the samples generated with WPHACT are compatible. Neglecting the possible existence of Colour Reconnection (CR) in the Monte Carlo simulation results in event likelihoods ${\mathrm{L}}_{i}({\mathrm{M_{W}}}|\mbox{event without CR})$, while ${\mathrm{L}}_{i}({\mathrm{M_{W}}}|\mbox{event with CR})$ are the event likelihoods obtained when assuming the hypothesis that events do reconnect (100% CR in the scope of the SK-I model). To construct the event likelihoods for intermediate CR (values of $\mathrm{\kappa}$ larger than 0) the following weighting formula is used :

[TABLE]

where $\mathrm{{\cal P}_{i}(\kappa)}$ is defined in Equation 1. The combined likelihood is produced for the event sample; the calibrated values for ${\mathrm{M_{W}}}(\kappa)$ were obtained for different values of $\kappa$ using the maximum likelihood principle. In Figure 12 the difference $\mathrm{d{\mathrm{M_{W}}}(\kappa)={\mathrm{M_{W}}}(\kappa)-{\mathrm{M_{W}}}(\kappa=0)}$ or the influence of $\mathrm{\kappa}$ on the bias of the ${\mathrm{M_{W}}}$ estimator is presented as function of $\mathrm{\kappa}$.

The uncertainty on this difference is estimated with the Jackknife method [27] to take the correlation between $\mathrm{{\mathrm{M_{W}}}(\kappa)}$ and $\mathrm{{\mathrm{M_{W}}}(\kappa=0)}$ into account. It was observed from simulations that the estimators dependency on $\kappa$, for $\kappa$ below about 5, was not significantly different in the centre-of-mass range between 189 and 207 GeV. Therefore in the determination of $\kappa$ the dependency at 200 GeV was taken as default for all centre-of-mass energies. This value of centre-of-mass energy is close to the integrated luminosity weighted centre-of-mass energy of the complete data sample, which is 197.1 GeV.

When neglecting the information content of low momentum particles or when using the hybrid cone algorithm, the influence of Colour Reconnection on the ${\mathrm{M_{W}}}$ estimator is decreased. The dependence $\mathrm{\frac{\partial{\mathrm{M_{W}}}}{\partial\kappa}}$ of the estimator to $\mathrm{\kappa}$ is decreased when increasing the value of ${\mathrm{p_{cut}}}$ or when working with smaller cone opening angles ${\mathrm{R_{cone}}}$.

5.1 The Measurement of $\mathrm{\kappa}$

The observed difference $\Delta{\mathrm{M_{W}}}({\mathrm{std}},i)={\mathrm{M_{W}}}^{{\mathrm{std}}}-{\mathrm{M_{W}}}^{i}$ in the event sample, where $i$ is a certain alternative analysis, provides a measurement of $\mathrm{\kappa}$. When both estimators ${\mathrm{M_{W}}}^{{\mathrm{std}}}$ and ${\mathrm{M_{W}}}^{i}$ are calibrated in the same hypothesis of $\mathrm{\kappa}$, the expectation values of $\Delta{\mathrm{M_{W}}}({\mathrm{std}},i)$ will be invariant under a change of ${\mathrm{p_{cut}}}$ or ${\mathrm{R_{cone}}}$.

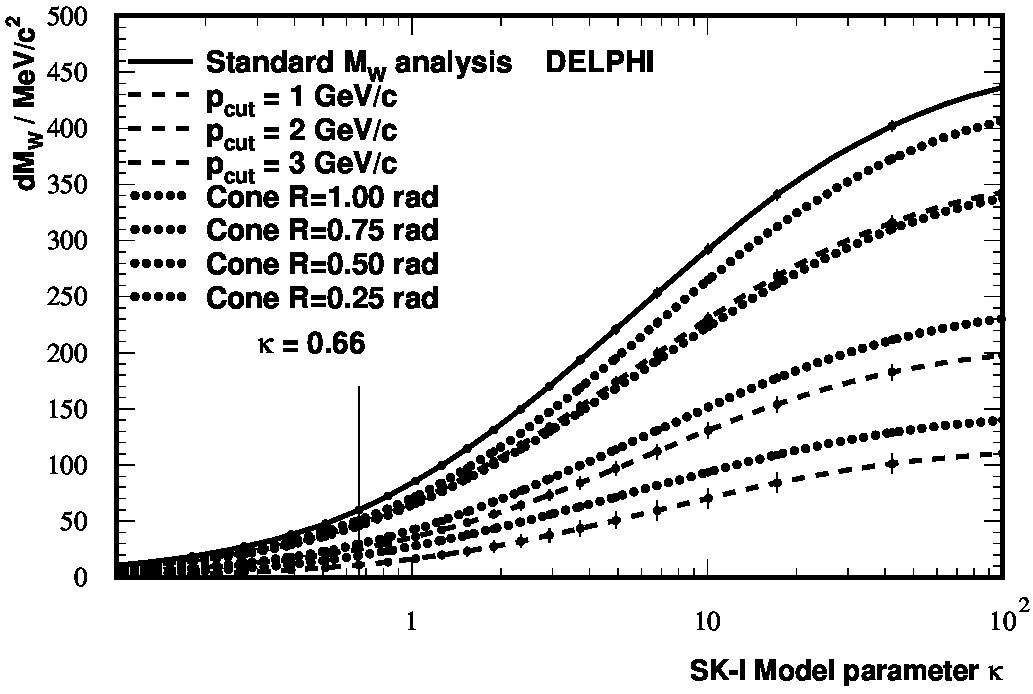

When neglecting part of the information content of the events in these alternative ${\mathrm{M_{W}}}$ analyses, by increasing ${\mathrm{p_{cut}}}$ or decreasing ${\mathrm{R_{cone}}}$, the statistical uncertainty on the value of the ${\mathrm{M_{W}}}$ estimator is increased. Therefore a balance must be found between the statistical precision on $\Delta{\mathrm{M_{W}}}({\mathrm{std}},i)$ and the dependence of this difference to $\mathrm{\kappa}$ in order to obtain the largest sensitivity for a $\mathrm{\kappa}$ measurement. This optimum was found using the Monte Carlo simulated events and assuming that the data follow the $\mathrm{\kappa=0}$ hypothesis, resulting in the smallest expected uncertainty on the estimation of $\kappa$.

For the ${\mathrm{p_{cut}}}$ analysis an optimal sensitivity was found when using the difference ${\Delta\mathrm{M_{W}}({\mathrm{std}},\mathrm{p_{cut}})}$ with ${\mathrm{p_{cut}}}$ equal to 2 GeV/c or 3 GeV/c. Even more information about $\mathrm{\kappa}$ could be extracted from the data, when using the difference ${\Delta\mathrm{M_{W}}({\mathrm{std}},\mathrm{R_{cone}})}$, which was found to have an optimal sensitivity around ${\mathrm{R_{cone}}}=0.5$ rad. No significant improvement in the sensitivity was found when combining the information from these two observables. Therefore the best measure of $\mathrm{\kappa}$ using this method is extracted from the ${\Delta\mathrm{M_{W}}({\mathrm{std}},\mathrm{R_{cone}}=0.5\,\mathrm{rad})}$ observable. Nevertheless, the ${\Delta\mathrm{M_{W}}({\mathrm{std}},\mathrm{p_{cut}}=2\,\mathrm{GeV/c})}$ observable was studied as a cross-check.

5.2 Study of the Systematic Errors in the $\Delta{\mathrm{M_{W}}}$ Method

The estimation of systematic uncertainties on the observables $\Delta{\mathrm{M_{W}}}({\mathrm{std}},i)$ follows similar methods to those used within the ${\mathrm{M_{W}}}$ analysis. Here the double difference is a measure of the systematic uncertainty between Monte Carlo simulation (‘MC’) and real data (‘DA’):

[TABLE]

where $i$ is one of the alternative ${\mathrm{M_{W}}}$ estimators. The systematic error components are described below and summarised in Table 6.

5.2.1 Jet Reconstruction systematics with MLBZs

A novel technique was proposed in [36] to study systematic uncertainties on jet reconstruction and fragmentation in W physics measurements with high statistical precision through the use of Mixed Lorentz Boosted ${\mathrm{Z}}$ events (MLBZs). The technique is similar to the one described in section 4.4.1. The main advantage of this method was that Monte Carlo simulated jet properties in $\mathrm{W^{+}W^{-}}$ events could be directly compared with the corresponding ones from real data using the large ${\mathrm{Z}}$ statistics.

The main extension of the method beyond that described in [36] consisted in an improved mixing and boosting procedure of the ${\mathrm{Z}}$ events into MLBZs, demonstrated in Figure 13.

The 4-momenta of the four primary quarks in WPHACT generated $\mathrm{W^{+}W^{-}\rightarrow{{\mathrm{q}_{1}\bar{q_{2}}q_{3}\bar{q_{4}}}}}$ events were used as event templates. The ${\mathrm{Z}}$ events from data or simulation were chosen such that their thrust axis directions were close in polar angle to one of the primary quarks of the $\mathrm{W^{+}W^{-}}$ event template. Each template W was then boosted to its rest frame. The particles in the final state of a selected ${\mathrm{Z}}$ event were rotated so that the thrust axis matches the rest frame direction of the primary quarks in the $\mathrm{W^{+}W^{-}}$ template. After rescaling the kinematics of the ${\mathrm{Z}}$ events to match the W boson mass in the generated $\mathrm{W^{+}W^{-}}$ template, the two ${\mathrm{Z}}$ events were boosted to the lab frame of the $\mathrm{W^{+}W^{-}}$ template. All particles having an absolute polar angle with the beam direction smaller than 11*∘* were removed from the event. The same generated WPHACT events were used for the construction of both the data MLBZs and Monte Carlo MLBZs in order to increase the correlation between both emulated samples to about 31%. This correlation was taken into account when quoting the statistical uncertainty on the systematic shift on the observables between data and Monte Carlo MLBZs.

It was verified that when introducing a significant mass shift of 300 MeV/c2 on ${\mathrm{M_{W}}}$ by using the cone rejection algorithm, it was reproduced within 15% by applying the MLBZ technique. Because the expected systematic uncertainties on the $\Delta{\mathrm{M_{W}}}({\mathrm{std}},i)$ observables of interest are one order of magnitude smaller than 300 MeV/c2, this method is clearly justified.

The double difference of Equation 15 was determined with the MLBZ method using ${\mathrm{Z}}$ events selected in the data sets collected during the 1998 calibration runs and ${\mathrm{Z}}$ events from the corresponding Monte Carlo samples. The following results were obtained for the ${\Delta\mathrm{M_{W}}({\mathrm{std}},\mathrm{R_{cone}}=0.5\,\mathrm{rad})}$ observable:

[TABLE]

where the statistical uncertainty takes into account the correlation between the Monte Carlo and the data MLBZ events, together with the correlation between the two ${\mathrm{M_{W}}}$ estimators. This indicates that most of the fragmentation, detector and Between-W Bose-Einstein Correlation systematics are small. The study was not performed for the ${\Delta\mathrm{M_{W}}({\mathrm{std}},\mathrm{p_{cut}})}$ observable.

Other systematic sources on the reconstructed jets are not considered as the ${\mathrm{M_{W}}}$ estimators used in the difference $\Delta{\mathrm{M_{W}}}({\mathrm{std}},i)$ have a large correlation.

5.2.2 Additional Fragmentation systematic study

The fragmentation of the primary partons is modelled in the Monte Carlo simulation used for the calibration of the ${\mathrm{M_{W}}}^{i}$ observables.

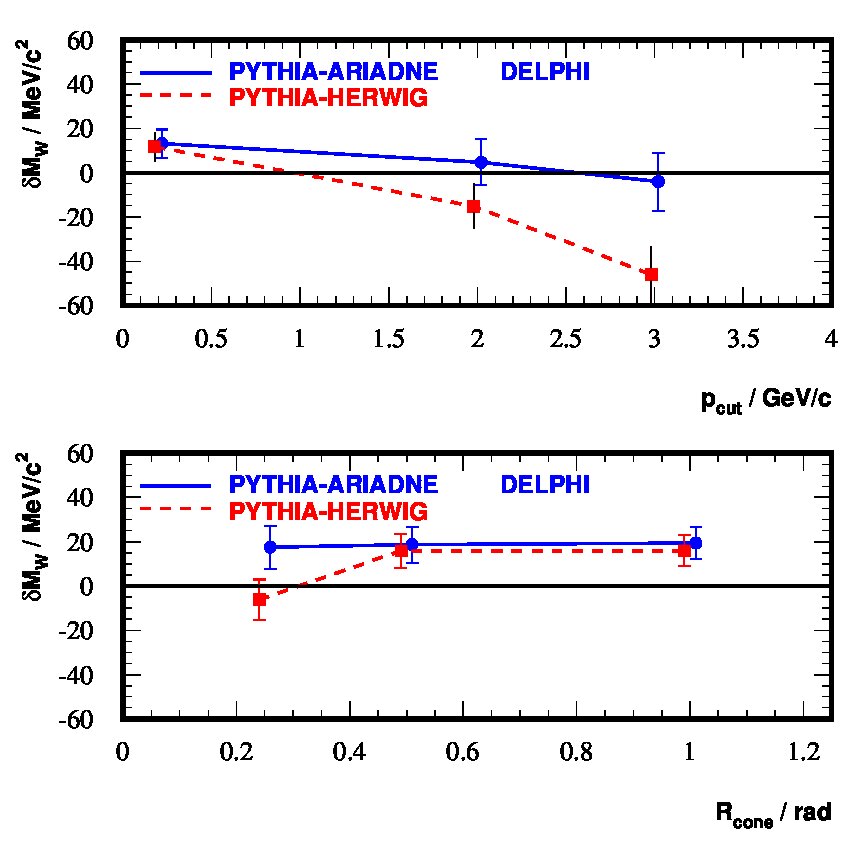

The expected values on the ${\mathrm{M_{W}}}$ estimators from simulation (in the $\mathrm{\kappa=0}$ hypothesis) are changed when using different fragmentation models [33], resulting in systematic uncertainties on the measured ${\mathrm{M_{W}}}^{i}$ observables and hence possibly also on our estimated $\mathrm{\kappa}$. In Figure 14 the systematic shift $\delta{\mathrm{M_{W}}}$ in the different ${\mathrm{M_{W}}}^{i}$ observables is shown when using HERWIG or ARIADNE rather than PYTHIA as the fragmentation model in the no Colour Reconnection hypothesis. When inferring $\mathrm{\kappa}$ from the data difference, $\Delta{\mathrm{M_{W}}}({\mathrm{std}},i)$, the PYTHIA model is used to calibrate each ${\mathrm{M_{W}}}^{i}$ observable. This data difference for ${\mathrm{M_{W}}^{\mathrm{p_{cut}}=2\,\mathrm{GeV/c}}}$, ${\Delta\mathrm{M_{W}}({\mathrm{std}},\mathrm{p_{cut}}=2\,\mathrm{GeV/c})}$, changes333 This change, ${\Delta\mathrm{M_{W}}({\mathrm{std}},\mathrm{p_{cut}}=2\,\mathrm{GeV/c})}^{\mbox{PYTHIA}}-{\Delta\mathrm{M_{W}}({\mathrm{std}},\mathrm{p_{cut}}=2\,\mathrm{GeV/c})}^{\mbox{HERWIG}}$, is given by$\mathrm{\delta M_{W}(std\equiv p_{cut}=0.2\,GeV/c)^{{\mbox{PYTHIA}}-\mbox{HERWIG}}-\delta M_{W}(p_{cut}=2\,GeV/c)^{{\mbox{PYTHIA}}-\mbox{HERWIG}}}$, and similar expressions for the ARIADNE and ${\mathrm{R_{cone}}}$ cases (for ${\mathrm{R_{cone}}}$, ${\mathrm{std}}\equiv{\mathrm{R_{cone}}}=\pi$). by (27 $\mathrm{\pm}$ 12) MeV/$\mathrm{c^{2}}$ or (8 $\mathrm{\pm}$ 12) MeV/$\mathrm{c^{2}}$ when replacing PYTHIA by respectively HERWIG or ARIADNE. Similarly, the observable ${\Delta\mathrm{M_{W}}({\mathrm{std}},\mathrm{R_{cone}}=0.5\,\mathrm{rad})}$ changes by (-4 $\mathrm{\pm}$ 10) MeV/$\mathrm{c^{2}}$ or (-6 $\mathrm{\pm}$ 10) MeV/$\mathrm{c^{2}}$ when replacing PYTHIA by respectively HERWIG or ARIADNE. The largest shift of the observable when changing fragmentation models (or the uncertainty on this shift if larger) is taken as systematic uncertainty on the value of the observable. Hence, systematic errors of 27 MeV/$\mathrm{c^{2}}$ for the ${\Delta\mathrm{M_{W}}({\mathrm{std}},\mathrm{p_{cut}}=2\,\mathrm{GeV/c})}$ observable and 10 MeV/$\mathrm{c^{2}}$ for the ${\Delta\mathrm{M_{W}}({\mathrm{std}},\mathrm{R_{cone}}=0.5\,\mathrm{rad})}$ observable were assumed as the contribution from fragmentation uncertainties. The MLBZ studies (see above) are compatible with these results, hence no additional systematic due to fragmentation was quoted for the ${\Delta\mathrm{M_{W}}({\mathrm{std}},\mathrm{R_{cone}}=0.5\,\mathrm{rad})}$ observable.

5.2.3 Energy Dependence

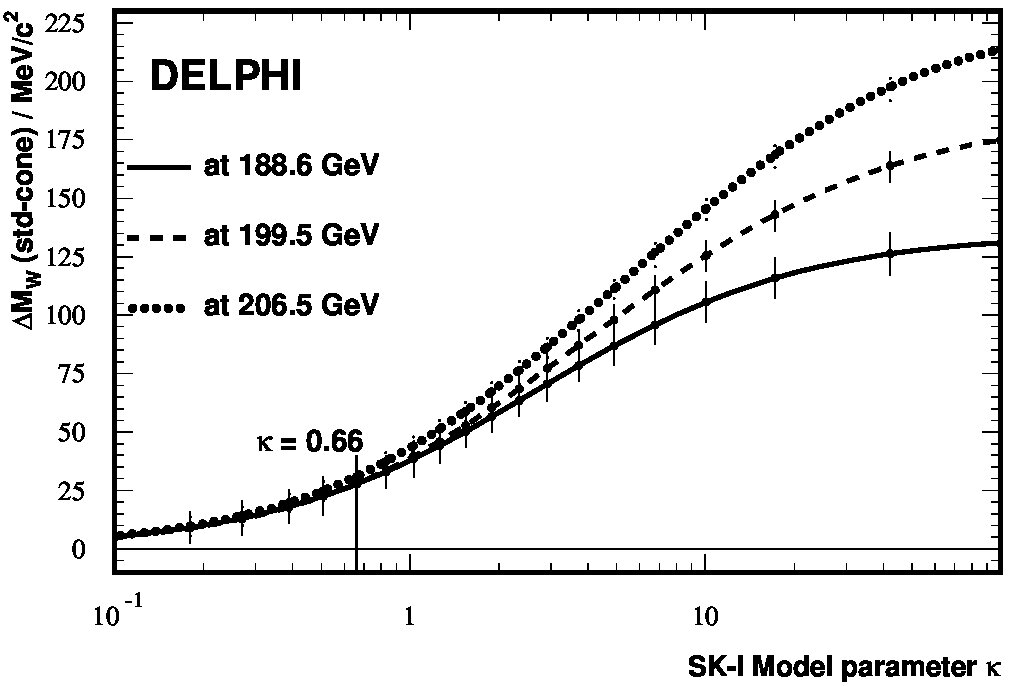

The biases of the different ${\mathrm{M_{W}}}$ estimators have a different dependence on the centre-of-mass energy, hence the calibration of $\Delta{\mathrm{M_{W}}}(i,j)$ will be energy dependent. The energy dependence of each individual ${\mathrm{M_{W}}}$ estimator was parameterised with a second order polynomial. Since WPHACT event samples were used at a range of centre-of-mass energies the uncertainty on the parameters describing these curves are small. Therefore a small systematic uncertainty of 3 MeV/c2 was quoted on the $\Delta{\mathrm{M_{W}}}(i,j)$ observables due to the calibration.

5.2.4 Background

The same event selection criteria were applied for all the ${\mathrm{M_{W}}}$ estimators, hence the same background contamination is present in all analyses. The influence of the $\mathrm{q{\bar{q}}(\gamma)}$ background events on the individual ${\mathrm{M_{W}}}$ estimators is small [33] and was taken into account when constructing the centre-of-mass energy dependent calibration curves of the individual ${\mathrm{M_{W}}}$ estimators. The residual systematic uncertainty on both $\Delta{\mathrm{M_{W}}}(i,j)$ observables is 3 MeV/c2.

5.2.5 Bose-Einstein Correlations

As for the particle flow method, the systematic uncertainties due to possible Bose-Einstein Correlations are estimated via Monte Carlo simulations. The relevant values for the systematic uncertainties on the observables are the differences between the observables obtained from the Monte Carlo events with Bose-Einstein Correlations inside individual W’s (BEI) and those with, in addition, Bose-Einstein Correlations between identical particles from different W’s (BEA). The values were estimated to be (6.4 $\mathrm{\pm}$ 9.3) MeV/$\mathrm{c^{2}}$ for the ${\Delta\mathrm{M_{W}}({\mathrm{std}},\mathrm{p_{cut}}=2\,\mathrm{GeV/c})}$ observable, and (7.2 $\mathrm{\pm}$ 8.2) MeV/$\mathrm{c^{2}}$ for the ${\Delta\mathrm{M_{W}}({\mathrm{std}},\mathrm{R_{cone}}=0.5\,\mathrm{rad})}$ observable. As the uncertainties in the estimated contributions were larger than the contributions themselves, these uncertainties were added in quadrature to the systematic errors on the relevant observables.

5.2.6 Cross-check in the Semi-leptonic Channel

Colour Reconnection between the decay products originating from different W boson decays can only occur in the $\mathrm{W^{+}W^{-}\rightarrow{{\mathrm{q}_{1}\bar{q_{2}}q_{3}\bar{q_{4}}}}}$ channel. The semi-leptonic $\mathrm{W^{+}W^{-}}$ decay channel (i.e, $\mathrm{q{\bar{q}^{\prime}}}{\ell{{\overline{\nu}}_{\ell}}}$) is by definition free of those effects. Therefore the determination of Colour Reconnection sensitive observables, like ${\Delta\mathrm{M_{W}}({\mathrm{std}},\mathrm{R_{cone}}=0.5\,\mathrm{rad})}$, in this decay channel could indicate the possible presence of residual systematic effects. A study of the ${\Delta\mathrm{M_{W}}({\mathrm{std}},\mathrm{R_{cone}}=0.5\,\mathrm{rad})}$ observable was performed in the semi-leptonic decay channel. The semi-leptonic ${\mathrm{M_{W}}}$ analysis in [33] was used and the cone algorithm was implemented in a similar way as for the fully hadronic decay channel. The same data sets have been used as presented throughout this paper and the following result was obtained:

[TABLE]

where the statistical uncertainty was computed taking into account the correlation between both measurements. Although the statistical significance of this cross-check is small, a good agreement was found for both ${\mathrm{M_{W}}}$ estimators.

5.3 Results from the ${\mathrm{M_{W}}}$ Estimators Analyses

The observable ${\Delta\mathrm{M_{W}}({\mathrm{std}},\mathrm{R_{cone}})}$ with ${\mathrm{R_{cone}}}$ equal to 0.5 rad (defined above), was found to be the most sensitive to the SK-I Colour Reconnection model, and the ${\Delta\mathrm{M_{W}}({\mathrm{std}},\mathrm{p_{cut}}=2\,\mathrm{GeV/c})}$ observable was measured as a cross-check. The analyses were calibrated with PYTHIA $\mathrm{\kappa=0}$ WPHACT generated simulation events. The values measured from the combined DELPHI data at centre-of-mass energies ranging between 183 and 208 GeV are:

[TABLE]

where the first uncertainty numbers represent the statistical components and the second the combined systematic ones. The full breakdown of the uncertainties on both observables can be found in Table 6.

From these values estimates were made for the $\mathrm{\kappa}$ parameter by comparing them with the Monte Carlo expected values in different hypothesis of $\mathrm{\kappa}$, shown in Figure 15 for the observable ${\Delta\mathrm{M_{W}}({\mathrm{std}},\mathrm{R_{cone}}=0.5\,\mathrm{rad})}$.

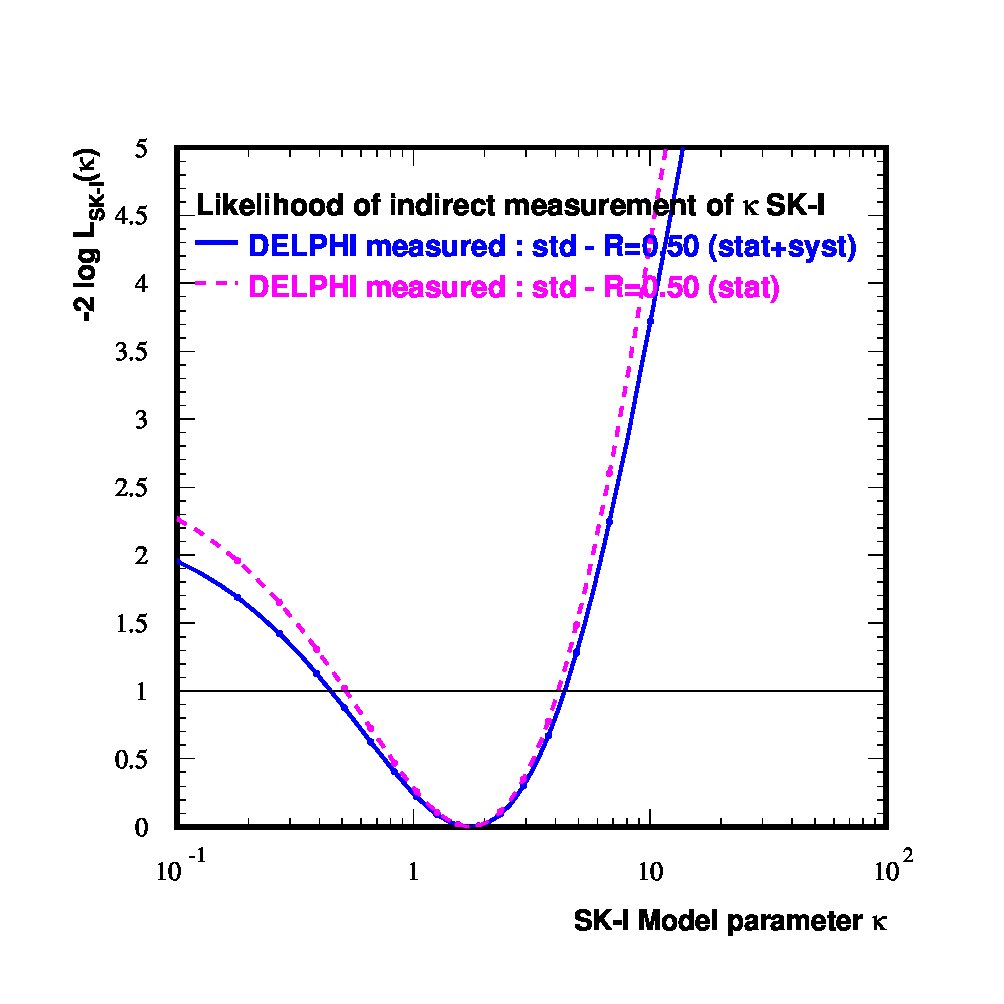

The Gaussian uncertainty on the measured observables was used to construct a log-likelihood function $\mathrm{{\cal L}(\kappa)}=\mathrm{-2\log L(\kappa)}$ for $\mathrm{\kappa}$. The log-likelihood function obtained is shown in Figure 16 for the first and in Figure 17 for the second observable.

The result shown in Figure 16 is the primary result of this analysis, because of the larger sensitivity of the ${\Delta\mathrm{M_{W}}({\mathrm{std}},\mathrm{R_{cone}}=0.5\,\mathrm{rad})}$ observable to the value of $\mathrm{\kappa}$ (see section 5.1). The value of $\kappa$ most compatible with the data within one standard deviation of the measurement is

[TABLE]

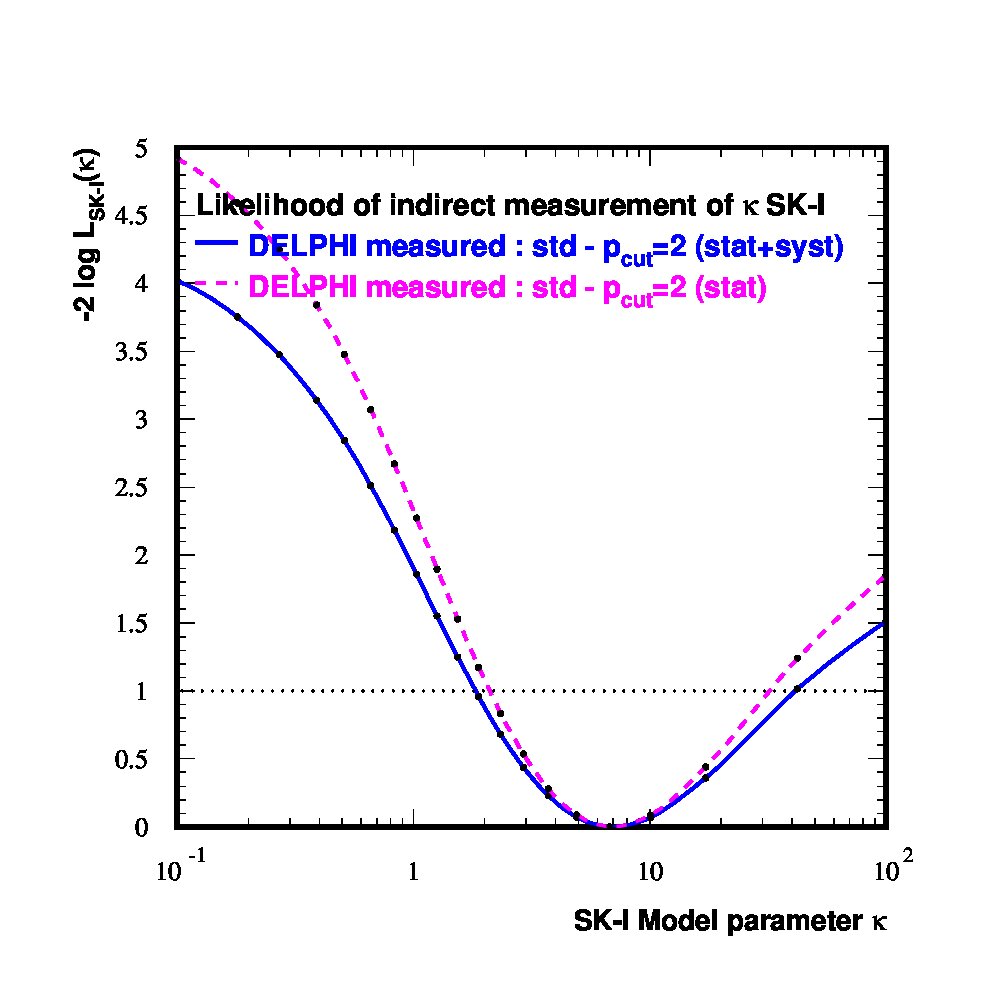

The result on $\mathrm{\kappa}$ extracted from the cross-check ${\Delta\mathrm{M_{W}}({\mathrm{std}},\mathrm{p_{cut}}=2\,\mathrm{GeV/c})}$ observable is found not to differ significantly from the quoted result obtained with the more optimal ${\Delta\mathrm{M_{W}}({\mathrm{std}},\mathrm{R_{cone}}=0.5\,\mathrm{rad})}$ observable. The significance can be determined by the difference between both ${\mathrm{M_{W}}}$ estimators :

[TABLE]

Taking into account that the expectation of this difference depends on $\kappa$, we find a statistical deviation of about 1 to 1.5$\sigma$ between the measurements. No improved sensitivity is obtained by combining the information of both observables.

In this paper the SK-I model for Colour Reconnection implemented in PYTHIA was studied because it parameterizes the effect as function of the model parameter $\mathrm{\kappa}$. Other phenomenological models implemented in the ARIADNE [7, 8] and HERWIG [6] Monte Carlo fragmentation schemes exist and are equally plausible. Unfortunately their effect in $\mathrm{{\mathrm{W^{+}W^{-}}}\rightarrow{{\mathrm{q}_{1}\bar{q_{2}}q_{3}\bar{q_{4}}}}}$ events cannot be scaled with a model parameter, analogous to $\mathrm{\kappa}$ in SK-I, without affecting the fragmentation model parameters. Despite this non-factorization property, the consistency of these models with the data can still be examined. The Monte Carlo predictions of the observables in the hypothesis with Colour Reconnection (calibrated in the hypothesis of no Colour Reconnection) give the following values:

[TABLE]

The small effects on the observables with the HERWIG implementation of Colour Reconnection compared to those predicted by SK-I are due to the fact that the fraction of events that reconnect is smaller in HERWIG (1/9) compared to SK-I ($\gtrsim$ 25% at $\sqrt{s}=200$ GeV). After applying this scale factor between both models, their predicted effect on the W mass and on the $\Delta{\mathrm{M_{W}}}(i,j)$ observables becomes compatible. The ARIADNE implementation of Colour Reconnection has a much smaller influence on the observables compared to those predicted with the SK-I and HERWIG Monte Carlo.

5.4 Correlation with Direct ${\mathrm{M_{W}}}$ Measurement

When using a data observable to estimate systematic uncertainties on some measurand inferred from the same data sample, the correlation between the estimator used to measure the systematic bias and the estimator of the absolute value of the measurand should be taken into account. Therefore the correlation between the Colour Reconnection sensitive observables ${\Delta\mathrm{M_{W}}({\mathrm{std}},\mathrm{R_{cone}}=0.5\,\mathrm{rad})}$ and ${\Delta\mathrm{M_{W}}({\mathrm{std}},\mathrm{p_{cut}}=2\,\mathrm{GeV/c})}$ and the absolute ${\mathrm{M_{W}}}({\mathrm{std}})$ estimator was calculated. The correlation was determined from the Monte Carlo events and with $\mathrm{\kappa=0}$ or no Colour Reconnection. The values obtained were found to be stable as a function of $\mathrm{\kappa}$ within the statistical precision. The correlation between ${\Delta\mathrm{M_{W}}({\mathrm{std}},\mathrm{R_{cone}}=0.5\,\mathrm{rad})}$ and ${\mathrm{M_{W}}}({\mathrm{std}})$ was found to be 11%, while for the one between ${\Delta\mathrm{M_{W}}({\mathrm{std}},\mathrm{p_{cut}}=2\,\mathrm{GeV/c})}$ and ${\mathrm{M_{W}}}({\mathrm{std}})$ a value of 8% was obtained. Also the correlation between the different ${\mathrm{M_{W}}}$ estimators was estimated and found to be stable with the value of $\mathrm{\kappa}$. A value of 83% was obtained for the correlation between ${\mathrm{M_{W}}}({\mathrm{std}})$ and ${\mathrm{M_{W}}^{\mathrm{R_{cone}}=0.5\,\mathrm{rad}}}$, while 66% was obtained between ${\mathrm{M_{W}}}({\mathrm{std}})$ and ${\mathrm{M_{W}}^{\mathrm{p_{cut}}=2\,\mathrm{GeV/c}}}$.

6 Combination of the Results in the Scope of the SK-I Model

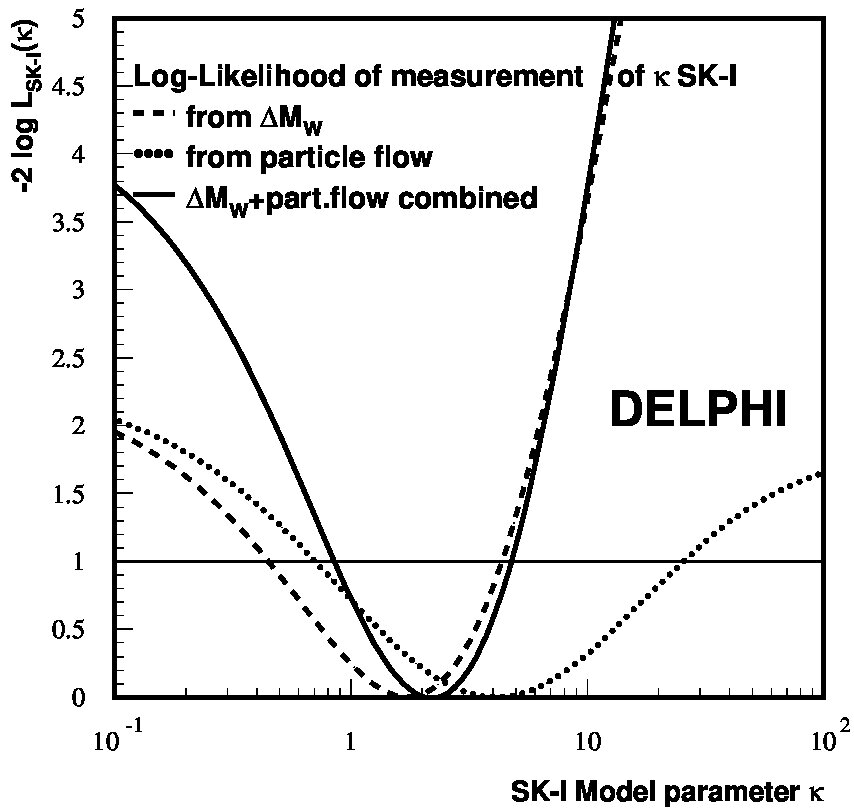

The log-likelihood curve from the particle flow method was combined with the curve from the $\Delta{\mathrm{M_{W}}}$ method and the result is shown in Figure 18. The correlations between the analyses were neglected because the overlap between the samples is small and the nature of the analyses is very different. The total errors were used (statistical and systematic added in quadrature) in the combination.

The best value for $\kappa$ from the minimum of the curve, with its error given by the width of the curve at the value $-2\log{\mathrm{L}}=(-2\log{\mathrm{L}})_{\mathrm{min}}+1$, is:

[TABLE]

7 Conclusions

Colour Reconnection (CR) effects in the fully hadronic decays of W pairs, produced in the DELPHI experiment at LEP, were investigated using the methods of the particle flow and the ${\mathrm{M_{W}}}$ estimators, notably the ${\Delta\mathrm{M_{W}}({\mathrm{std}},\mathrm{R_{cone}}=0.5\,\mathrm{rad})}$ observable.

The average of the ratios $R$ of the integrals between 0.2 and 0.8 of the particle distribution in Inside-W regions to the Between-W regions was found to be

[TABLE]

The values used in this average were obtained after rescaling the value at each energy to the value at a centre-of-mass energy of 189 GeV using a fit to the MC without CR.

The effects of CR on the values of the reconstructed mass of the W boson, as implemented in different Monte Carlo models, were studied with different estimators. From the estimator of the W mass with the strongest sensitivity to the SK-I model of CR, the ${\Delta\mathrm{M_{W}}({\mathrm{std}},\mathrm{R_{cone}}=0.5\,\mathrm{rad})}$ method, the difference in data was found to be

[TABLE]

From the combination of the results from particle flow and ${\mathrm{M_{W}}}$ estimators, corresponding to the curve in full line shown in Figure 18, the best value and total error for the $\kappa$ parameter in the SK-I model was extracted to be:

[TABLE]

which corresponds to a probability of reconnection of ${\cal P}_{\mathrm{reco}}=52\%$ and lies in the range $\mathrm{31\%<{\cal P}_{reco}<68\%}$ at 68% confidence level.

The two analysis methods used in this paper are complementary: the method of particle flow provides a model-independent measurement but has significantly less sensitivity towards the SK-I model of CR than the method of $\Delta{\mathrm{M_{W}}}$ estimators.

The obtained value of $\kappa$ in equation (25) can be compared with similar values obtained by other LEP experiments, and it was found to be compatible with, but higher than, the values obtained with the particle flow by L3 [37] and OPAL [38]. It is also compatible with, but higher than, the values obtained with the method of different ${\mathrm{M_{W}}}$ estimators by OPAL [39] and ALEPH [40].

Acknowledgements

We thank the ALEPH Collaboration for the production of the simulated “Cetraro Samples”.

We are greatly indebted to our technical collaborators, to the members of the CERN-SL Division for the excellent performance of the LEP collider, and to the funding agencies for their support in building and operating the DELPHI detector.

We acknowledge in particular the support of

Austrian Federal Ministry of Education, Science and Culture, GZ 616.364/2-III/2a/98,

FNRS–FWO, Flanders Institute to encourage scientific and technological research in the industry (IWT) and Belgian Federal Office for Scientific, Technical and Cultural affairs (OSTC), Belgium,

FINEP, CNPq, CAPES, FUJB and FAPERJ, Brazil,

Czech Ministry of Industry and Trade, GA CR 202/99/1362,

Commission of the European Communities (DG XII),

Direction des Sciences de la Mati$\grave{\mbox{\rm e}}$re, CEA, France,

Bundesministerium f$\ddot{\mbox{\rm u}}$r Bildung, Wissenschaft, Forschung und Technologie, Germany,

General Secretariat for Research and Technology, Greece,

National Science Foundation (NWO) and Foundation for Research on Matter (FOM), The Netherlands,

Norwegian Research Council,

State Committee for Scientific Research, Poland, SPUB-M/CERN/PO3/DZ296/2000, SPUB-M/CERN/PO3/DZ297/2000, 2P03B 104 19 and 2P03B 69 23(2002-2004)

FCT - Fundação para a Ciência e Tecnologia, Portugal,

Vedecka grantova agentura MS SR, Slovakia, Nr. 95/5195/134,

Ministry of Science and Technology of the Republic of Slovenia,

CICYT, Spain, AEN99-0950 and AEN99-0761,

The Swedish Research Council,

Particle Physics and Astronomy Research Council, UK,

Department of Energy, USA, DE-FG02-01ER41155,

EEC RTN contract HPRN-CT-00292-2002.
