Hilbert functions of points on Schubert varieties in Orthogonal Grassmannians

TL;DR

This paper develops a combinatorial method using standard monomial theory to compute Hilbert functions at points on Schubert varieties in orthogonal Grassmannians, extending previous work on related varieties.

Contribution

It introduces a new combinatorial approach to determine Hilbert functions for Schubert varieties in orthogonal Grassmannians, generalizing earlier methods used for other types of Grassmannians.

Findings

Provides a combinatorial formula for Hilbert functions

Interprets multiplicity as non-intersecting lattice paths

Connects geometric and combinatorial perspectives

Abstract

A solution is given to the following problem: how to compute the multiplicity, or more generally the Hilbert function, at a point on a Schubert variety in an orthogonal Grassmannian. Standard monomial theory is applied to translate the problem from geometry to combinatorics. The solution of the resulting combinatorial problem forms the bulk of the paper. This approach has been followed earlier to solve the same problem for the Grassmannian and the symplectic Grassmannian. As an application, we present an interpretation of the multiplicity as the number of non-intersecting lattice paths of a certain kind. Taking the Schubert variety to be of a special kind and the point to be the "identity coset," our problem specializes to a problem about Pfaffian ideals treatments of which by different methods exist in the literature. Also available in the literature is a geometric solution when the point is a "generic singularity."

Figures

Equations

$$\langle e_{i},e_{k}\rangle=\left\{\begin{array}[]{rl}1&\mbox{ if $i=k^{*}$ }\\ 0&\mbox{ otherwise}\\ \end{array}\right.$$

$$\underline{i}=\{i_{1}<\ldots<i_{d}\}\mapsto\left\{\begin{array}[]{ll}\{\widetilde{i}_{1},\ldots,\widetilde{i}_{d},d+1\}&\textup{if $\underline{i}\in I_{n}$}\\ \{\widetilde{i}_{1},\ldots,\widetilde{i}_{d},d+2\}&\textup{if $\underline{i}\in I_{n}^{\prime}\setminus I_{n}$}\end{array}\right.$$

$$\widetilde{i}_{k}=\left\{\begin{array}[]{ll}i_{k}&\textup{if $i_{k}\leq d$}\\ i_{k}+1&\textup{if $i_{k}\geq d+2$}\end{array}\right.$$

$$\mathfrak{N}$$

$$\mathfrak{OR}$$

$$\mathfrak{ON}$$

$$=\mathfrak{OR}\cap \mathfrak{N}$$

$$\mathfrak{d}$$

$$M=\left(\begin{array}[]{c}I\\ A\\ \end{array}\right)$$

$$\left(\begin{array}[]{rrrr}-d&-c&-b&0\\ -g&-f&0&b\\ -i&0&f&c\\ 0&i&g&d\\ \end{array}\right)$$

$$Y(w):=X(w)\cap \mathbb{A}.$$

$$\mathfrak{OR}=\{(r,c)|1\le r,c\le 2d,r\notin v,c\in v,r<c^{\ast }\}$$

$$\left(\begin{array}[]{ccccc}1&0&0&0&0\\ X_{21}&X_{23}&X_{24}&X_{26}&0\\ 0&1&0&0&0\\ 0&0&1&0&0\\ X_{51}&X_{53}&X_{54}&0&-X_{26}\\ 0&0&0&1&0\\ X_{71}&X_{73}&0&-X_{54}&-X_{24}\\ X_{81}&0&-X_{73}&-X_{53}&-X_{23}\\ 0&0&0&0&1\\ 0&-X_{81}&-X_{71}&-X_{51}&-X_{21}\\ \end{array}\right)$$

$$S{M}^w(m)$$

$$S{M}^v(m)\cong S{M}_{v^{\ast }}(v^{\ast })(m)\cong T(v^{\ast })(m)\cong U(m).$$

$$\widetilde{e}:=\left\{\begin{array}[]{ll}e&\textup{if $1\leq e\leq d$}\\ e+2&\textup{if $d+1\leq e\leq 2d$}\\ \end{array}\right.$$

$$S{M}^v\cong S{M}_{\widetilde{v^{\ast }}}(\widetilde{v^{\ast }})(‡)\cong T(\widetilde{v^{\ast }})(‡)\cong U.$$

$$\mathfrak{S}_{C}:=\left\{\begin{array}[]{ll}\{p_{v}(\alpha_{1}),\ldots,p_{v}(\alpha_{\ell})\}&\textrm{if $\ell$ is even}\\ \{p_{v}(\alpha_{1}),\ldots,p_{v}(\alpha_{\ell})\}\cup\{p_{h}(\alpha_{\ell})\}&\textrm{if $\ell$ is odd and $p_{h}(\alpha_{\ell})\in\mathfrak{N}$}\\ \{p_{v}(\alpha_{1}),\ldots,p_{v}(\alpha_{\ell-1})\}\cup\{\alpha_{\ell},\alpha_{\ell}^{\#}\}&\textrm{if $\ell$ is odd and $p_{h}(\alpha_{\ell})\not\in\mathfrak{N}$}\end{array}\right.$$

$${\mathfrak{S}}_C:={\mathfrak{S}}_{C_1}\cup {\mathfrak{S}}_{C_2}\cup \cdots$$

$$\mathfrak{S}_{C,\alpha}:=\left\{\begin{array}[]{ll}\{p_{v}(\alpha)\}&\textrm{if $\alpha$ is of type~{}V in~{}$C$};\\ \{p_{v}(\alpha),p_{h}(\alpha)\}&\textrm{if $\alpha$ is of type~{}H in~{}$C$};\\ \{\alpha,\alpha^{\#}\}&\textrm{if $\alpha$ is of type~{}S in~{}$C$};\end{array}\right.$$

$$\alpha$$

$$\mathfrak{O}\textup{-depth}_{C}(\beta)=\left\{\begin{array}[]{ll}\mathfrak{O}\textup{-depth}_{C}(\alpha)+2&\text{if and only if $\alpha$ is of}\\ &\text{type~{}H and $p_{h}(\alpha)>\beta$}\\ \mathfrak{O}\textup{-depth}_{C}(\alpha)+1&\text{otherwise}\\ \end{array}\right.$$

$$\mathfrak{O}{\text{-depth}}_{{\mathfrak{S}}^{j,j+1}}(\beta )=\mathfrak{O}{\text{-depth}}_{\mathfrak{S}}(\beta )-j+1$$

$$\mathfrak{O}{\text{-depth}}_C(\alpha )\ge \mathfrak{O}{\text{-depth}}_C(\zeta )-\mathfrak{O}{\text{-depth}}_{C^{\prime }}(\zeta )+\mathfrak{O}{\text{-depth}}_{C^{\prime }}(\alpha )-1.$$

$${\mathfrak{S}}_{j,j+1}^{\text{pr}}:={\mathfrak{S}}_j^{\text{pr}}\cup {\mathfrak{S}}_{j+1}^{\text{pr}}.$$

$$\left\{\begin{array}[]{lr}\left(\mathfrak{S}_{j,j+1}^{\textup{pr}}\setminus\{\sigma_{j}\}\right)\cup\left(\mathfrak{S}_{j,j+1}^{\textup{pr}}\setminus\{\sigma_{j}\}\right)^{\#}\cup\{p_{v}(\sigma_{j}),p_{h}(\sigma_{j})\}&\begin{array}[]{l}\textrm{if $\mathfrak{S}$ is truly}\\ \textrm{orthogonal at $j$}\end{array}\\ \mathfrak{S}_{j,j+1}^{\textup{pr}}\cup\left(\mathfrak{S}_{j,j+1}^{\textup{pr}}\right)^{\#}\quad\quad\quad\textrm{otherwise}\end{array}\right.$$

$$\pi ({\mathfrak{S}}_{j,j+1}):=(w_{j,j+1},{\mathfrak{S}}_{j,j+1}^{\prime }),{\mathfrak{S}}^{\prime }:={\cup }_{\text{j odd}}{\mathfrak{S}}_{j,j+1}^{\prime }\cap \mathfrak{ON},$$

$${\mathfrak{S}}_w=\{(15,14),(17,16),(21,10),(7,4),(27,24),(28,3),(30,1),(29,2)\}$$

$$\mathfrak{S}_{j,j+1}\textup{(ext)}:=\left\{\begin{array}[]{ll}\mathfrak{S}_{j,j+1}\cup\{\sigma_{j},\sigma_{j}^{\#}\}&\textrm{ if $\mathfrak{S}$ is truly orthogonal at $j$}\\ \mathfrak{S}_{j,j+1}&\textrm{ otherwise}\end{array}\right.$$

$$\mathfrak{S}_{j}\textup{(ext)}:=\left\{\begin{array}[]{ll}\mathfrak{S}_{j}^{\textup{pr}}\cup\left(\mathfrak{S}_{j}^{\textup{pr}}\right)^{\#}\cup\{p_{v}(\sigma)\}&\textrm{ if $\mathfrak{S}$ is truly orthogonal at $j$}\\ \mathfrak{S}_{j}^{\textup{pr}}\cup\left(\mathfrak{S}_{j}^{\textup{pr}}\right)^{\#}&\textrm{ otherwise}\end{array}\right.$$

$$\mathfrak{S}_{j+1}\textup{(ext)}:=\left\{\begin{array}[]{ll}\mathfrak{S}_{j+1}^{\textup{pr}}\cup\left(\mathfrak{S}_{j+1}^{\textup{pr}}\right)^{\#}\cup\{p_{h}(\sigma)\}&\textrm{ if $\mathfrak{S}$ is truly orthogonal at $j$}\\ \mathfrak{S}_{j+1}^{\textup{pr}}\cup\left(\mathfrak{S}_{j+1}^{\textup{pr}}\right)^{\#}&\textrm{ otherwise}\end{array}\right.$$

$$\left\{\begin{array}[]{cl}(\mathfrak{T}_{w,j,j+1}\cup\mathfrak{T}_{w,j,j+1}^{\#})^{\star}&\textup{if $w$ is not diagonal at $j$}\\ \left((\mathfrak{T}_{w,j,j+1}\cup\mathfrak{T}_{w,j,j+1}^{\#})^{\star}\setminus\mathfrak{d}\right)\cup\{\delta_{j},\delta_{j}^{\#}\}&\textup{if $w$ is diagonal at $j$}\\ \end{array}\right.$$

Full text

As an application, we present an interpretation of the multiplicity as the number of non-intersecting lattice paths of a certain kind.

Taking the Schubert variety to be of a special kind and the point to be the “identity coset,” our problem specializes to a problem about Pfaffian ideals treatments of which by different methods exist in the literature. Also available in the literature is a geometric solution when the point is a “generic singularity.”

1. Introduction

2. Organization of the paper

3. Important note added

4. I The theorem

5. 1 The set up

6. 1.1 The statement of the problem

7. 1.2 Some convenient choices

8. 1.3 Reduction to the case $n$ even

9. 2 The theorem

10. 2.1 Basic notation

11. 2.2 Two fundamental definitions

12. 2.2.1 Definition of $v$-chain

13. 2.2.2 Definition of $\mathfrak{O}$-domination

14. 2.3 The main theorem and its corollary

15. II From geometry to combinatorics

16. 3 Reduction to combinatorics

17. 3.1 Homogeneous co-ordinate ring of the Schubert variety $X(w)$

18. 3.1.1 The line bundle $L$ on $\mathfrak{M}_{d}(V)$

19. 3.1.2 The section $q_{\theta}$ of $L$

20. 3.1.3 Standard monomial theory for $\mathfrak{M}_{d}(V)$

21. 3.2 Co-ordinate rings of affine patches and tangent cones of $X(w)$

22. 3.2.1 Standard monomial theory for affine patches

23. 3.2.2 Standard monomial theory for tangent cones

24. 4 Further reductions

25. 4.1 The main propositions

26. 4.2 From the main propositions to the main theorem

27. III The proof

28. 5 Terminology and notation

29. 5.1 Distinguished subsets

30. 5.1.1 Distinguished subsets of $\mathfrak{N}$

31. 5.1.2 Attaching elements of $I(d,2d)$ to distinguished subsets of $\mathfrak{N}$

32. 5.2 The involution $\#$

33. 5.2.1 The involution $\#$ on $I(d,2d)$

34. 5.2.2 The involution $\#$ on $\mathfrak{N}$ and $\mathfrak{R}$

35. 5.3 The subset $\mathfrak{S}_{C}$ attached to a $v$-chain $C$

36. 5.3.1 Vertical and horizontal projections of an element of $\mathfrak{O}\mathfrak{N}$

37. 5.3.2 The “connection” relation on elements of a $v$-chain

38. 5.3.3 The definition of $\mathfrak{S}_{C}$

39. 5.3.4 The type of an element $\alpha$ of a $v$-chain $C$, and the set $\mathfrak{S}_{C,\alpha}$

40. 6 $\mathfrak{O}$-depth

41. 6.1 Definition of $\mathfrak{O}$-depth

42. 6.2 $\mathfrak{O}$-depth and depth

43. 6.3 $\mathfrak{O}$-depth and type

44. 7 The map $\mathfrak{O}\pi$

45. 7.1 Description of $\mathfrak{O}\pi$

46. 7.2 Illustration by an example

47. 7.3 A proposition about $\mathfrak{S}_{j,j+1}$

48. 7.4 Proof of Proposition 7.1.1

49. 7.5 More observations

50. 8 The map $\mathfrak{O}\phi$

51. 8.1 Description of $\mathfrak{O}\phi$

52. 8.2 Basic facts about $\mathfrak{T}_{w,j,j+1}$ and $\mathfrak{T}_{w,j,j+1}^{\star}$

53. 9 Some Lemmas

54. 9.1 Lemmas from the Grassmannian case

55. 9.2 Orthogonal analogues of Lemmas of 9.1

56. 9.3 Orthogonal analogues of some lemmas in [7]

57. 9.4 More lemmas

58. 10 The Proof

59. 10.1 Proof of Proposition 4.1.1

60. 10.2 Proof that $\mathfrak{O}\phi\mathfrak{O}\pi=identity$

61. 10.3 Proof that $\mathfrak{O}\pi\mathfrak{O}\phi=identity$

62. 10.4 Proof of Proposition 4.1.3

63. IV An Application

64. 11 Multiplicity counts certain paths

65. 11.1 Description and illustration

66. 11.2 Justification for the interpretation

Introduction

In this paper the following problem is solved: given a Schubert variety in an orthogonal Grassmannian (by which is meant the variety of isotropic subspaces of maximum possible dimension of a finite dimensional vector space with a symmetric non-degenerate form—see §1 for precise definitions) and an arbitrary point on the Schubert variety, how to compute the multiplicity, or more generally the Hilbert function, of the local ring of germs of functions at that point. In a sense, our solution is but a translation of the problem: we do not give closed form formulas but alternative combinatorial descriptions. The meaning of “alternative” will presently become clear.

The same problem for the Grassmannian was treated in [11, 8, 7, 9, 12] and for the symplectic Grassmannian in [4]. The present paper is a sequel to [11, 7, 9, 12, 4] and toes the same line as them. In particular, its strategy is borrowed from them and runs as follows: first translate the problem from geometry to combinatorics, or, more precisely, apply standard monomial theory to obtain an initial combinatorial description of the Hilbert function (the earliest version of the theory capable of handling Schubert varieties in an orthogonal Grassmannian is to be found in [17]); then transform the initial combinatorial description to obtain the desired alternative description. But that is easier said than done.

While the problem makes sense for Schubert varieties of any kind and standard monomial theory itself is available in great generality [13, 15], the translation of the problem from geometry to combinatorics has been made—in [14]—only for “minuscule111Symplectic Grassmannians are not minuscule but can be treated as if they were. generalized Grassmannians.” Orthogonal Grassmannians being minuscule, this translation is available to us and we have an initial combinatorial description of the Hilbert function. As to the passage from the initial to the alternative description—and this is where the content of the present paper lies—neither the end nor the means is clear at the outset.

The first problem then is to find a good alternative description. But how to measure the worth of an alternative description? The interpretation of multiplicity as the number of certain non-intersecting lattice paths (deduced in §11 from our alternative description) seems to testify to the correctness of our alternative description, but we are not sure if there are others that are equally or more correct.

The proof of the equivalence of the initial and alternative combinatorial descriptions is, unfortunately, a little technically involved. It builds on the details of the proofs of the corresponding equivalences in the cases of the Grassmannian and the symplectic Grassmannian. In [10] it is shown that the equivalence in the case of the Grassmannian is a kind of KRS correspondence, called “bounded KRS.” The proof there is short and elegant and it would be nice to realise the main result of the present paper too in a similar spirit as a kind of KRS correspondence.

The initial description is in terms of “standard monomials” and the alternative description in terms of “monomials in roots.” The equivalence of the two descriptions thus gives a bijective correspondence between standard monomials and monomials in roots. Roughly—but not actually—the correspondence maps each standard monomial to its initial term (with respect to a certain monomial order). Thus it is natural to wonder whether we can compute the initial ideal of the ideal of the tangent cone to the Schubert variety at the given point.

We believe that this can be done but that it is far more involved and difficult than the corresponding computation for Grassmannians and symplectic Grassmannians (the natural set of generators of the ideal of the tangent cone do not form a Gröbner basis unlike in those cases). If all goes well, the computation will soon appear [16].

Taking the Schubert variety to be of a special kind and the point to be the “identity coset,” our problem specializes to a problem about Pfaffian ideals considered in [5, 2]. On the other side of the spectrum from the identity coset, so to speak, lie the “generic singularities,” points that are generic in the complement of the open orbit of the stabiliser of the Schubert variety. For these, a geometric solution to the problem appears in [1].

Given that our solution of the problem is but a translation, it makes sense to ask if one can extract more tangible information—closed form formulas for example—from our alternative description. See the papers quoted in the previous paragraph and also [3] for some answers in the special cases they consider.

Organization of the paper

The table of contents indicates how the paper is organized.

There is a brief description at the beginning of every subdivision of the contents therein. An index of definitions and notation is included, for it would otherwise be difficult to find the meanings of certain words and symbols.

Important note added

The recent article [6] treats some of the questions addressed here and some that could be addressed by using the main result proved here. It includes:

• •

an interpretation of the multiplicity similar to ours.

• •

a closed formula for the multiplicity (as a specialization of a factorial Schur function), thereby answering the question we raised above.

• •

a formula for the restriction to the torus fixed point of the equivariant cohomology class of a Schubert variety.

The approach in [6] is quite different from ours. In fact, it is the opposite of ours in that it circumvents the lack of results about initial ideals of tangent cones, while our prime motivation is to remedy the lack. The starting points in the two approaches are also different: [6] takes off from certain results of Kostant-Kumar and Arabia on equivariant cohomology, while our launchpad is standard monomial theory.

The appearance of [6] notwithstanding, our approach is worthwhile, for, quite apart from the difference in starting points, there is no way, as far as we can tell, to the Hilbert function via the approach of [6], nor to the initial ideal, both of which are interesting in their own right.

Part I The theorem

Definitions are recalled, the problem formulated, and the theorem stated.

1 The set up

In this section, we state the problem to be addressed after recalling the necessary basic definitions, make some choices that are convenient for studying the problem, and see why it is enough to focus on a particular case of the problem.

1.1 The statement of the problem

Fix an algebraically closed field of characteristic not equal to $2$. Fix a vector space $V$ of finite dimension $n$ over this field and a non-degenerate symmetric bilinear form $\langle\ ,\ \rangle$ on $V$. Let $d$ be the integer such that either $n=2d$ or $n=2d+1$. A linear subspace of $V$ is said to be isotropic if the form $\langle\ ,\ \rangle$ vanishes identically on it. It is elementary to see that an isotropic subspace of $V$ has dimension at most $d$ and that every isotropic subspace is contained in one of dimension $d$. Denote by $\mathfrak{M}_{d}(V)^{\prime}$ the closed sub-variety of the Grassmannian of $d$-dimensional subspaces consisting of the points corresponding to isotropic subspaces.

The orthogonal group ${\rm O}(V)$ of linear automorphisms of $V$ preserving $\langle\ ,\ \rangle$ acts transitively on $\mathfrak{M}_{d}(V)^{\prime}$, for by Witt’s theorem an isometry between subspaces can be lifted to one of the whole vector space. If $n$ is odd the special orthogonal group ${\rm SO}(V)$ (consisting of form preserving linear automorphisms with trivial determinant) itself acts transitively on $\mathfrak{M}_{d}(V)^{\prime}$. If $n$ is even the special orthogonal group ${\rm SO}(V)$ does not act transitively on $\mathfrak{M}_{d}(V)^{\prime}$, and $\mathfrak{M}_{d}(V)^{\prime}$ has two connected components. We define the orthogonal Grassmannian $\mathfrak{M}_{d}(V)$ to be $\mathfrak{M}_{d}(V)^{\prime}$ if $n$ is odd and to be one of the two components of $\mathfrak{M}_{d}(V)^{\prime}$ if $n$ is even.

The Schubert varieties of $\mathfrak{M}_{d}(V)$ are defined to be the $B$-orbit closures in $\mathfrak{M}_{d}(V)$ (with canonical reduced scheme structure), where $B$ is a Borel subgroup of ${\rm SO}(V)$. The choice of $B$ is immaterial, for any two of them are conjugate. The question that is tackled in this paper is this: given a point on a Schubert variety in $\mathfrak{M}_{d}(V)$, how to compute the multiplicity (and more generally, the Hilbert function) of the Schubert variety at the given point? The answers are contained in Theorem 2.3.1 and Corollary 2.3.2. But in order to make sense of those statements, we need some preparation.

1.2 Some convenient choices

We now make some choices that are convenient for the study of Schubert varieties. For $k$ an integer such that $1\leq k\leq n$, set $k^{*}:=n+1-k$. Fix a basis $e_{1},~{}\ldots,~{}e_{n}$ of $V$ such that

[TABLE]

The advantage of this choice is: the elements of ${\rm SO}(V)$ for which each $e_{k}$ is an eigenvector form a maximal torus, and the elements that are upper triangular with respect to this basis form a Borel subgroup (a linear transformation is upper triangular if for each $k$, $1\leq k\leq n$, the image of $e_{k}$ under the transformation is a linear combination of $e_{1},\ldots,e_{k}$). We denote this maximal torus and this Borel subgroup by $T$ and $B$ respectively. Our Schubert varieties will be orbit closures of this particular Borel subgroup $B$.

The $B$-orbits of $\mathfrak{M}_{d}(V)^{\prime}$ are naturally indexed by its $T$-fixed points: each orbit contains one and only one such point. The $T$-fixed points are evidently of the form $\langle e_{i_{1}},\ldots,e_{i_{d}}\rangle$, where $1\leq i_{1}<\ldots<i_{d}\leq n$ and for each $k$, $1\leq k\leq d$, there does not exist $j$, $1\leq j\leq d$, such that $i_{k}^{*}=i_{j}$—in other words, for each $\ell$, $1\leq\ell\leq n$, such that $\ell\neq\ell^{*}$, exactly one of $\ell$ and $\ell^{*}$ appears in $\{i_{1},\ldots,i_{d}\}$; in addition, if $n$ is odd, then $d+1$ does not appear in $\{i_{1},\ldots,i_{d}\}$. Denote the set of such $d$-element subsets $\{i_{1}<\ldots<i_{d}\}$ by $I_{n}^{\prime}$. We thus have a bijective correspondence between $I_{n}^{\prime}$ and the $B$-orbits of $\mathfrak{M}_{d}(V)^{\prime}$. Each $B$-orbit being irreducible and open in its closure, it follows that $B$-orbit closures are indexed by the $B$-orbits. Thus $I_{n}^{\prime}$ is an indexing set for $B$-orbit closures in $\mathfrak{M}_{d}(V)^{\prime}$.

Suppose that $n$ is even—it will be shown presently that it is enough to consider this case. As already observed, $\mathfrak{M}_{d}(V)^{\prime}$ has two connected components on each of which ${\rm SO}(V)$ acts transitively. The $B$-orbits belong to one or the other component accordingly as the parity of the cardinality of the number of entries bigger than $d$ in the corresponding element of $I_{n}^{\prime}$. We take $\mathfrak{M}_{d}(V)$ to be the component in which these cardinalities are even. We let $I_{n}$ denote the subset of $I_{n}^{\prime}$ consisting of elements for which this cardinality is even. Schubert varieties in $\mathfrak{M}_{d}(V)$ are thus indexed by elements of $I_{n}$.

1.3 Reduction to the case $n$ even

We now argue that it is enough to consider the case $n$ even. Suppose that $n$ is odd. Let $\widetilde{n}:=n+1$ and $\widetilde{V}$ be a vector space of dimension $\widetilde{n}$ with a non-degenerate symmetric form. Let $\widetilde{e}_{1},\ldots,\widetilde{e}_{\widetilde{n}}$ be a basis of $\widetilde{V}$ as in 1.2. Put $e:=\widetilde{e}_{d+1}$ and $f:=\widetilde{e}_{d+2}$. Take $\lambda$ to be an element of the field such that $\lambda^{2}=1/2$. We can take $V$ to be the subspace of $\widetilde{V}$ spanned by the vectors $\widetilde{e}_{1},\ldots,\widetilde{e}_{d},\lambda e+\lambda f,\widetilde{e}_{d+3},\ldots,\widetilde{e}_{\widetilde{n}}$, and a basis of $V$ to be these vectors in that order.

There is a natural map from $\mathfrak{M}_{d+1}(\widetilde{V})^{\prime}$ to $\mathfrak{M}_{d}(V)$: intersecting with $V$ an isotropic subspace of $\widetilde{V}$ of dimension $d+1$ gives an isotropic subspace of $V$ of dimension $d$. This map is onto, for every isotropic subspace of $\widetilde{V}$ (and hence of $V$) is contained in an isotropic subspace of $\widetilde{V}$ of dimension $d+1$. It is also elementary to see that the map is two-to-one (essentially because in a two-dimensional space with a non-degenerate symmetric form there are two isotropic lines), and that the two points in any fiber lie one in each component (there is clearly an element in ${\rm O}(\widetilde{V})\setminus{\rm SO}(\widetilde{V})$ that moves one element of the fiber to the other, and so if there was an element of ${\rm SO}(\widetilde{V})$ that also moved one point to the other, the isotropy at the point would not be contained in ${\rm SO}(\widetilde{V})$, a contradiction).

We therefore get a natural isomorphism between $\mathfrak{M}_{d+1}(\widetilde{V})$ and $\mathfrak{M}_{d}(V)$. We will now show that the $\widetilde{B}$-orbits in $\mathfrak{M}_{d+1}(\widetilde{V})$ correspond under the isomorphism to $B$-orbits of $\mathfrak{M}_{d}(V)$ (we denote by $\widetilde{T}$ and $\widetilde{B}$ the maximal torus and Borel subgroups of ${\rm SO}(\widetilde{V})$ as in §1.2). It will then follow that Schubert varieties in $\mathfrak{M}_{d+1}(\widetilde{V})$ are isomorphic to those in $\mathfrak{M}_{d}(V)$ and the purpose of this subsection will be achieved.

The group ${\rm SO}(V)$ can be realized as the subgroup of ${\rm SO}(\widetilde{V})$ consisting of the elements that fix $e-f$. The isomorphism $\mathfrak{M}_{d+1}(\widetilde{V})\cong\mathfrak{M}_{d}(V)$ above is equivariant for ${\rm SO}(V)$, and we have $\widetilde{T}\cap{\rm SO}(V)=T$ and $\widetilde{B}\cap{\rm SO}(V)=B$. It should now be clear that the preimages in $\mathfrak{M}_{d+1}(\widetilde{V})$ of two elements in the same $B$-orbit of $\mathfrak{M}_{d}(V)$ are in the same $\widetilde{B}$-orbit: an element of $B$ that moves one to the other considered as an element of $\widetilde{B}$ moves also the preimage of the one to that of the other.

On the other hand, the preimages of distinct $T$-fixed points are distinct $\widetilde{T}$-fixed points, the corresponding map from $I_{n}^{\prime}$ to $I_{\widetilde{n}}$ being given as follows:

[TABLE]

where

[TABLE]

(Note that $d+1$ never occurs as an entry in any element of $I_{n}^{\prime}$ and that the elements $\widetilde{i}_{1}$, …, $\widetilde{i}_{d}$, $d+1$ (respectively $\widetilde{i}_{1}$, …, $\widetilde{i}_{d}$, $d+2$) are not in increasing order except in the trivial case $\underline{i}=\{1<\ldots<d\}$.) Given that each $B$-orbit has a $T$-fixed point and that distinct $\widetilde{T}$-fixed points belong to distinct $\widetilde{B}$-orbits, this implies that the preimages of two elements in distinct $B$-orbits belong to distinct $\widetilde{B}$-orbits, and the proof is over.  $\Box$

2 The theorem

The purpose of this section is to state the main theorem and its corollary. We first set down some basic notation and two fundamental definitions needed in order to state the theorem.

2.1 Basic notation

We keep the terminology and notations of §1.1, 1.2. As observed in §1.3, it is enough to consider the case $n$ even. So from now on let $n=2d$. Recall that, for an integer $k$, $1\leq k\leq 2d$, $k^{*}:=2d+1-k$. As observed in §1.2, Schubert varieties in $\mathfrak{M}_{d}(V)$ are indexed by $I_{n}$.

Since $d$ now determines $n$, we will henceforth write $I(d)$ instead of $I_{n}$. In other words, $I(d)$ is the set of $d$-element of subsets of $\{1,\ldots,2d\}$ such that

• •

for each $k$, $1\leq k\leq 2d$, the subset contains exactly one of $k$, $k^{*}$, and

• •

the number of elements in the subset that exceed $d$ is even.

We write $I(d,2d)$ for the set of all $d$-element subsets of $\{1,\ldots,2d\}$. There is a natural partial order on $I(d,2d)$ and so also on $I(d)$: $v=(v_{1}<\ldots<v_{d})\leq w=(w_{1}<\ldots<w_{d})$ if and only if $v_{1}\leq w_{1}$, …, $v_{d}\leq w_{d}$.

Given $v\in I(d)$, the corresponding $T$-fixed point in $\mathfrak{M}_{d}(V)$ (namely, the span of $e_{v_{1}}$, …, $e_{v_{d}}$) is denoted $\mathfrak{e}^{v}$. Given $w\in I(d)$, the corresponding Schubert variety in $\mathfrak{M}_{d}(V)$ (which, by definition, is the closure of the $B$-orbit of the $T$-fixed point $\mathfrak{e}^{w}$ with canonical reduced scheme structure) is denoted $X(w)$. The point $\mathfrak{e}^{v}$ belongs to $X(w)$ if and only if $v\leq w$ in the partial order just defined. Since, under the natural action of $B$ on $X(w)$, each point of $X(w)$ is in the $B$-orbit of a $T$-fixed point $\mathfrak{e}^{v}$ for some $v$ such that $v\leq w$, it is enough to focus attention on such $T$-fixed points.

For the rest of this section an element $v$ of $I(d)$ will remain fixed.

We will be dealing extensively with ordered pairs $(r,c)$, $1\leq r,c\leq 2d$, such that $r$ is not and $c$ is an entry of $v$. Let $\mathfrak{R}$ denote the set of all such ordered pairs, and set

$\displaystyle\mathfrak{N}$ $\displaystyle:=\left\{(r,c)\in\mathfrak{R}\,|\,r>c\right\}$

$\displaystyle\mathfrak{O}\mathfrak{R}$ $\displaystyle:=\left\{(r,c)\in\mathfrak{R}\,|\,r<c^{*}\right\}$

$\displaystyle\mathfrak{O}\mathfrak{N}$ $\displaystyle:=\left\{(r,c)\in\mathfrak{R}\,|\,r>c,r<c^{*}\right\}$

$\displaystyle=\mathfrak{O}\mathfrak{R}\cap\mathfrak{N}$

$\displaystyle\mathfrak{d}$ $\displaystyle:=\left\{(r,c)\in\mathfrak{R}\,|\,r=c^{*}\right\}$

diagonalboundaryof \mathfrak{N}$$(r,c)$$(c^{*},c)$$(r,r^{*})legleg

The picture shows a drawing of $\mathfrak{R}$. We think of $r$ and $c$ in $(r,c)$ as row index and column index respectively. The columns are indexed from left to right by the entries of $v$ in ascending order, the rows from top to bottom by the entries of $\{1,\ldots,2d\}\setminus v$ in ascending order. The points of $\mathfrak{d}$ are those on the diagonal, the points of $\mathfrak{O}\mathfrak{R}$ are those that are (strictly) above the diagonal, and the points of $\mathfrak{N}$ are those that are to the South-West of the poly-line captioned “boundary of $\mathfrak{N}$”—we draw the boundary so that points on the boundary belong to $\mathfrak{N}$. The reader can readily verify that $d=13$ and $v=(1,2,3,4,6,7,10,11,13,15,18,19,22)$ for the particular picture drawn. The points of $\mathfrak{O}\mathfrak{N}$ indicated by solid circles form a $v$-chain (see §2.2.1 below).

We will be considering monomials, also called multisets, in some of these sets. A monomial, as usual, is a subset with each member being allowed a multiplicity (taking values in the non-negative integers). The degree of a monomial has also the usual sense: it is the sum of the multiplicities in the monomial over all elements of the set. The intersection of a monomial in a set with a subset of the set has also the natural meaning: it is a monomial in the subset, the multiplicities being those in the original monomial.

We will refer to $\mathfrak{d}$ as the diagonal.

2.2 Two fundamental definitions

2.2.1 Definition of $v$-chain

Given two elements $(R,C)$ and $(r,c)$ in $\mathfrak{O}\mathfrak{N}$, we write $(R,C)>(r,c)$ if $R>r$ and $C<c$ (note that these are strict inequalities). An ordered sequence $\alpha$, $\beta$, … of elements of $\mathfrak{O}\mathfrak{N}$ is called a $v$-chain if \alpha>\beta>\ldots\. A $v$-chain $\alpha_{1}>\ldots>\alpha_{\ell}$ has head $\alpha_{1}$, tail $\alpha_{\ell}$, and length $\ell$.

2.2.2 Definition of $\mathfrak{O}$-domination

To a $v$-chain $C:\alpha_{1}>\alpha_{2}>\ldots$ in $\mathfrak{O}\mathfrak{N}$ there corresponds, as described in §5.3.3, a subset $\mathfrak{S}_{C}$ of $\mathfrak{N}$ which, as observed in Proposition 5.3.5, is “distinguished” in the sense of §5.1.1. To a distinguished subset of $\mathfrak{N}$ there corresponds, as described below in §5.1.2, an element of $I(d,2d)$. Following these correspondences through, we get an element of $I(d,2d)$ attached to the $v$-chain $C$. Let $w(C)$ denote this element—sometimes we write $w_{C}$. (All this makes sense even when $C$ is empty—$w(C)$ will turn out to be $v$ itself in that case.)

Furthermore, as will be obvious from its definition, the monomial $\mathfrak{S}_{C}$ is “symmetric” in the sense of §5.2.2 and contains evenly many elements of the diagonal $\mathfrak{d}$. Thus, by Proposition 5.2.1, the element $w(C)$ of $I(d,2d)$ belongs to $I(d)$.

An element $w$ of $I(d)$ is said to $\mathfrak{O}$-dominate $C$ if $w\geq w(C)$, or, equivalently—and this is important for the proofs—if $w$ dominates in the sense of [7] the monomial $\mathfrak{S}_{C}$ (for the proof of the equivalence, see [7, Lemma 5.5]). An element $w$ of $I(d)$ $\mathfrak{O}$-dominates a monomial $\mathfrak{S}$ of $\mathfrak{O}\mathfrak{N}$ (repsectively of $\mathfrak{O}\mathfrak{R}$) if it $\mathfrak{O}$-dominates every $v$-chain in $\mathfrak{S}$ (respectively in $\mathfrak{S}\cap\mathfrak{O}\mathfrak{N}$).

2.3 The main theorem and its corollary

Theorem 2.3.1

Fix a positive integer $d$ and elements $v\leq w$ of $I(d)$. Let $V$ be a vector space of dimension $2d$ with a symmetric non-degenerate bilinear form (over a field of characteristic not $2$). Let $X(w)$ be the Schubert variety corresponding to $w$ in the orthogonal Grassmannian $\mathfrak{M}_{d}(V)$, and $\mathfrak{e}^{v}$ the torus fixed point of $X(w)$ corresponding to $v$. Let $R_{v}^{w}$ denote the associated graded ring with respect to the unique maximal ideal of the local ring of germs at $\mathfrak{e}^{v}$ of functions on $X(w)$. Then, for any non-negative integer $m$, the dimension as a vector space of the homogeneous piece of $R_{v}^{w}$ of degree $m$ equals the cardinality of the set $S^{w}(v)(m)$ of monomials of degree $m$ of $\mathfrak{O}\mathfrak{R}$ that are $\mathfrak{O}$-dominated by $w$.

The proof of this theorem occupies us for most of this paper. It is reduced in §3, by an application of standard monomial theory, to combinatorics. The resulting combinatorial problem is solved in §4–10. For now, let us note the following immediate consequence:

Corollary 2.3.2

The multiplicity at the point $\mathfrak{e}^{v}$ of the Schubert variety $X(w)$ equals the number of monomials in $\mathfrak{O}\mathfrak{N}$ of maximal cardinality that are square-free and $\mathfrak{O}$-dominated by $w$.

Proof: The proof of Corollary 2.2 of [7] holds verbatim here too. $\Box$

Part II From geometry to combinatorics

The problem is translated from geometry to combinatorics. The main combinatorial results are formulated.

3 Reduction to combinatorics

In this section we translate the problem from geometry to combinatorics. In §3.1 we recall from [17] the theorem that enables the translation. The translation itself is done in 3.2 and follows [14].

3.1 Homogeneous co-ordinate ring of the Schubert variety $X(w)$

3.1.1 The line bundle $L$ on $\mathfrak{M}_{d}(V)$

Let $\mathfrak{M}_{d}(V)\subseteq G_{d}(V)\hookrightarrow\mathbb{P}(\wedge^{d}V)$ be the Plücker embedding (where $G_{d}(V)$ denotes the Grassmannian of all $d$-dimensional subspaces of $V$). The pull-back to $\mathfrak{M}_{d}(V)$ of the line bundle $\mathcal{O}(1)$ on $\mathbb{P}(\wedge^{d}V)$ is the square of the ample generator of the Picard group of $\mathfrak{M}_{d}(V)$. Letting $L$ denote the ample generator, we observe that it is very ample and want to describe the homogeneous coordinate rings of $\mathfrak{M}_{d}(V)$ and its Schubert subvarieties in the embedding defined by $L$.

3.1.2 The section $q_{\theta}$ of $L$

For $\theta$ in $I(d,2d)$, let $p_{\theta}$ denote the corresponding Plücker coordinate. Consider the affine patch $\mathbb{A}$ of $\mathbb{P}(\wedge^{d}V)$ given by $p_{\epsilon}=1$, where $\epsilon:=(1,\ldots,d)$. The intersection $\mathbb{A}\cap G_{d}(V)$ of this patch with the Grassmannian is an affine space. Indeed the $d$-plane corresponding to an arbitrary point $z$ of $\mathbb{A}\cap G_{d}(V)$ has a basis consisting of column vectors of a matrix of the form

[TABLE]

where $I$ is the identity matrix and $A$ an arbitrary matrix both of size $d\times d$. The association $z\mapsto A$ is bijective. The restriction of a Plücker coordinate $p_{\theta}$ to $\mathbb{A}\cap G_{d}(V)$ is given by the determinant of a submatrix of size $d\times d$ of $M$, the entries of $\theta$ determining the rows to be chosen from $M$ to form the submatrix.

As can be readily verified, a point $z$ of $\mathbb{A}\cap G_{d}(V)$ represents an isotropic subspace if and only if the corresponding matrix $A=(a_{ij})$ is skew-symmetric with respect to the anti-diagonal: $a_{ij}+a_{j^{*}i^{*}}=0$, where the columns and rows of $A$ are numbered $1,\ldots,d$ and $d+1,\ldots,2d$ respectively. For example, if $d=4$, then a matrix that is skew-symmetric with respect to the anti-diagonal looks like this:

[TABLE]

Since the set of these matrices is connected and contains the point that is spanned by $e_{1},\ldots,e_{d}$, it follows that $\mathbb{A}\cap G_{d}(V)$ does not intersect the other component of $\mathfrak{M}_{d}(V)^{\prime}$. In other words, $p_{\epsilon}$ vanishes everywhere on $\mathfrak{M}_{d}(V)^{\prime}\setminus\mathfrak{M}_{d}(V)$.

Now suppose that $\theta$ belongs to $I(d)$. Computing $p_{\theta}/p_{\epsilon}$ as a function on the affine patch $p_{\epsilon}\neq 0$, we see that it is the determinant of a skew-symmetric matrix of even size, and therefore a square. The square root, which is determined up to sign, is called the Pfaffian. This suggests that $p_{\theta}$ itself is a square: more precisely that there exists a section $q_{\theta}$ of the line bundle $L$ on $\mathfrak{M}_{d}(V)$ such that $q_{\theta}^{2}=p_{\theta}$. A weight calculation confirms this to be the case. The $q_{\theta}$ are also called Pfaffians.

3.1.3 Standard monomial theory for $\mathfrak{M}_{d}(V)$

A standard monomial in $I(d)$ is a totally ordered sequence $\theta_{1}\geq\ldots\geq\theta_{t}$ (with repetitions allowed) of elements of $I(d)$. Such a standard monomial is said to be $w$-dominated for $w\in I(d)$ if $w\geq\theta_{1}$. To a standard monomial $\theta_{1}\geq\ldots\geq\theta_{t}$ in $I(d)$ we associate the product $q_{\theta_{1}}\cdots q_{\theta_{t}}$, where the $q_{\theta}$ are the sections defined above of the line bundle $L$. Such a product is also called a standard monomial and it is said to be dominated by $w$ for $w\in I(d)$ if the underlying monomial in $I(d)$ is dominated by $w$. Standard monomial theory for $\mathfrak{M}_{d}(V)$ says:

Theorem 3.1.1

(Seshadri [17])* Standard monomials $q_{\theta_{1}}\cdots q_{\theta_{r}}$ of degree $r$ form a basis for the space of forms of degree $r$ in the homogeneous coordinate ring of $\mathfrak{M}_{d}(V)$ in the embedding defined by the ample generator $L$ of the Picard group. More generally, for $w\in I(d)$, the $w$-dominated standard monomials of degree $r$ form a basis for the space of forms of degree $r$ in the homogeneous coordinate ring of the Schubert subvariety $X(w)$ of $\mathfrak{M}_{d}(V)$.*

3.2 Co-ordinate rings of affine patches and tangent cones of $X(w)$

From Theorem 3.1.1 one can deduce rather easily, as we now show, bases for co-ordinate rings of affine patches of the form $q_{v}\neq 0$ and of tangent cones of Schubert varieties. An element $v$ of $I(d)$ will remain fixed for the rest of this section. To simplify notation we will suppress explicit reference to $v$.

3.2.1 Standard monomial theory for affine patches

Let $\mathbb{A}$ denote the affine patch of $\mathbb{P}(H^{0}(\mathfrak{M}_{d}(V),L)^{*})$ given by $q_{v}\neq 0$. The origin of the affine space $\mathbb{A}$ is identified as the $T$-fixed point $\mathfrak{e}^{v}$. The functions $f_{\theta}:=q_{\theta}/q_{v}$, $v\neq\theta\in I(d)$, provide a set of coordinate functions on $\mathbb{A}$. Monomials in these $f_{\theta}$ form a $\mathfrak{k}$-basis for the polynomial ring $\mathfrak{k}[\mathbb{A}]$ of functions on $\mathbb{A}$, where $\mathfrak{k}$ denotes the underlying field.

Fix $w\geq v$ in $I(d)$, so that the point $\mathfrak{e}^{v}$ belongs to the Schubert variety $X(w)$, and let $Y(w)$ be the affine patch of $X(w)$ defined thus:

[TABLE]

The coordinate ring $\mathfrak{k}[Y(w)]$ of $Y(w)$ is a quotient of the polynomial ring $\mathfrak{k}[\mathbb{A}]$, and the proposition that follows identifies a subset of the monomials in $f_{\theta}$ which forms a $\mathfrak{k}$-basis for $\mathfrak{k}[Y(w)]$.

We say that a standard monomial $\theta_{1}\geq\ldots\geq\theta_{t}$ in $I(d)$ is $v$-compatible if for each $k$, $1\leq k\leq t$, either $\theta_{k}\gneq v$ or $v\gneq\theta_{k}$. Given $w$ in $I(d)$, we denote by $SM^{w}$ the set of $w$-dominated $v$-compatible standard monomials.

Proposition 3.2.1

As $\theta_{1}\geq\ldots\geq\theta_{t}$ runs over the set $SM^{w}$ of $w$-dominated $v$-compatible standard monomials, the elements $f_{\theta_{1}}\cdots f_{\theta_{t}}$ form a basis for the coordinate ring $\mathfrak{k}[Y(w)]$ of the affine patch $Y(w)=X(w)\cap\mathbb{A}$ of the Schubert variety $X(w)$.

Proof: The proof is similar to the proof of Proposition 3.1 of [7]. First consider a linear dependence relation among the $f_{\theta_{1}}\cdots f_{\theta_{t}}$. Replacing $f_{\theta}$ by $q_{\theta}$ and “homogenizing” by $q_{v}$ yields a linear dependence relation among the $w$-dominated standard monomials $q_{\theta_{1}}\cdots q_{\theta_{s}}$ restricted to $X(w)$, and so the original relation must only have been the trivial one, for by Theorem 3.1.1 the $q_{\theta_{1}}\cdots q_{\theta_{s}}$ are linearly independent on $X(w)$.

To prove that $f_{\theta_{1}}\cdots f_{\theta_{t}}$ generate $\mathfrak{k}[Y(w)]$ as a vector space, we make the following claim: if $q_{\mu_{1}}\cdots q_{\mu_{r}}$ be any monomial in the Pfaffians $q_{\theta}$, and $q_{\tau_{1}}\cdots q_{\tau_{s}}$ a standard monomial that occurs with non-zero co-efficient in the expression for (the restriction to $X(w)$ of) $q_{\mu_{1}}\cdots q_{\mu_{r}}$ as a linear combination of $w$-dominated standard monomials, then $\tau_{1}\cup\cdots\cup\tau_{s}=\mu_{1}\cup\cdots\cup\mu_{r}$ as multisets of $\{1,\ldots,2d\}$. To prove the claim, consider the maximal torus $T$ of ${\rm SO}(V)$ as in §1.2. The affine patch $\mathbb{A}$ is $T$-stable and there is an action of $T$ on $\mathfrak{k}[Y(w)]$. The sections $q_{\theta}$ are eigenvectors for $T$ with corresponding characters $\epsilon_{\theta_{1}}+\cdots+\epsilon_{\theta_{d}}$, where $\epsilon_{k}$ denotes the character of $T$ given by the projection to the diagonal entry on row $k$. The claim now follows since eigenvectors corresponding to different characters are linearly independent.

Let $f_{\mu_{1}}\cdots f_{\mu_{r}}$ be an arbitrary monomial in the $f_{\theta}$. Fix an integer $h$ such that $h>r(d-1)$ and consider the expression for (the restriction to $X(w)$ of) $q_{\mu_{1}}\cdots q_{\mu_{r}}\cdot q_{v}^{h}$ as a linear combination of $w$-dominated standard monomials. We claim that $q_{v}$ occurs in every standard monomial $q_{\tau_{1}}\cdots q_{\tau_{r+h}}$ in this expression (from which it will follow that the $\tau_{j}$ are all comparable to $v$). Suppose that none of $\tau_{1},\ldots,\tau_{r+h}$ equals $v$. For each $\tau_{j}$ there is at least one entry of $v$ that does not occur in it. The number of occurrences of entries of $v$ in $\tau_{1}\cup\cdots\cup\tau_{r+h}$ is thus at most $(r+h)(d-1)$. But these entries occur at least $hd$ times in $\mu_{1}\cup\cdots\cup\mu_{r}\cup v\cup\cdots\cup v$ (where $v$ is repeated $h$ times), a contradiction to the claim proved in the previous paragraph. Hence our claim is proved. Dividing by $q_{v}^{r+h}$ the expression for $q_{\mu_{1}}\cdots q_{\mu_{r}}.q_{v}^{h}$ as a linear combination of $w$-dominated standard monomials provides an expression for $f_{\mu_{1}}\cdots f_{\mu_{r}}$ as a linear combination of $f_{\theta_{1}}\cdots f_{\theta_{t}}$, as $\theta_{1}\geq\ldots\geq\theta_{t}$ varies over $SM^{w}$. $\Box$

3.2.2 Standard monomial theory for tangent cones

The affine patch $\mathfrak{M}_{d}(V)\cap\mathbb{A}$ of the orthogonal Grassmannian $\mathfrak{M}_{d}(V)$ is an affine space whose coordinate ring can be taken to be the polynomial ring in variables of the form $X_{(r,c)}$ with $(r,c)\in\mathfrak{O}\mathfrak{R}$, where (as in §2.1)

[TABLE]

Taking $d=5$ and $v=(1,3,4,6,9)$ for example, a general element of $\mathfrak{M}_{d}(V)\cap\mathbb{A}$ has a basis consisting of column vectors of a matrix of the following form:

[TABLE]

The expression for $f_{\theta}=q_{\theta}/q_{v}$ in terms of the $X_{(r,c)}$ is a square root of the determinant of the submatrix of a matrix like the one above obtained by choosing the rows given by the entries of $\theta$. Thus $f_{\theta}$ is a homogeneous polynomial of degree the $v$-degree of $\theta$, where the $v$-degree of $\theta$ is defined as one half of the cardinality of $v\setminus\theta$.

Since the ideal of the Schubert variety $X(w)$ in the homogeneous coordinate ring of $\mathfrak{M}_{d}(V)$ is generated222 This is a consequence of Theorem 3.1.1. It is easy to see that the $q_{\tau}$ such that $\tau\not\leq w$ vanish on $X(w)$. Since all standard monomials form a basis for the homogeneous coordinate ring of $\mathfrak{M}_{d}(V)$ in $\mathbb{P}(H^{0}(\mathfrak{M}_{d}(V),L)^{*})$, it follows that $w$-dominated standard monomials span the quotient ring by the ideal generated by such $q_{\tau}$. Since such monomials are linearly independent in the homogeneous coordinate ring of $X(w)$, the desired result follows. by the $q_{\tau}$, $\tau\in I(d)$ such that $\tau\not\leq w$, it follows that the ideal of $Y(w):=X(w)\cap\mathbb{A}$ in $\mathfrak{M}_{d}(V)\cap\mathbb{A}$ is generated by the the $f_{\tau}$, $\tau\in I(d)$ such that $\tau\not\leq w$. We are interested in the tangent cone to $X(w)$ at $\mathfrak{e}^{v}$ (or, what is the same, the tangent cone to $Y(w)$ at the origin), and since $\mathfrak{k}[Y(w)]$ is graded, its associated graded ring with respect to the maximal ideal corresponding to the origin is $\mathfrak{k}[Y(w)]$ itself.

Proposition 3.2.1 says that the graded piece of $\mathfrak{k}[Y(w)]$ of degree $m$ is generated as a $\mathfrak{k}$-vector space by elements of degree $m$ of the set $SM^{w}$ of $w$-dominated $v$-compatible standard monomials, where the degree of a standard monomial $\theta_{1}\geq\ldots\geq\theta_{t}$ is defined to be the sum of the $v$-degrees of $\theta_{1},\ldots,\theta_{t}$. To prove Theorem 2.3.1 it therefore suffices to prove the following:

Theorem 3.2.2

The set $SM^{w}(m)$ of standard monomials in $I(d)$ of degree $m$ that are $w$-dominated and $v$-compatible is in bijection with the set $S^{w}(v)(m)$ of monomials in $\mathfrak{O}\mathfrak{R}$ of degree $m$ that are $\mathfrak{O}$-dominated by $w$.

4 Further reductions

In the last section, we reduced the proof of our main theorem (Theorem 2.3.1) to that of Theorem 3.2.2. We now reduce the proof of Theorem 3.2.2 to that of Propositions 4.1.1, 4.1.2 and 4.1.3 below. These propositions will eventually be proved in §10.

4.1 The main propositions

Fix once and for all an element $v$ of $I(d)$. The bijection stated in Theorem 3.2.2 will be described by means of two maps $\mathfrak{O}\pi$ and $\mathfrak{O}\phi$ whose definitions will be given in §7 and §8 below. We will now state some properties of these maps. In §4.2 we will see how Theorem 3.2.2 follows once these properties are established.

The map $\mathfrak{O}\pi$ associates to a monomial $\mathfrak{S}$ in $\mathfrak{O}\mathfrak{N}$ a pair $(w,\mathfrak{S}^{\prime})$ consisting of an element $w$ of $I(d)$ and a “smaller” monomial $\mathfrak{S}^{\prime}$ in $\mathfrak{O}\mathfrak{N}$. This map enjoys the following good properties:

Proposition 4.1.1

$w\geq v$. 2. 2.

\textup{v-degree}(w)+\textup{degree}(\mathfrak{S}^{\prime})=\textup{degree}(\mathfrak{S}). 3. 3.

$w$* $\mathfrak{O}$-dominates $\mathfrak{S}^{\prime}$.* 4. 4.

$w$* is the least element of $I(d)$ that $\mathfrak{O}$-dominates $\mathfrak{S}$.*

The map $\mathfrak{O}\phi$, on the other hand, associates a monomial in $\mathfrak{O}\mathfrak{N}$ to a pair $(w,\mathfrak{T})$ consisting of an element $w$ of $I(d)$ with $w\geq v$ and a monomial $\mathfrak{T}$ in $\mathfrak{O}\mathfrak{N}$ that is $\mathfrak{O}$-dominated by $w$.

Proposition 4.1.2

The maps $\mathfrak{O}\pi$ and $\mathfrak{O}\phi$ are inverses of each other.

For an integer $f$, $1\leq f\leq 2d$, consider the following conditions, the first on a monomial $\mathfrak{S}$ in $\mathfrak{O}\mathfrak{N}$, the second on an element $w$ of $I(d)$:

(‡) $f$ is not the row index of any element of $\mathfrak{S}$ and $f^{\star}$ is not the column index of any element of $\mathfrak{S}$.

(‡) $f$ is not an entry of $w$.

(It is convenient to the use the same notation (‡) for both conditions.)

Proposition 4.1.3

Assume that $v$ satisfies (‡)—all references to (‡) in this proposition are with respect to a fixed $f$, $1\leq f\leq 2d$.

Let $w$ be an element of $I(d)$ with $w\geq v$ and $\mathfrak{T}$ a monomial in $\mathfrak{O}\mathfrak{N}$ that is $\mathfrak{O}$-dominated by $w$. If $w$ and $\mathfrak{T}$ both satisfy (‡), then so does $\mathfrak{O}\phi(w,\mathfrak{T})$. 2. 2.

If a monomial $\mathfrak{S}$ in $\mathfrak{O}\mathfrak{N}$ satisfies (‡), then so do the “components” $w$ and $\mathfrak{S}^{\prime}$ of its image under $\mathfrak{O}\pi$.

4.2 From the main propositions to the main theorem

Let us now see how Theorem 3.2.2 follows from the propositions of §4.1. Most of the following argument runs parallel to its counterparts in the case of the Grassmannian and symplectic Grassmannian (Propositions 4.1.1 and 4.1.2 have their counterparts in [7, 4]), but, in the case that $d$ is odd, the part involving the “mirror image” requires additional work. This is where Proposition 4.1.3 comes in.

Let $S$, $T$, and $U$, denote respectively the sets of monomials in $\mathfrak{O}\mathfrak{R}$, $\mathfrak{O}\mathfrak{N}$, and $\mathfrak{O}\mathfrak{R}\setminus\mathfrak{O}\mathfrak{N}$. Let $SM_{v}$ denote the set of $v$-compatible standard monomials that are “anti-dominated” by $v$: a standard monomial $\theta_{1}\geq\ldots\geq\theta_{t}$ is anti-dominated by $v$ if $\theta_{t}\geq v$ (we can also write $\theta_{t}>v$ since $\theta_{t}\neq v$ by $v$-compatibility).

Define the domination map from $T$ to $I(d)$ by sending a monomial in $\mathfrak{O}\mathfrak{N}$ to the least element that $\mathfrak{O}$-dominates it. Define the domination map from $SM_{v}$ to $I(d)$ by sending $\theta_{1}\geq\ldots\geq\theta_{t}$ to $\theta_{1}$. Both these maps take, by definition, the value $v$ on the empty monomial.

Notation 4.2.1

In the following, we use subscripts, superscripts, suffixes, and combinations thereof to modify the meanings of $S$, $T$, $U$, $SM$, and $SM_{v}$.

• •

superscript: this will be an element $w$ of $I(d)$; when used on $T$ it denotes $\mathfrak{O}$-domination (more precisely, $T^{w}$ denotes the subset of $T$ consisting of those elements that are $\mathfrak{O}$-dominated by $w$); when used on $SM$ or $SM_{v}$ it denotes domination by $w$.

• •

subscript: denotes anti-domination (applied only to standard monomials).

• •

suffix “$(m)$”: indicates degree (for example, $SM^{w}_{v}(m)$ denotes the set of $v$-compatible standard monomials that are anti-dominated by $v$, dominated by $w$, and of degree $m$).

Repeated application of $\mathfrak{O}\pi$ gives a map from $T$ to $SM_{v}$ that commutes with domination (as just defined) and preserves degree. Repeated application of $\mathfrak{O}\phi$ gives a map from $SM_{v}$ to $T$. These two maps being inverses of each other (Proposition 4.1.2) and so we have a bijection between $SM_{v}$ and $T$. In fact, since domination and degree are respected (Proposition 4.1.1), we get a bijection $SM^{w}_{v}(m)\cong T^{w}(m)$.

As explained below, the “mirror image” of the bijection $SM_{v}(m)\cong T(m)$ gives a bijection $SM^{v}(m)\cong U(m)$. Putting these bijections together, we get the desired result:

[TABLE]

We now explain how to realize the bijection $SM^{v}(m)\cong U(m)$ as the “mirror image” of the bijection $SM_{v}(m)\cong T(m)$. For an element $u$ of $I(d)$, define $u^{*}:=(u_{d}^{*},\ldots,u_{1}^{*})$. In the case $d$ is even, the association $u\mapsto u^{*}$ is an order reversing involution, and the argument in [4] for the symplectic Grassmannian holds here too. In the case $d$ is odd, $u^{*}$ is not an element of $I(d)$, and so some additional work is required.

Recall that a “base element” $v$ of $I(d)$ has been fixed and that our notation does not explicitly indicate this dependence upon $v$: for example, $\mathfrak{O}\mathfrak{R}$ is dependent upon $v$. For a brief while now (until the end of this section) we need to simultaneously handle several base elements of $I(d)$. We will use the following convention: when the base element of $I(d)$ is not $v$, we will explicitly indicate it by means of a suffix. For instance, $SM(v^{*})$ denotes the set of $v^{*}$-compatible standard monomials in $I(d)$.

Let us first do the case when $d$ is even. We get a bijection $SM^{v}\cong SM_{v^{*}}(v^{*})$ by associating to $\theta_{1}\geq\ldots\geq\theta_{t}$ the element $\theta_{t}^{*}\geq\ldots\geq\theta^{*}_{1}$. The sum of the $v$-degrees of $\theta_{1},\ldots,\theta_{t}$ equals the sum of the $v^{*}$-degrees of $\theta_{t}^{*},\ldots,\theta_{1}^{*}$, so that we get a bijection $SM^{v}(m)\cong SM_{v^{*}}(v^{*})(m)$.

For an element $(r,c)$ of $\mathfrak{O}\mathfrak{N}(v^{*})$, consider its flip $(c,r)$. Since $v$ belongs to $I(d)$, the complement of $v^{*}$ in $\{1,\ldots,2d\}$ is $v$, and it follows that $(c,r)$ belongs to $\mathfrak{O}\mathfrak{R}\setminus\mathfrak{O}\mathfrak{N}$. This induces a degree preserving bijection $T(v^{*})\cong U$. Putting this together with the bijection of the previous paragraph and the one deduced earlier in this section (using $\mathfrak{O}\pi$ and $\mathfrak{O}\phi$), we get what we want:

[TABLE]

Now suppose that $d$ is odd. Then the map $x\mapsto x^{*}$ does not map $I(d)$ to $I(d)$ but to $I(d)^{*}$ (defined as the set consisting of those elements $u$ of $I(d,2d)$ such that, for each $k$, $1\leq k\leq 2d$, exactly one of $k$, $k^{*}$ belongs to $u$, and the number of entries of $u$ greater than $d$ is odd). We define a map $u\mapsto\widetilde{u}$ from $I(d)^{*}$ to $I(d+1)$ as follows: $\widetilde{u}:=\{\widetilde{u_{1}},\ldots,\widetilde{u_{d}},d+2\}$ (the elements are not in increasing order except in the trivial case $u=(1,\ldots,d)$), where, for an integer $e$, $1\leq e\leq 2d$, we set

[TABLE]

This map $u\mapsto\widetilde{u}$ is an order preserving injection.

Consider the composition $x\mapsto x^{*}\mapsto\widetilde{x^{*}}$ from $I(d)$ to $I(d+1)$. This is an order reversing injection. The induced map on standard monomials is an injection from $SM^{v}$ to $SM_{\widetilde{v^{*}}}(\widetilde{v^{*}})$. It is readily seen that the image under this map is the subset $SM_{\widetilde{v^{*}}}(\widetilde{v^{*}})({\ddagger})$ consisting of those standard monomials all of whose elements satisfy (‡) with $f=d+1$. We have already established (using the maps $\mathfrak{O}\pi$ and $\mathfrak{O}\phi$) a bijection $SM_{\widetilde{v^{*}}}(\widetilde{v^{*}})\cong T(\widetilde{v^{*}})$. It follows from Proposition 4.1.3 that under this bijection the subset $SM_{\widetilde{v^{*}}}(\widetilde{v^{*}})({\ddagger})$ maps to $T(\widetilde{v^{*}})({\ddagger})$ (defined as the set of those monomials in $\mathfrak{O}\mathfrak{N}(\widetilde{v^{*}})$ satisfying (‡) with $f=d+1$).

Now $T(\widetilde{v^{*}})({\ddagger})$ is in degree preserving bijection with $U$: every element of degree $1$ of $T(\widetilde{v^{*}})({\ddagger})$ is uniquely of the form $(\widetilde{c},\widetilde{r})$ for $(r,c)$ in $\mathfrak{O}\mathfrak{R}\setminus\mathfrak{O}\mathfrak{N}$, and the desired bijection is induced from this. Putting all of these together, we finally have

[TABLE]

Thus, in order to prove our main theorem (Theorem 2.3.1), it suffices to describe the maps $\mathfrak{O}\pi$ and $\mathfrak{O}\phi$ and to prove Propositions 4.1.1–4.1.3.

Part III The proof

The main combinatorial results formulated in §4.1 are proved. An attempt is made to maintain parallelism with the proofs in [7].

5 Terminology and notation

5.1 Distinguished subsets

5.1.1 Distinguished subsets of $\mathfrak{N}$

Following [7, §4], we define a multiset $\mathfrak{S}$ of $\mathfrak{N}$ to be distinguished, if, first of all, it is a subset in the usual sense (in other words, it is “multiplicity free”), and if, for any two distinct elements $(R,C)$ and $(r,c)$ of $\mathfrak{S}$, the following conditions are satisfied:

1. A.

$R\neq r$ and $C\neq c$. 2. B.

If $R>r$, then either $r<C$ or $C<c$.

In terms of pictures, condition A says that $(r,c)$ cannot lie exactly due North or East of $(R,C)$ (or the other way around); so we can assume, interchanging the two points if necessary, that $(r,c)$ lies strictly to the Northeast or Northwest of $(R,C)$; condition B now says that, if $(r,c)$ lies to the Northwest of $(R,C)$, then the point that is simultaneously due North of $(R,C)$ and due East of $(r,c)$ (namely $(r,C)$) does not belong to $\mathfrak{N}$.

5.1.2 Attaching elements of $I(d,2d)$ to distinguished subsets of $\mathfrak{N}$

To a distinguished subset $\mathfrak{S}$ of $\mathfrak{N}$ there is naturally associated an element $w$ of $I(d,2d)$ as follows: start with $v$, remove all members of $v$ which appear as column indices of elements of $\mathfrak{S}$, and add row indices of all elements of $\mathfrak{S}$. As observed in [7, Proposition 4.3], this association gives a bijection between distinguished subsets of $\mathfrak{N}$ and elements $w\geq v$ of $I(d,2d)$. The unique distinguished subset of $\mathfrak{N}$ corresponding to an element $w\geq v$ of $I(d,2d)$ is denoted $\mathfrak{S}_{w}$.

5.2 The involution $\#$

5.2.1 The involution $\#$ on $I(d,2d)$

There are two natural order reversing involutions on $I(d,2d)$. First there is $w\mapsto w^{*}$ induced by the natural order reversing involution $j\mapsto j^{*}$ on $\{1,\ldots,2d\}$: here $w^{*}$ has the obvious meaning, namely, it consists of all $j^{*}$ such that $j$ belongs to $w$. Then there is the map taking $w$ to its complement $\{1,\ldots,2d\}\setminus w$. These two involutions commute. Composing the two we get an order preserving involution on $I(d,2d)$ which we denote by $w\mapsto w^{\#}$. The elements of the subset $I(d)$ are fixed points under this involution (there are points not in $I(d)$ that are also fixed).

5.2.2 The involution $\#$ on $\mathfrak{N}$ and $\mathfrak{R}$

For $\alpha=(r,c)$ in $\mathfrak{N}$, or more generally in $\mathfrak{R}$, define $\alpha^{\#}=(c^{*},r^{*})$. The involution $\alpha\mapsto\alpha^{\#}$ is just the reflection with respect to the diagonal $\mathfrak{d}$. For a subset or even multiset $\mathfrak{S}$ of $\mathfrak{N}$ (or $\mathfrak{R}$), the symbol $\mathfrak{S}^{\#}$ has the obvious meaning. We call $\mathfrak{S}$ symmetric if $\mathfrak{S}=\mathfrak{S}^{\#}$.

Proposition 5.2.1

An element $w\geq v$ of $I(d,2d)$ belongs to $I(d)$ if and only if the distinguished subset $\mathfrak{S}_{w}$ of $\mathfrak{N}$ corresponding to it as described in §5.1.2 is symmetric and has evenly many diagonal elements.

Proof: That the symmetry of $\mathfrak{S}_{w}$ is equivalent to the condition that $w=w^{\#}$ is proved in [4, Proposition 5.7]. Now suppose that $\mathfrak{S}_{w}$ is symmetric. We claim that for an element $(r,c)$ of $\mathfrak{S}_{w}$ that is not on the diagonal, either both $r$ and $c$ are bigger than $d$ or both are less than $d+1$. It is enough to prove the claim, for $w$ is obtained from $v$ by removing the column indices and adding the row indices of elements of $\mathfrak{S}_{w}$, and it would follow that the number of entries in $w$ that are bigger than $d$ equals the number of such entries in $v$ plus the number of diagonal elements in $\mathfrak{S}_{w}$.

We now prove the claim. Since $\mathfrak{S}_{w}$ is symmetric, it follows that $(c^{*},r^{*})$ also belongs to $\mathfrak{S}_{w}$. Since $\mathfrak{S}_{w}$ is distinguished, it follows that in case $r<c^{*}$ (that is, if $(r,c)$ lies above the diagonal), we have $r<r^{*}$, and so $c<r<r^{*}$; and in case $r>c^{*}$, we have $c^{*}<c$, and so $c^{*}<c<r$. Thus the claim is proved. $\Box$

5.3 The subset $\mathfrak{S}_{C}$ attached to a $v$-chain $C$

5.3.1 Vertical and horizontal projections of an element of $\mathfrak{O}\mathfrak{N}$

For $\alpha=(r,c)$ in $\mathfrak{O}\mathfrak{N}$ (or more generally in $\mathfrak{O}\mathfrak{R}$), the elements $p_{v}(\alpha):=(c^{*},c)$ and $p_{h}(\alpha):=(r,r^{*})$ of the diagonal $\mathfrak{d}$ are called respectively the vertical and horizontal projections of $\alpha$. In terms of pictures, the vertical projection is the element of the diagonal due South of $\alpha$; the horizontal projection is the element of the diagonal due East of $\alpha$. The vertical line joining $\alpha$ to its vertical projection $p_{v}(\alpha)$ and the horizontal line joining $\alpha$ to its horizontal projection $p_{h}(\alpha)$ are called the legs of $\alpha$.

5.3.2 The “connection” relation on elements of a $v$-chain

Let $C:\alpha_{1}=(r_{1},c_{1})>\alpha_{2}=(r_{2},c_{2})>\cdots$ be a $v$-chain in $\mathfrak{O}\mathfrak{N}$. Two consecutive elements $\alpha_{j}$ and $\alpha_{j+1}$ of $C$ are said to be connected if the following conditions are both satisfied:

• •

their legs are “intertwined”; equivalently and more precisely, this means that $r_{j}^{*}\geq c_{j+1}$, or, what amounts to the same, $r_{j}\leq c_{j+1}^{*}$.

• •

the point $(r_{j+1},r_{j}^{*})$ belongs to $\mathfrak{N}$; this just means that $r_{j+1}>r_{j}^{*}$.

Consider the coarsest equivalence relation on the elements of $C$ generated by the above relation. The equivalence classes of $C$ with respect to this equivalence relation are called the connected components of the $v$-chain $C$.

This definition has its quirks:

The $v$-chain $C:\alpha>\beta>\gamma$ in the picture has $\{\alpha,\beta\}$ and $\{\gamma\}$ as its connected components; but the “sub” $v$-chain $\alpha>\gamma$ of $C$ is connected (as a $v$-chain in its own right).

diagonalboundaryof \mathfrak{N}$$\alpha$$\beta$$\gamma$$\in\mathfrak{N}$$\not\in\mathfrak{N}

5.3.3 The definition of $\mathfrak{S}_{C}$

We will define $\mathfrak{S}_{C}$ as a multiset of $\mathfrak{N}$. It is easy to see and in any case stated explicitly as part of Corollary 5.3.5 that it is multiplicity free and so is actually a subset of $\mathfrak{N}$.

First suppose that $C:\alpha_{1}=(r_{1},c_{1})>\cdots>\alpha_{\ell}=(r_{\ell},c_{\ell})$ is a connected $v$-chain in $\mathfrak{O}\mathfrak{N}$. Observe that, if there is at all an integer $j$, $1\leq j\leq\ell$, such that the horizontal projection $p_{h}(\alpha_{j})$ does not belong to $\mathfrak{N}$, then $j=\ell$. Define

[TABLE]

For a $v$-chain $C$ that is not necessarily connected, let $C=C_{1}\cup C_{2}\cup\cdots$ be the partition of $C$ into its connected components, and set

[TABLE]

5.3.4 The type of an element $\alpha$ of a $v$-chain $C$, and the

set $\mathfrak{S}_{C,\alpha}$

We introduce some terminology and notation. Their usefulness may not be immediately apparent.

Suppose that $C:\alpha_{1}>\cdots>\alpha_{\ell}$ is a connected $v$-chain. We define the type in $C$ of an element $\alpha_{j}$, $1\leq j\leq\ell$, of $C$ to be V, H, or S, accordingly as:

1. V:

$j\neq\ell$, or $j=\ell$ and $\ell$ is even. 2. H:

$j=\ell$, $\ell$ is odd, and $p_{h}(\alpha_{\ell})\in\mathfrak{N}$. 3. S:

$j=\ell$, $\ell$ is odd, and $p_{h}(\alpha_{\ell})\not\in\mathfrak{N}$.

The type of an element in a $v$-chain that is not necessarily connected is defined to be its type in its connected component.

The set $\mathfrak{S}_{C,\alpha}$ of elements of $\mathfrak{N}$ generated by an element $\alpha$ of $C$ is defined to be:

[TABLE]

Observe that, for a $v$-chain $C$, the monomial $\mathfrak{S}_{C}$ defined in §5.3.3 is the union, over all elements $\alpha$ of $C$, of $\mathfrak{S}_{C,\alpha}$.

For an element $\alpha$ of a $v$-chain $C$, we define $q_{C,\alpha}$ to be $p_{v}(\alpha)$ if $\alpha$ is of type V or H and to be $\alpha$ if it is of type S.

If the horizontal projection of an element in a $v$-chain does not belong to $\mathfrak{N}$, then clearly the same is true for every succeeding element. The first such element of a $v$-chain is called the critical element.

Proposition 5.3.1

The cardinality is odd of a connected component that has an element of type H or S. Conversely, if the cardinality of a component is odd, then it has an element of type H or S. 2. 2.

An element of type H or S can only be the last element in its connected component. 3. 3.

The critical element has type either V or S. No element before it can be of type S and every element after it is of type S. In particular, any element that succeeds an element of type S is of type S.

Proof: Clear from definitions. $\Box$

Proposition 5.3.2

Let $\alpha>\gamma$ be elements of a $v$-chain $C$ (we are not assuming that they are consecutive).

If $\alpha>\gamma$ is connected as a $v$-chain in its own right, then $\alpha$ is connected to its next member in $C$; that is, $\alpha$ cannot be the last element in its connected component in $C$. 2. 2.

If $\alpha>\gamma$ is not connected as a $v$-chain in its own right and the legs of $\alpha$ and $\gamma$ intertwine, then the connected component of $\gamma$ in $C$ is the singleton $\{\gamma\}$, and $\gamma$ has type S in $C$.

Proof: Clear from definitions. $\Box$

Proposition 5.3.3

Let $E:\alpha>\ldots>\zeta$ be a $v$-chain, $D$ and $D^{\prime}$ two $v$-chains with tail $\alpha$, and $C$, $C^{\prime}$ the concatenations of $D$, $D^{\prime}$ respectively with $E$. Then

*The last element in the connected component containing $\alpha$ is the same in $C$ and $C^{\prime}$ (and this is the same as in $E$). *

Let $\lambda$ denote this element.

The only element among $\alpha$, …, $\zeta$ that possibly has different types in $C$ and $C^{\prime}$ is $\lambda$.

Proof: (1): Whether or not two successive elements in a $v$-chain are connected is independent of other elements in the $v$-chain.

(2): The type of an element in a $v$-chain is V unless it is the last element in its connected component. And the type of the last element in a component depends on the cardinality of the component. The components of $E$ not containing $\alpha$ are still components in $C$ and $C^{\prime}$. In contrast, the component containing $\alpha$ could possibly be larger in $C$ (respectively $C^{\prime}$) and hence its cardinality could be different. $\Box$

For an element $\alpha=(r,c)$ of $\mathfrak{N}$, we define $\alpha\textup{(up)}$ to be $\alpha$ itself if $\alpha$ is either on or above the diagonal $\mathfrak{d}$ (more precisely, if $r\leq c^{*}$), and to be its “reflection” in the diagonal (more precisely, $(c^{*},r^{*})$) if $\alpha$ is below the diagonal (more precisely, if $r>c^{*}$). For a monomial $\mathfrak{S}$ of $\mathfrak{N}$, $\mathfrak{S}\textup{(up)}$ is defined to be the intersection of $\mathfrak{S}$ (as a multiset) with the subset $\mathfrak{O}\mathfrak{N}\cup\mathfrak{d}$ of $\mathfrak{N}$. The notations $\alpha\textup{(down)}$ and $\mathfrak{S}\textup{(down)}$ have similar meanings.

Caution: It is not true that $\mathfrak{S}\textup{(up)}=\{\alpha\textup{(up)}|\alpha\in\mathfrak{S}\}$ (in the obvious sense one would make of the right hand side). In particular, for a singleton monomial $\{\alpha\}$, it is not always true that $\{\alpha\}\textup{(up)}=\{\alpha\textup{(up)}\}$.

Proposition 5.3.4

Let $\alpha$ and $\beta$ be elements of a $v$-chain $C$. Let us use $\alpha^{\prime}$ and $\beta^{\prime}$ respectively to denote elements of $\mathfrak{S}_{C,\alpha}\textup{(up)}$ and $\mathfrak{S}_{C,\beta}\textup{(up)}$.

If $\alpha>\beta$ (these elements are not necessarily consecutive in $C$), then, given $\beta^{\prime}$, there exists $\alpha^{\prime}$ such that $\alpha^{\prime}>\beta^{\prime}$. In fact, this is true for every choice of $\alpha^{\prime}$ except when

[TABLE]

In particular, $q_{C,\alpha}>\beta^{\prime}$ and $q_{C,\alpha}>q_{C,\beta}$. 2. 2.

Conversely, suppose that $\alpha^{\prime}>\beta^{\prime}$ for some choice of $\alpha^{\prime}$ and $\beta^{\prime}$. Then $\alpha\geq\beta$; if equality occurs, then $\alpha$ is of type H, $\alpha^{\prime}=p_{v}(\alpha)$ and $\beta^{\prime}=p_{h}(\alpha)$. In particular, if $\alpha^{\prime}>q_{C,\beta}$ (or more specially $q_{C,\alpha}>q_{C,\beta}$), then $\alpha>\beta$. 3. 3.

If () holds for $\alpha>\beta$ in $C$, then*

1. (a)

the critical element of $C$ is the one just after $\alpha$; in particular, $\alpha$ is uniquely determined. 2. (b)

all elements of $C$ succeeding $\alpha$ are of type S; in particular, $\beta$ is of type S and $\beta^{\prime}=\beta$. 3. (c)

() holds for $\gamma$ in place of $\beta$ for every $\gamma$ in $C$ that succeeds $\alpha$.*

Proof: (1) If $\alpha$ is of type V or H, we need only take $\alpha^{\prime}=p_{v}(\alpha)$, for $p_{v}(\alpha)>p_{v}(\beta)$, $p_{v}(\alpha)>p_{h}(\beta)$, and $p_{v}(\alpha)>\beta$. Now suppose that $\alpha$ is of type S. Then $\beta$ too is of type S (Proposition 5.3.1 (3)), so $\beta^{\prime}$ can only be $\beta$, and the first part of (1) is proved.

It follows from the above that if $\alpha^{\prime}=p_{v}(\alpha)$ or if $\alpha$ has type S, then $\alpha^{\prime}>\beta^{\prime}$ independent of the choice of $\alpha^{\prime}$. So if $\alpha^{\prime}\not>\beta^{\prime}$, then (*) holds and $\alpha^{\prime}=p_{h}(\alpha)$.

(3) Let $\lambda$ be the immediate successor of $\alpha$ in $C$. Then $\alpha$ is not connected to $\lambda$ (Proposition 5.3.1 (2)). Since $p_{h}(\alpha)\not>\beta^{\prime}$, it follows that $\alpha$ and $\beta$ have intertwining legs. Therefore so do $\alpha$ and $\lambda$. By Proposition 5.3.2 (2), $\lambda$ has type S in $C$.

Since $\alpha$ has type H and $\lambda$ type S, it follows immediately from the definition of the critical element that $\lambda$ is the critical element. This proves (a). Assertion (b) now follows from Proposition 5.3.1 (3). For (c), write $p_{h}(\alpha)=(a,a^{*})$, $\lambda=(R,C)$, and $\gamma=(r,c)$. Then $R<a^{*}$, for $\alpha$ and $\lambda$ have intertwining legs but are not connected. So $c<r\leq R<a^{*}$. This means $p_{h}(\alpha)\not>\gamma$. And $\gamma$ being of type S (by (b)), we can take $\gamma^{\prime}=\gamma$.

(2) Suppose that $\alpha\not\geq\beta$. Then $\beta>\alpha$. By the second part of (1) above, $\beta$ is of type H and $\beta^{\prime}=p_{h}(\beta)$; by item (b) of (3), $\alpha$ is of type S, so $\alpha^{\prime}=\alpha$. This leads to the contradiction $\beta>\alpha>p_{h}(\beta)$. $\Box$

Corollary 5.3.5

The multiset $\mathfrak{S}_{C}$ attached to a $v$-chain $C$ is a distinguished subset of $\mathfrak{N}$ in the sense of 5.1.1.

Proof: If $\alpha$ in $C$ is of type V or S, then $\mathfrak{S}_{C,\alpha}$ is a singleton; if it is of type H, then $\mathfrak{S}_{C,\alpha}=\{p_{v}(\alpha),p_{h}(\beta)\}$. So there can be no violation of conditions A and B of §5.1.1 by elements of $\mathfrak{S}_{C,\alpha}$.

Suppose $\alpha>\beta$. By Proposition 5.3.4 (1), we have $\alpha^{\prime}>\beta^{\prime}$ for any choice of $\alpha^{\prime}\in\mathfrak{S}_{C,\alpha}$ and $\beta^{\prime}\in\mathfrak{S}_{C,\beta}$ except when the condition () holds. By (3) of the same proposition, if () holds, then $\beta^{\prime}=\beta$, and writing $\beta=(r,c)$, $p_{h}(\alpha)=(a,a^{*})$, we have $r<a$ (since $\alpha>\beta$) and $c<r<a^{*}$ (see proof of item 3(c) of the proposition). Thus there can be no violation of conditions A and B of §5.1.1. $\Box$

Corollary 5.3.6

*Let $\mathfrak{S}$ be a $v$-chain in $\mathfrak{O}\mathfrak{N}$ and $w$ an element of $I(d)$. If $w$ $\mathfrak{O}$-dominates $\mathfrak{S}$, then $w$ dominates in the sense of [7] the monomial $\mathfrak{S}\cup\mathfrak{S}^{\#}$ of $\mathfrak{N}$. *

Proof: By [4, Proposition 5.15], it is enough to show that $w$ dominates $\mathfrak{S}$. Let $C:\alpha_{1}>\ldots>\alpha_{t}$ be a $v$-chain in $\mathfrak{S}$. Writing $\alpha_{j}=(r_{j},c_{j})$ and $q_{C,\alpha_{j}}=(R_{j},C_{j})$ we have $r_{j}\leq R_{j}$ and $C_{j}\leq c_{j}$. By Proposition 5.3.4 (1), we have $q_{C,\alpha_{1}}>\ldots>q_{C,\alpha_{t}}$. Since $w$ $\mathfrak{O}$-dominates $\mathfrak{S}$, it in particular dominates $q_{C,\alpha_{1}}>\ldots>q_{C,\alpha_{t}}$ and so also $C$. $\Box$

6 $\mathfrak{O}$-depth

The concept of $\mathfrak{O}$-depth defined in §6.1 below plays a key role in this paper. As the name suggests, it is the orthogonal analogue of the concept of depth of [7]. In §6.2 below, it is observed that the $\mathfrak{O}$-depth is no smaller than depth in the sense of [7]. In §6.3, some observations about the relation between $\mathfrak{O}$-depths and types of elements in $v$-chains are recorded.

6.1 Definition of $\mathfrak{O}$-depth

The $\mathfrak{O}$-depth of an element $\alpha$ in a $v$-chain $C$ in $\mathfrak{O}\mathfrak{N}$ is the depth in $\mathfrak{S}_{C}$ in the sense of [7] of $q_{C,\alpha}$: in other words, it is the depth in $\mathfrak{S}_{C}$ of $p_{v}(\alpha)$ in case $\alpha$ is of type V or H, and of $\alpha$ (equivalently of $\alpha^{\#}$) in case $\alpha$ is of type S. It is denoted $\mathfrak{O}\textup{-depth}_{C}(\alpha)$. The $\mathfrak{O}$-depth of an element $\alpha$ in a monomial $\mathfrak{S}$ of $\mathfrak{O}\mathfrak{N}$ is the maximum, over all $v$-chains $C$ in $\mathfrak{S}$ containing $\alpha$, of the $\mathfrak{O}$-depth of $\alpha$ in $C$. It is denoted $\mathfrak{O}\textup{-depth}_{\mathfrak{S}}(\alpha)$. Finally, the $\mathfrak{O}$-depth of a monomial $\mathfrak{S}$ in $\mathfrak{O}\mathfrak{N}$ is the maximum of the $\mathfrak{O}$-depths in $\mathfrak{S}$ of all the elements of $\mathfrak{S}$.

There is a conflict in the above definitions: Is the $\mathfrak{O}$-depth of an element of a $v$-chain $C$ the same as its depth as an element of the monomial $C$? In other words, could the $\mathfrak{O}$-depth of an element in a $v$-chain be exceeded by its $\mathfrak{O}$-depth in a sub-chain? The conflict is resolved by the first item of the following proposition.

Proposition 6.1.1

For $v$-chains $C\subseteq D$, the $\mathfrak{O}$-depth in $C$ of an element of $C$ is no more than its $\mathfrak{O}$-depth in $D$. 2. 2.

If a $v$-chain $C$ is an initial segment of a $v$-chain $D$, then the $\mathfrak{O}$-depths in $C$ and $D$ of an element of $C$ are the same.

Proof: (1): By an induction on the difference in the cardinalities of $D$ and $C$, we may assume that $D$ has one more element than $C$. Call this extra element $\delta$. Suppose that $\delta$ lies between successive elements $\alpha$ and $\beta$ of $C$ (the modifications needed to cover the extreme cases when it goes at the beginning or the end are being left to the reader).

The only elements of $C$ that could possibly undergo changes of type on addition of $\delta$ are $\alpha$ and the last element in the connected component of $\beta$, which let us call $\beta^{\prime}$. If there are no type changes, then $\mathfrak{S}_{C}\subseteq\mathfrak{S}_{D}$ and the assertion is immediate. The only type change that $\alpha$ can undergo is from H to V. The type changes that $\beta^{\prime}$ can undergo are: H to V; V to H; S to V; V to S. An easy enumeration of cases shows that only one of $\alpha$ and $\beta^{\prime}$ can undergo a type change.

We need not worry about changes from V to H for in this case $\mathfrak{S}_{C}\subseteq\mathfrak{S}_{D}$.

First let us suppose that $\alpha$ undergoes a change of type (from H to V). Then $\delta$ is connected to $\alpha$. It follows from Proposition 5.3.1 (1) that $\delta$ has type V in $D$: the connected component of $\alpha$ in $C$ has odd number of elements, so if $\delta$ happens to be the last element in its connected component in $D$, the number of elements in that component will be even. Replacing an occurrence of $p_{h}(\alpha)$ in a $v$-chain of $\mathfrak{S}_{C}$ by $p_{v}(\delta)$ would result in a $v$-chain in $\mathfrak{S}_{D}$ (by Proposition 5.3.4 (1)), and this case is settled.

Now suppose that $\beta^{\prime}$ undergoes a type change. Then $\delta$ is connected to $\beta$ and $\delta$ is of type V in $D$ (Proposition 5.3.1 (2)). Replacing by $p_{v}(\delta)$ any occurrence in a $v$-chain in $\mathfrak{S}_{C}$ of $p_{v}(\beta^{\prime})$, $p_{h}(\beta^{\prime})$, $\beta^{\prime}$ accordingly as the type of $\beta^{\prime}$ in $C$ is V, H, or S, (not necessarily in the same place but at an appropriate place) would result in a $v$-chain in $\mathfrak{S}_{D}$ (by Proposition 5.3.4 (1)), and we see that the $\mathfrak{O}$-depth cannot decrease.

(2): It follows from Proposition 5.3.4 (2) that, for an element $\alpha$ of $C$, contributions to $\mathfrak{S}_{D}$ from elements beyond $\alpha$ (in particular from those not in $C$) do not affect the depth in $\mathfrak{S}_{D}$ of $q_{D,\alpha}$. Looking for the possibility of differences in types in $C$ and $D$ of elements of $C$, we see that the only element of $C$ that has possibly a different type in $D$ is its last element. And this too can change type only from H to V.

The above two observations imply that the calculations of $\mathfrak{O}$-depths in $C$ and $D$ of an element $\alpha$ of $C$ are no different: we would be considering the depth in $\mathfrak{S}_{C}$ and $\mathfrak{S}_{D}$ respectively of the same element (either $p_{v}(\alpha)$ or $\alpha$), and the differences in $\mathfrak{S}_{D}$ and $\mathfrak{S}_{C}$ have no effect on this consideration. $\Box$

Corollary 6.1.2

*If $C\subseteq D$ are $v$-chains in $\mathfrak{O}\mathfrak{N}$, then $w_{C}\leq w_{D}$ (although it is not always true that $\mathfrak{S}_{C}\subseteq\mathfrak{S}_{D}$). *

Proof: By [7, Lemma 5.5], it is enough to show that every $v$-chain in $\mathfrak{S}_{C}$ is dominated by $w_{D}$. Let $\beta_{1}=(r_{1},c_{1})>\cdots>\beta_{t}=(r_{t},c_{t})$ be an arbitrary $v$-chain in $\mathfrak{S}_{C}$. To show that it is dominated by $w_{D}$, it is enough, by [7, Lemma 4.5], to show the existence of a $v$-chain $(R_{1},C_{1})>\cdots>(R_{t},C_{t})$ in $\mathfrak{S}_{D}$ with $r_{j}\leq R_{j}$ and $C_{j}\leq c_{j}$ for $1\leq j\leq t$. Such a $v$-chain exists by the proof of (1) of Proposition 6.1.1. $\Box$

Corollary 6.1.3

Let $\mathfrak{S}$ be a monomial in $\mathfrak{O}\mathfrak{N}$ and $\alpha\in\mathfrak{S}$. Then there exists a $v$-chain $C$ in $\mathfrak{S}$ with tail $\alpha$ such that $\mathfrak{O}\textup{-depth}_{\mathfrak{S}}(\alpha)=\mathfrak{O}\textup{-depth}_{C}(\alpha)$. 2. 2.

For elements $\alpha>\gamma$ in a $v$-chain $C$ (these need not be consecutive), we have $\mathfrak{O}\textup{-depth}_{C}(\alpha)<\mathfrak{O}\textup{-depth}_{C}(\gamma)$. 3. 3.

For elements $\alpha>\gamma$ of a monomial $\mathfrak{S}$ in $\mathfrak{O}\mathfrak{N}$, we have $\mathfrak{O}\textup{-depth}_{\mathfrak{S}}(\alpha)<\mathfrak{O}\textup{-depth}_{\mathfrak{S}}(\gamma)$. 4. 4.

No two elements of the same $\mathfrak{O}$-depth in a monomial in $\mathfrak{O}\mathfrak{N}$ are comparable.

Proof: (1) This follows from (2) of the Proposition above and the definition of $\mathfrak{O}$-depth.

(2) This follows from Proposition 5.3.4 (1) and the definition of $\mathfrak{O}$-depth.

(3) By (1), there exists a $v$-chain $C$ with tail $\alpha$ such that $\mathfrak{O}\textup{-depth}_{\mathfrak{S}}(\alpha)=\mathfrak{O}\textup{-depth}_{C}(\alpha)$. Concatenate $C$ with $\alpha>\gamma$ and let $D$ denote the resulting $v$-chain. By (2) of the Proposition above, $\mathfrak{O}\textup{-depth}_{C}(\alpha)=\mathfrak{O}\textup{-depth}_{D}(\alpha)$. By (2) above, $\mathfrak{O}\textup{-depth}_{D}(\alpha)<\mathfrak{O}\textup{-depth}_{D}(\gamma)$. And finally, $\mathfrak{O}\textup{-depth}_{D}(\gamma)\leq\mathfrak{O}\textup{-depth}_{\mathfrak{S}}(\gamma)$ by the definition of $\mathfrak{O}\textup{-depth}_{\mathfrak{S}}(\gamma)$.

(4) Immediate from (3). $\Box$

Corollary 6.1.4

Let $\beta>\gamma$ be elements of a $v$-chain $C$ of elements of $\mathfrak{O}\mathfrak{N}$. Let $E$ be a $v$-chain in $\mathfrak{S}_{C}$ with tail $q_{C,\gamma}$ and length $\mathfrak{O}\textup{-depth}_{C}(\gamma)$. Then $q_{C,\beta}$ occurs in $E$.

Proof: It is enough to show that for $\alpha^{\prime}\neq q_{C,\beta}$ in $E$, either $\alpha^{\prime}>q_{C,\beta}$ or $q_{C,\beta}>\alpha^{\prime}$. Let $\alpha$ be in $C$ such that $q_{C,\beta}\neq\alpha^{\prime}\in\mathfrak{S}_{C,\alpha}$. If $\beta\geq\alpha$, then $q_{C,\beta}>\alpha^{\prime}$ by Proposition 5.3.4 (1). If $\alpha>\beta$ and $\alpha^{\prime}\not>q_{C,\beta}$, then, by (1) and (3) of the same proposition, $\alpha^{\prime}\not>q_{C,\gamma}$, a contradiction. $\Box$

6.2 $\mathfrak{O}$-depth and depth

Lemma 6.2.1

The $\mathfrak{O}$-depth of an element $\alpha$ in a monomial $\mathfrak{S}$ of $\mathfrak{O}\mathfrak{N}$ is no less than its depth (in the sense of [7]) in $\mathfrak{S}\cup\mathfrak{S}^{\#}$.

Proof: Let $C:\alpha_{1}>\ldots>\alpha_{t}$ be a $v$-chain in $\mathfrak{S}\cup\mathfrak{S}^{\#}$ with tail $\alpha_{t}=\alpha$, where $t$ is the depth of $\alpha$ in $\mathfrak{S}\cup\mathfrak{S}^{\#}$. We then have $\alpha_{1}\textup{(up)}>\ldots>\alpha_{t}\textup{(up)}$, so we may assume $C$ to be in $\mathfrak{S}$. By Proposition 5.3.4 (1), $q_{C,\alpha_{1}}>\ldots>q_{C,\alpha_{t}}$ in $\mathfrak{S}_{C}$. So $\textup{depth}_{\mathfrak{S}\cup\mathfrak{S}^{\#}}(\alpha)=t\leq\textup{depth}_{\mathfrak{S}_{C}}(q_{C,\alpha_{t}})\leq\mathfrak{O}\textup{-depth}_{\mathfrak{S}}(\alpha)$. $\Box$

6.3 $\mathfrak{O}$-depth and type

We begin by defining some useful terminology. Let $(r,c)$ and $(R,C)$ be two elements of $\mathfrak{R}$. To say that $(R,C)$ dominates $(r,c)$ means that $r\leq R$ and $C\leq c$ (in terms of pictures, $(r,c)$ lies (not necessarily strictly) to the Northeast of $(R,C)$). To say that they are comparable means that either $(R,C)>(r,c)$ or $(r,c)>(R,C)$. While this is admittedly strange, there will arise no occasion for confusion.

For an integer $i$, we let $i\textup{(odd)}$ be the largest odd integer not bigger than $i$ and $i\textup{(even)}$ the smallest even integer not smaller than $i$.

Lemma 6.3.1

For consecutive elements $\alpha>\beta$ of a $v$-chain $C$,

[TABLE] 2. 2.

For an element of a $v$-chain $C$ such that either its horizontal projection belongs to $\mathfrak{N}$ or it is connected to its predecessor, the parity of its $\mathfrak{O}$-depth in $C$ is the same as that of its ordinality in its connected component in $C$. 3. 3.

The $\mathfrak{O}$-depth in a $v$-chain of an element of type H is odd. 4. 4.

If in a $v$-chain an element of type V is the last in its connected component, then its $\mathfrak{O}$-depth is even. 5. 5.

If in a $v$-chain $C$ there is an element of $\mathfrak{O}$-depth $d$, then

1. (a)

for every odd integer $d^{\prime}$ not exceeding $d$, there is in $C$ an element of $\mathfrak{O}$-depth $d^{\prime}$. 2. (b)

if, for an even integer $d^{\prime}$ not exceeding $d$, there is no element in $C$ of $\mathfrak{O}$-depth $d^{\prime}$, then the element $\alpha$ in $C$ of $\mathfrak{O}$-depth $d^{\prime}-1$ is of type H, and $p_{h}(\alpha)>\beta$, where $\beta$ denotes the immediate successor of $\alpha$ in $C$. 6. 6.

Let $C$ be a $v$-chain and $\alpha$ an element of type H in $C$. Then the depth in $\mathfrak{S}_{C}$ of $p_{h}(\alpha)$ equals $\mathfrak{O}\textup{-depth}_{C}(\alpha)+1$. In particular, this depth is even.

Proof: (1): From items 1 and 3(a) of Proposition 5.3.4, it follows that, for $\gamma$ in $C$ with $\gamma>\alpha$, if $\gamma^{\prime}\not>q_{C,\alpha}$ for some $\gamma^{\prime}$ in $\mathfrak{S}_{C,\gamma}$, then $\gamma^{\prime}\not>q_{C,\beta}$. Thus $\mathfrak{O}\textup{-depth}_{C}(\beta)$ exceeds $\mathfrak{O}\textup{-depth}_{C}(\alpha)$ by the number of elements in $\mathfrak{S}_{C,\alpha}$ that dominate $q_{C,\beta}$. This number is $1$ if $\alpha$ is of type V, or of type S, or of type H and $p_{h}(\alpha)\not>\beta$; it is $2$ if $\alpha$ is of type H and $p_{h}(\alpha)>\beta$ (note that $p_{h}(\alpha)>\beta$ if and only if $p_{h}(\alpha)>q_{C,\beta}$).

(2): Let $\lambda$ be such an element. Everything preceding $\lambda$ in $C$ is of type H or V (Proposition 5.3.1 (3)). Let $\lambda$ belong to the $k^{\textup{th}}$ connected component, and $n_{1}$, …, $n_{k}$ be respectively the cardinalities of the first, …, $k^{\textup{th}}$ connected components. By (1) above and item 3(b) of Proposition 5.3.4, $\mathfrak{O}\textup{-depth}_{C}(\lambda)$ is $n_{1}\textup{(even)}+\cdots+n_{k-1}\textup{(even)}$ plus the ordinality of $\lambda$ in the $k^{\textup{th}}$ connected component.

(3) and (4): These are special cases of 2.

(5): This follows easily from (1) and (3).

(6): It follows from Proposition 5.3.4 (2) that there is no element $\gamma$ in $\mathfrak{S}_{C}$ that lies between $p_{v}(\alpha)$ and $p_{h}(\alpha)$ (meaning $p_{v}(\alpha)>\gamma>p_{h}(\alpha)$), so the assertion holds. $\Box$

Corollary 6.3.2

For a $v$-chain $C$ in $\mathfrak{O}\mathfrak{N}$, if the $\mathfrak{O}$-depths of elements in $C$ are bounded by $k$, then the depths of elements in $\mathfrak{S}_{C}$ are bounded by $k\textup{(even)}$.

Proof: The depth of $q_{C,\alpha}$ in $\mathfrak{S}_{C}$ for any $\alpha$ in $C$ is at most $k$ by hypothesis. An element of $\mathfrak{S}_{C}$ that is not $q_{C,\alpha}$ for any $\alpha$ in $C$ can only be of the form $p_{h}(\alpha)$ for some $\alpha$. By Proposition 5.3.4, $\textup{depth}_{\mathfrak{S}_{C}}p_{v}(\alpha)=\textup{depth}_{\mathfrak{S}_{C}}p_{h}(\alpha)-1$, which implies $\textup{depth}_{\mathfrak{S}_{C}}p_{h}(\alpha)\leq k+1$. If, moreover, $k$ is even, then by (3) of Lemma 6.3.1 $\textup{depth}_{\mathfrak{S}_{C}}p_{h}(\alpha)=\textup{depth}_{\mathfrak{S}_{C}}p_{v}(\alpha)+1\leq(k-1)+1=k$. $\Box$

Proposition 6.3.3

Given a monomial $\mathfrak{S}$ in $\mathfrak{O}\mathfrak{N}$ and an element $\alpha$ in it, there exists a $v$-chain $C$ in $\mathfrak{S}$ with tail $\alpha$ such that $\mathfrak{O}\textup{-depth}_{C}(\beta)=\mathfrak{O}\textup{-depth}_{\mathfrak{S}}(\beta)$ for every $\beta$ in $C$.

Proof: Proceed by induction on $d:=\mathfrak{O}\textup{-depth}_{\mathfrak{S}}(\alpha)$. Choose a $v$-chain $D$ in $\mathfrak{S}$ with tail $\alpha$ such that $\mathfrak{O}\textup{-depth}_{D}(\alpha)=\mathfrak{O}\textup{-depth}_{\mathfrak{S}}(\alpha)$ (such a $v$-chain exists by Corollary 6.1.3 (1)). Let $\alpha^{\prime}$ be the element in $D$ just before $\alpha$. It follows from item (3) of Corollary 6.1.3 and item (1) of Lemma 6.3.1 that $\mathfrak{O}\textup{-depth}_{\mathfrak{S}}(\alpha^{\prime})$ (as also $\mathfrak{O}\textup{-depth}_{D}(\alpha^{\prime})$) is either $d-1$ or $d-2$. By induction, there exists a $v$-chain $C^{\prime}$ with tail $\alpha^{\prime}$ that has the desired property. Let $C$ be the concatenation of $C^{\prime}$ with $\alpha^{\prime}>\alpha$.

We claim that $C$ has the desired property. The only thing to be proved is that $\mathfrak{O}\textup{-depth}_{C}(\alpha)=d$. By item (1) of Lemma 6.3.1, we have $\mathfrak{O}\textup{-depth}_{C}(\alpha)\geq\mathfrak{O}\textup{-depth}_{C^{\prime}}(\alpha^{\prime})+1$. In particular, the claim is proved in case $\mathfrak{O}\textup{-depth}_{C^{\prime}}(\alpha^{\prime})$ is $d-1$, so let us assume that $\mathfrak{O}\textup{-depth}_{C^{\prime}}(\alpha^{\prime})$ is $d-2$. It now follows from the same item that $\alpha^{\prime}$ has type H in $D$ and $p_{h}(\alpha^{\prime})>\alpha$; it further follows that it is enough to show that $\alpha^{\prime}$ has type H in $C$.

Since $\alpha^{\prime}$ has type H in $D$, it follows (from item (2) of Proposition 5.3.1) that $\alpha^{\prime}>\alpha$ is not connected and (from item (3) of Lemma 6.3.1) that $d-2$ is odd. Now, by item (4) of Lemma 6.3.1, the type in $C^{\prime}$ of $\alpha^{\prime}$ cannot be V, so it is H, and the claim is proved. $\Box$

Corollary 6.3.4

Let $\mathfrak{S}$ be a monomial in $\mathfrak{O}\mathfrak{N}$, $\beta$ an element of $\mathfrak{S}$, and $i$ an integer such that $i<\mathfrak{O}\textup{-depth}_{\mathfrak{S}}(\beta)$. Then

1. (a)

If $i$ is odd, there exists an element $\alpha$ in $\mathfrak{S}$ of $\mathfrak{O}$-depth $i$ such that $\alpha>\beta$. 2. (b)

If $i$ is even and there is no element $\alpha$ in $\mathfrak{S}$ of $\mathfrak{O}$-depth $i$ such that $\alpha>\beta$, then there is element $\alpha$ in $\mathfrak{S}$ of $\mathfrak{O}$-depth $i-1$ such that $p_{h}(\alpha)>\beta$.

Proof: Choose a $v$-chain $C$ in $\mathfrak{S}$ having tail $\beta$ and the good property of Proposition 6.3.3. Apply Lemma 6.3.1 (5). $\Box$

Corollary 6.3.5

Let $C$ be a $v$-chain in $\mathfrak{O}\mathfrak{N}$ with tail $\alpha$ such that $\mathfrak{O}\textup{-depth}_{C}(\alpha)$ is odd. Let $A$ be a $v$-chain in $\mathfrak{O}\mathfrak{N}$ with head $\alpha$, and $D$ the concatenation of $C$ with $A$. Let $C^{\prime}$ denote the $v$-chain $C\setminus\{\alpha\}$. Then

The type of an element of $A$ is the same in both $A$ and $D$. In particular, $\mathfrak{S}_{A}\subseteq\mathfrak{S}_{D}$ and $q_{A,\beta}=q_{D,\beta}$ for $\beta$ in $A$. 2. 2.

The type of an element of $C^{\prime}$ is the same in both $C^{\prime}$ and $D$. In particular, $\mathfrak{S}_{C^{\prime}}\subseteq\mathfrak{S}_{D}$. 3. 3.

$\mathfrak{S}_{D}=\mathfrak{S}_{C^{\prime}}\cup\mathfrak{S}_{A}$* (disjoint union); letting $j_{0}:=\mathfrak{O}\textup{-depth}_{C}(\alpha)$ we have $(\mathfrak{S}_{D})^{j_{0}}=\mathfrak{S}_{A}$ and $(\mathfrak{S}_{D})_{1}\cup\cdots\cup(\mathfrak{S}_{D})_{j_{0}-1}=\mathfrak{S}_{C^{\prime}}$. (For a monomial $\mathfrak{S}$, the subset of elements of depth at least $i$ is denoted $\mathfrak{S}^{i}$, and the subset of elements of depth exactly $i$ is denoted $\mathfrak{S}_{i}$.)*

Proof: (1) Generally (meaning without the assumption that $\mathfrak{O}\textup{-depth}_{C}(\alpha)$ is odd), the only element of $A$ that could possibly have a different type in $D$ is the last one in the first connected component of $A$; whether or not it changes type depends exactly upon whether or not the parity of the cardinality of its connected component in $D$ is different from that in $A$. Under our hypothesis, this parity does not change, for, by (4) of Lemma 6.3.1, the type of $\alpha$ in $C$ is H or S, and so the cardinality of the connected component of $\alpha$ in $C$ is odd.

(2) Generally (meaning without the assumption that $\mathfrak{O}\textup{-depth}_{C}(\alpha)$ is odd), the only element of $C^{\prime}$ that could possibly have a different type in $D$ is the last one of $C^{\prime}$; it changes type if and only if it is connected to $\alpha$ and the cardinality of its connected component in $C^{\prime}$ is odd. Under our hypothesis, this cardinality is even, for the same reason as in (1).

(3) That $\mathfrak{S}_{D}=\mathfrak{S}_{C^{\prime}}\cup\mathfrak{S}_{A}$ (disjoint union) is an immediate consequence of (1) and (2). By Lemma 6.3.1 (1), $q_{A,\alpha}=q_{D,\alpha}$ dominates every element of $\mathfrak{S}_{A}$, so $\mathfrak{S}_{A}\subseteq(\mathfrak{S}_{D})^{j_{0}}$ ($\textup{depth}_{\mathfrak{S}_{D}}q_{D,\alpha}=\mathfrak{O}\textup{-depth}_{D}(\alpha)=\mathfrak{O}\textup{-depth}_{C}(\alpha)=j_{0}$). It is enough to prove the following claim: every element of $\mathfrak{S}_{C^{\prime}}$ has depth less than $j_{0}$ in $\mathfrak{S}_{D}$. Let $\gamma^{\prime}$ be an element of $\mathfrak{S}_{C^{\prime}}$. If $\gamma^{\prime}>q_{D,\alpha}$ then the claim is clear. If not, then, by Proposition 5.3.4 (1), $\gamma^{\prime}=p_{h}(\gamma)$. By Lemma 6.3.1 (3), $\mathfrak{O}\textup{-depth}_{D}(\gamma)$ is odd. Since the claim is already true for $q_{D,\gamma}=p_{v}(\gamma)$, we have $\mathfrak{O}\textup{-depth}_{D}(\gamma)=\textup{depth}_{\mathfrak{S}_{D}}p_{v}(\gamma)\leq j_{0}-2$. By (6) of the same lemma, $\textup{depth}_{\mathfrak{S}_{D}}\gamma^{\prime}=\mathfrak{O}\textup{-depth}_{D}(\gamma)+1$, so $\textup{depth}_{D}\gamma^{\prime}\leq j_{0}-1$, and the claim is proved. $\Box$

Proposition 6.3.6

Let $\mathfrak{S}$ be a monomial in $\mathfrak{O}\mathfrak{N}$ and $j$ an odd integer. For $\beta$ in $\mathfrak{S}^{j,j+1}(:=\{\alpha\in\mathfrak{S}\,|\,\mathfrak{O}\textup{-depth}_{\mathfrak{S}}(\alpha)\geq j\})$, we have

[TABLE]

Proof: Proceed by induction on $j$. For $j=1$, the assertion reduces to a tautology. Suppose that the assertion has been proved upto $j$. By the induction hypothesis, we have $\mathfrak{S}^{j+2,j+3}=(\mathfrak{S}^{j,j+1})^{3,4}$, and we are reduced to proving the assertion for $j=3$.

Let $A$ be a $v$-chain in $\mathfrak{S}^{3,4}$ with tail $\beta$ and $\mathfrak{O}\textup{-depth}_{A}(\beta)=\mathfrak{O}\textup{-depth}_{\mathfrak{S}^{3,4}}(\beta)$. Let $\alpha$ be the head of $A$. We may assume that $\mathfrak{O}\textup{-depth}_{\mathfrak{S}}(\alpha)=3$ for, if $\mathfrak{O}\textup{-depth}_{\mathfrak{S}}(\alpha)>3$, we can find, by Lemma 6.3.1 (5), $\alpha^{\prime}$ of $\mathfrak{O}$-depth $3$ in $\mathfrak{S}$ with $\alpha^{\prime}>\alpha$, and extending $A$ by $\alpha^{\prime}$ will not decrease the $\mathfrak{O}$-depth in $A$ of $\beta$ (Proposition 6.1.1 (1)). Let $E$ be a $v$-chain in $\mathfrak{S}_{A}$ with tail $q_{A,\beta}$ and length $\mathfrak{O}\textup{-depth}_{A}(\beta)$. The head of $E$ is then $q_{A,\alpha}$ (see Proposition 5.3.4 (1)).

Choose $C$ in $\mathfrak{S}$ with tail $\alpha$ such that $\mathfrak{O}\textup{-depth}_{C}(\alpha)=3$. Let $D$ be the concatenation of $C$ with $A$. By Corollary 6.3.5, $E$ is contained in $\mathfrak{S}_{D}$, $q_{D,\alpha}=q_{A,\alpha}$, and $q_{D,\beta}=q_{A,\beta}$. By Proposition 6.1.1 (2), the $\mathfrak{O}$-depth of $\alpha$ is the same in $D$ as in $C$. Choose a $v$-chain $F$ in $\mathfrak{S}_{D}$ with tail $q_{D,\alpha}=q_{A,\alpha}$. Concatenating $F$ with $E$ we get a $v$-chain in $\mathfrak{S}_{D}$ with tail $q_{D,\beta}=q_{A,\beta}$ of length $\mathfrak{O}\textup{-depth}_{\mathfrak{S}^{3,4}}(\beta)+2$. This proves that $\mathfrak{O}\textup{-depth}_{\mathfrak{S}}(\beta)\geq\mathfrak{O}\textup{-depth}_{\mathfrak{S}^{3,4}}(\beta)+2$.

To prove the reverse inequality, we need only turn the above proof on its head. Let $D$ be a $v$-chain in $\mathfrak{S}$ with tail $\beta$ such that $\mathfrak{O}\textup{-depth}_{\mathfrak{S}}(\beta)=\mathfrak{O}\textup{-depth}_{D}(\beta)$. Let $G$ be a $v$-chain in $\mathfrak{S}_{D}$ with tail $q_{D,\beta}$ and length $\mathfrak{O}\textup{-depth}_{\mathfrak{S}}(\beta)$. There exists an element $\alpha$ in $D$ of $\mathfrak{O}$-depth $3$ in $D$ (by Lemma 6.3.1 (5)). Let $C$ be the part of $D$ upto and including $\alpha$, and $A$ the part $\alpha>\ldots>\beta$. By Proposition 6.1.1 (2), $\mathfrak{O}\textup{-depth}_{C}(\alpha)=3$ and, as above, Corollary 6.3.5 applies.

By Corollary 6.1.4, $q_{A,\alpha}=q_{D,\alpha}$ occurs in $G$. The part $F$ of $G$ upto and including $q_{A,\alpha}$ is of length at most $3$, and the part $E:q_{D,\alpha}>\ldots>q_{D,\beta}$ belongs also to $\mathfrak{S}_{A}$ (Proposition 5.3.4 (2)). Thus the length of $G$ is at most $2$ more than the the length of $E$ which is at most $\mathfrak{O}\textup{-depth}_{\mathfrak{S}^{3,4}}(\beta)$. $\Box$

Corollary 6.3.7

For odd integers $i$, $j$, we have $(\mathfrak{S}^{i,i+1})^{j,j+1}=\mathfrak{S}^{i+j-1,i+j}$. $\Box$

Corollary 6.3.8

Let $E:\alpha>\ldots>\zeta$ be a $v$-chain, $D$ and $D^{\prime}$ two $v$-chains with tail $\alpha$, and $C$, $C^{\prime}$ the concatenations of $D$, $D^{\prime}$ respectively with $E$. Then

$\mathfrak{O}\textup{-depth}_{C}(\zeta)-\mathfrak{O}\textup{-depth}_{C}(\alpha)\leq\mathfrak{O}\textup{-depth}_{C^{\prime}}(\zeta)-\mathfrak{O}\textup{-depth}_{C^{\prime}}(\alpha)+1$; 2. 2.

equality holds if and only if the type of $\lambda$ is H in $C$ and V in $C^{\prime}$, and $p_{h}(\lambda)>\mu$, where $\lambda$ is the last element in the connected component containing $\alpha$ of $E$ and $\mu$ is the immediate successor in $E$ of $\lambda$.

Proof: These assertions follow from combining (2) of Proposition 5.3.3 with (1) of Lemma 6.3.1. $\Box$

Corollary 6.3.9

Let $\zeta$ be an element of a monomial $\mathfrak{S}$ in $\mathfrak{O}\mathfrak{N}$. Let $C$ be a $v$-chain in $\mathfrak{S}$ with tail $\zeta$ such that $\mathfrak{O}\textup{-depth}_{C}(\zeta)=\mathfrak{O}\textup{-depth}_{\mathfrak{S}}(\zeta)$. Then

$\mathfrak{O}\textup{-depth}_{C}(\alpha)\geq\mathfrak{O}\textup{-depth}_{\mathfrak{S}}(\alpha)-1$* for any $\alpha$ in $C$.* 2. 2.

If $\mathfrak{O}\textup{-depth}_{C}(\alpha)=\mathfrak{O}\textup{-depth}_{\mathfrak{S}}(\alpha)-1$ for some $\alpha$ in $C$, then

1. (a)

letting $\lambda$ be the last element in the connected component containing $\alpha$ and $\mu$ the element next to $\lambda$, the type of $\lambda$ in $C$ is H and $p_{h}(\lambda)>\mu$. 2. (b)

$\mathfrak{O}\textup{-depth}_{C}(\gamma)=\mathfrak{O}\textup{-depth}_{\mathfrak{S}}(\gamma)-1$* for all $\gamma$ in $C$ between $\alpha$ and $\lambda$ (both inclusive).*

Proof: (1) Let $\alpha$ be in $C$. Let $E$ denote the part of $C$ beyond (and including) $\alpha$. Let $D^{\prime}$ be a $v$-chain in $\mathfrak{S}$ with tail $\alpha$ such that $\mathfrak{O}\textup{-depth}_{D^{\prime}}(\alpha)=\mathfrak{O}\textup{-depth}_{\mathfrak{S}}(\alpha)$. Let $C^{\prime}$ be the concatenation of $D^{\prime}$ and $E$. Applying Proposition 6.3.8 (1), we have

[TABLE]

But $\mathfrak{O}\textup{-depth}_{C}(\zeta)-\mathfrak{O}\textup{-depth}_{C^{\prime}}(\zeta)=\mathfrak{O}\textup{-depth}_{\mathfrak{S}}(\zeta)-\mathfrak{O}\textup{-depth}_{C^{\prime}}(\zeta)\geq 0$, and, by the choice of $D^{\prime}$ and Proposition 6.1.1 (2), $\mathfrak{O}\textup{-depth}_{C^{\prime}}(\alpha)=\mathfrak{O}\textup{-depth}_{D^{\prime}}(\alpha)=\mathfrak{O}\textup{-depth}_{\mathfrak{S}}(\alpha)$.

(2) Assertions (a) and (b) follow respectively from the “only if ” and “if” parts of item (2) of Proposition 6.3.8. $\Box$

7 The map $\mathfrak{O}\pi$

The purpose of this section is to describe the map $\mathfrak{O}\pi$. The description is given in §7.1. It relies on certain claims which are proved in §§7.3, 7.4. Those proofs in turn refer to results from §9, but there is no circularity—to postpone the definition of $\mathfrak{O}\pi$ until all the results needed for it have been proved would hurt rather than help readability. The observations in §7.5 are required only in §10.

The symbol $j$ will be reserved for an odd positive integer throughout this section.

7.1 Description of $\mathfrak{O}\pi$

The map $\mathfrak{O}\pi$ takes as input a monomial $\mathfrak{S}$ in $\mathfrak{O}\mathfrak{N}$ and produces as output a pair $(w,\mathfrak{S}^{\prime})$, where $w$ is an element of $I(d)$ such that $w\geq v$ and $\mathfrak{S}^{\prime}$ is a “smaller” monomial, possibly empty, in $\mathfrak{O}\mathfrak{N}$. If the input $\mathfrak{S}$ is empty, no output is produced (by definition). So now suppose that $\mathfrak{S}$ is non-empty.

We first partition $\mathfrak{S}$ into subsets according to the $\mathfrak{O}$-depths of its elements. Let $\mathfrak{S}_{k}^{\textup{pr}}$ be the sub-monomial of $\mathfrak{S}$ consisting of those elements of $\mathfrak{S}$ that have $\mathfrak{O}$-depth $k$—the superscript “pr” is short for “preliminary”. It follows from Corollary 6.1.3 (4) that there are no comparable elements in $\mathfrak{S}_{k}^{\textup{pr}}$ and so we can arrange the elements of $\mathfrak{S}_{k}^{\textup{pr}}$ in ascending order of both row and column indices. Let $\sigma_{k}$ be the last element of $\mathfrak{S}_{k}^{\textup{pr}}$ in this arrangement.

Let now $j$ be an odd integer. We set

[TABLE]

We say that $\mathfrak{S}$* is truly orthogonal at $j$* if $p_{h}(\sigma_{j})$ belongs to $\mathfrak{N}$ (that is, if $r>r^{*}$ where $\sigma_{j}=(r,c)$),

Let $\mathfrak{S}_{j,j+1}$ denote the monomial in $\mathfrak{N}$ defined by $\mathfrak{S}_{j,j+1}:=$

[TABLE]

Here $\mathfrak{S}_{j,j+1}^{\textup{pr}}\setminus\{\sigma_{j}\}$ and other terms on the right are to be understood as multisets. As proved in Corollary 7.3.4 (1) below, $\mathfrak{S}_{j,j+1}$ has depth at most $2$. Let $\mathfrak{S}_{j}$ (respectively $\mathfrak{S}_{j+1}$ be the subset (as a multiset) of elements of depth $1$ (respectively $2$) of $\mathfrak{S}_{j,j+1}$.

Now, for every integer $k$, we apply the map of $\pi$ of [7, §4] to $\mathfrak{S}_{k}$ to obtain a pair $(w(k),\mathfrak{S}_{k}^{\prime})$, where $w(k)$ is an element of $I(d,2d)$ and $\mathfrak{S}_{k}^{\prime}$ is a monomial in $\mathfrak{N}$. Let $\mathfrak{S}_{w(k)}$ be the distinguished monomial in $\mathfrak{N}$ associated to $w(k)$—see §5.1.2.

Proposition 7.1.1

$\mathfrak{S}_{w(k)}$* and $\mathfrak{S}_{k}^{\prime}$ are symmetric. And therefore so are $\cup_{k}\mathfrak{S}_{w(k)}$ and $\cup_{k}\mathfrak{S}_{k}^{\prime}$.* 2. 2.

$\cup_{k}\mathfrak{S}_{w(k)}$* is a distinguished subset of $\mathfrak{N}$ (in particular, the $\mathfrak{S}_{w(k)}$ are disjoint).* 3. 3.

For $j$ an odd integer, either

• •

both $\mathfrak{S}_{w(j)}$ and $\mathfrak{S}_{w(j+1)}$ meet the diagonal, or

• •

neither of them meets the diagonal,

precisely as whether or not $\mathfrak{S}$ is truly orthogonal at $j$. And therefore $\cup_{k}\mathfrak{S}_{w(k)}$ has evenly many diagonal elements. 4. 4.

No $\mathfrak{S}_{k}^{\prime}$ intersects the diagonal. And therefore neither does $\cup_{k}\mathfrak{S}_{k}^{\prime}$.

The proposition will be proved below in §7.4.

Finally we are ready to define the image $(w,\mathfrak{S}^{\prime})$ of $\mathfrak{S}$ under $\mathfrak{O}\pi$. We let $w$ be the element of $I(d,2d)$ associated to the distinguished subset $\cup_{k}\mathfrak{S}_{w(k)}$ of $\mathfrak{N}$; since $\cup_{k}\mathfrak{S}_{w(k)}$ is symmetric and has evenly many diagonal elements, it follows from Proposition 5.2.1 that $w$ is in fact an element of $I(d)$. And we take $\mathfrak{S}^{\prime}:=\cup_{k}\mathfrak{S}_{k}^{\prime}\cap\mathfrak{O}\mathfrak{N}$.

Remark 7.1.2

Setting

[TABLE]

and defining $w$ to be the element of $I(d,2d)$ associated to \cup_{\textup{j odd}}\mathfrak{S}_{w_{j,j+1}} would give an equivalent definition of $\mathfrak{O}\pi$.

7.2 Illustration by an example

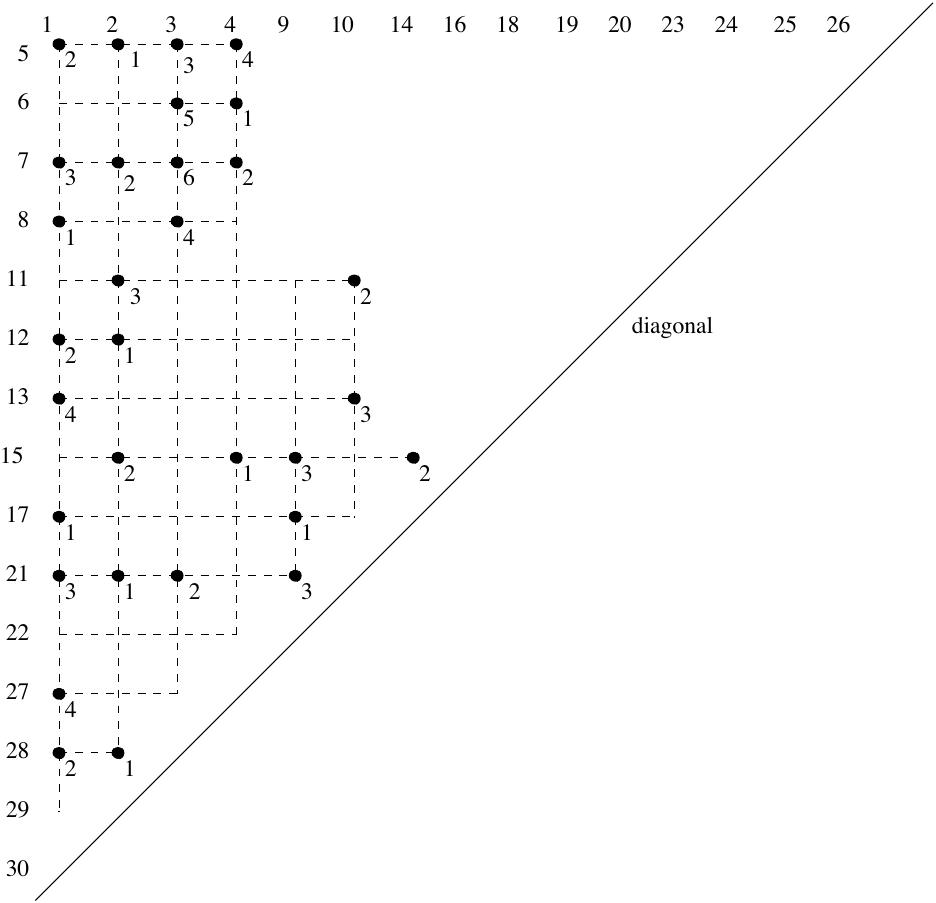

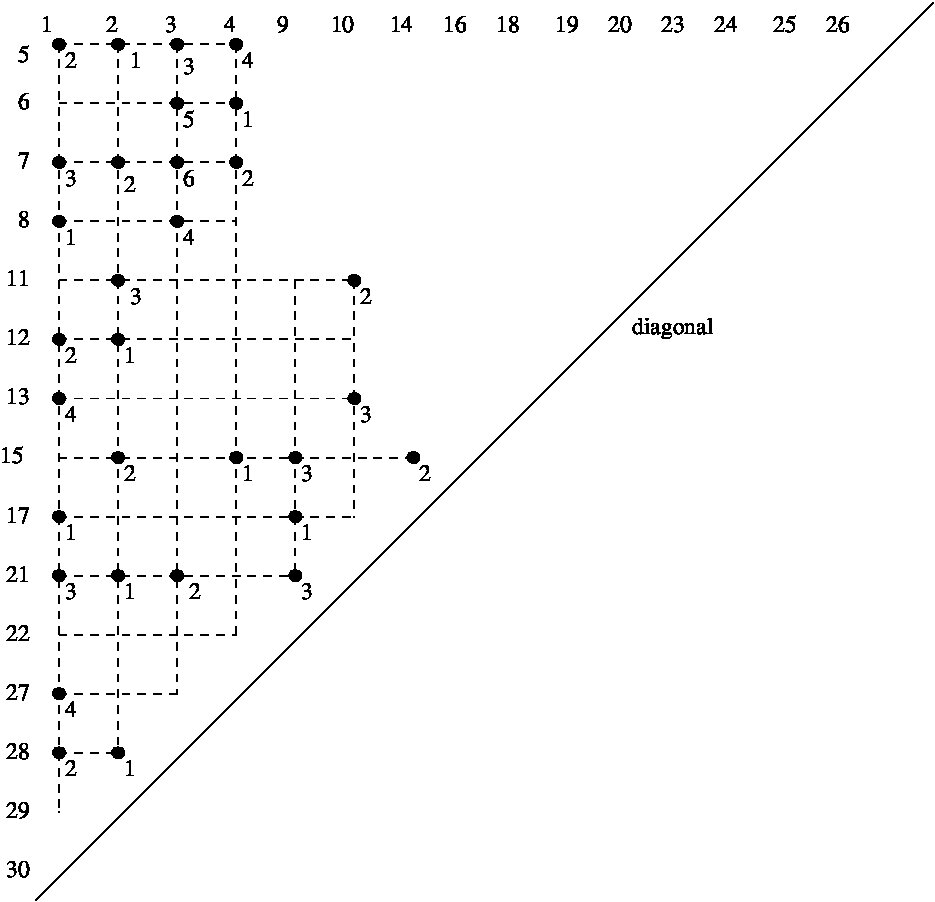

We illustrate the map $\mathfrak{O}\pi$ by means of an example. Let $d=15$, and $v=(1,2,3,4,9,10,14,16,18,19,20,23,24,25,26)$. A monomial $\mathfrak{S}$ in $\mathfrak{O}\mathfrak{N}$ is shown in Figure 7.2.1. Solid black dots indicate the elements that occur in $\mathfrak{S}$ with non-zero multiplicity. Integers written near the solid dots indicate multiplicities.

The $\mathfrak{O}$-depth of $\mathfrak{S}$ is $5$. The element $(21,9)$ has $\mathfrak{O}$-depth $3$ although it has depth $2$ in $\mathfrak{S}$. Figure 7.2.2 shows the monomials $\mathfrak{S}_{1,2}^{\textup{pr}}$, $\mathfrak{S}_{3,4}^{\textup{pr}}$, and $\mathfrak{S}_{5,6}^{\textup{pr}}$. Solid dots, open dots, and crosses indicate elements of these monomials respectively. The monomial $\mathfrak{S}$ is truly orthogonal at $1$ and $3$ but not at $5$: $\sigma_{1}=(28,2)$, $\sigma_{3}=(21,9)$, and $\sigma_{5}=(15,14)$.

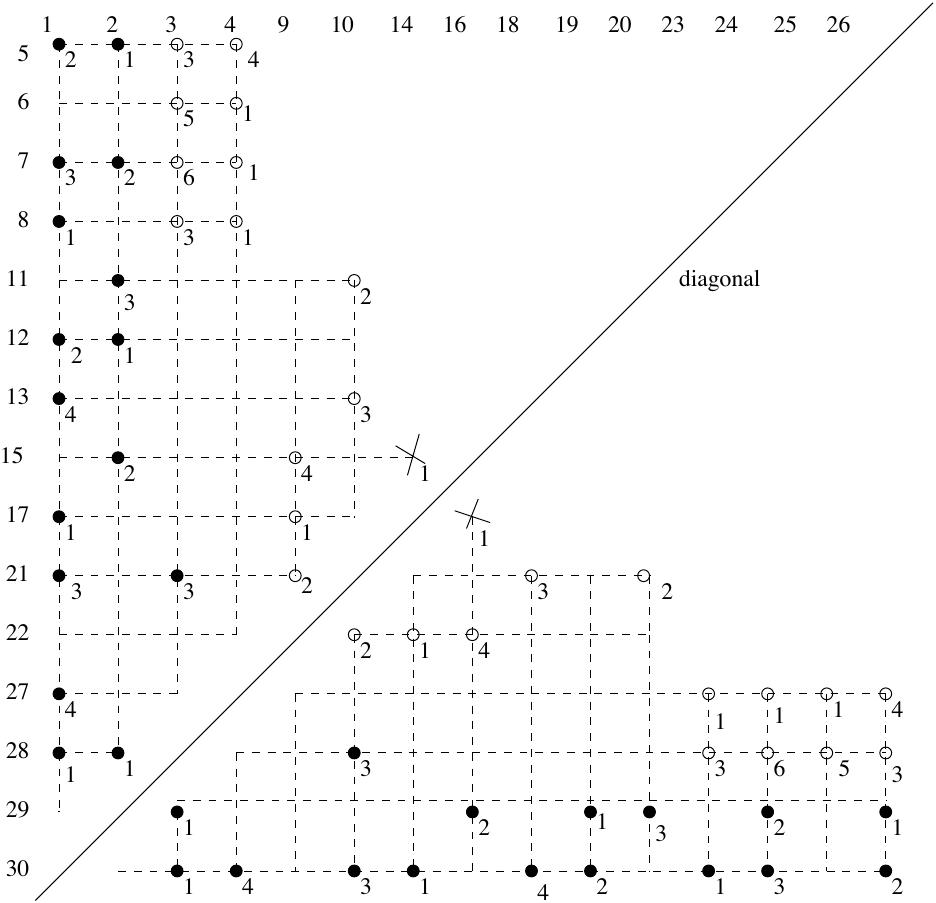

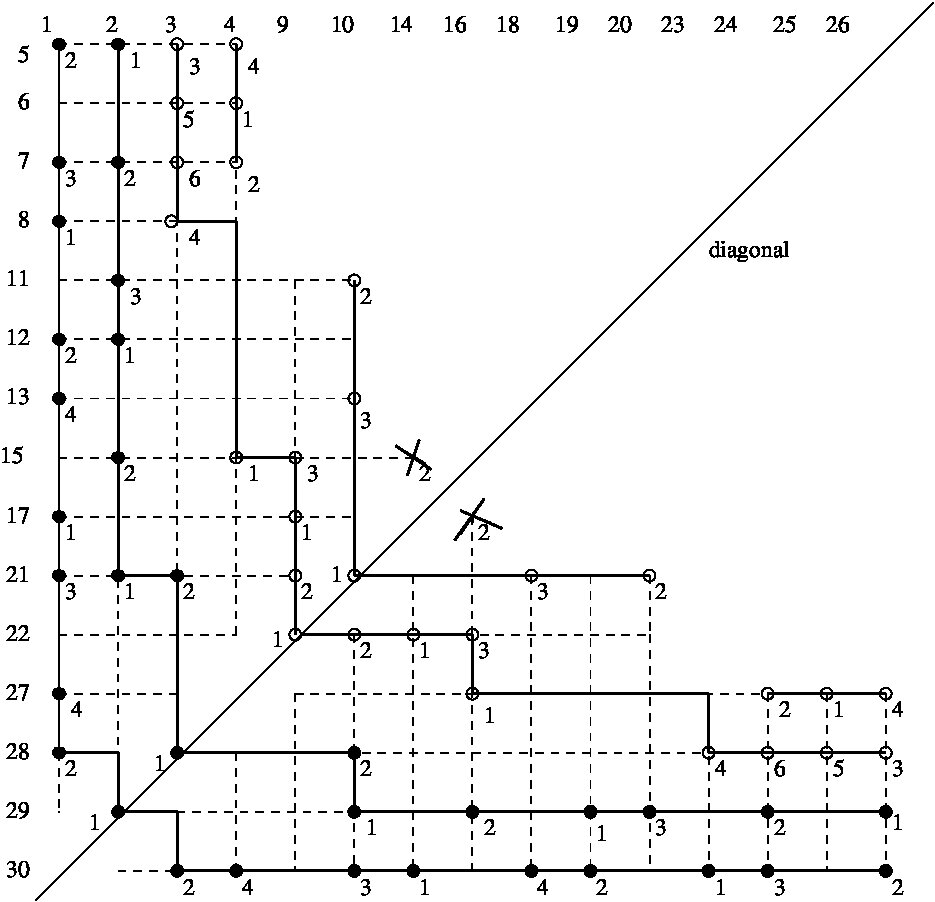

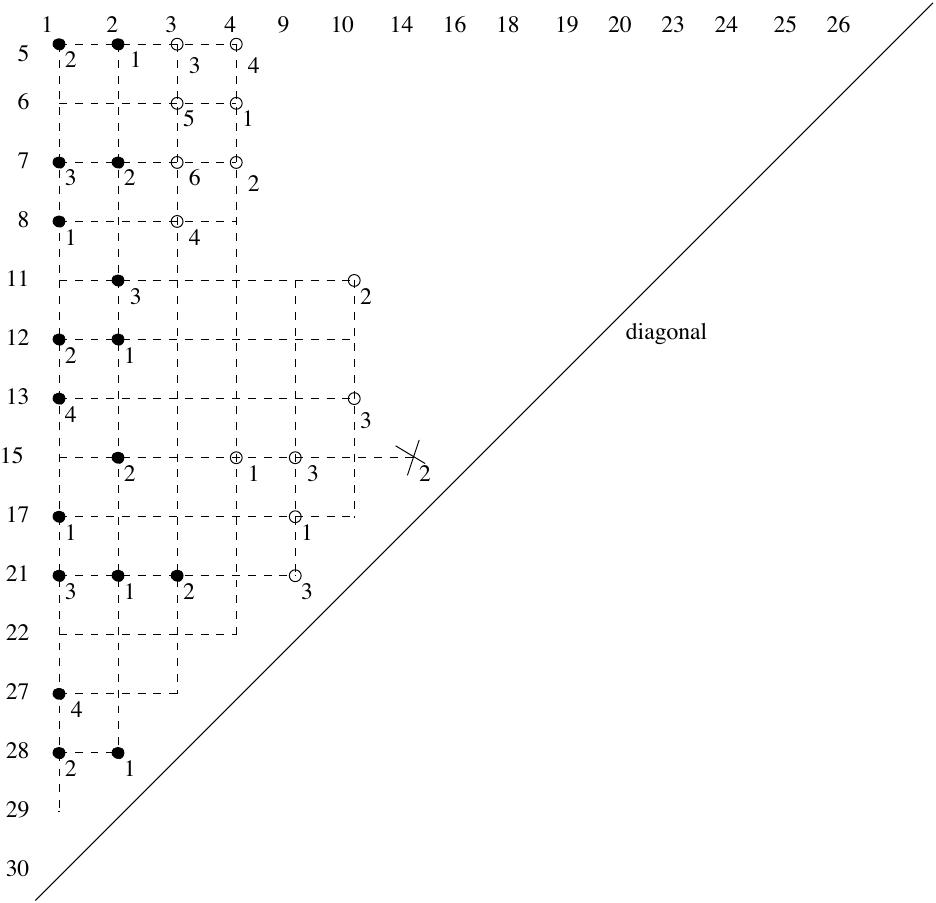

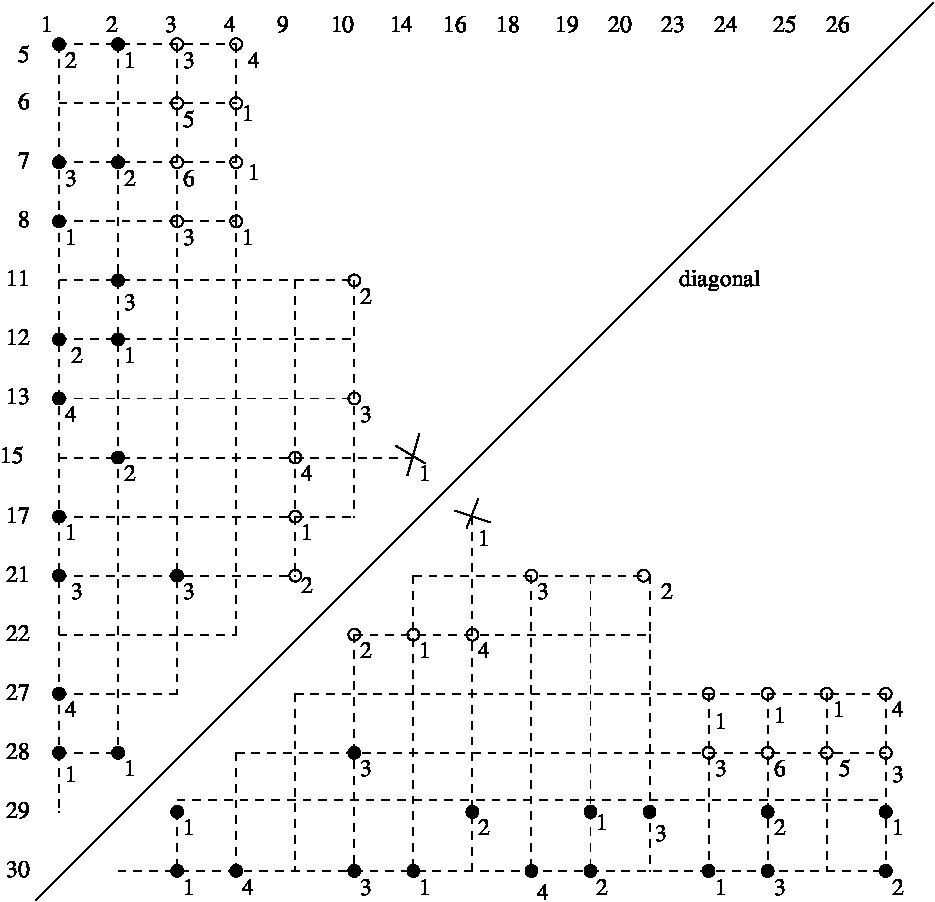

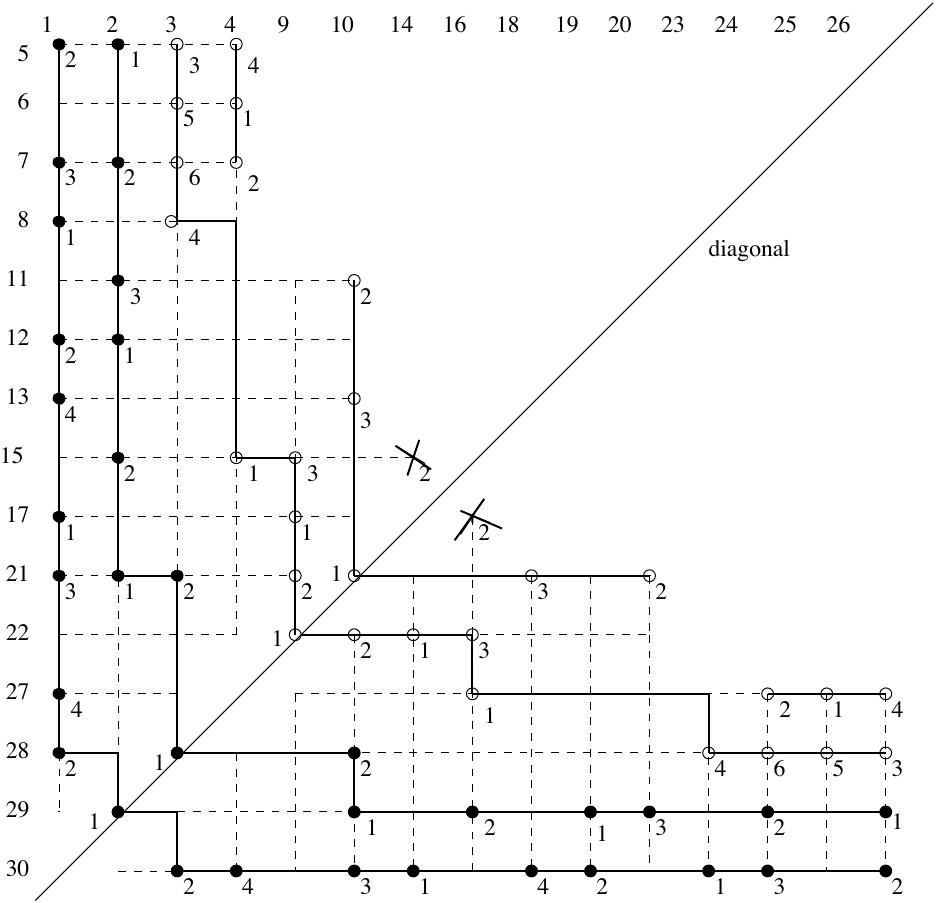

Figure 7.2.3 shows the monomials $\mathfrak{S}_{1,2}$, $\mathfrak{S}_{3,4}$, and $\mathfrak{S}_{5,6}$ of $\mathfrak{N}$ and also their decomposition into blocks, and Figure 7.2.4 the monomials $\mathfrak{S}^{\prime}_{1,2}$, $\mathfrak{S}^{\prime}_{3,4}$, and $\mathfrak{S}^{\prime}_{5,6}$.

We have

[TABLE]

hence $w=(7,9,15,17,18,19,20,21,23,25,26,27,28,29,30)$. It is easy to check that $w\in I(d)$. The monomial $\mathfrak{S}^{\prime}$ is the intersection with $\mathfrak{O}\mathfrak{N}$ of the union of $\mathfrak{S}^{\prime}_{1,2}$, $\mathfrak{S}^{\prime}_{3,4}$, and $\mathfrak{S}^{\prime}_{5,6}$—in other words it is just the monomial lying above $\mathfrak{d}$ in Figure 7.2.4.

7.3 A proposition about $\mathfrak{S}_{j,j+1}$

The aim of this subsection is to show that $\mathfrak{S}_{j,j+1}$ has depth no more than $2$—see item (1b) of Proposition 7.3.3. This basic fact was mentioned above in the description of $\mathfrak{O}\pi$ and is necessary (psychologically although not logically) to make sense of the definitions of $\mathfrak{S}_{j}$ and $\mathfrak{S}_{j+1}$. We prepare the way for Proposition 7.3.3 by way of two preliminary propositions. The first of these is about elements of $\mathfrak{O}$-depth $j$ and $j+1$ in $\mathfrak{S}$, the second about the relation of these elements with $\sigma_{j}$.

Proposition 7.3.1

$\mathfrak{S}_{k}^{\textup{pr}}$* has no comparable elements.* 2. 2.

For $j$ an odd integer and $\beta$ an element of $\mathfrak{S}_{j+1}^{\textup{pr}}$, there exists $\alpha$ in $\mathfrak{S}_{j}^{\textup{pr}}$ such that $\alpha>\beta$. In particular, the row index of $\sigma_{j+1}$ (if $\sigma_{j+1}$ exists) is less than the row index of $\sigma_{j}$.

Proof: (1) follows from Corollary 6.1.3 (4); (2) follows from Proposition 6.3.3 and Lemma 6.3.1 (5). $\Box$

Proposition 7.3.2

Let $j$ be an odd integer and let $\mathfrak{S}$ be truly orthogonal at $j$. Then

$p_{v}(\sigma_{j})>p_{h}(\sigma_{j})$; if $\alpha>p_{v}(\sigma_{j})$, then $\alpha>\sigma_{j}$; if $\alpha>\sigma_{j}$, then $\alpha>p_{h}(\sigma_{j})$. 2. 2.

No element of $\mathfrak{S}_{j}^{\textup{pr}}$ is comparable to $p_{v}(\sigma_{j})$ or $p_{h}(\sigma_{j})$. 3. 3.

No element of $\mathfrak{S}_{j+1}^{\textup{pr}}$ is comparable to $p_{h}(\sigma_{j})$. 4. 4.

The following is not possible: $\alpha\in\mathfrak{S}_{j}^{\textup{pr}}$, $\beta\in\mathfrak{S}_{j+1}^{\textup{pr}}$, and $p_{h}(\alpha)>\beta$.

Proof: (1) is trivial. (2) follows immediately from the definition of $\sigma_{j}$. We now prove (3). First suppose $\beta>p_{h}(\sigma_{j})$ for some $\beta$ in $\mathfrak{S}_{j+1}^{\textup{pr}}$. By (2) of Proposition 7.3.1, there exists $\alpha$ in $\mathfrak{S}_{j}^{\textup{pr}}$ such that $\alpha>\beta$. But then the row index of $\alpha$ exceeds that of $\sigma_{j}$, a contradiction to the choice of $\sigma_{j}$.

We claim that it is not possible for $\beta\in\mathfrak{S}_{j+1}^{\textup{pr}}$ to satisfy $p_{h}(\sigma_{j})>\beta$. This being a special case of (4), we need only prove that statement. So suppose that $\alpha$ belongs to $\mathfrak{S}_{j}^{\textup{pr}}$ and that $p_{h}(\alpha)>\beta$. Let $C$ be a $v$-chain in $\mathfrak{S}$ with tail $\alpha$ such that $\mathfrak{O}\textup{-depth}_{C}(\alpha)=j$ (see Proposition 6.1.3 (1)). Concatenate $C$ with $\alpha>\beta$ and call the resulting $v$-chain $D$. Then, by Lemma 6.3.1 (4), $\alpha$ is of type H in $D$, so that, by Lemma 6.3.1 (1), we have $\mathfrak{O}\textup{-depth}_{D}(\beta)=\mathfrak{O}\textup{-depth}_{D}(\alpha)+2$. But, by Proposition 6.1.1 (2), $\mathfrak{O}\textup{-depth}_{D}(\alpha)=\mathfrak{O}\textup{-depth}_{C}(\alpha)=j$, so that $\mathfrak{O}\textup{-depth}_{\mathfrak{S}}(\beta)\geq j+2$, a contradiction. $\Box$

Let $\mathfrak{S}_{j,j+1}\textup{(ext)}$ denote the set—not multiset—defined by:

[TABLE]

Here $\mathfrak{S}_{j,j+1}$ on the right stands for the underlying set of the multiset $\mathfrak{S}_{j,j+1}$ defined above. The set $\mathfrak{S}_{j,j+1}\textup{(ext)}$ is the disjoint union of the sets $\mathfrak{S}_{j}\textup{(ext)}$ and $\mathfrak{S}_{j+1}\textup{(ext)}$ defined as follows (here again the terms on the right hand side denote the underlying sets of the corresponding multisets):

[TABLE]

[TABLE]

Proposition 7.3.3

$\mathfrak{S}_{j}\textup{(ext)}$* (respectively $\mathfrak{S}_{j+1}\textup{(ext)}$) is precisely the set of elements of depth $1$ (respectively $2$) in $\mathfrak{S}_{j,j+1}\textup{(ext)}$. In particular,*

1. (a)

Neither $\mathfrak{S}_{j}\textup{(ext)}$ nor $\mathfrak{S}_{j+1}\textup{(ext)}$ contains comparable elements. 2. (b)

The length of a $v$-chain in $\mathfrak{S}_{j,j+1}\textup{(ext)}$ is at most $2$. 3. (c)

There is a $v$-chain of length $2$ in $\mathfrak{S}_{j,j+1}$ unless $\mathfrak{S}_{j+1}\textup{(ext)}$ is empty. 2. 2.

Let $k$ be a positive integer, not necessarily odd. If there is in $\mathfrak{S}$ an element of $\mathfrak{O}$-depth at least $k$, then $\mathfrak{S}_{k}\textup{(ext)}$ is non-empty. The converse also holds except possibly if $k$ is even and $\mathfrak{S}$ is truly orthogonal at $k-1$. In particular, if $\mathfrak{S}_{k}\textup{(ext)}$ is non-empty, then there is an element of $\mathfrak{O}$-depth at least $k-1$.

Proof: (1): It is enough to show that every element of $\mathfrak{S}_{j}\textup{(ext)}\textup{(up)}$ (respectively $\mathfrak{S}_{j+1}\textup{(ext)}\textup{(up)}$) is of depth $1$ (respectively $2$) in $\mathfrak{S}_{j,j+1}\textup{(ext)}\textup{(up)}$, for

• •

$\alpha>\beta$ implies $\alpha\textup{(up)}>\beta\textup{(up)}$ for elements $\alpha$, $\beta$ of $\mathfrak{N}$.

• •

$\mathfrak{S}_{j,j+1}\textup{(ext)}=\mathfrak{S}_{j}\textup{(ext)}\cup\mathfrak{S}_{j+1}\textup{(ext)}$.

• •

$\mathfrak{S}_{j,j+1}\textup{(ext)}$, $\mathfrak{S}_{j}\textup{(ext)}$, and $\mathfrak{S}_{j+1}\textup{(ext)}$ are symmetric.

In turn, it is enough to show the following:

1. (i)

Every element of $\mathfrak{S}_{j}\textup{(ext)}\textup{(up)}$ has depth $1$. 2. (ii)

$\mathfrak{S}_{j+1}\textup{(ext)}\textup{(up)}$ has no comparable elements. 3. (iii)

Every element of $\mathfrak{S}_{j+1}\textup{(ext)}\textup{(up)}$ has depth at least $2$.

Item (i) follows from Proposition 7.3.1 and Proposition 7.3.2 (2); item (ii) from Proposition 7.3.1 (1) and Proposition 7.3.2 (3); item (iii) from Proposition 7.3.1 (2) and Proposition 7.3.2 (1).

(2): The first assertion follows from Lemma 6.3.1 (5): if $k$ is odd there is an element of $\mathfrak{O}$-depth $k$ in $\mathfrak{S}$; if $k$ is even and there is no element of $\mathfrak{O}$-depth $k$ in $\mathfrak{S}$, then there is in $\mathfrak{S}$ an element of $\mathfrak{O}$-depth $k-1$ and of type H, so $\mathfrak{S}$ is truly orthogonal at $k-1$. The second assertion is clear from the definition of $\mathfrak{S}_{k}\textup{(ext)}$. $\Box$

Corollary 7.3.4

No element of $\mathfrak{S}_{j,j+1}$ has depth more than $2$. 2. 2.

$\mathfrak{S}_{j+1}\textup{(ext)}=\mathfrak{S}_{j+1}$* and $\mathfrak{S}_{j}\textup{(ext)}\cap\mathfrak{S}_{j,j+1}=\mathfrak{S}_{j}$ (as sets). In particular, $\mathfrak{S}_{j+1}=\mathfrak{S}_{j,j+1}\cap\mathfrak{S}_{j+1}\textup{(ext)}$ and $\mathfrak{S}_{j}=\mathfrak{S}_{j,j+1}\cap\mathfrak{S}_{j}\textup{(ext)}$ as multisets defined by the intersection of a multiset with a subset. *

Proof: (1): Since $\mathfrak{S}_{j,j+1}\subseteq\mathfrak{S}_{j,j+1}\textup{(ext)}$ (as sets), this follows immediately from (1b) of the proposition above.

(2): Since the union of $\mathfrak{S}_{j+1}\textup{(ext)}$ (which always is contained in $\mathfrak{S}_{j,j+1}$) and $\mathfrak{S}_{j}\textup{(ext)}\cap\mathfrak{S}_{j,j+1}$ is all of $\mathfrak{S}_{j,j+1}$, and since $\mathfrak{S}_{j}$, $\mathfrak{S}_{j+1}$ are disjoint, it it enough to show that $\mathfrak{S}_{j+1}\textup{(ext)}\subseteq\mathfrak{S}_{j+1}$ and $\mathfrak{S}_{j}\textup{(ext)}\cap\mathfrak{S}_{j,j+1}\subseteq\mathfrak{S}_{j}$.

Now, since elements of $\mathfrak{S}_{j}\textup{(ext)}$ have depth $1$ even in $\mathfrak{S}_{j,j+1}\textup{(ext)}$ (by item (1) of the proposition above), it is immediate that $\mathfrak{S}_{j}\textup{(ext)}\cap\mathfrak{S}_{j,j+1}\subseteq\mathfrak{S}_{j}$. And it follows from the proof of item (iii) in the proof of item (1) of the proposition above that an element of $\mathfrak{S}_{j+1}\textup{(ext)}$ has depth $2$ even in $\mathfrak{S}_{j,j+1}$ (not just in $\mathfrak{S}_{j,j+1}\textup{(ext)}$), so that $\mathfrak{S}_{j+1}\textup{(ext)}\subseteq\mathfrak{S}_{j+1}$. $\Box$

7.4 Proof of Proposition 7.1.1

(1) The monomials $\mathfrak{S}_{j,j+1}$ are clearly symmetric. Observe that $\alpha$ in $\mathfrak{S}_{j,j+1}$ has the same depth as $\alpha^{\#}$, for $\alpha_{1}>\alpha_{2}$ implies $\alpha\textup{(up)}>\alpha_{2}\textup{(up)}$ and $\alpha\textup{(down)}>\alpha_{2}\textup{(down)}$ for $\alpha_{1}$, $\alpha_{2}$ in $\mathfrak{N}$. Thus the monomials $\mathfrak{S}_{k}$ are symmetric. Since the map $\pi$ of [7] respects $\#$—see Proposition 5.7 of [4]—it follows that $\mathfrak{S}_{w(k)}$ and $\mathfrak{S}_{k}^{\prime}$ are symmetric. Therefore so are $\cup_{k}\mathfrak{S}_{w(k)}$ and $\cup_{k}\mathfrak{S}_{k}^{\prime}$.

(2) This follows from Corollary 9.3.6.

(3) If $\mathfrak{S}$ is truly orthogonal at $j$, then $p_{v}(\sigma_{j})$ and $p_{h}(\sigma_{j})$ are diagonal elements respectively in $\mathfrak{S}_{j}$ and $\mathfrak{S}_{j+1}$—see Corollary 7.3.4 (2). Thus both $\mathfrak{S}_{j}$ and $\mathfrak{S}_{j+1}$ have diagonal blocks in the sense of Proposition 5.10 (A) of [4]. It follows from the result just quoted that both $\mathfrak{S}_{w(j)}$ and $\mathfrak{S}_{w(j+1)}$ meet the diagonal. It is of course clear that each $\mathfrak{S}_{w(k)}$ meets the diagonal at most once since diagonal elements are clearly comparable but elements of $\mathfrak{S}_{w(k)}$ are not by Lemma 4.9 of [7].

Suppose that $\mathfrak{S}$ is not truly orthogonal at $j$. Then $\sigma_{j}$ and $\sigma_{j}^{\#}$ belong to different blocks—this is equivalent to the definition of $\mathfrak{S}$ being not truly orthogonal at $j$. By Proposition 7.3.1 (2), it follows that $\sigma_{j+1}$ and $\sigma_{j+1}^{\#}$ also belong to different blocks. So neither $\mathfrak{S}_{j}$ nor $\mathfrak{S}_{j+1}$ has a diagonal block.

(4) If $\mathfrak{S}$ is not truly orthogonal at $j$, then neither $\mathfrak{S}_{j}$ nor $\mathfrak{S}_{j+1}$ has a diagonal block (as has just been said above), and it follows from Proposition 5.10 (A) of [4] that neither $\mathfrak{S}_{j}^{\prime}$ nor $\mathfrak{S}_{j+1}^{\prime}$ meets the diagonal.

So suppose that $\mathfrak{S}$ is truly orthogonal at $j$. Then both $\mathfrak{S}_{j}$ and $\mathfrak{S}_{j+1}$ have a diagonal entry each of multiplicity $1$, namely $p_{v}(\sigma_{j})$ and $p_{h}(\sigma_{j})$ respectively. It is clear from the definition of $\sigma_{j}$ that no element of $\mathfrak{S}_{j}\textup{(up)}$ shares its row index with $p_{v}(\sigma_{j})$. And it follows from Proposition 7.3.1 (2) that no element of $\mathfrak{S}_{j+1}\textup{(up)}$ shares its row index with $p_{h}(\sigma_{j})$. It now follows from the proof of Proposition 5.10 (B) of [4]—see the last line of that proof—that neither $\mathfrak{S}_{j}^{\prime}$ nor $\mathfrak{S}_{j+1}^{\prime}$ meets the diagonal.  $\Box$

7.5 More observations

Proposition 7.5.1

The length of any $v$-chain in $\mathfrak{S}_{j,j+1}\cup\mathfrak{S}^{\prime}_{j}\cup\mathfrak{S}^{\prime}_{j+1}$ is at most $2$.

Proof: By Corollary 7.3.4 (1), the length of any $v$-chain in $\mathfrak{S}_{j,j+1}$ is at most $2$. Applying Lemma 9.1.1 to $\mathfrak{S}_{j,j+1}$, we get the desired result. $\Box$

Proposition 7.5.2

For an element $\alpha^{\prime}=(r,c)$ of $\mathfrak{S}_{k}^{\prime}(\textup{up})$, there exists an element $\alpha=(r,C)$ of $\mathfrak{S}_{k}^{\textup{pr}}$ with $C\leq c$. 2. 2.

For an element $\alpha^{\prime}=(r,c)$ of $\mathfrak{S}_{j+1}^{\prime}(\textup{up})$, there exists an element $\alpha=(R,c)$ of $\mathfrak{S}_{j+1}\textup{(up)}$ with $r\leq R$. 3. 3.

For an element $\alpha^{\prime}$ of $\mathfrak{S}_{j+1}^{\prime}(\textup{up})$, there exists an element $\alpha$ of $\mathfrak{S}_{j}^{\textup{pr}}$ with $\alpha>\alpha^{\prime}$.

Proof: (1) That there exists $\alpha$ in $\mathfrak{S}_{k}\textup{(up)}$ with $C\leq c$ follows from the definition of $\mathfrak{S}_{k}^{\prime}(\textup{up})$. Clearly such an $\alpha$ cannot be on the diagonal, so $\alpha$ belongs to $\mathfrak{S}_{k}^{\textup{pr}}$.

(2) As in the proof of (1), it follows from the definition of $\mathfrak{S}_{j+1}^{\prime}$ that there exists $\alpha=(R,c)$ in $\mathfrak{S}_{j+1}$ with $r\leq R$. If $\alpha$ lies strictly below the diagonal, then $c>R^{*}$, so that $\alpha^{*}=(c^{*},R^{*})>\alpha^{\prime}=(r,c)$, a contradiction to Lemma 9.1.1 ($\alpha^{*}$ belongs to $\mathfrak{S}_{j+1}$ by the symmetry of $\mathfrak{S}_{j+1})$. Thus $\alpha$ belongs to $\mathfrak{S}_{j+1}\textup{(up)}$.

(3) Writing $\alpha^{\prime}=(r,c)$, by (1), we can find an $\beta=(r,C)$ in $\mathfrak{S}_{j+1}^{\textup{pr}}$ with $C\leq c$. By Proposition 7.3.1 (2), there exists $\alpha$ in $\mathfrak{S}_{j,j+1}^{\textup{pr}}$ such that $\alpha>\beta$. $\Box$

Corollary 7.5.3

If in $\mathfrak{S}_{j}^{\prime}\textup{(up)}\cup\mathfrak{S}_{j+1}^{\prime}\textup{(up)}$ there exists an element with horizontal projection in $\mathfrak{N}$, then $\mathfrak{S}$ is truly orthogonal at $j$.

Proof: Follows directly from Proposition 7.5.2 (1) and (3). $\Box$

Proposition 7.5.4

The $\mathfrak{O}$-depth of an element in $\mathfrak{S}_{j}^{\textup{pr}}\cup\mathfrak{S}_{j+1}^{\textup{pr}}$ is at most $2$. More strongly, the $\mathfrak{O}$-depth of an element in $\mathfrak{S}_{j,j+1}^{\textup{pr}}\cup\mathfrak{S}_{j}^{\prime}(\textup{up})\cup\mathfrak{S}_{j+1}^{\prime}(\textup{up})$ is at most $2$.

Proof: It is enough to show that no element in $\mathfrak{S}_{j}^{\prime}(\textup{up})\cup\mathfrak{S}_{j+1}^{\prime}(\textup{up})$ has $\mathfrak{O}$-depth more than $2$, for we may assume by increasing multiplicities that $\mathfrak{S}_{j}^{\textup{pr}}\subseteq\mathfrak{S}_{j}^{\prime}(\textup{up})$ and $\mathfrak{S}_{j+1}^{\textup{pr}}\subseteq\mathfrak{S}_{j+1}^{\prime}(\textup{up})$ (as sets). It follows from Proposition 7.5.1 that a $v$-chain in $\mathfrak{S}_{j}^{\prime}(\textup{up})\cup\mathfrak{S}_{j+1}^{\prime}(\textup{up})$ has length at most $2$. Let $\alpha^{\prime}_{1}=(r_{1},c_{1})>\alpha^{\prime}_{2}=(r_{2},c_{2})$ be such a $v$-chain. It follows from the proof of Corollary 4.14 (2) of [7] that $\alpha^{\prime}_{1}\in\mathfrak{S}_{j}^{\prime}(\textup{up})$ and $\alpha^{\prime}_{2}\in\mathfrak{S}_{j+1}^{\prime}(\textup{up})$. By item (1) of Lemma 6.3.1, it is enough to rule out the following possibility: $\alpha^{\prime}_{1}$ is of type H in $\alpha^{\prime}_{1}>\alpha^{\prime}_{2}$ and $p_{h}(\alpha^{\prime}_{1})>\alpha^{\prime}_{2}$.

Suppose that this is the case. By Proposition 7.5.2 (1) and (2), it follows that there exist elements $\alpha_{1}=(r_{1},C_{1})\in\mathfrak{S}_{j,j+1}^{\textup{pr}}$ and $\alpha_{2}=(R_{2},c_{2})\in\mathfrak{S}_{j+1}\textup{(up)}$ with $C_{1}\leq c_{1}$ and $r_{2}\leq R_{2}$. Since $p_{h}(\alpha^{\prime}_{1})>\alpha^{\prime}_{2}$, it follows that $\alpha_{1}>\alpha_{2}$. Now, if $\alpha_{2}=p_{h}(\sigma_{j})$, then Proposition 7.3.2 (2) is contradicted; if $\alpha_{2}$ belongs to $\mathfrak{S}_{j+1}^{\textup{pr}}$, Proposition 7.3.2 (4) is contradicted (because $p_{h}(\alpha_{1})>\alpha_{2}$). $\Box$

8 The map $\mathfrak{O}\phi$

The purpose of this section is to describe the map $\mathfrak{O}\phi$ and prove some basic facts about it. Certain proofs here refer to results from §9, but there is no circularity—to postpone the definition of $\mathfrak{O}\phi$ until all the results needed for it have been proved would hurt rather than help readability. As in §7, the symbol $j$ will be reserved for an odd integer throughout this section.

8.1 Description of $\mathfrak{O}\phi$

The map $\mathfrak{O}\phi$ takes as input a pair $(w,\mathfrak{T})$, where $\mathfrak{T}$ is a monomial, possibly empty, in $\mathfrak{O}\mathfrak{N}$ and $w\geq v$ an element of $I(d)$ that $\mathfrak{O}$-dominates $\mathfrak{T}$, and produces as output a monomial $\mathfrak{T}^{*}$ of $\mathfrak{O}\mathfrak{N}$. To describe $\mathfrak{O}\phi$, we first partition $\mathfrak{T}$ into subsets $\mathfrak{T}_{w,j,j+1}$. As the subscript $w$ in $\mathfrak{T}_{w,j,j+1}$ suggests, this partition depends on $w$.

For an odd integer $j$, let $\mathfrak{S}_{w}^{j}$ (respectively $\mathfrak{S}_{w,j,j+1}$) denote the subset of $\mathfrak{S}_{w}$ consisting of those elements that are $j$-deep (respectively that are $j$ deep but not $j+2$ deep, or equivalently of depth $j$ or $j+1$) in $\mathfrak{S}_{w}$ in the sense of [7, §4]. Since $\mathfrak{S}_{w}$ is distinguished, symmetric, and has evenly many elements on the diagonal $\mathfrak{d}$, it follows that $\mathfrak{S}_{w}^{j}$ and $\mathfrak{S}_{w,j,j+1}$ too have these properties, and that, in fact, the number of diagonal elements of $\mathfrak{S}_{w,j,j+1}$ is either [math] or $2$ (in the latter case, the elements have to be distinct since $\mathfrak{S}_{w}$ is distinguished and so is multiplicity free). Let us denote by $w^{j}$ and $w_{j,j+1}$ the elements of $I(d)$ corresponding to $\mathfrak{S}_{w}^{j}$ and $\mathfrak{S}_{w,j,j+1}$ by Proposition 5.2.1.

Let $\mathfrak{T}_{w,j,j+1}$ denote the subset of $\mathfrak{T}$ consisting of those elements $\alpha$ such that

• •

every $v$-chain in $\mathfrak{T}$ with head $\alpha$ is $\mathfrak{O}$-dominated by $w^{j}$, and

• •

there exists a $v$-chain in $\mathfrak{T}$ with head $\alpha$ that is not $\mathfrak{O}$-dominated by $w^{j+2}$.

It is evident that the subsets $\mathfrak{T}_{w,j,j+1}$ are disjoint (as $j$ varies over the odd integers) and that their union is all of $\mathfrak{T}$ (for $w=w^{1}$ $\mathfrak{O}$-dominates all $v$-chains in $\mathfrak{T}$ by hypothesis and $\mathfrak{S}_{w}^{j}$ is empty for large $j$ and so $w^{j}=v$). In other words, the $\mathfrak{T}_{w,j,j+1}$ form a partition of $\mathfrak{T}$.

Lemma 8.1.1

The length of a $v$-chain in $\mathfrak{T}_{w,j,j+1}\cup\mathfrak{T}_{w,j,j+1}^{\#}$ is at most $2$. In fact, the $\mathfrak{O}$-depth of any element in $\mathfrak{T}_{w,j,j+1}$ is at most $2$. 2. 2.

$w_{j,j+1}$* $\mathfrak{O}$-dominates $\mathfrak{T}_{w,j,j+1}$.*

Proof: The lemma follows rather easily from Corollary 9.2.3 as we now show. Let $C$ be a $v$-chain in $\mathfrak{T}_{w,j,j+1}$. Let $\tau$ be the tail of $C$. Choose a $v$-chain $D$ in $\mathfrak{T}$ with head $\tau$ that is not $\mathfrak{O}$-dominated by $w^{j+2}$. Let $E$ be the concatenation of $C$ with $D$. Since the head of $E$ belongs to $\mathfrak{T}_{w,j,j+1}$, it follows that $E$ is $\mathfrak{O}$-dominated by $w^{j}$. It follows from (the only if part of) Corollary 9.2.3 (applied with $\mathfrak{S}=E$ and $x=w^{j}$) that $w_{j,j+1}$ $\mathfrak{O}$-dominates $E_{1}^{\textup{pr}}\cup E_{2}^{\textup{pr}}$ and $w^{j+2}$ $\mathfrak{O}$-dominates $E^{3,\textup{pr}}$. This means $\tau\not\in E^{3,\textup{pr}}$, so $\tau\in E_{1}^{\textup{pr}}\cup E_{2}^{\textup{pr}}$, and so $C\subseteq E_{1}^{\textup{pr}}\cup E_{2}^{\textup{pr}}$. This proves (2). By Proposition 6.1.1 (2), the $\mathfrak{O}$-depths of elements of $C$ are the same in $C$ and $E$, so $C\subseteq C_{1}^{\textup{pr}}\cup C_{2}^{\textup{pr}}$, which proves the second assertion of (1). The first assertion of (1) follows from the second (see Lemma 6.2.1). $\Box$

Corollary 8.1.2

$w_{j,j+1}$* dominates $\mathfrak{T}_{w,j,j+1}\cup\mathfrak{T}_{w,j,j+1}^{\#}$ in the sense of [7].*

Proof: This follows from (2) of Lemma 8.1.1 and Corollary 5.3.6 (the latter applied with $\mathfrak{S}=\mathfrak{T}_{w,j,j+1}$ and $w=w_{j,j+1}$). $\Box$

We may therefore apply the map $\phi$ of [7, §4] to the pair $(w_{j,j+1},\mathfrak{T}_{w,j,j+1}\cup\mathfrak{T}_{w,j,j+1}^{\#})$ to obtain a monomial $(\mathfrak{T}_{w,j,j+1}\cup\mathfrak{T}_{w,j,j+1}^{\#})^{\star}$ in $\mathfrak{N}$. In applying $\phi$, there is the partitioning of $\mathfrak{T}_{w,j,j+1}\cup\mathfrak{T}_{w,j,j+1}^{\#}$ into “pieces”, these being indexed by elements of $\mathfrak{S}_{w_{j,j+1}}=\mathfrak{S}_{w,j,j+1}$—observe that the elements of depth $1$ (respectively $2$) of $\mathfrak{S}_{w,j,j+1}$ are precisely those of $\mathfrak{S}_{w}$ of depth $j$ (respectively $j+1$). We denote by $\mathfrak{P}_{\beta}$ the piece of $\mathfrak{T}_{w,j,j+1}\cup\mathfrak{T}_{w,j,j+1}^{\#}$ corresponding to $\beta$ in $\mathfrak{S}_{w_{j,j+1}}$. We also use the notation $\mathfrak{P}_{\beta}^{*}$ as in [7]. Moreover, we will use the phrase piece of $\mathfrak{T}$ (with respect to $w$ being implicitly understood) to refer to a piece of $\mathfrak{T}_{w,j,j+1}\cup\mathfrak{T}_{w,j,j+1}^{\#}$ for some odd integer $j$.

Caution: Thinking of $\mathfrak{T}$ as a monomial in $\mathfrak{N}$ and $w$ as an element of $I(d,2d)$ that dominates it, there is, as in [7], the notion of “piece of $\mathfrak{T}$” (with respect to $w$). The two notions of “piece” are different.

Lemma 8.1.3

The monomial $(\mathfrak{T}_{w,j,j+1}\cup\mathfrak{T}_{w,j,j+1}^{\#})^{\star}$ is symmetric and has either none or two distinct diagonal elements depending exactly on whether $\mathfrak{S}_{w_{j,j+1}}=\mathfrak{S}_{w,j,j+1}$ has [math] or $2$ elements on the diagonal. 2. 2.

The depth of $(\mathfrak{T}_{w,j,j+1}\cup\mathfrak{T}_{w,j,j+1}^{\#})^{\star}$ is $2$; and $\cup_{\beta\in(\mathfrak{S}_{w})_{j}}\mathfrak{P}_{\beta}^{*}$, $\cup_{\beta\in(\mathfrak{S}_{w})_{j+1}}\mathfrak{P}_{\beta}^{*}$ are respectively the elements of depth $1$ and $2$ in $(\mathfrak{T}_{w,j,j+1}\cup\mathfrak{T}_{w,j,j+1}^{\#})^{\star}$.

Proof: (1) The symmetry follows by combining Proposition 5.6 of [4], which says that the map $\pi$ respects the involution $\#$, with Proposition 4.2 of [7], which says that $\pi$ and $\phi$ are are inverses of each other.

The assertion about diagonal elements follows by combining item (B) of [4, Proposition 5.10], which is an assertion about the existence and relative multiplicities of diagonal elements in $\mathfrak{B}$ and $\mathfrak{B}^{\prime}$ where $\mathfrak{B}$ is a diagonal block of a monomial in $\mathfrak{N}$, and Proposition 4.2 of [7].

(2) It follows from Propositions 4.2 of [7] that the map $\pi$ (described in §4 of that paper) applied to $(\mathfrak{T}_{w,j,j+1}\cup\mathfrak{T}_{w,j,j+1}^{\#})^{\star}$ results in the pair $(w_{j,j+1},\mathfrak{T}_{w,j,j+1}\cup\mathfrak{T}_{w,j,j+1})$. It now follows from Lemma 4.16 of [7] that the depth of $(\mathfrak{T}_{w,j,j+1}\cup\mathfrak{T}_{w,j,j+1}^{\#})^{\star}$ is exactly $2$. The latter assertions again follow from the results of [7]—in fact, the proof that $\pi\circ\phi$ is identity on pages 47–49 of [7] shows that the $\mathfrak{P}_{\beta}^{*}$ are the blocks in the sense of [7] of the monomial $(\mathfrak{T}_{w,j,j+1}\cup\mathfrak{T}_{w,j,j+1}^{\#})^{\star}$. $\Box$

Suppose that $(\mathfrak{T}_{w,j,j+1}\cup\mathfrak{T}_{w,j,j+1}^{\#})^{\star}$ contains the pair $(a,a^{*})$, $(b,b^{*})$ of diagonal elements with $a>b$. We call the pair $(b,a^{*})$, $(a,b^{*})$ the “twists,” and set $\delta_{j}:=(b,a^{*})$. In other words, $\delta_{j}$ is the element of the twisted pair that lies above the diagonal—observe that the twisted elements are reflections of each other. We allow ourselves the following ways of expressing the condition that $(\mathfrak{T}_{w,j,j+1}\cup\mathfrak{T}_{w,j,j+1}^{\#})^{\star}$ has diagonal elements: $\delta_{j}$* exists; $w$ is diagonal at $j$* (the latter expression is justified by the lemma above).

With notation as above, consider the new monomial defined as

[TABLE]

This new monomial is symmetric and contains no diagonal elements. Its intersection with $\mathfrak{O}\mathfrak{N}$ is denoted $\mathfrak{T}_{w,j,j+1}^{\star}$. In other words, $\mathfrak{T}_{w,j,j+1}^{\star}$ is the intersection of the new monomial with the subset of $\mathfrak{N}$ of those elements that lie strictly above the diagonal.

The union of $\mathfrak{T}_{w,j,j+1}^{\star}$ over all odd integers $j$ is defined to be $\mathfrak{T}_{w}^{\star}$, the result of $\mathfrak{O}\phi$ applied to $(w,\mathfrak{T})$. This finishes the description of the map $\mathfrak{O}\phi$.

For $\beta$ in $\mathfrak{S}_{w,j,j+1}\textup{(up)}$, we define the “orthogonal piece-star” $\mathfrak{O}\mathfrak{P}_{\beta}^{*}$

corresponding to $\beta$ as

[TABLE]

With this, we can say that $\mathfrak{T}_{w}^{\star}$ is the union of $\mathfrak{O}\mathfrak{P}_{\beta}^{*}$ as $\beta$ varies over $\mathfrak{S}_{w}\textup{(up)}$.

Lemma 8.1.4

Suppose that $(\mathfrak{T}_{w,j,j+1}\cup\mathfrak{T}_{w,j,j+1}^{\#})^{\star}$ contains the pair $(a,a^{*})$, $(b,b^{*})$ of diagonal elements with $a>b$. Let

[TABLE]

be respectively the elements of depth $1$ and $2$ of $(\mathfrak{T}_{w,j,j+1}\cup\mathfrak{T}_{w,j,j+1}^{\#})^{\star}$ arranged in increasing order of row and column indices. Then

$c_{1}\leq a^{*}$* and $r_{1}\leq b$ (assuming $(r_{1},c_{1})$ exists); and* 2. 2.

$r_{2}<b$* and $c_{2}\leq b^{*}$ (assuming $(r_{2},c_{2})$ exists).*

Proof: (1)  Suppose that $(r_{1},c_{1})$ exists. It is clear that $c_{1}\leq a^{*}$. From way the map $\phi$ of [7] is defined, it follows that $(r_{1},a^{*})$ is an element of $\mathfrak{T}_{w,j,j+1}$. Suppose that $r_{1}>b$. Then $p_{h}(r_{1},a^{*})=(r_{1},r_{1}^{*})$ belongs to $\mathfrak{N}$. We consider two cases.

If $(r_{2},c_{2})$ exists, then, again from the definition of the map $\phi$, it follows that $(r_{2},b^{*})$ is an element of $\mathfrak{T}_{w,j,j+1}$. But then $p_{h}(r_{1},a^{*})=(r_{1},r_{1}^{*})>(b,b^{*})$ and $(b,b^{*})$ dominates $(r_{2},b^{*})$, which means that the $v$-chain $(r_{1},a^{*})>(r_{2},b^{*})$ (note that $a^{*}<b^{*}$ because $a>b$ by hypothesis) in $\mathfrak{T}_{w,j,j+1}$ has $\mathfrak{O}$-depth more than $2$, a contradiction to Lemma 8.1.1 (1).

Now suppose that $(r_{2},c_{2})$ does not exist. (Then $(b,b^{*})$ is the diagonal element in $(\mathfrak{S}_{w})_{j+1}$.) Consider the singleton $v$-chain $C:=\{(r_{1},a^{*})\}$ in $\mathfrak{T}_{w,j,j+1}$. Then $\mathfrak{S}_{C}=\{(a,a^{*}),(r_{1},r_{1}^{*})\}$ which is not dominated by $w_{j,j+1}$, a contradiction to Lemma 8.1.1 (2).

(2)  Suppose that $(r_{2},c_{2})$ exists. Then there exists, by the definition of the map $\phi$, an element $(r_{2},b^{*})$ in $\mathfrak{T}_{w,j,j+1}$. Since $(r_{2},b^{*})$ lies above the diagonal, it follows that $r_{2}<b$. That $c_{2}\leq b^{*}$ is clear. $\Box$

8.2 Basic facts about $\mathfrak{T}_{w,j,j+1}$ and $\mathfrak{T}_{w,j,j+1}^{\star}$

Lemma 8.2.1

Let $\alpha^{\prime}>\alpha$ be elements of $\mathfrak{T}$. Let $j$ and $j^{\prime}$ be the odd integers such that $\alpha^{\prime}\in\mathfrak{T}_{w,j^{\prime},j^{\prime}+1}$ and $\alpha\in\mathfrak{T}_{w,j,j+1}$. Then $j^{\prime}\leq j$. 2. 2.

If, further, either

1. (a)

there exists $\mu$ in $\mathfrak{T}$ such that $\alpha^{\prime}>\mu>\alpha$, or 2. (b)

$\alpha^{\prime}\in\mathfrak{P}_{\beta^{\prime}}$* for $\beta^{\prime}$ in $(\mathfrak{S}_{w})_{j^{\prime}+1}$,*

then $j^{\prime}<j$.

Proof: (1) By hypothesis, every $v$-chain with head $\alpha^{\prime}$ is $\mathfrak{O}$-dominated by $w^{j^{\prime}}$. This implies, by Corollary 6.1.2, that every $v$-chain with head $\alpha$ is $\mathfrak{O}$-dominated by $w^{j^{\prime}}$. This shows $j^{\prime}\leq j$.

(2a) Suppose that $j^{\prime}=j$. It follows from (1) that $\alpha^{\prime}$, $\mu$, and $\alpha$ all belong to $\mathfrak{T}_{w,j,j+1}$. But then $\alpha^{\prime}>\mu>\alpha$ is a $v$-chain of length $3$ in $\mathfrak{T}_{w,j,j+1}$, a contradiction to Lemma 8.1.1 (1).

(2b) Suppose that $j^{\prime}=j$. Then $\alpha^{\prime}>\alpha$ is a $v$-chain in $\mathfrak{T}_{w,j,j+1}$. Being of length $2$, it cannot be dominated by $(\mathfrak{S}_{w})_{j+1}$, which means, by the definition of $\mathfrak{P}_{\beta^{\prime}}$, that $\alpha^{\prime}$ cannot belong to $\mathfrak{P}_{\beta^{\prime}}$, a contradiction. $\Box$

Proposition 8.2.2

The length of a $v$-chain in $\mathfrak{T}_{w,j,j+1}^{\star}$ is at most $2$. 2. 2.

*The $\mathfrak{O}$-depth of $\mathfrak{T}_{w,j,j+1}^{\star}$ is at most $2$. * 3. 3.

$\cup_{\beta\in(\mathfrak{S}_{w})_{j}\textup{(up)}}\mathfrak{O}\mathfrak{P}_{\beta}^{*}$* is precisely the set of depth $1$ elements of $\mathfrak{T}_{w,j,j+1}^{\star}$ (in particular, no two elements there are comparable); if $\delta_{j}$ exists, then it is the last element of $\cup_{\beta\in(\mathfrak{S}_{w})_{j}\textup{(up)}}\mathfrak{O}\mathfrak{P}_{\beta}^{*}$ when the elements are arranged in increasing order of row and column indices. * 4. 4.

$\cup_{\beta\in(\mathfrak{S}_{w})_{j+1}\textup{(up)}}\mathfrak{O}\mathfrak{P}_{\beta}^{*}$* is precisely the set of depth $2$ elements of $\mathfrak{T}_{w,j,j+1}^{\star}$ (in particular, no two elements there are comparable); if $\delta_{j}$ exists, then its row index exceeds the row index of any element in $\cup_{\beta\in(\mathfrak{S}_{w})_{j+1}\textup{(up)}}\mathfrak{O}\mathfrak{P}_{\beta}^{*}$. *

Proof: For (1), it is enough, given Lemma 8.1.3 (2), to show that $\delta_{j}$ is not comparable to any element of depth $1$ of $(\mathfrak{T}_{w,j,j+1}\cup\mathfrak{T}_{w,j,j+1}^{\#})^{\star}$, and this follows from Lemma 8.1.4 (1). In fact, the above argument proves also (3).

For (4), it is enough, given Lemma 8.1.3 (2), the symmetry of the monomials involved in that lemma, and the observation that $\alpha>\beta$ implies $\alpha\textup{(up)}>\beta\textup{(up)}$ for elements $\alpha$, $\beta$ of $\mathfrak{N}$, to show the following: if $(a,a^{*})>\gamma=(e,f)$ for $\gamma$ an element of $(\mathfrak{T}_{w,j,j+1}\cup\mathfrak{T}_{w,j,j+1}^{\#})^{\star}$ lying (strictly) above the diagonal, then $\delta_{j}>\gamma$. But this follows from Lemma 8.1.4 (2): $\gamma$ is a depth $2$ element in $(\mathfrak{T}_{w,j,j+1}\cup\mathfrak{T}_{w,j,j+1}^{\#})^{\star}$, and we have $e\leq r_{2}<b$ (and $a^{*}<f$ since $(a,a^{*})>\gamma$). In fact, the above argument proves also (2): observe that $f\leq b^{*}$ (Lemma 8.1.4 (2)).  $\Box$

9 Some Lemmas

The main combinatorial results of this paper are Propositions 4.1.1 and 4.1.2. They are analogues respectively of Propositions 4.1 and 4.2 of [7]. We have tried to preserve the structure of the proofs in [7] of those propositions. The proofs in [7] rely on certain lemmas and it is natural therefore to first establish the orthogonal analogues of those. The purpose of this section is precisely that. Needless to say that the lemmas (especially those in §9.4) may be unintelligible until one tries to read §10.

The division of this section into four subsections is also suggested by the structure of the proofs in [7]. Each subsection has at its beginning a brief description of its contents.

9.1 Lemmas from the Grassmannian case

In this subsection, the terminology and notation of [7, §4] are in force. The statements here could have been made in [7, §4] and would perhaps have improved the efficiency of the proofs there, but do not appear there explicitly.

Let $\mathfrak{S}$ be a monomial in $\mathfrak{N}$. Recall from [7] the notion of depth of an element $\alpha$ in $\mathfrak{S}$: it is the largest possible length of a $v$-chain in $\mathfrak{S}$ with tail $\alpha$ and denoted $\textup{depth}_{\mathfrak{S}}\alpha$. The depth of $\mathfrak{S}$ is the maximum of the depths in it of all its elements. We denote by $\mathfrak{S}_{k}$ the set of elements of depth $k$ of $\mathfrak{S}$ (as in  [7]) and by $\mathfrak{S}^{k}$ the set of elements of depth at least $k$ of $\mathfrak{S}$.

Caution: For a monomial $\mathfrak{S}$ of $\mathfrak{O}\mathfrak{N}$, we have introduced in §7.1 the notation $\mathfrak{S}_{k}$. That is different from the $\mathfrak{S}_{k}$ we have just defined.

Lemma 9.1.1

Let $\mathfrak{S}$ be a monomial in $\mathfrak{N}$, and let $\pi(\mathfrak{S})=(w,\mathfrak{S}^{\prime})$, where $\pi$ is the map defined in [7, §4]. Then the maximum length of a $v$-chain in $\mathfrak{S}\cup\mathfrak{S}^{\prime}$ is the same as the maximum length of a $v$-chain in $\mathfrak{S}$.

Proof: We use the notation of [7, §4] freely. Let $d$ be the maximum length of a $v$-chain in $\mathfrak{S}$. Suppose $\alpha_{1}>\ldots>\alpha_{\ell}$ is a $v$-chain in $\mathfrak{S}\cup\mathfrak{S}^{\prime}$. Let $i_{1},\ldots,i_{\ell}$ be such that $\alpha_{j}$ belongs to $\mathfrak{S}_{i_{j}}\cup\mathfrak{S}_{i_{j}}^{\prime}$ (the integers $i_{j}$ are uniquely determined—see Corollary 5.4 of [4]). We claim that $i_{1}<\ldots<i_{\ell}$. This suffices to prove the lemma, for $\mathfrak{S}_{k}\cup\mathfrak{S}_{k}^{\prime}$ is empty for $k>d$.

To prove the claim, it is enough to show $i_{1}<i_{2}$. It follows from Lemma 4.10 of [7] that $i_{1}\neq i_{2}$. We now assume that $i_{1}>i_{2}$ and arrive at a contradiction. First suppose that $\alpha_{1}\in\mathfrak{S}_{i_{1}}$. Then, by the definition of $\mathfrak{S}_{i_{1}}$, there exists $\beta$ in $\mathfrak{S}_{i_{2}}$ with $\beta>\alpha_{1}$. Now $\beta>\alpha_{2}$ and both $\beta$, $\alpha_{2}$ belong to $\mathfrak{S}_{i_{2}}\cup\mathfrak{S}^{\prime}_{i_{2}}$, a contradiction to [7, Lemma 4.10]. If $\alpha_{1}=(r,c)$ belongs to $\mathfrak{S}_{i_{1}}^{\prime}$, then, by the definition of $\mathfrak{S}_{i_{1}}^{\prime}$, there exists $(r,a)$ in $\mathfrak{S}_{i_{1}}$ with $a\leq c$, and there exists $\beta$ in $\mathfrak{S}_{i_{2}}$ with $\beta>(r,a)$. This leads to the same contradiction as before. $\Box$

Lemma 9.1.2

Let $\mathfrak{B}$ and $\mathfrak{U}$ be monomials in $\mathfrak{N}$. Assume that

• •

the elements of $\mathfrak{B}$ form a single block* (in the sense of [7, Page 38]).*

• •

$\mathfrak{U}$* has depth $1$ (equivalently, there are no comparable elements in $\mathfrak{U}$).*

• •

for every $\beta=(r,c)$ in $\mathfrak{B}$, there exist $\gamma^{1}(\beta)=(R^{1},C^{1})$, and $\gamma^{2}(\beta)=(R^{2},C^{2})$ in $\mathfrak{U}$ such that

[TABLE]

(this holds, for example, when there exists $\gamma(\beta)$ in $\mathfrak{U}$ such that $\gamma(\beta)>\beta$: take $\gamma^{1}(\beta)=\gamma^{2}(\beta)=\gamma(\beta)$).

Then there exists a unique block $\mathfrak{C}$ of $\mathfrak{U}$ such that $w(\mathfrak{C})>w(\mathfrak{B})$.

Proof: It is useful to isolate the following observation:

Lemma 9.1.3

Let $(r_{1},c_{1})$ and $(r_{2},c_{2})$ be elements of $\mathfrak{N}$ with $c_{2}<r_{1}\leq r_{2}$. Let $\gamma_{1}^{1}=(R_{1}^{1},C_{1}^{1})$, $\gamma_{1}^{2}=(R_{1}^{2},C_{1}^{2})$ and $\gamma_{2}^{1}=(R_{2}^{1},C_{2}^{1})$, $\gamma_{2}^{2}=(R_{2}^{2},C_{2}^{2})$ be elements of $\mathfrak{N}$ such that

$C_{1}^{1}\leq c_{1},\quad C_{1}^{2}<R_{1}^{1},\quad r_{1}\leq R_{1}^{2}$. 2. 2.

$C_{2}^{1}\leq c_{2},\quad C_{2}^{2}<R_{2}^{1},\quad r_{2}\leq R_{2}^{2}$. 3. 3.

No two of $\gamma_{1}^{1}$, $\gamma_{1}^{2}$, $\gamma_{2}^{1}$, $\gamma_{2}^{2}$ are comparable (they could well be equal and this is important for us—see our definition of comparability).

Then the monomial $\{\gamma_{1}^{1},\gamma_{1}^{2},\gamma_{2}^{1},\gamma_{2}^{2}\}$ consists of a single block.

Proof: It follows from assumption (1) that $\gamma_{1}^{1}$ and $\gamma_{1}^{2}$ belong to a single block:

• •

if $R_{1}^{1}<R_{1}^{2}$, then $C_{1}^{2}<R_{1}^{1}$ becomes relevant;

• •

if $R_{1}^{2}<R_{1}^{1}$, then the other two inequalities in (1) become relevant:

$C_{1}^{1}\leq c_{1}<r_{1}\leq R_{1}^{2}$.

Similarly it follows from assumption (2) that $\gamma_{2}^{1}$ and $\gamma_{2}^{2}$ belong to a single block.

We therefore need only consider the cases when, in the arrangement of the elements $\{\gamma_{1}^{1},\gamma_{1}^{2},\gamma_{2}^{1},\gamma_{2}^{2}\}$ in increasing order of row indices, both $\gamma_{1}^{1}$, $\gamma_{1}^{2}$ come before or after $\gamma_{2}^{1}$, $\gamma_{2}^{2}$. In the former case, the first sequence of inequalities below shows that $\gamma_{1}^{2}$ and $\gamma_{2}^{1}$ belong to the same block, and we are done; in the latter case, the second sequence of inequalities below shows that $\gamma_{2}^{2}$ and $\gamma_{1}^{1}$ belong to the same block, and we are done:

• •

$C_{2}^{1}\leq c_{2}<r_{1}\leq R_{1}^{2}$.

• •

$C_{1}^{1}\leq c_{1}<r_{1}\leq r_{2}\leq R_{2}^{2}$. $\Box$

Continuing with the proof of Lemma 9.1.2, we first prove the existence part. Arrange the elements of $\mathfrak{B}$ in non-decreasing order of row numbers as well as column numbers (this is possible since there are no comparable elements in $\mathfrak{B}$). If $\beta_{1}=(r_{1},c_{1})$ and $\beta_{2}=(r_{2},c_{2})$ are successive elements, then $c_{2}<r_{1}\leq r_{2}$ (since $\mathfrak{B}$ is a single block). Apply Lemma 9.1.3 with $\gamma_{1}^{1}=\gamma^{1}(\beta_{1})$, $\gamma_{1}^{2}=\gamma^{2}(\beta_{1})$, and $\gamma_{2}^{1}=\gamma^{1}(\beta_{2})$, $\gamma_{2}^{2}=\gamma^{1}(\beta_{2})$. We conclude that $\{\gamma_{1}^{1},\gamma_{1}^{2},\gamma_{2}^{1},\gamma_{2}^{2}\}$ belongs to a single block, say $\mathfrak{C}$, of $\mathfrak{U}$. Continuing thus, we conclude that all $\gamma^{1}(\beta)$ and $\gamma^{2}(\beta)$, as $\beta$ varies over $\mathfrak{B}$, belong to $\mathfrak{C}$. Since the row (respectively column) index of $w(\mathfrak{C})$ is the maximum (respectively minimum) of all row (respectively column) indices of elements of $\mathfrak{C}$ (and similarly for $\mathfrak{B}$), it follows that $w(\mathfrak{C})>w(\mathfrak{B})$.

To prove uniqueness, let $\mathfrak{C}_{1}$ and $\mathfrak{C}_{2}$ be two blocks of $\mathfrak{U}$ with $w(\mathfrak{C}_{1})>w(\mathfrak{B})$ and $w(\mathfrak{C}_{2})>w(\mathfrak{B})$. Apply the lemma with $(r_{1},c_{1})=(r_{2},c_{2})=w(\mathfrak{B})$ and $\gamma_{1}^{1}=\gamma_{1}^{2}=w(\mathfrak{C}_{1})$ and $\gamma_{2}^{1}=\gamma_{2}^{2}=w(\mathfrak{C}_{2})$; it follows from [7, Lemma 4.9] that $w(\mathfrak{C}_{1})$ and $w(\mathfrak{C}_{2})$ are not comparable. But, unless $\mathfrak{C}_{1}=\mathfrak{C}_{2}$, neither is the monomial $\{w(\mathfrak{C}_{1}),w(\mathfrak{C}_{2})\}$ a single block, again by [7, Lemma 4.9]. $\Box$

Lemma 9.1.4

*Let $\mathfrak{S}$ be a monomial in $\mathfrak{N}$ and $x$ an element of $I(d,n)$. For $x$ to dominate $\mathfrak{S}$ it is necessary and sufficient that for every $\alpha=(r,c)$ in $\mathfrak{S}$ there exist $\beta=(R,C)$ in $\mathfrak{S}_{x}$ with $C\leq c$, $r\leq R$, and $\textup{depth}_{\mathfrak{S}_{x}}\beta\geq\textup{depth}_{\mathfrak{S}}\alpha$. (Here $\mathfrak{S}_{x}$

denotes the distinguished monomial in $\mathfrak{N}$ associated to $x$ as in [7, Proposition 4.3].)*

Proof: The lemma is a corollary of [7, Lemma 4.5] as we now show.

First suppose that $x$ dominates $\mathfrak{S}$. Let $\alpha=(r,c)$ be an element of $\mathfrak{S}$, and $C$ a $v$-chain in $\mathfrak{S}$ with tail $\alpha$ and length $\textup{depth}_{\mathfrak{S}}\alpha$. Since $x$ dominates $C$, there exists, by [7, Lemma 4.5], a chain in $D$ in $\mathfrak{S}_{x}$ of length $\textup{depth}_{\mathfrak{S}}\alpha$ and tail $\beta=(R,C)$ with $C\leq c$ and $r\leq R$, and we are done with the proof of the necessity.

To prove the sufficiency, let $C:\alpha_{1}=(r_{1},c_{1})>\ldots>\alpha_{k}=(r_{k},c_{k})$ be a $v$-chain in $\mathfrak{S}$. By hypothesis, there exist $\beta_{1}=(R_{1},C_{1})$, …, $\beta_{k}=(R_{k},C_{k})$ in $\mathfrak{S}_{x}$ with $C_{i}\leq c_{i}$, $r_{i}\leq R_{i}$, and $\textup{depth}_{\mathfrak{S}_{x}}\beta_{i}=i$ for $1\leq i\leq k$ (observe that replacing the $\geq$ in the latter condition of the statement by an equality yields an equivalent statement). We claim that $\beta_{1}>\ldots>\beta_{k}$. By [7, Lemma 4.5], it suffices to prove the claim.

Since $\beta_{k}$ has depth $k$ in $\mathfrak{S}_{x}$, there exists a $\beta^{\prime}_{k-1}=(R^{\prime}_{k-1},C^{\prime}_{k-1})$ of depth $k-1$ in $\mathfrak{S}_{x}$ such that $\beta^{\prime}_{k-1}>\beta_{k}$. It follows from the distinguishedness of $\mathfrak{S}_{x}$ that that $\beta^{\prime}_{k-1}=\beta_{k-1}$: if not, then we have two distinct elements of the same depth (namely $k-1$) in $\mathfrak{S}_{x}$ both dominating $\alpha_{k}$, a contradiction. So $\beta_{k-1}>\beta_{k}$, and the claim is proved by continuing in a similar fashion. $\Box$

Let $x$ be an element of $I(d,n)$. Let $\mathfrak{S}_{x}$ denote the distinguished monomial in $\mathfrak{N}$ associated to $x$ as in [7, Proposition 4.3]. For $k$ a positive integer, let $x_{k}$ denote the element of $I(d,n)$ corresponding to the distinguished subset $(\mathfrak{S}_{x})_{k}$. For a monomial $\mathfrak{S}$ of $\mathfrak{N}$, let $\mathfrak{S}_{k,k+1}:=\mathfrak{S}_{k}\cup\mathfrak{S}_{k+1}$. Let $x_{k,k+1}$ denote the element of $I(d,n)$ corresponding to the distinguished monomial $(\mathfrak{S}_{x})_{k,k+1}$; let $x^{k}$ denote the element of $I(d,n)$ corresponding to the distinguished subset $(\mathfrak{S}_{x})^{k}$.

Caution: For a monomial $\mathfrak{S}$ of $\mathfrak{O}\mathfrak{N}$ and an odd integer $j$, we have introduced in §7.1 the notation $\mathfrak{S}_{j,j+1}$. That is different from the $\mathfrak{S}_{k,k+1}$ just defined.

Corollary 9.1.5

$x$* dominates $\mathfrak{S}$ $\Leftrightarrow$ $x_{k}$ dominates $\mathfrak{S}_{k}$ $\forall$ $k$ $\Leftrightarrow$ $x_{1,2}$ dominates $\mathfrak{S}_{1,2}$ and $x^{3}$ dominates $\mathfrak{S}^{3}$.*

Proof: The first equivalence is a restatement of the lemma: in the statement of the lemma we could equally well have written $\textup{depth}_{\mathfrak{S}_{x}}\beta=\textup{depth}_{\mathfrak{S}}\alpha$. The second follows from the first and the following observations: $(\mathfrak{S}_{1,2})_{1}=\mathfrak{S}_{1}$, $(\mathfrak{S}_{1,2})_{2}=\mathfrak{S}_{2}$, $(\mathfrak{S}^{3})_{k}=\mathfrak{S}_{k+2}$; and $(x_{1,2})_{1}=x_{1}$, $(x_{1,2})_{2}=x_{2}$, $(x^{3})_{k}=x_{k+2}$. $\Box$

9.2 Orthogonal analogues of Lemmas of 9.1

Lemma 9.2.2 below is the orthogonal analogue of Lemma 9.1.4 (more precisely, that of the first assertion of Corollary 9.1.5). The following proposition will be used in its proof.

Proposition 9.2.1

Let $x$ be an element of $I(d)$ and $\mathfrak{S}$ a monomial in $\mathfrak{O}\mathfrak{N}$. Then $x$ $\mathfrak{O}$-dominates $\mathfrak{S}_{1}^{\textup{pr}}\cup\mathfrak{S}_{2}^{\textup{pr}}$ if and only if it $\mathfrak{O}$-dominates every $v$-chain in $\mathfrak{S}$ of $\mathfrak{O}$-depth at most $2$.

Proof: The “if” part is immediate from definitions (in any case, see also Proposition 7.5.4). For the “only if” part, let $C$ be a $v$-chain in $\mathfrak{S}$ of $\mathfrak{O}$-depth at most $2$. Our goal is to show that $x$ dominates $\mathfrak{S}_{C}$. For this, it is enough, by Corollary 9.1.5, to show that $x_{1}$ dominates $(\mathfrak{S}_{C})_{1}$ and $x_{2}$ dominates $(\mathfrak{S}_{C})_{2}$ (by choice of $C$, $(\mathfrak{S}_{C})_{k}$ is empty for $k\geq 3$).

Let $\alpha^{\prime}\in(\mathfrak{S}_{C})_{1}$. Choose $\alpha$ in $C$ such that $\alpha^{\prime}\in\mathfrak{S}_{C,\alpha}$. Choose $\alpha_{0}$ in $\mathfrak{S}_{1}^{\textup{pr}}$ such that $\alpha_{0}$ dominates $\alpha$. Since $x$ $\mathfrak{O}$-dominates the singleton $v$-chain $\{\alpha_{0}\}$, it follows that $x_{1}$ dominates $q_{\{\alpha_{0}\},\alpha_{0}}$. We claim that $q_{\{\alpha_{0}\},\alpha_{0}}$ dominates $\alpha^{\prime}$. To prove the claim, we need only rule out the possibility that $\alpha_{0}$ is of type S in $\{\alpha_{0}\}$ and $\alpha$ of type V in $C$. Since $\alpha^{\prime}\in(\mathfrak{S}_{C})_{1}$, it follows from Proposition 5.3.4 (1) that $\alpha$ is the first element of $C$. In particular, if $\alpha$ is of type V in $C$, then $p_{h}(\alpha)\in\mathfrak{N}$, so $p_{h}(\alpha_{0})\in\mathfrak{N}$, and $\alpha_{0}$ is of type H in $\{\alpha_{0}\}$. The claim is thus proved.

Now consider an element of $(\mathfrak{S}_{C})_{2}$. Observe that the length of $C$ is at most $2$ (Lemma 6.2.1). So our element is either the horizontal projection $p_{h}(\alpha)$ of the head $\alpha$ of $C$, or it is $q_{C,\beta}$ where $\beta$ is the tail of $C$. In the first case, let $\alpha_{0}$ be as in the previous paragraph, and proceed similarly. It is clear that $p_{h}(\alpha_{0})\in\mathfrak{N}$ (because $p_{h}(\alpha)\in\mathfrak{N}$); $x_{2}$ dominates $p_{h}(\alpha_{0})$ and so also $p_{h}(\alpha)$.

Now we handle the second case. If $\beta\in\mathfrak{S}_{2}^{\textup{pr}}$, then $C$ is contained in $\mathfrak{S}_{1}^{\textup{pr}}\cup\mathfrak{S}_{2}^{\textup{pr}}$ and there is nothing to prove. So assume that $\mathfrak{O}\textup{-depth}_{\mathfrak{S}}(\beta)\geq 3$. Choose a $v$-chain $D$ in $\mathfrak{S}$ with tail $\beta$, $\mathfrak{O}\textup{-depth}_{D}(\beta)\geq 3$, and with the good property as in Proposition 6.3.3. There occurs in $D$ an element of $\mathfrak{O}$-depth $3$, say $\delta$. (Lemma 6.3.1 (5)). Let $A$ denote the part $\delta>\ldots$ of $D$ and $C^{\prime}$ the part up to but not including $\delta$. There clearly is an element—call it $\mu$—of depth $2$ in $\mathfrak{S}_{D}$ that dominates $q_{D,\beta}$. This element $\mu$ belongs to $\mathfrak{S}_{C^{\prime}}$ (Corollary 6.3.5 (3)). Since $D$ has the good property of Proposition 6.3.3, $C^{\prime}\subseteq\mathfrak{S}_{1}^{\textup{pr}}\cup\mathfrak{S}_{2}^{\textup{pr}}$, so $\mu$ is dominated by an element in $(\mathfrak{S}_{x})_{2}$. In particular, $q_{D,\beta}$ is dominated by the same element of $(\mathfrak{S}_{x})_{2}$.

We are still not done, for it is possible that $q_{D,\beta}$ be $\beta$ and $q_{C,\beta}$ be $p_{v}(\beta)$. Suppose that this is the case. Then $\alpha>\beta$ is connected. So $p_{h}(\alpha)\in\mathfrak{N}$ and the legs of $\alpha$ and $\beta$ intertwine. As seen above in the third paragraph of the present proof, there is an element of $(\mathfrak{S}_{x})_{2}$ that dominates $p_{h}(\alpha)$. By the distinguishedness of $\mathfrak{S}_{x}$, it follows that the element in $(\mathfrak{S}_{x})_{2}$ dominating $\beta$ is the same as the one dominating $p_{h}(\alpha)$. By the symmetry of $\mathfrak{S}_{x}$, this element lies on the diagonal and so dominates $p_{v}(\beta)$, and, finally, we are done with the proof in the second case. $\Box$

Lemma 9.2.2

Let $\mathfrak{S}$ be a monomial in $\mathfrak{O}\mathfrak{N}$ and $x$ an element of $I(d)$. For $x$ to $\mathfrak{O}$-dominate $\mathfrak{S}$ it is necessary and sufficient that, for every odd integer $j$, every $v$-chain in $\mathfrak{S}_{j}^{\textup{pr}}\cup\mathfrak{S}_{j+1}^{\textup{pr}}$ is $\mathfrak{O}$-dominated by $x_{j,j+1}$.

Proof: First suppose that $x$ dominates $\mathfrak{S}$. Let $j$ be an odd integer and let $A$ a $v$-chain in $\mathfrak{S}_{j}^{\textup{pr}}\cup\mathfrak{S}_{j+1}^{\textup{pr}}$. We need to show that $x_{j,j+1}$ dominates $\mathfrak{S}_{A}$. For this, we may assume that $A$ is maximal (by Corollary 6.1.2). By Corollary 6.1.3 (3), the length of $A$ is at most $2$. By Lemma 6.3.1 (5) (b), for every $\beta$ in $\mathfrak{S}_{j+1}^{\textup{pr}}$ there exists $\alpha$ in $\mathfrak{S}_{j}^{\textup{pr}}$ with $\alpha>\beta$. Thus we may assume that the head $\alpha$ of $A$ belongs to $\mathfrak{S}_{j}^{\textup{pr}}$.

It is enough to show (see [7, Lemma 4.5]) that for any $v$-chain $E$ in $\mathfrak{S}_{A}$

• •

the length of $E$ is at most $2$;

• •

there exists an $x$-dominated monomial in $\mathfrak{N}$ containing $E$ and the head of $E$ is an element of depth at least $j$ in that monomial.

The first of these conditions holds by Proposition 7.5.4. We now show that the second holds.

We may assume that $E$ is maximal in $\mathfrak{S}_{A}$. By Proposition 5.3.4 (1), the head of $E$ is $q_{A,\alpha}$. Let $C$ a $v$-chain in $\mathfrak{S}$ with tail $\alpha$ such that $\mathfrak{O}\textup{-depth}_{C}(\alpha)=j$. Let $D$ be the concatenation of $C$ with $A$. We claim that the monomial $\mathfrak{S}_{D}$ has the desired properties. That $\mathfrak{S}_{D}$ is $x$-dominated is clear (since $x$ $\mathfrak{O}$-dominates $\mathfrak{S}$). By Corollary 6.3.5, it follows that $q_{D,\alpha}=q_{A,\alpha}$ and $\mathfrak{S}_{A}\subseteq\mathfrak{S}_{D}$ (in particular that $E\subseteq\mathfrak{S}_{D}$). By Proposition 6.1.1 (2), $\mathfrak{O}\textup{-depth}_{D}(\alpha)=\mathfrak{O}\textup{-depth}_{C}(\alpha)=j$, that is, $\textup{depth}_{\mathfrak{S}_{D}}q_{D,\alpha}=j$. The proof of the necessity is thus complete.

To prove the sufficiency, proceed by induction on the largest odd integer $J$ such that $\mathfrak{S}_{J}^{\textup{pr}}\cup\mathfrak{S}_{J+1}^{\textup{pr}}$ is non-empty. When $J=1$, there is nothing to prove, for $\mathfrak{S}_{1}^{\textup{pr}}\cup\mathfrak{S}_{2}^{\textup{pr}}=\mathfrak{S}$ and $x_{1,2}$ $\mathfrak{O}$-dominates $\mathfrak{S}_{1}^{\textup{pr}}\cup\mathfrak{S}_{2}^{\textup{pr}}$. So suppose that $J\geq 3$. We implicitly use Corollary 6.3.7 in what follows. By induction, $x^{3}$ $\mathfrak{O}$-dominates $\mathfrak{S}^{3,4}$.

Let $D$ be a $v$-chain in $\mathfrak{S}$. Our goal is to show that $x$ dominates $\mathfrak{S}_{D}$. Let $\alpha$ be the element of $D$ with $\mathfrak{O}\textup{-depth}_{D}(\alpha)=3$—such an element exists, by Lemma 6.3.1 (5) (if there exists in $D$ an element of $\mathfrak{O}$-depth in $D$ exceeding $2$); the following proof works also in the case when $\alpha$ does not exist. Let $A$ be the part $\alpha>\ldots$ of $D$, and $C^{\prime}$ the part up to but not including $\alpha$. By Proposition 6.1.1 (2), the $\mathfrak{O}$-depth (in $C^{\prime}$) of elements of $C^{\prime}$ is at most $2$. By Proposition 9.2.1, $x_{1,2}$ dominates $\mathfrak{S}_{C^{\prime}}$. By Corollary 6.3.5 (3), $(\mathfrak{S}_{D})_{1,2}=\mathfrak{S}_{C^{\prime}}$ and $(\mathfrak{S}_{D})^{3}=\mathfrak{S}_{A}$. Since $A\subseteq\mathfrak{S}^{3,4}$, it follows that $x^{3}$ dominates $\mathfrak{S}_{A}$ (induction hypothesis). Finally, by an application of Corollary 9.1.5, we conclude that $x$ dominates $\mathfrak{S}_{D}$. $\Box$

Corollary 9.2.3

Let $\mathfrak{S}$ be a a monomial in $\mathfrak{O}\mathfrak{N}$ and $x$ an element of $I(d)$. For $x$ to $\mathfrak{O}$-dominate $\mathfrak{S}$ it is necessary and sufficient that $x_{1,2}$ $\mathfrak{O}$-dominate $\mathfrak{S}_{1}^{\textup{pr}}\cup\mathfrak{S}_{2}^{\textup{pr}}$ and $x^{3}$ $\mathfrak{O}$-dominate $\mathfrak{S}^{3,4}$.

Proof: It is easy to see that $(x^{3})_{j,j+1}=x_{j+2,j+3}$; it follows from Proposition 6.3.6 that $(\mathfrak{S}^{3,4})^{\textup{pr}}_{j}\cup(\mathfrak{S}^{3,4})^{\textup{pr}}_{j+1}=\mathfrak{S}^{\textup{pr}}_{j+2}\cup\mathfrak{S}^{\textup{pr}}_{j+3}$. The assertion follows from the lemma. $\Box$

9.3 Orthogonal analogues of some lemmas in [7]

The proofs of Propositions 4.1 and 4.2 of [7] are based on assertion 4.9–4.16 (of that paper). Assertion 4.9 being a statement about a single $\mathfrak{S}_{k}$, it is applicable in the present situation. Since references to it are frequent, we recall it below as Lemma 9.3.1. As to assertions 4.10–4.16 of [7], assertions 9.3.2, 9.3.4–9.3.9 below are their respective analogues.

A block of a monomial $\mathfrak{S}$ in $\mathfrak{O}\mathfrak{N}$ means a block of $\mathfrak{S}_{j,j+1}$ in the sense of [7] for some odd integer $j$.

Caution: Considering $\mathfrak{S}$ as a monomial in $\mathfrak{N}$, there is the notion of a “block” of $\mathfrak{S}$ as in [7], which has in fact been used in §9.1, and which is different from the notion just defined. Both notions are used and it will be clear from the context which is meant.

Throughout this section $\mathfrak{S}$ denotes a monomial in $\mathfrak{O}\mathfrak{N}$ and $j$ an integer (not necessarily odd).

Lemma 9.3.1

If $\mathfrak{B}_{1},\ldots,\mathfrak{B}_{l}$ are the blocks in order from left to right of some $\mathfrak{S}_{k}$, and $w(\mathfrak{B}_{1})=(R_{1},C_{1})$, $w(\mathfrak{B}_{2})=(R_{2},C_{2})$, $\ldots$, $w(\mathfrak{B}_{l})=(R_{l},C_{l})$, then

[TABLE]

Proof: This is merely a recall Lemma 4.9 of [7]. In any case it follows easily from the definitions. $\Box$

Lemma 9.3.2

No two elements of $\mathfrak{S}_{k}\textup{(ext)}\cup\mathfrak{S}_{k}^{\prime}$ are comparable. More precisely, it is not possible to have elements $\alpha>\beta$ both belonging to $\mathfrak{S}_{k}\textup{(ext)}\cup\mathfrak{S}_{k}^{\prime}$.

Proof: It follows from Lemma 9.3.1 that $\mathfrak{S}_{k}\cup\mathfrak{S}_{k}^{\prime}$ contains no comparable elements. If $k$ is even, then $\mathfrak{S}_{k}(\textup{ext})=\mathfrak{S}_{k}$ (Corollary 7.3.4 (2)); if $k$ is odd, we may assume $\mathfrak{S}_{k}(\textup{ext})=\mathfrak{S}_{k}$ (as sets) by increasing the multiplicity of $\sigma_{k}$ in $\mathfrak{S}_{k}^{\textup{pr}}$. $\Box$

Lemma 9.3.3

For integers $i\leq k$, there cannot exist $\gamma\in\mathfrak{S}^{\prime}_{i}\textup{(up)}$ and $\beta\in\mathfrak{S}_{k}^{\textup{pr}}$ such that $\beta>\gamma$. For integers $i<k$, there cannot exist $\gamma\in\mathfrak{S}^{\prime}_{i}\textup{(up)}$ and $\beta\in\mathfrak{S}_{k}^{\textup{pr}}$ such that $\beta$ dominates $\gamma$.

Proof: Let $\gamma\in\mathfrak{S}^{\prime}_{i}\textup{(up)}$ and $\beta\in\mathfrak{S}_{k}^{\textup{pr}}$. If $i=k$ and $\beta>\gamma$, then we get a contradiction immediately to Lemma 9.3.2. Now suppose that $i<k$ and that $\beta$ dominates $\gamma$. Apply Corollary 6.3.4 (the notation of the corollary being suggestive of how exactly to apply it). Let $\alpha$ be as in its conclusion. The chain $\alpha>\gamma$ contradicts Lemma 9.3.2 in case $i$ is odd and either Lemma 9.3.2 or Proposition 7.5.4 in case $i$ is even. $\Box$

Lemma 9.3.4

For $(r,c)$ in $\mathfrak{S}^{\prime}$, there exists a unique block $\mathfrak{B}$ of $\mathfrak{S}$ with $(r,c)$ in $\mathfrak{B}^{\prime}$.

Proof: The existence is clear from the definition of $\mathfrak{S}^{\prime}$. For the uniqueness, suppose that $\mathfrak{B}$ and $\mathfrak{C}$ are two distinct blocks of $\mathfrak{S}$ with $(r,c)$ in both $\mathfrak{B}^{\prime}$ and $\mathfrak{C}^{\prime}$. We will show that this leads to a contradiction.

Let $i$ and $k$ be such that $\mathfrak{B}\subseteq\mathfrak{S}_{i}$ and $\mathfrak{C}\subseteq\mathfrak{S}_{k}$. From Lemma 4.11 of [7] (of which the present lemma is the orthogonal analogue) it follows that $i\neq k$, so we can assume without loss of generality that $i<k$. By applying the involution $\#$ if necessary, we may assume that $(r,c)\in\mathfrak{S}^{\prime}_{i}\textup{(up)}$. Now there exists an element $(r,a)$ in $\mathfrak{C}$ with $a\leq c$ (this follows from the definition of $\mathfrak{C}^{\prime}$). Clearly $(r,a)\in\mathfrak{S}_{k}^{\textup{pr}}$. Taking $\beta=(r,a)$ and $\gamma=(r,c)$, we get a contradiction to Lemma 9.3.3. $\Box$

Lemma 9.3.5

Let $i<j$ be positive integers.

Given a block $\mathfrak{B}$ of $\mathfrak{S}_{j}$, there exists a unique block $\mathfrak{C}$ of $\mathfrak{S}_{i}$ such that $w(\mathfrak{C})>w(\mathfrak{B})$. 2. 2.

Given an element $\beta$ in $\mathfrak{S}_{j}\textup{(ext)}\cup\mathfrak{S}^{\prime}_{j}$, there exists $\alpha$ in $\mathfrak{S}_{i}$ such that $\alpha>\beta$.

Proof: (1): The assertion follows by applying Lemma 9.1.2 with $\mathfrak{B}=\mathfrak{B}$ and $\mathfrak{U}=\mathfrak{S}_{i}$. We need to make sure however that the lemma can be applied. More precisely, we need to check that for every $\beta=(r,c)$ in $\mathfrak{B}$ there exist $\gamma^{1}(\beta)=(R^{1},C^{1})$ and $\gamma^{2}(\beta)=(R^{2},C^{2})$ in $\mathfrak{S}_{i}$ such that $C^{1}<c$, $C^{2}<R^{1}$, and $r<R^{2}$. We may assume $\beta=\beta\textup{(up)}$, for, if $\beta=\beta\textup{(down)}$, then $\beta\textup{(up)}$ also belongs to $\mathfrak{S}_{j}$ because $\mathfrak{S}_{j}$ is symmetric, and we can set $\gamma^{1}({\beta})=\gamma^{2}(\beta\textup{(up)})\textup{(down)}$, and $\gamma^{2}({\beta})=\gamma^{1}(\beta\textup{(up)})\textup{(down)}$—note that these two belong to $\mathfrak{S}_{i}$ since $\mathfrak{S}_{i}$ is symmetric.

We consider three cases:

$\beta$ belongs to $\mathfrak{S}$. 2. 2.

$\beta=p_{h}(\sigma_{j-1})$ (in particular, $j$ is even and $\mathfrak{S}$ is truly orthogonal at $j-1$). 3. 3.

$\beta=p_{v}(\sigma_{j})$ (in particular, $j$ is odd and $\mathfrak{S}$ is truly orthogonal at $j$).

Define $\beta^{\prime}$ to be $\beta$ in case 1, $\sigma_{j-1}$ in case 2, and $\sigma_{j}$ in case 3. Let $C$ be a $v$-chain in $\mathfrak{S}$ with tail $\beta^{\prime}$ and having the good property as in Proposition 6.3.3.

First suppose that there exists in $C$ an element of $\mathfrak{O}$-depth $i$ and denote it by $\gamma$. If $p_{h}(\gamma)\not\in\mathfrak{N}$ (this can happen only in case 1), then set $\gamma^{1}(\beta)=\gamma^{2}(\beta)=\gamma$. Now suppose $p_{h}(\gamma)\in\mathfrak{N}$. Then $\gamma\in\mathfrak{S}_{i}$ except when $\gamma=\sigma_{i}$ with $i$ odd and $\sigma_{i}$ has multiplicity $1$ in $\mathfrak{S}$. If $\gamma\in\mathfrak{S}_{i}$, take $\gamma^{1}(\beta)=\gamma$ and $\gamma^{2}(\beta)=\gamma^{\#}=\gamma\textup{(down})$; if $\gamma\not\in\mathfrak{S}_{i}$, then take $\gamma^{1}(\beta)=\gamma^{2}(\beta)=p_{v}(\gamma)$.

Now suppose that $C$ has no element of $\mathfrak{O}$-depth $i$. Then, by Lemma 6.3.1 (5), $i$ is even and there exists in $C$ an element of $\mathfrak{O}$-depth $i-1$. This element of $C$ is of type H by Lemma 6.3.1 (1), so $\mathfrak{S}$ is truly orthogonal at $i-1$. Set $\gamma^{1}(\beta)=\gamma^{2}(\beta)=p_{h}(\sigma_{i-1})$.

(2): This proof parallels the proof of (1) above. As in the above proof, we may assume that $\beta=\beta\textup{(up)}$. Suppose $\beta=(r,c)$ belongs to $\mathfrak{S}_{j}^{\prime}$. Then there exists $(r,a)\in\mathfrak{S}_{j}$ with $a\leq c$. Since $\mathfrak{S}_{j}^{\prime}$ does not meet the diagonal, it is clear that $(r,a)\in\mathfrak{O}\mathfrak{N}$, and thus it is enough to prove the assertion for $\beta\in\mathfrak{S}_{j}\textup{(ext)}$.

So now take $\beta\in\mathfrak{S}_{j}\textup{(ext)}$. Let $\beta^{\prime}$ and $C$ be in the proof of (1). First suppose that there exists in $C$ an element of $\mathfrak{O}$-depth $i$. Denote it by $\gamma$. If $\gamma\in\mathfrak{S}_{i}$, then take $\alpha=\gamma$. If $\gamma\not\in\mathfrak{S}_{i}$, then $p_{v}(\gamma)\in\mathfrak{S}_{i}$, and we take $\alpha=p_{v}(\gamma)$. In case there is no element in $C$ of $\mathfrak{O}$-depth $i$, we take $\alpha=p_{h}(\sigma_{i-1})$ (see the above proof). $\Box$

Corollary 9.3.6

If $\mathfrak{B}$ and $\mathfrak{B}_{1}$ are blocks of $\mathfrak{S}$ with $w(\mathfrak{B})=(r,c)$ and $w(\mathfrak{B}_{1})=(r_{1},c_{1})$, then exactly one of the following holds:

[TABLE]

Proof: This is a formal consequence of Lemmas 9.3.1 and 9.3.5, just as Corollary 4.13 of [7] is of Lemmas 4.9 and 4.12 of that paper. $\Box$

Corollary 9.3.7

If $w(\mathfrak{B})>w(\mathfrak{C})$ for blocks $\mathfrak{B}\subseteq\mathfrak{S}_{i}$ and $\mathfrak{C}\subseteq\mathfrak{S}_{j}$ of $\mathfrak{S}$, then $i<j$.

Proof: This is a formal consequence of Lemmas 9.3.1 and 9.3.5. It follows from the first lemma that $i\neq j$. Suppose $i>j$. Then there exists by the second lemma a block $\mathfrak{C}^{\prime}\subseteq\mathfrak{S}_{j}$ such that $w(\mathfrak{C}^{\prime})>w(\mathfrak{B})$. But then $w(\mathfrak{C}^{\prime})>w(\mathfrak{C})$, a contradiction of the first lemma. $\Box$

Corollary 9.3.8

*Let $(s,t)>(s_{1},t_{1})$ be elements of $\mathfrak{S}^{\prime}$, and $\mathfrak{B}$, $\mathfrak{B}_{1}$ be blocks of $\mathfrak{S}$ such that $(s,t)\in\mathfrak{B}^{\prime}$, and $(s_{1},t_{1})\in\mathfrak{B}_{1}^{\prime}$. Then $w(\mathfrak{B})>w(\mathfrak{B}_{1})$. *

Proof: Let $w(\mathfrak{B})=(r,c)$ and $w(\mathfrak{B}_{1})=(r_{1},c_{1})$. By Corollary 9.3.6, we have four possibilities. Since $(r,c)$ dominates $(s,t)$ and $(r_{1},c_{1})$ dominates $(s_{1},t_{1})$, the possibilities $c<r<c_{1}<r_{1}$ and $c_{1}<r_{1}<c<r$ are eliminated. It is thus enough to eliminate the possibility $c_{1}<c<r<r_{1}$. Suppose that this is the case. Then, by Corollary 9.3.7, $j_{1}<j$, where $j_{1}$ and $j$ are such that $\mathfrak{B}\subseteq\mathfrak{S}_{j}$ and $\mathfrak{B}_{1}\subseteq\mathfrak{S}_{j_{1}}$. Now, by Lemma 9.3.5 (2), there exists $\alpha$ in $\mathfrak{S}_{j_{1}}$ such that $\alpha>(s,t)>(s_{1},t_{1})$. But then this contradicts Lemma 9.3.2. $\Box$

Corollary 9.3.9

For a $\mathfrak{B}\subseteq\mathfrak{S}_{i}$ of $\mathfrak{S}$, the depth of $w(\mathfrak{B})$ in $\mathfrak{S}_{w}$ is exactly $i$.

Proof: That the depth is at least $i$ follows from Lemma 9.3.5. That the depth cannot exceed $i$ follows from Corollary 9.3.7. $\Box$

Corollary 9.3.10

Let $\alpha\in\mathfrak{S}_{k}^{\prime}\textup{(up)}$, $\beta\in\mathfrak{S}_{m}^{\prime}\textup{(up)}$, and $\alpha>\beta$. Then $k<m$.

Proof: Corollary 9.3.8 and Corollary 9.3.9. $\Box$

9.4 More lemmas

This subsection is a collection of lemmas to be invoked in the later subsections. More specifically, Lemma 9.4.1 and Corollary 9.4.2 are invoked in the proof of Proposition 4.1.1 in §10.1, Lemma 9.4.3 in the proof of the first half of Proposition 4.1.2 in §10.2, and Lemma 9.4.4 in the proof of the second half of Proposition 4.1.2 in §10.3. Throughout this subsection, $\mathfrak{S}$ denotes a monomial in $\mathfrak{O}\mathfrak{N}$.

Lemma 9.4.1

Let $C$ be a $v$-chain in $\mathfrak{S}^{\prime}$, $\alpha$ an element of $C$, and $\alpha^{\prime}\in\mathfrak{S}_{C,\alpha}$. Then $\textup{depth}_{\mathfrak{S}_{C}}\alpha^{\prime}\leq k\textup{(even)}$, for $k$ the integer such that $\alpha\in\mathfrak{S}_{k}^{\prime}(\textup{up})$.

Proof: Proceed by induction on $k$. If $k=1$, the assertion follows from Corollary 9.3.10, so assume $k>1$. Choose a $v$-chain $C^{\prime}$ in $\mathfrak{S}_{C}$ with tail $\alpha^{\prime}$ and $\textup{depth}_{C^{\prime}}\alpha^{\prime}=\textup{depth}_{\mathfrak{S}_{C}}(\alpha^{\prime})$. The length of a $v$-chain in $\mathfrak{S}_{C,\alpha}$ is clearly at most $2$. So, if $\gamma^{\prime}$ is the element two steps before $\alpha^{\prime}$ in $C^{\prime}$ (if $\gamma^{\prime}$ does not exist then there is clearly nothing to prove), then $\gamma^{\prime}\in\mathfrak{S}_{C,\gamma}$ with $\gamma>\alpha$ (see Proposition 5.3.4 (2)). We claim that $\textup{depth}_{\mathfrak{S}_{C}}(\gamma^{\prime})\leq k\textup{(odd)}-1$. It is enough to prove the claim, for then $\textup{depth}_{\mathfrak{S}_{C}}(\alpha^{\prime})=\textup{depth}_{C^{\prime}}\alpha^{\prime}=\textup{depth}_{C^{\prime}}\gamma^{\prime}+2\leq k\textup{(odd)}-1+2=k\textup{(even)}$.

The claim follows by induction from Corollary 9.3.10 if $k$ is odd or more generally if $\gamma\in\mathfrak{S}_{l}^{\prime}\textup{(up)}$ with $l\leq k\textup{(odd)}-1$. So assume that $k$ is even and $\gamma\in\mathfrak{S}_{k-1}^{\prime}\textup{(up)}$. By 7.5.4, it is not possible that $\gamma$ is of type H and $p_{h}(\gamma)>\alpha$. So the only possibility is that $\alpha^{\prime}=p_{h}(\alpha)$ and $\gamma>\alpha$ is connected. In particular, $\gamma$ is of type V and $\alpha$ of type H in $C$ and $\gamma^{\prime}=p_{v}(\gamma)$.

Now let $\mu$ be the first element in the connected component of $\alpha$
