*Aims. *One wants to better understand the physical and chemical processes in this early evolutionary stage.

*Methods. *We selected the prototypical hot molecular core G29.96$-$0.02 being located at the head of the associated ultracompact Hii region. The 862 $\mu$m submm continuum and spectral line data were obtained with the Submillimeter Array (SMA) at sub-arcsecond spatial resolution.

Results. The SMA resolved the hot molecular core into six submm continuum sources with the finest spatial resolution of $0.36^{\prime\prime}\times 0.25^{\prime\prime}$ ($\sim$1800 AU) achieved so far. Four of them located within 7800 (AU)2 comprise a proto-Trapezium system with estimated protostellar densities of $1.4\times 10^{5}$ protostars/pc3. The plethora of $\sim$ 80 spectral lines allows us to study the molecular outflow(s), the core kinematics, the temperature structure of the region as well as chemical effects. The derived hot core temperatures are of the order 300 K. We find interesting chemical spatial differentiations, e.g., C34S is deficient toward the hot core and is enhanced at the UCHii/ hot core interface, which may be explained by temperature sensitive desorption from grains and following gas phase chemistry. The SiO(8–7) emission outlines likely two molecular outflows emanating from this hot core region. Emission from most other molecules peaks centrally on the hot core and is not dominated by any individual submm peak. Potential reasons for that are discussed. A few spectral lines that are associated with the main submm continuum source, show a velocity gradient perpendicular to the large-scale outflow. Since this velocity structure comprises three of the central protostellar sources, this is not a Keplerian disk. While the data are consistent with a gas core that may rotate and/or collapse, we cannot exclude the outflow(s) and/or nearby expanding UCHii region as possible alternative causes of this velocity pattern.

††offprints: H. Beuther

1 Introduction

Hot molecular cores represent an early evolutionary stage in massive star formation prior to the formation of an ultracompact Hii region (UCHii). Single-dish line surveys toward hot cores have revealed high abundances of many molecular species and temperatures usually exceeding 100 K (e.g., Schilke et al. 1997; Hatchell et al. 1998; McCutcheon et al. 2000). Unfortunately, most hot cores are relatively far away (a few kpc, Orion-KL being an important exception), and high-spatial resolution studies are important to disentangle the various components in the region, to resolve potential multiple heating sources, and to search for chemical variations throughout the regions. Here we present sub-arcsecond resolution submm spectral line and dust continuum observations of the hot core G29.96$-$0.02, characterizing the physical and chemical properties of this prototypical region.

The hot core/UCHii region G29.96$-$0.02 is a well studied source comprising a cometary UCHii region and approximately $2.6^{\prime\prime}$ to the west a hot molecular core (Wood & Churchwell 1989; Cesaroni et al. 1994, 1998). G29.96$-$0.02 is at a distance of $\sim$6 kpc (Pratap et al. 1999), the bolometric luminosity measured with IRAS is very high with $L\sim 1.4\times 10^{6}$ L*⊙* (Cesaroni et al. 1994). Since the region harbors at least two massive (proto)stars (within the UCHii region and the hot core) this luminosity must be distributed over various sources. Based on cm continuum free-free emission, Cesaroni et al. (1994) calculate a luminosity for the UCHii region of $L_{\rm{cm}}\sim 4.4\times 10^{5}$ L*⊙. Furthermore, they try to estimate the luminosity of the hot core via a first order black-body approximation and get a value of $L_{\rm{bb}}\sim 1.2\times 10^{5}$ L⊙. Later, Olmi et al. (2003) derive a similar estimate ($\sim 9\times 10^{4}$ L⊙*) via integrating a much better determined SED. The exciting source of the UCHii region has been identified in the near-infrared as an O5-O8 star (Watson & Hanson 1997). Furthermore, Pratap et al. (1999) identified two additional sources toward the rim of the UCHii region and an enhanced density of reddened sources indicative of an embedded cluster.

A line survey toward a number of UCHii regions reveals that G29.96$-$0.02 is a strong molecular line emitter in nearly all observed species (Hatchell et al. 1998). High-angular resolution studies show that many species (e.g., NH3, CH3CN, HNCO, HCOOCH3) peak toward the main H2O maser cluster $\sim 2.6^{\prime\prime}$ west of the UCHii region (e.g, Hofner & Churchwell 1996; Cesaroni et al. 1998; Olmi et al. 2003), whereas CH3OH peaks $\sim 4^{\prime\prime}$ further south-west associated with another isolated H2O maser feature (Pratap et al. 1999). Hoffman et al. (2003) detected one of the relatively rare H2CO masers toward the hot core position. These masers are proposed to trace the warm molecular gas in the vicinity of young forming massive stars (Araya et al. 2006). The signature of a CH3OH peak offset from the other molecular lines is reminiscent of Orion-KL (e.g., Wright et al. 1996; Beuther et al. 2005b). Temperature estimates toward the hot core based on high-density tracers vary between 80 and 150 K (e.g., Cesaroni et al. 1994; Hatchell et al. 1998; Pratap et al. 1999; Olmi et al. 2003).

While Gibb et al. (2004) detect a molecular outflow in H2S emanating from the hot core in approximately the south-east north-west direction, Cesaroni et al. (1998) and Olmi et al. (2003) detect a velocity gradient in the east-west direction in the high-density tracers NH3(4,4) and CH3CN, consistent with a rotating disk around an embedded protostar. However, Maxia et al. (2001) also report that their rather low-resolution $5.9^{\prime\prime}\times 3.7^{\prime\prime}$ ($\approx$ 0.15 pc) SiO(2–1) data are consistent with the disk scenario as well. This is a bit puzzling since SiO is usually found to trace shocked gas in outflows and not more quiescent gas in disks. Inspecting their SiO image again (Fig. 6 in Maxia et al. 2001), this interpretation is not unambiguous, the data also appear to be consistent with the outflow observed in H2S (Gibb et al. 2004). It is possible that the spatial resolution of their SiO(2–1) observations is not sufficient to really disentangle the outflow in this distant region.

Olmi et al. (2003) compiled the SED from cm to mid-infrared wavelengths. While the 3 mm data are still strongly dominated by the free-free emission (Olmi et al. 2003), at 1 mm the hot core becomes clearly distinguished from the adjacent UCHii region (Wyrowski et al. 2002). G29.96$-$0.02 is one of the few hot cores which is detected at mid-infrared wavelengths (De Buizer et al. 2002). Interestingly, the mid-infrared peak is $\sim 0.5^{\prime\prime}$ ($\sim$3000 AU) offset from the NH3(4,4) hot core position. While Gibb et al. (2004) speculate that the mid-infrared peak might arise from the scattered light only, De Buizer et al. (2002) suggest that it could trace a second massive source within the same core. This hypothesis can be tested via very-high-angular-resolution submm continuum studies.

2 Observations

We have observed the hot core G29.96$-$0.02 with the Submillimeter Array (SMA111The Submillimeter Array is a joint project between the Smithsonian Astrophysical Observatory and the Academia Sinica Institute of Astronomy and Astrophysics, and is funded by the Smithsonian Institution and the Academia Sinica., Ho et al. 2004) during four nights between May and November 2005. We used all available array configurations (compact, extended, very extended, for details see Table 1) with unprojected baselines between 16 and 500 m, resulting at $862\,\mu$m in a projected baseline range from 16.5 to 591 k$\lambda$. The chosen phase center was the peak position of the associated UCHii region R.A. [J2000.0]: $18^{h}46^{m}03.^{s}99$ and Decl. [J2000.0] $-02^{\circ}39^{\prime}21.^{\prime\prime}47$. The velocity of rest is $v_{lsr}\sim+98$ km s*-1* (Churchwell et al. 1990).

For bandpass calibration we used Ganymede in the compact configuration and 3C279 and 3C454.3 in the extended and very extended configuration. The flux scale was derived in the compact configuration again from observations of Ganymede. For two datasets of the more extended configurations, we used 3C454.3 for the relative scaling between the various baselines and then scaled that absolutely via observations of Uranus. For the fourth dataset we did the flux calibration using 3C279 only. The flux accuracy is estimated to be accurate within 20%. Phase and amplitude calibration was done via frequent observations of the quasars 1743-038 and 1751+096, about 15.5*∘* and 18.3*∘* from the phase center of G29.96$-$0.02. The zenith opacity $\tau(\rm{348GHz})$, measured with the NRAO tipping radiometer located at the Caltech Submillimeter Observatory, varied during the different observation nights between $\sim$0.15 and $\sim$0.4 (scaled from the 225 GHz measurement). The receiver operated in a double-sideband mode with an IF band of 4-6 GHz so that the upper and lower sideband were separated by 10 GHz. The central frequencies of the upper and lower sideband were 348.2 and 338.2 GHz, respectively. The correlator had a bandwidth of 2 GHz and the channel spacing was 0.8125 MHz. Measured double-sideband system temperatures corrected to the top of the atmosphere were between 110 and 800 K, depending on the zenith opacity and the elevation of the source. Our sensitivity was dynamic-range limited by the side-lobes of the strongest emission peaks and thus varied between the line maps of different molecules and molecular transitions. This limitation was mainly due to the incomplete sampling of short uv-spacings and the presence of extended structures. The $1\sigma$ rms for the velocity-integrated molecular line maps (the velocity ranges for the integrations were chosen for each line separately depending on the line-widths and intensities) ranged between 36 and 76 mJy. The average synthesized beam of the spectral line maps was $0.65^{\prime\prime}\times 0.48^{\prime\prime}$ (P.A. $-83^{\circ}$). The 862 $\mu$m submm continuum image was created by averaging the apparently line-free parts of the upper sideband. The $1\sigma$ rms of the submm continuum image was $\sim 21$ mJy/beam, and the achieved synthesized beam was $0.36^{\prime\prime}\times 0.25^{\prime\prime}$ (P.A. $18^{\circ}$), the smallest beam obtained so far with the SMA. The different synthesized beams between line and continuum maps are due to different applied weightings in the imaging process (“robust” parameters set in MIRIAD to 0 and -2, respectively) because there was insufficient signal-to-noise in the line data obtained in the very extended configuration. The initial flagging and calibration was done with the IDL superset MIR originally developed for the Owens Valley Radio Observatory (Scoville et al. 1993) and adapted for the SMA222The MIR cookbook by Charlie Qi can be found at http://cfa-www.harvard.edu/$\sim$cqi/mircook.html.. The imaging and data analysis were conducted in MIRIAD (Sault et al. 1995).

3 Results

3.1 Submillimeter continuum emission

Figure 1 presents the 862 $\mu$m continuum emission extracted from the line-free parts of the upper sideband spectrum ($\sim$1.8 GHz in total used) shown in Figure 4. The very high spatial resolution of $0.36^{\prime\prime}\times 0.25^{\prime\prime}$ corresponds to a linear resolution of $\sim 1800$ AU at the given distance of $\sim$6 kpc. The submm continuum emission peaks approximately $2^{\prime\prime}$ west of the UCHii region and is associated with the molecular line emission known from previous observations. We do not detect any submm continuum emission toward the UCHii region itself. At the given spatial resolution, for the first time multiplicity within the G29.96$-$0.02 hot core is resolved and we identify 6 submm continuum emission peaks (submm1 to submm6) above the 3$\sigma$ level of 63 mJy beam*-1* (Fig. 1). We consider submm1 and submm2 to be separate sources instead of a dust ridge because we count compact spherical or elliptical sources and their emission peaks are separated by about one synthesized beam. The four strongest submm peaks, that are all $>6\sigma$ detections, are located within a region of $(1.3^{\prime\prime})^{2}$ (7800 AU) in diameter. The submm peak submm1 is associated with H2O and H2CO maser emission (Hofner & Churchwell 1996; Hoffman et al. 2003), and we consider this to be probably the most luminous sub-source. The other H2O maser peaks are offset from the submm continuum emission. The mid-infrared source detected by De Buizer et al. (2002) is offset $>1^{\prime\prime}$ from the submm emission. This may either be due to uncertainties in the MIR astrometry or the MIR emission may trace another young source in the region. It should be noted that the class ii CH3OH masers detected by Minier et al. (2001) peak close to the MIR source as well, which indicates that the MIR offset from the hot core may well be real.

Table 2 lists the absolute source positions, their 862 $\mu$m peak intensities and the integrated flux densities approximately associated with each of the sub-sources. Calculating the brightness temperature $T_{b}$ of the corresponding Planck-function for, e.g., submm1, we get $T_{b}(\rm{Peak1})\sim 27$ K. Assuming hot core dust temperatures of $\sim$ 100 K, the usual assumption of optically thin dust emission is not really valid anymore, and one gets an approximate beam-averaged optical depth $\tau$ of the dust emission of $\sim$0.3. To calculate the dust and gas masses, we can follow the mass determination outlined in Hildebrand (1983) and Beuther et al. (2002, 2005a), which assumes optically thin emission, and correct that for the increased dust opacity. Assuming constant emission along the line of sight, the opacity correction factor $C$ is

[TABLE]

With $\tau\sim 0.3$, we get a correction factor $C\sim 1.16$ still comparably small. Assuming a dust opacity index $\beta=1.5$, the dust opacity per unit dust mass is $\kappa(862\mu\rm{m})\sim 1.5$ cm2g*-1* (with the reference value $\kappa(250\mu\rm{m})\sim 9.4$ cm2g*-1*, see Hildebrand 1983), and we assume a gas-to-dust ratio of 100. Given the uncertainties in $\beta$ and $T$, we estimate the masses to be accurate within a factor 4. Table 2 gives the derived masses and beam-averaged column densities. Each sub-peak has a mass of a few $M_{\odot}$, and the main submm1 exhibits approximately 10 $M_{\odot}$ of compact, warm gas and dust emission. The integrated 862 $\mu$m continuum flux density of the central region comprising the four main submm continuum sources amounts to 1.16 Jy. At an average dust temperature of 100 K, this corresponds to a central core mass of 39.9 M*⊙. In comparison to these flux density measurements, Thompson et al. (2006) observed with SCUBA 850 $\mu$m peak and integrated flux densities of $\sim 11.5\pm 1.2$ Jy/($14^{\prime\prime}$beam) and $\sim$19.2 Jy, respectively. The ratio between peak and integrated JCMT fluxes already indicates non-compact emission even on that scales. Furthermore, subtracting a typical line contamination of the continuum emission in hot cores of the order 25% (e.g., NGC6334I, Hunter et al. in prep.), the total 850 $\mu$m single-dish continuum flux density should amount to $\sim$8.6 Jy. Compared with the integrated flux density in the SMA data of $\sim$1.74 Jy, this indicates that approximately 80% of the single-dish emission is filtered out by the missing short spacings in the interferometer data. The dust and gas in the central region have higher temperatures than the components filtered out on larger spatial scales, and since the dust and gas mass is inversely proportionally related to the temperature by $M_{\rm{H_{2}}}\propto(e^{h\nu/kT}-1)$ (e.g., Beuther et al. 2002), a greater proportion of the mass ($>80\%$) is filtered out in the SMA data. However, the SMA image reveals the most compact hot gas and dust cores at the center of the evolving massive star-forming region. The shortest baseline of the SMA observations of $\sim$16.5 k$\lambda$ correspond to scales $>12^{\prime\prime}$ which hence have to be filtered out entirely. However, even smaller scales are missing because the uv-spacings corresponding to scales $\geq 5^{\prime\prime}$ are still relatively poorly sampled and the image presented in Figure 1 is only sensitive to spatial scales of the order a few arcseconds. The submm peaks detected by the SMA are much stronger than what would have been expected if the single-dish flux ($\sim$8.6 Jy) were uniformly distributed over the SCUBA primary beam of $14^{\prime\prime}$, even ignoring any spatial filtering and missing flux effects (This would result in $\sim 4$ mJy per synthesized SMA beam.). This shows that the emission measured on the small spatial scales sampled by the SMA represents the compact core emission much better than expected. However, it does not imply that the gas masses measured by the SMA are the only gas reservoir the embedded protostars have for their ongoing accretion; they may also gain mass from the large-scale gas envelope that is filtered out by our observations (see also the competitive accretion scenario, e.g., Bonnell et al. 2004). The derived beam-averaged H2 column densities are of the order a few times $10^{24}$ cm-2*, corresponding to visual extinctions $A_{v}$ of a few 1000 ($A_{v}=N_{\rm{H}}/0.94\times 10^{21}$, Frerking et al. 1982).

3.2 Spectral line emission

Figure 4 presents spectra extracted toward the main submm submm1 with an angular resolution of $0.64^{\prime\prime}\times 0.47^{\prime\prime}$ compared to the submm continuum map (see §2). More than 80 spectral lines from 18 molecular species, isotopologues or vibrationally excited species have been identified with a minor fraction of $\sim$5% of unidentified lines (UL) (Tables Dust and gas emission in the prototypical hot core G29.96$-$0.02 at sub-arcsecond resolution & 4). The range of upper level excitation temperatures for the many lines varies between approximately 40 and 750 K (Table Dust and gas emission in the prototypical hot core G29.96$-$0.02 at sub-arcsecond resolution). Therefore, with one set of observations we are able to trace various gaseous temperature components from the relatively colder gas surrounding the hot core region to the densest and warmest gas best observed in some of the vibrationally excited lines.

Figures 2 and 3 now present integrated images of the various detected species, isotopologues and vibrationally excited lines. For comparison, Figure 2 also shows the submm continuum emission reduced with the same degraded spatial resolution as the line images. All images show emission in the vicinity of the hot molecular core and no emission toward the associated UCHii region. However, the morphology varies significantly between many of the observed molecular line maps. The molecular emission is largely confined to the central region of the main four submm continuum peaks, and we do not detect appreciable molecular emission toward the continuum peaks 5 and 6. Reducing the submm continuum data with the same spatial resolution as the line images, the four submm peaks are smoothed to a single elongated structure peaking close to the submm peak submm1 (Fig. 2, top-left panel). The ground state CH3OH emission is relatively broadly distributed with two peaks in east-west direction, and one may associate one with the submm peaks 1 and 2 and the other with the submm peak submm3, but most other maps show on average one spectral line peak somewhere in the middle of the 4 main submm continuum peaks, similar to the lower-resolution submm continuum map.

However, there are also a few species which significantly deviate from this picture and show a different spatial morphology. For example SiO is more extended in north-east south-west direction likely due to a molecular outflow (§3.3). Also interesting is the emission from C34S which lacks emission around the central four submm peaks but is stronger in the interface region between the hot molecular core and the UCHii region (§4.3). Furthermore, there are a few spectral line maps – mainly those from likely optically thin lines (HCOOCH3, HN13C), highly excited lines (CH3CHCN) and vibrationally excited lines (CH3OH $v_{t}=1,2$, HC3N $v_{7}=1,2$) – which show their emission peaks concentrated toward the main submm peak submm1 (§4.5).

Previous lower-resolution ($\sim 10^{\prime\prime}$) molecular line observations revealed strong CH3OH emission toward the H2O maser feature approximately $4^{\prime\prime}$ south-west of the hot core peak (Fig. 1, Hofner & Churchwell 1996; Pratap et al. 1999). A little bit surprising, we do not detect any CH3OH emission (nor any other species) toward that south-western position, even when imaged at low angular resolution using only the compact configuration data (therefore, we do not cover that position in Figures 2 and 3). Pratap et al. (1999) discuss mainly two possibilities to explain this discrepancy: Either their observed specific CH3OH$(8_{0}-7_{1})$ line is a weak maser and we do not cover any comparable CH3OH line, or the emission covered by the lower-resolution data is relatively extended and filtered out by our observations. As discussed in the previous section, the shortest baseline of our observations was $\sim$16 m, implying that we are not sensitive to any scales $>12^{\prime\prime}$. Since the CH3OH emission in Pratap et al. (1999) is slightly resolved by their synthesized beam of $12.6^{\prime\prime}\times 9.8^{\prime\prime}$, it is unlikely that we would have filtered out all emission. However, among the many observed CH3OH lines (Table Dust and gas emission in the prototypical hot core G29.96$-$0.02 at sub-arcsecond resolution), some have similar excitation temperatures of the order 80 K as the line observed by Pratap et al. (1999), and we would expect to detect thermal emission from these lines as well. Therefore, our non-detection of CH3OH emission toward the south-western H2O maser position supports rather their suggested scenario of weak CH3OH maser emission in the previously reported observations (Pratap et al. 1999).

3.3 Molecular outflow emission

The SiO(8-7) spectrum spans a large range of velocities from $\sim$75 to $\sim$111 km s*-1*. Integrating the blue- and red-shifted emission, one gets the outflow map presented in Fig. 5. The elongated north-west south-east structure is consistent with the previously proposed outflow by Gibb et al. (2004). The additional red feature north-east of the central hot core region makes the interpretation ambiguous: If the north-west south-east outflow is a relatively highly collimated jet, then the north-eastern red feature could be attributed to an additional outflow leaving the core in north-east south-west direction. The blue wing of that potential second outflow would not detected in our data. However, since we are filtering out any larger-scale emission, it is also possible that the red SiO features south-east and north-east of the main core are part of the same wide-angle outflow tracing potentially the limb-brightened cavity walls. In this scenario, our observations would miss part of the blue-shifted wide-angle outflow lobe. With the current data, it is difficult to clearly distinguish between the two scenarios. However, comparing the elongated blue-shifted SiO(8–7) data with the previous north-west south-eastern outflow observed in H2S by Gibb et al. (2004), it appears that this is the most likely direction of the main outflow of the region. Therefore, the multiple outflow scenario appears more likely for the hot core in G29.96$-$0.02. The lower resolution SiO(2–1) observation by Maxia et al. (2001) are also consistent with this scenario. Based on these data, we cannot conclusively say which of the submm continuum sources submm1 to submm4 contribute to driving the outflows.

4 Discussion

4.1 The formation of a proto-Trapezium system?

The four main submm continuum peaks are located within a projected area of $7800\times 7800$ (AU)2 on the sky. The projected separation $\Delta\theta$ between individual sub-sources varies between 1800 AU (peaks 1 and 2) and 5400 AU (peaks 1 and 4, see Table 5). Could the four central submm peaks be the predecessors of a future Trapezium system? Trapezia are defined as non-hierarchical multiple systems of three or more stars where the largest projected separation between Trapezia members should not exceed the smallest projected separation by a factor of 3 (Sharpless 1954; Ambartsumian 1955; Abt & Corbally 2000). This criterion is satisfied by the four submm peaks at the center of the G29.96$-$0.02 hot core. The 14 optically identified Trapezia discussed by Abt & Corbally (2000) have mean radii to the furthest outlying member of $\sim 4\times 10^{4}$ AU, with the largest radius of $\sim 5.4\times 10^{5}$ AU ($\sim$2.6 pc), the approximate dimension of an open cluster. Therefore, the protostellar projected separations of the tentative proto-Trapezium candidate in G29.96$-$0.02 are significantly smaller than in typical optically visible Trapezia systems. A similar small size for a candidate Trapezium system has recently been reported for the multiple system in W3IRS5 (Megeath et al. 2005).

The small sizes of the proto-Trapezia in G29.96$-$0.02 and W3IRS5 may be attributed to their youth. During their upcoming evolution, these young system will expel most of the surrounding gas and dust envelope via the protostellar outflows and strong uv-radiation. Therefore, the whole gravitational potential of the system will decrease and the kinetic energy may dominate. Systems with positive total energy will globally expand and will eventually be observable as a larger-scale optical Trapezia systems (Ambartsumian 1955).

With the given data it is hard to estimate how massive the expected Trapezia stars are and will finally be at the end of their formation processes. The integrated hot core luminosity is estimated to be $\sim 10^{5}$ L*⊙* (Cesaroni et al. 1994; Olmi et al. 2003), in contrast to the integrated luminosity of the whole region measured by the large IRAS beam of $\sim 10^{6}$ L*⊙. Producing $10^{5}$ L⊙* requires either an O7 star or a few stars of comparable but lower masses. Nevertheless, the numbers imply that this Trapezium system should form at least one or more massive stars. Although the gas masses we derived from our dust continuum data (Table 2) are relatively low, that does not necessarily imply that their mass reservoir is restricted to these gas masses because it is possible that they may accrete additional gas from the larger-scale envelope that is filtered out by our observations. This scenario is predicted by the competitive accretion model for massive star formation (e.g., Bonnell et al. 2004). The fact that the gas masses we find for the four strongest submm sources are all similar allows to speculate that they may form about similar mass stars in the end, however, this cannot be proven by these data in more detail.

Assuming that the projected size of the potential proto-Trapezium system in G29.96$-$0.02 of approximately 7800 (AU)2 resembles a 3-dimensional sphere of radius $\sim$3900 AU, we can estimate the current protostellar volume density of the region to approximately $1.4\times 10^{5}$ protostars per cubic pc. This number is larger than typical stellar densities in young clusters of the order $10^{4}$ stars per cubic pc (Lada & Lada 2003), but it is still below the extremely high (proto)stellar densities required for protostellar merger models of the order $10^{6}$ to $10^{8}$ stars per cubic pc (Bonnell et al. 1998, 2004; Stahler et al. 2000; Bally & Zinnecker 2005).

Although we have not yet observed the extremely high (proto)stellar densities predicted by the coalescence scenario, as soon as we observe massive star-forming regions with a spatial resolution $\leq 4000$ AU, we begin to resolve multiplicity and potential proto-Trapezia (see also the recent observations of NGC6334I and I(N) by Hunter et al. 2006). Furthermore, this (proto)stellar density may even be a lower limit, since we observe only a two-dimensional projection and are additionally sensitivity limited to masses $\geq 2.1$ M*⊙* (corresponding to the 3$\sigma$ flux limit of 63 mJy beam*-1* at the assumed temperature of 100 K). Higher spatial resolution has so far always increased the observed (proto)stellar densities, and it is possible that in the future we may reach the $10^{6}$ requirement for merging to play a role. However, it is also important to get better theoretical predictions of potential merger signatures that observers could look for.

4.2 Various episodes of massive star formation?

It is interesting to note that the previously identified mid-infrared source (De Buizer et al. 2002) is offset from the submm continuum peaks. Although the mid-infrared astrometry is usually relatively uncertain, the association of the mid-infrared peak with class ii CH3OH maser emission with an absolute positional uncertainty of only 30 mas (Minier et al. 2001) is indicative that the offset may be real. Combining the facts that we find within a small region of only $\sim$20000 AU ($\sim$0.1 pc) at least three different regions of massive star formation – the UCHii region, the mid-infrared source, and the submm continuum sources – indicates that not all massive stars within the same evolving cluster are coeval but that sequences of massive star formation may take place even on such small spatial scales.

4.3 Carbon mono-sulfide C34S

One of the most striking spectral line maps is from the rare carbon mono-sulfide isotopologue C34S(7–6). Its emission peak is not toward the hot core nor any of the submm continuum peaks, but largely east of it in the interface region between the submm continuum peaks and the UCHii region. Hence, one likes to understand why the C34S emission is that weak toward the hot core region and that strong at the hot core/UCHii region interface.

CS usually desorbs from dust grains at moderate temperatures of a few 10 K, hence it should be observable relatively early in the evolution of a growing hot molecular core (e.g., Viti et al. 2004). From 100 K upwards H2O is released from grains, then it forms OH molecules, and the OH can react with S to SO and SO2 (e.g., Charnley 1997). Therefore, the initial high CS abundances should decrease with time while the SO and SO2 are expected to increase with time (e.g., Wakelam et al. (2005)). As shown in Figure 2, 34SO peaks toward the hot core where the derived CH3OH temperatures exceed the H2O evaporation temperature (see §4.4 and Fig. 7b, potentially validating this theoretical prediction. According to such chemical models, the hot core G29.96$-$0.02 should have a chemical age of at least a few times 104 years.

The strong C34S emission in the hot core/UCHii interface region may be explained in the same framework. In the molecular evolution scheme outlined above, one would expect low C34S emission toward the hot core with a maybe symmetrical increase further-out. In the case of the G29.96$-$0.02 hot core, we have the decrease toward the center, but the emission rises only toward the east, north and west with the strongest increase in the eastern hot core/UCHii region interface. If one compares the C34S morphology in Figure 2 with the temperature distribution in Figure 7b, one finds the lowest CH3OH temperatures right in the vicinity of the C34S emission peaks, adding further support to the proposed chemical picture.

Extrapolating this scenario to other molecules, it indicates that species which are destroyed by H2O, e.g., molecular ions such as HCO+ or N2H+ (e.g., Bergin et al. 1998), are no good probes of the inner regions of hot molecular cores.

4.4 Temperature structure

Leurini et al. (2004, 2007) investigated the diagnostic properties of methanol over a range of physical parameters typical of high-mass star-forming regions. They found that the ground state lines of CH3OH are mainly tracers of the spatial density of the gas, although at submillimeter wavelengths high $k$ transitions are also sensitive to the kinetic temperature. However, in hot, dense regions such as hot cores, the effects of infrared pumping on the level populations due to the thermal heating of the dust is not negligible, but mimic the effect of collisional excitation. For the ground state line, Leurini et al. (2007) found that it is virtually impossible to distinguish between IR pumping and pumping by collisions, as both mechanisms equally populate the $v_{t}=0$ levels. On the other hand, the vibrationally or torsionally excited lines have very high critical densities ($10^{10}$–1011 cm*-3*) and high level energies ($T\geq 200$ K). They are difficult to be populated by collisions and trace the IR field instead.

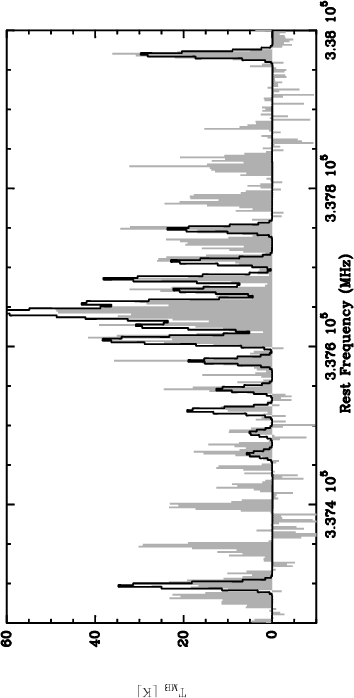

To study the physical conditions of the gas around the main continuum peaks in G29.96–0.02, we analyzed only the emission coming from the $v_{t}=1$ lines, as their optical depth is lower than for the ground state, and their emission is confined to the gas around the dust condensations, while the $v_{t}=0$ transitions are more extended and can be affected by problems of missing flux. We first fitted the methanol emission of the $v_{t}=1$ lines (see Fig. 6) towards the peak position, using the method described by Leurini et al. (2004, 2007) that is based on an LVG analysis and includes radiative pumping (Leurini et al. 2007). The continuum emission derived in $\S$3.1 was used in the calculations to solve the equations for the level populations. The two main dust condensations submm1 and submm2 fall in the beam of the line data; however, we assumed that the emission is coming from only one component, which is more extended than our beam, and derived a CH3OH column density averaged over the beam of $4\times 10^{17}$ cm*-2*. The corresponding methanol abundance, relative to H2 is of the order of $10^{-7}$, typical of hot core sources. Since the emission from the $v_{t}=1$ lines is optically thin for this column density, and also at higher values, we consider this approach valid. The temperature derived toward the line peak is 340 K. This corresponds to our best fit model, but from a $\chi^{2}$ analysis we can only infer a low limit of $\sim$220 K for the temperature of the gas. Since lines are optically thin, the degeneracy between kinetic temperature and column density is not solved, and the model delivers good fit to the $v_{t}=1$ lines for lower or higher temperatures by adjusting the methanol column density. However, the low temperature solutions ($T_{kin}$=100–200 K) need high methanol abundances relative to H2($\sim 10^{-6}$), which can be hardly found at these temperatures. Moreover, lines are optically thick for these column densities, and the assumption of our analysis is not valid anymore.

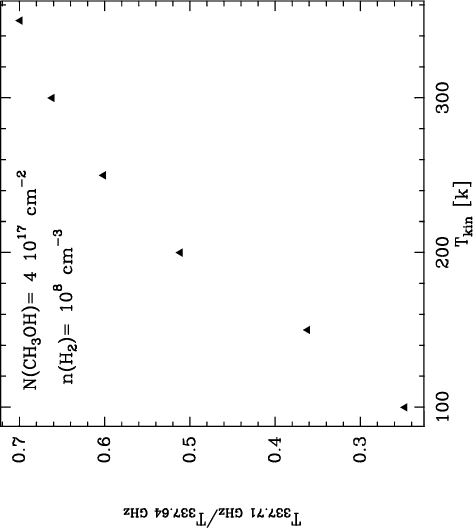

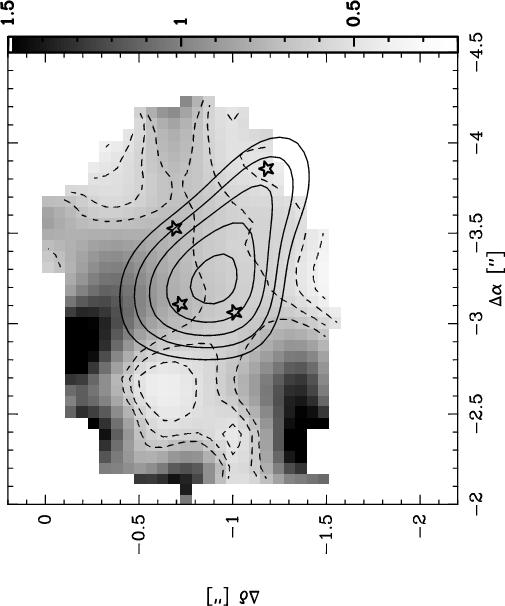

We also investigated the line ratio between several $v_{t}=1$ lines at the column density derived for the main position, to find the best temperature diagnostic tool among the methanol lines and derive a temperature map of the region. We found that the line ratios with the blend of lines at $\sim 337.64$ GHz increase with the temperature of the gas (Fig. 7a). However, the blending of several transitions together complicates the use of such diagnostic. In Fig. 7b, we show the map of the line ratio between the $7_{1,6}\to 6_{1,5}$-$E$ $v_{t}=1$ at 337.708 GHz and the blend between the $7_{1,7}\to 6_{1,6}$-$E$ $v_{t}=1$ at 337.642 GHz and $7_{0,7}\to 6_{0,6}$-$E$ $v_{t}=1$ at 337.644 GHz. Since line intensities do not simply add up, we did not correct for the overlapping between the two transitions. Two other lines, the $7_{4,3}\to 6_{4,2}$-$E$ $v_{t}=1$ and the $7_{5,3}\to 6_{4,2}$-$E$ $v_{t}=1$, are also very close in frequency. This is seen in the linewidth of the blending, which is wider than for the other lines. Therefore, we considered only half of the channels of the blending at 337.64 GHz in our line ratio analysis. From the ratio-map in Fig. 7b, submm1, submm2 and submm3 of Table 1 show high temperatures (T$\geq 300$ K), while relatively low temperature gas (T$\sim 100$ K) is found at R.A. [J2000]=$18^{h}46^{m}03^{s}.818$ Dec. [J2000]= $-02^{\circ}39^{\prime}22^{\prime\prime}.14$, close to a secondary peak of many ground state lines of methanol (Fig. 2). The temperature then decreases towards submm4. The increase in the line ratio towards the south-east and north is probably not true, but due to the poor signal to noise ratio in these areas. Changes in the column densities along the area may affect our results.

4.5 Tracing rotation toward the massive cores

At the given lower spatial resolution of the spectral line data compared to the submm continuum, we cannot resolve the four submm peaks well. However, one of the aims of such multi-line studies is to identify spectral lines that trace the massive protostars and that are potentially associated with massive disk-like structures. Such lines may then be used for kinematic gas studies of rotating gas envelopes, tori or accretion disks. Therefore, we analyzed the data-cubes searching for velocity structures indicative of any kind of rotation. In the large majority of spectral lines, this was not successful and we could mostly not identify coherent velocity structure. While chemical and temperature effects (§4.3 & 4.4) may be responsible for parts of that, the large column densities derived in §3.1 imply also large molecular line column densities and hence large optical depths. Therefore, many of the observed lines are likely optically thick tracing only outer gas layers of the hot molecular core not penetrating down to the deeply embedded protostars. Furthermore, many molecules would not only be excited in the central rotating disk-like structures but also in the surrounding envelope and maybe the outflow. Hence, disentangling the different components observationally remains a challenging task.

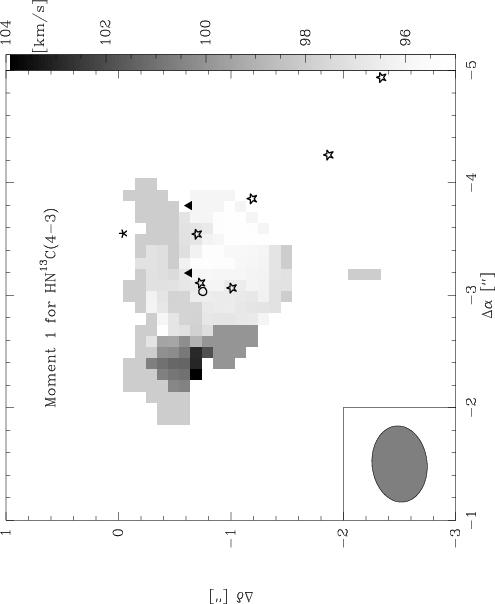

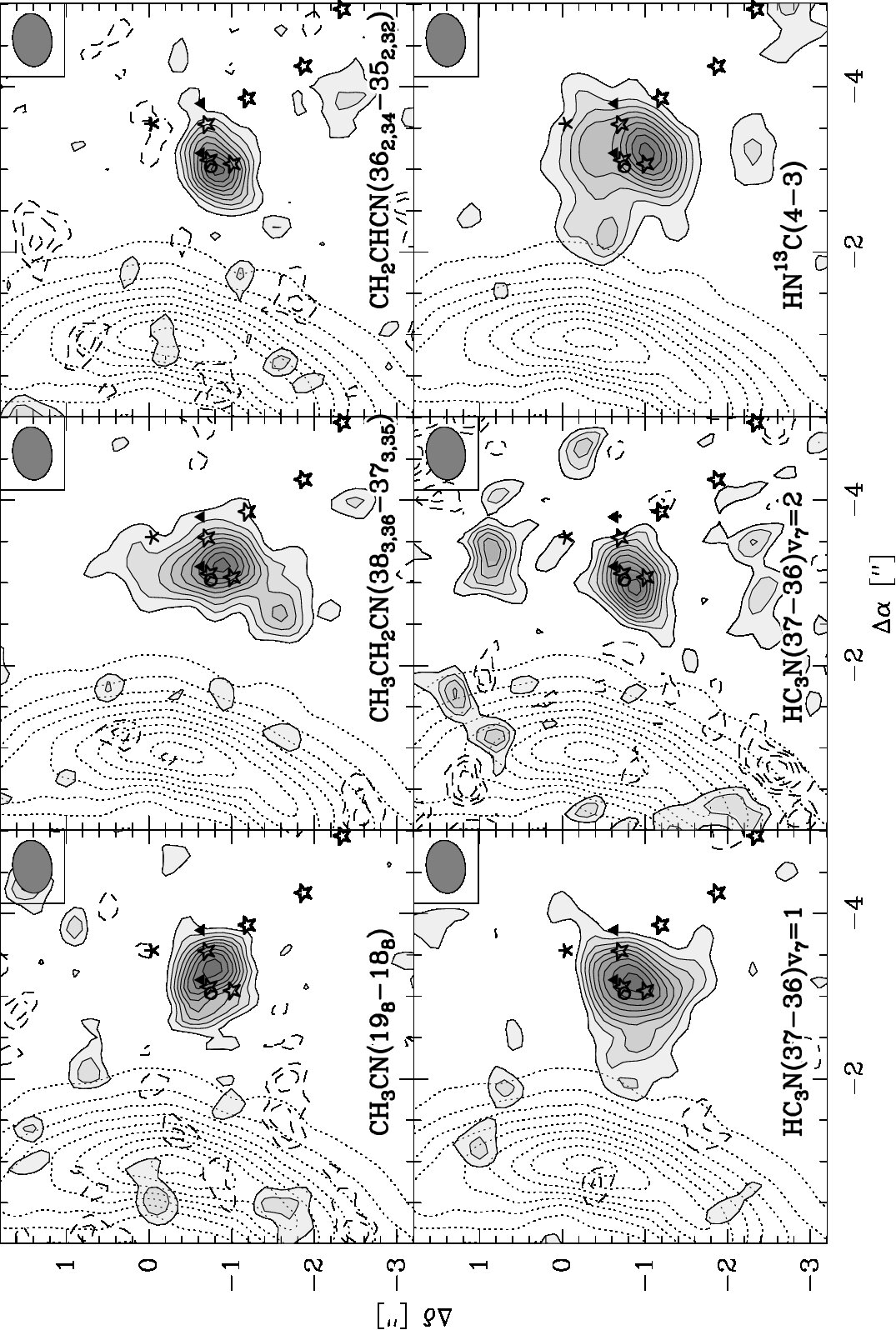

The major exceptions are the molecular lines of the rare isotopologue of hydrogen isocyanide HN13C(4–3) with a low excitation temperature of only 42 K, and the vibrationally excited line of cyanoacetylene HC3N(37–36)$v_{7}=1$ with a higher excitation temperature of 629 K (Fig. 8). In both cases we find a velocity gradient across the main submm peak submm1 with a position angle of $\sim 45^{\circ}$ from north. This is approximately perpendicular to the molecular outflow discussed in §3.3 and by Gibb et al. (2004). Interestingly, Gibb et al. (2004) also find a similar velocity gradient in their central velocity channels of H2S. The previously reported NH3 and CH3CN velocity gradients in approximately east-west direction (Cesaroni et al. 1998; Olmi et al. 2003) have been observed with slightly lower spatial resolution and are consistent with our data as well.

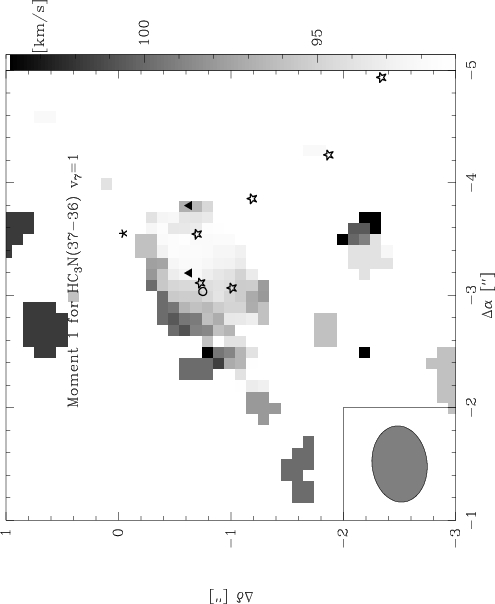

Our observations as well as previous work in the literature suggest that the G29.96$-$0.02 hot core exhibits a velocity gradient in the dense gas in approximately north-east south-west direction perpendicular to the molecular outflow observed at larger scales. Based on the HN13C(4–3) map, the diameter of this structure is $\sim 1.6^{\prime\prime}$ corresponding to radius of $\sim$4800 AU. Since this emission encompasses not only the submm peak submm1 but also the submm2 and submm3, it is not genuine protostellar disk as often observed in low-mass star-forming regions. The velocity structure does not resemble Keplerian rotation and may hence be due to some larger-scale rotating envelope or torus that could transform into a genuine accretion disks at smaller still unresolved spatial scales (Cesaroni et al. 2007). Additional options to explain such a velocity gradient may be (a) interaction with the 2nd outflow in north-east–south-western direction, (b) interaction with the expanding UCHii region, and (c) global collapse like recently proposed for NGC2264 (Peretto et al. 2006). While we cannot exclude (a) and (b), option (c) of a globally collapsing core appears particularly interesting because combining rotation and collapse would result in an inward spiraling kinematic structure, potentially similar to the models originally proposed for rotating low-mass cores (e.g., Ulrich 1976; Terebey et al. 1984). Recent hydrodynamic simulations by Dobbs et al. (2005) and Krumholz et al. (2006) as well as analytic studies by Kratter & Matzner (2006) find fragmentation and star formation within the massive disks forming early in the collapse process of high-mass cores. This would be consistent with the found three sub-sources (submm1 to submm3) within the HN13C/HC3N structure. However, on a cautionary note it needs to be stressed that the collapse/rotation scenario is far from conclusive, and that the outflow and/or UCHii region can potentially influence the observed velocity pattern as well. It remains puzzling that only these two lines exhibit the discussed signatures whereas all the other spectral lines in our setup do not.

5 Conclusions and Summary

The new 862 $\mu$m submm continuum and spectral line data obtained with the SMA toward G29.96$-$0.02 at sub-arcsecond spatial resolution resolve the hot molecular core into several sub-sources. At an angular resolution of $0.36^{\prime\prime}\times 0.25^{\prime\prime}$, corresponding to linear scales of $\sim$1800 AU, the central core contains four submm continuum peaks which resemble a Trapezium-like multiple system at a very early evolutionary stage. Assuming spherical symmetry for the hot core region, the protostellar densities are high of the order $1.4\times 10^{5}$ protostars per pc3. However, these protostellar densities are still below the required values between $10^{6}$ to $10^{8}$ protostars/pc3 to make coalescence of protostars a feasible process. Derived H2 column densities of the order a few $10^{24}$ cm*-2* imply visual extinctions of a few 1000. The existence of three sites of massive star formation in different evolutionary stages within a small region (the UCHii region, the mid-infrared source, and the submm continuum sources) indicates that sequences of massive star formation may take place within the same evolving massive protocluster.

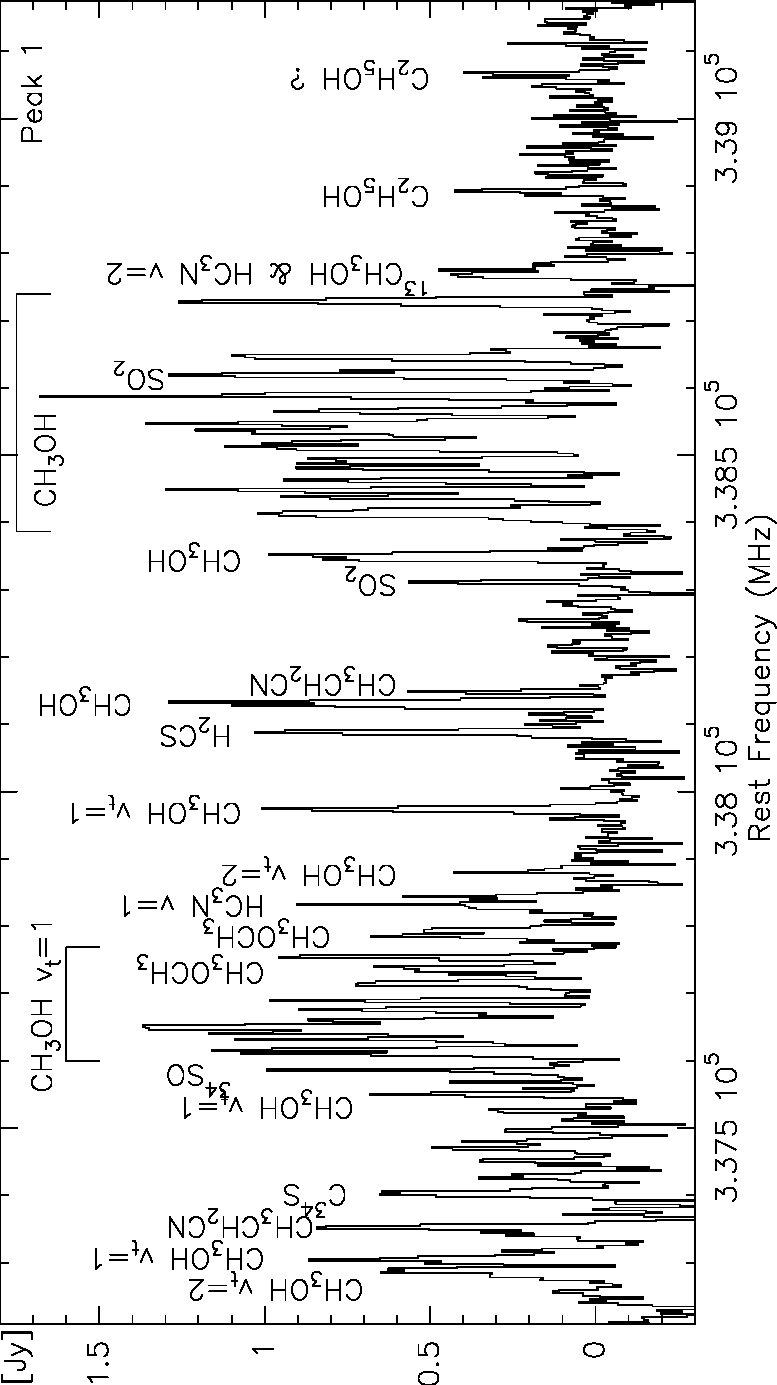

The 4 GHz of observed bandpass reveal a plethora of approximately 80 spectral lines from 18 molecular species, isotopologues or vibrationally excited lines. Only about 5% of the spectral lines remain unidentified. Most spectral lines peak toward the hot molecular core, while a few species also show more extended emission, likely due to molecular outflows and chemical differentiation. The CH3OH line forest allows us to investigate the temperature structure in more detail. We find hot core temperatures $\geq 300$ K and decreasing temperature gradients to the core edges. The SiO(8-7) observations confirm a previously reported outflow Gibb et al. (2004) in north-west south-east direction with a potential identification of a second outflow emanating approximately in perpendicular direction. Furthermore, C34S exhibits a peculiar morphology being weak toward the hot molecular core and strong in its surroundings, particular in the UCHii/hot core interface region. The C34S deficiency toward the hot molecular core may be explained by time-dependent chemical desorption from grains, where the C34S desorbs early, and later-on after H2O desorbs from grains forming OH, the sulphur reacts with the OH to form SO and SO2.

Furthermore, we were interested in identifying the best molecular line tracers to investigate the kinematics and potential disk-like structures in such dense and young massive star-forming regions. Most spectral lines do not exhibit any coherent velocity structure. A likely explanation for this uncorrelation between molecular line peaks and submm continuum peaks is that many spectral lines may be optically thick in such high-column-density regions, and that additional chemical evolution and temperature effects complicate the picture. Furthermore, many molecules are excited in various gas components (e.g., disk, envelope, outflow), and it is often observationally difficult to disentangle the different contributions properly. There are a few exceptions of optically thin and vibrationally excited lines that apparently probe deeper into the core tracing submm1 better than other transitions. Investigating the velocity pattern of these spectral lines, we find for some of them a velocity gradient in the north-east south-west direction perpendicular to the molecular outflow. Since the spatial scale of this structure is relatively large ($\sim$4800 AU) comprising three of the central protostellar sources, and since the velocity structure is not Keplerian, this is not a genuine Keplerian accretion disk. While these data are consistent with a larger-scale toroid or envelope that may rotate and/or globally collapse, we cannot exclude other explanations, such as that the influence of the outflow(s) and/or expanding UCHII region produces the observed velocity pattern. In addition to this, these data confirm previous findings that the high column densities, the large optical depths of the spectral lines, the chemical evolution, and the different spectral line contributions from various gas components make it very difficult to identify suitable massive accretion disk tracers, and hence to study this phenomenon in a more statistical fashion. (e.g., Beuther et al. 2006)

Acknowledgements.

We like to thank Peter Schilke and Sebastian Wolf for many interesting discussions about related subjects. We also thank the anonymous referee whose comments helped improving the paper. H.B. acknowledges financial support by the Emmy-Noether-Program of the Deutsche Forschungsgemeinschaft (DFG, grant BE2578).
