Temperature dependence of Coulomb drag between finite-length quantum wires

TL;DR

This paper investigates how Coulomb drag between finite-length quantum wires varies with temperature and bias voltage, revealing interference effects and non-Fermi-liquid behavior through oscillations and temperature-dependent amplitude changes.

Contribution

It provides a detailed analysis of Coulomb drag in finite-length Tomonaga-Luttinger-liquid wires, highlighting temperature effects and interference phenomena not previously characterized.

Findings

Drag current oscillates with bias voltage due to plasmon interference

Amplitude of oscillations decreases as temperature increases

Drag resistance decreases with temperature, indicating non-Fermi-liquid physics

Abstract

We evaluate the Coulomb drag current in two finite-length Tomonaga-Luttinger-liquid wires coupled by an electrostatic backscattering interaction. The drag current in one wire shows oscillations as a function of the bias voltage applied to the other wire, reflecting interferences of the plasmon standing waves in the interacting wires. In agreement with this picture, the amplitude of the current oscillations is reduced with increasing temperature. This is a clear signature of non-Fermi-liquid physics because for coupled Fermi liquids the drag resistance is always expected to increase as the temperature is raised.

Figures

Equations

$$H_{j}^{0}=\frac{\hbar v_{\mathrm{F}j}}{2}\int_{-\infty}^{\infty}\text{d}x\Bigl{[}\Pi_{j}^{2}+\frac{1}{g_{j}^{2}(x)}(\partial_{x}\Phi_{j})^{2}\Bigr{]}$$

$$H_j^V=-\frac{1}{\sqrt{\pi }}{\int }_{-\infty }^{\infty }\text{d}x{\mu }_j(x){\partial }_x{\Phi }_j(x),$$

$${\mu }_j(x)=\{\begin{array}{ll}{\mu }_{\mathrm{L}}^{(j)}& \text{for x<−Lj/2},\\ 0& \text{ for ∣x∣<Lj/2},\\ {\mu }_{\mathrm{R}}^{(j)}& \text{for x>Lj/2}\end{array}$$

$$H_{\mathrm{C}}={\lambda }_{\mathrm{BS}}{\int }_{-L_{<}/2}^{L_{<}/2}\text{d}x\cos \{\sqrt{4\pi }[{\Phi }_{<}(x)-{\Phi }_{>}(x)]\}.$$

$$I_{\mathrm{dr}}=I_{\mathrm{dr}}^{(0)}{\int }_0^1\text{d}R{\int }_0^{1-R}\text{d}r{j}_{\mathrm{dr}}(r,R),$$

$$\begin{gathered} j_{\mathrm{dr}}(r,R)=\frac{1}{2{\alpha }_{<}^{4g_{<}}}{\int }_{-\infty }^{\infty }\text{d}\tau \left({\text{e}}^{\text{i}u\tau }-{\text{e}}^{-\text{i}u\tau }\right) \\ \times \exp \left[4\pi C_{<}(r,R;\tau )+4\pi C_{>}\left(\frac{r}{l},\frac{R}{l};\frac{q\tau }{pl}\right)\right], \end{gathered}$$

$$C_{j}^{\mathrm{GS}}(r,R;\tau)=-\frac{g_{j}}{4\pi}\sum_{\begin{subarray}{c}k\in\mathbb{Z}\\ s=\pm\end{subarray}}\biggl{[}\gamma_{j}^{\left|2k\right|}\ln\biggl{(}\frac{\alpha_{j}+\text{i}(\tau-sr-2k)}{\alpha_{j}+\text{i}(-2k)}\biggr{)}+\gamma_{j}^{\left|2k+1\right|}\ln\biggl{(}\frac{\alpha_{j}+\text{i}(\tau-sR-2k-1)}{[\alpha_{j}^{2}+(r-sR-2k-1)^{2}]^{1/2}}\biggr{)}\biggl{]},$$

$$C_{j}^{\mathrm{TF}}(r,R;\tau)=-\frac{g_{j}}{4\pi}\sum_{\begin{subarray}{c}k\in\mathbb{Z}\\ s=\pm\end{subarray}}\biggl{[}\gamma_{j}^{\left|2k\right|}\ln\biggl{(}\frac{\mathop{\text{sinch}}[\pi\theta(\tau-sr-2k)]}{\mathop{\text{sinch}}[\pi\theta(-2k)]}\biggr{)}+\gamma_{j}^{\left|2k+1\right|}\ln\biggl{(}\frac{\mathop{\text{sinch}}[\pi\theta(\tau-sR-2k-1)]}{\mathop{\text{sinch}}[\pi\theta(r-sR-2k-1)]}\biggr{)}\biggr{]},$$

$$j_{\mathrm{dr}}(r,R)\underset{u\gg 1}{\sim }\frac{{\pi }^{3/2}}{\Gamma (2g)}{\left(\frac{u}{2r}\right)}^{2g-1/2}{J}_{2g-1/2}(ur),$$

$$I_{\mathrm{dr}}\underset{u\gg 1}{\sim }{I}_{\mathrm{dr}}^{(0)}\frac{{\pi }^2}{2{\Gamma }^2(2g)}{\left(\frac{u}{2}\right)}^{4g-2},$$

$$I_{\mathrm{dr}}\underset{\theta \gg 1}{\sim }{I}_{\mathrm{dr}}^{(0)}(2\pi \theta {)}^{4g-2}\sinh \left(\frac{u}{2\theta }\right)\frac{{\left|\Gamma \left(g+\frac{\text{i}u}{4\pi \theta }\right)\right|}^4}{4{\Gamma }^2(2g)}.$$

$$I_{\mathrm{dr}}\underset{\theta \gg 1,u}{\sim }{I}_{\mathrm{dr}}^{(0)}\frac{\pi {\Gamma }^4(g)}{4{\Gamma }^2(2g)}(2\pi \theta {)}^{4g-3}u,$$

$$I_{\mathrm{dr}}\underset{\theta\gg 1}{\sim}I_{\mathrm{dr}}^{(0)}\biggl{[}\frac{\pi^{2}}{2}\tanh\left(\frac{u}{4\theta}\right)\\ +\frac{1}{4\theta}\mathop{\text{Im}}\left\{\Psi^{\prime}\left(\frac{1}{2}+\frac{\text{i}u}{4\pi\theta}\right)\right\}\biggr{]},$$

Full text

Coulomb drag phenomena in coupled one-dimensional (1D) electron systems have been investigated quite extensively in the past Flensberg (1998); Nazarov and Averin (1998); Komnik and Egger (1998); Gurevich et al. (1998); Klesse and Stern (2000); Ponomarenko and Averin (2000); Trauzettel et al. (2002); PusPRL03 ; Fiete et al. (2006); PusPRL06 . The interest has mainly been driven by the fact that Coulomb drag, i.e. the electrical response of one wire as a finite bias is applied to the other wire, seems to be an ideal testing ground for Tomonaga-Luttinger-liquid (TLL) physics in nature. This is because both inter-wire and intra-wire Coulomb interactions substantially modify transport properties such as the average current and the current noise. On the experimental side, there have been a few works, some of which have claimed to have observed TLL behavior in the drag data DebPHE00 ; DebJPCM01 ; Yamamoto et al. (2002). Recently, Yamamoto and coworkers have measured Coulomb drag in coupled quantum wires of different lengths and found peculiar transport properties that depend, for instance, on the asymmetry of the two wires Yamamoto et al. (2006). This experiment is the major motivation for our work.

We analyze theoretically the Coulomb drag current of two electrostatically coupled quantum wires using the concept of the inhomogeneous TLL model Maslov and Stone (1995); Ponomarenko (1995); Safi and Schulz (1995). This model is known to capture the essential physics of an interacting 1D wire of finite length coupled to non-interacting (Fermi liquid) electron reservoirs. Within this framework, we are able to study finite-length and finite-temperature effects and therefore to make qualitative contact with the experimental setup of Ref. Yamamoto et al. (2006). Since the Coulomb interaction varies between the wire regions and the lead regions, charge excitations feel the interaction difference at the boundaries and are known to exhibit Andreev-type reflections Safi and Schulz (1995). We show that these reflections play a crucial role in the Coulomb drag setup illustrated in Fig. 1. Furthermore, we show that the quantum interference phenomena associated with the Andreev-type reflections considerably modify the drag current. This is particularly interesting as far as the temperature dependence of the drag current is concerned. For Fermi-liquid systems, it is well known that the drag resistance should always increase as the temperature is raised Ponomarenko and Averin (2000). In our setup instead, the drag current at a fixed drive bias can either increase or decrease as a function of temperature. It crucially depends on the interference pattern due to finite-length effects. This is a clear signature of non-Fermi-liquid physics which could be observed in the double-wire setup of Ref. Yamamoto et al. (2006).

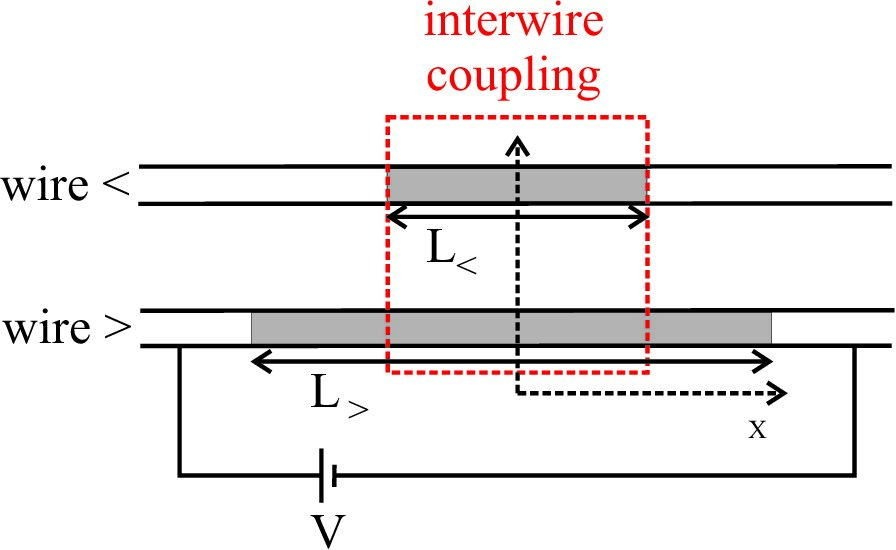

The system considered consists of two interacting parallel wires ($j={\mathrm{<}},{\mathrm{>}}$) of finite length $L_{\mathrm{<}}$ (shorter wire) and $L_{\mathrm{>}}$ (longer wire) connected to non-interacting semi-infinite 1D leads (Fig. 1) and is described by the Hamiltonian $H=\sum_{j={\mathrm{<}},{\mathrm{>}}}\left[H_{j}^{0}+H_{j}^{V}\right]+H_{\mathrm{C}}$. The intra-wire interaction is modelled through a TLL description Maslov and Stone (1995); Ponomarenko (1995); Safi and Schulz (1995)

[TABLE]

with the piecewise constant interaction parameter $g_{j}(x)=g_{j}<1$ in the wire region ${\left|x\right|}<L_{j}/2$ and $g_{j}(x)=1$ in the non-interacting lead regions ${\left|x\right|}>L_{j}/2$. The Fermi velocity $v_{\mathrm{F}j}$, the interaction strength $g_{j}$, and the wire length $L_{j}$ set the frequency $\omega_{Lj}=v_{\mathrm{F}j}/g_{j}L_{j}$ of the collective plasmonic excitations hosted in each wire. A voltage $eV_{j}=\mu_{\mathrm{L}}^{(j)}-\mu_{\mathrm{R}}^{(j)}$ applied to the leads is described by

[TABLE]

with the piecewise constant electro-chemical potential

[TABLE]

with $\mu_{\mathrm{L}}^{(j)}=-\mu_{\mathrm{R}}^{(j)}$. This model is expected to capture the essential physics of a quantum wire coupled smoothly to electron reservoirs (with typical smoothing length $L_{s}$) as long as $L_{j={\mathrm{<}},{\mathrm{>}}}\gg L_{s}\gg\lambda_{F}$, where $\lambda_{F}$ is the electron Fermi wavelength Dolcini et al. (2005); Enss05 . Finally, we include an inter-wire backscattering interaction over the length $L_{\mathrm{<}}$ of the shorter wire,

[TABLE]

This term includes the contribution of the density-density interaction which is most relevant to Coulomb drag Flensberg (1998); Nazarov and Averin (1998) when the Fermi wave-vectors of both wires are similar in magnitude, i.e. $k_{\mathrm{F}{\mathrm{<}}}\approx k_{\mathrm{F}{\mathrm{>}}}$ 111Inter-wire forward-scattering is not explicitely included in our model as it can be recast in a mere renormalization of the intra-wire interaction strength $g_{j}$ of each wire Klesse and Stern (2000). We also neglect electron tunneling between the two wires for two reasons: (i) It is a less relevant process than $H_{\mathrm{C}}$ in a renormalization group sense Komnik and Egger (2001). (ii) It can be tuned to zero in a Coulomb drag experiment DebJPCM01 . We assume to be away from half-filling where Umklapp scattering is forbidden..

In the following, we choose to apply a voltage $V_{\mathrm{>}}=V$ to the longer wire ($\mu_{\mathrm{L}}^{{\mathrm{>}}}=-\mu_{\mathrm{R}}^{{\mathrm{>}}}=eV/2$, drive wire) and none $V_{\mathrm{<}}=0$ to the shorter wire ($\mu_{\mathrm{L}}^{{\mathrm{<}}}=\mu_{\mathrm{R}}^{{\mathrm{<}}}=0$, drag wire). The average current in the wires may then be written as $I_{\mathrm{<}}=I_{\mathrm{dr}}$ and $I_{\mathrm{>}}=\frac{e^{2}}{h}V-I_{\mathrm{dr}}$. In our model, the two currents $I_{\mathrm{<}}$ and $I_{\mathrm{>}}$ always flow in the same direction, which is due to momentum conservation. This is known as positive Coulomb drag.

In order to get an expression for the drag current $I_{\mathrm{dr}}$, we follow the formalism used in Dolcini et al. (2005) in the case of a single wire with an impurity. We consider the situation of weak inter-wire coupling. To second order in $\lambda_{\mathrm{BS}}$, we obtain

[TABLE]

with the normalization $I_{\mathrm{dr}}^{(0)}={e\lambda_{\mathrm{BS}}^{2}L_{\mathrm{<}}^{2}\alpha_{\mathrm{<}}^{4g_{\mathrm{<}}}}/{\hbar^{2}\omega_{L{\mathrm{<}}}}$, where $\alpha_{\mathrm{<}}=\omega_{L{\mathrm{<}}}/\omega_{\mathrm{c}}$ is the ratio between the plasmon frequency of the shorter wire and a cutoff frequency $\omega_{\mathrm{c}}$, of the order of the wire bandwidth. The plasmon frequency defines a voltage $V_{L}=\hbar\omega_{L{\mathrm{<}}}/e$ and a temperature $T_{L}=\hbar\omega_{L{\mathrm{<}}}/k_{\mathrm{B}}$. It is convenient to introduce corresponding dimensionless voltage $u=V/V_{L}$ and temperature $\theta=T/T_{L}$. The integrand in (5),

[TABLE]

involves the parameters $l=L_{\mathrm{>}}/L_{\mathrm{<}}$, $p=g_{\mathrm{>}}/g_{\mathrm{<}}$, and $q=v_{\mathrm{F}{\mathrm{>}}}/v_{\mathrm{F}{\mathrm{<}}}$. The correlation function $C_{j}=C_{j}^{\mathrm{GS}}+C_{j}^{\mathrm{TF}}$ of each wire can be decomposed in a zero-temperature and a finite-temperature contribution given by Dolcini et al. (2005)

[TABLE]

[TABLE]

with $\gamma_{j}=(1-g_{j})/(1+g_{j})$ and $\mathop{\text{sinch}}x=(\sinh x)/x$.

It is to be noted that the expression for the drag current $I_{\mathrm{dr}}$ does not depend on whether the drive wire is the longer wire or the shorter one due to the symmetry of our model. In the following, we present results obtained by numerical evaluation of the triple integral involved in (5) and (6) and discuss several analytical approximations.

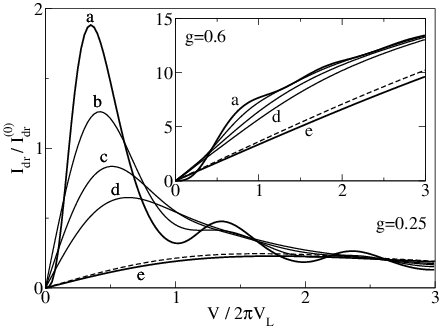

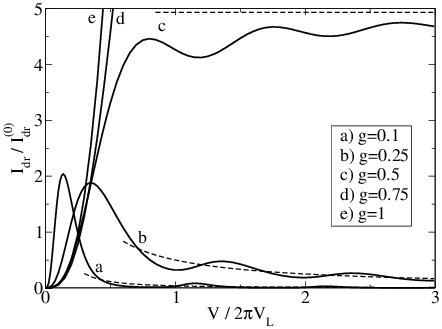

First we set the temperature to zero and consider identical wires ($l=p=q=1$, thus we drop the wire index $j$). The drag current shows non-monotonous behavior and oscillations with period $\sim 2\pi\hbar\omega_{L}/e$ as a function of the bias voltage (Fig. 2). It decays at large voltages for $g<1/2$ whereas it increases for $g>1/2$. Thus, we obtain qualitatively the same behavior as in a dual Coulomb drag setup where a drive current is applied and a drag voltage is measured Nazarov and Averin (1998). Similar oscillations as a function of voltage have been predicted in the context of two coupled fractional quantum Hall line junctions zuel04 .

An analytic approximation can be derived in the limit $u=eV/\hbar\omega_{L}\gg 1$, that is for high voltages or long wires. In Eq. (7), the terms proportional to $\gamma^{{\left|m\right|}}$ account for contributions from plasmon excitations reflected ${\left|m\right|}$ times inside the wire. When the wire length is much longer than other relevant length scales, the contribution without any reflection $m=0$ becomes dominant and yields the integrand

[TABLE]

where $\Gamma(z)$ denotes the Gamma function and $J_{\nu}(z)$ the Bessel function of order $\nu$. The resulting expression for the drag current, which involves hypergeometric functions, underestimates the amplitude of the oscillations with respect to the exact numerical result. However, the behavior at large $u$, governed by the dominant contribution

[TABLE]

shows good agreement in the appropriate parameter regime (dashed curves in Fig. 2). Since we do perturbation theory in $\lambda_{\rm BS}$, the relation $I_{\mathrm{dr}}\ll(e^{2}/h)V$ has to hold. In the large $u$ regime, this means $(\lambda_{\rm BS}L/\hbar\omega_{c})^{2}(\omega_{L}/\omega_{c})(eV/\hbar\omega_{c})^{4g-3}\ll 1$.

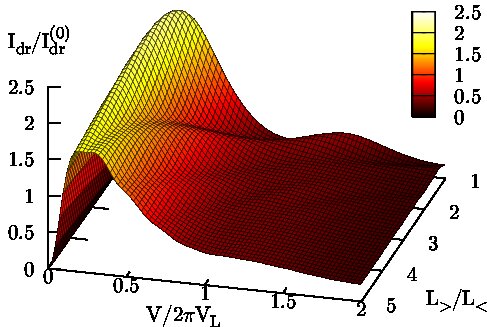

Now we consider the situation where the two wires have different lengths. The qualitative behavior of the drag current does not change for increasing length ratio $l=L_{\mathrm{>}}/L_{\mathrm{<}}$, but the peak positions get shifted to lower voltages (Fig. 3). Here, neglecting plasmon reflections in the correlation function of the wires leads again to the expression (9), which is independent of $l$. This fact explains why the drag current does not change appreciably as a function of $l$ and indicates that the peak shifts observed result from plasmon reflections inside the wires. Our studies are the first to analyze the effect of an asymmetry in the length on Coulomb drag phenomena in coupled quantum wires which is of recent experimental relevance Yamamoto et al. (2006).

We now discuss in detail the temperature dependence of the drag current. For clarity, we consider again symmetric wires ($l=1$) 222In view of the results shown in Fig. 3, we do not expect any qualitative changes of the predicted temperature dependence for the case $l=1$ as we make the wires asymmetric in length ($l\neq 1$).. The oscillations of the drag current as a function of bias voltage get washed out with increasing temperature (Fig. 4). This behavior is consistent with the picture which attributes the oscillations to interferences of the plasmon excitations of the wires. Thus, for bias voltages such that the drag current is close to a maximum at zero temperature, one observes a decrease of the drag current with increasing temperature, whereas the opposite behavior can be observed close to a minimum of the zero-temperature drag current for strong interactions. This behavior is in stark contrast to the linear temperature dependence predicted for Coulomb drag between 1D Fermi-liquid conductors Gurevich et al. (1998) and therefore a clear signature of TLL physics. Note that our Fig. 4 bears significant resemblance to Fig. 9 of Ref. DebJPCM01 .

A good approximation of the drag current can be obtained for temperatures much larger than the temperature associated with the plasmon frequency, $\theta=k_{\mathrm{B}}T/\hbar\omega_{L}\gg 1$, by neglecting contributions from plasmon reflections in the wires. Then, we obtain the dominant contribution

[TABLE]

Taking the limit of low bias voltage in this result,

[TABLE]

we recover the power-law dependence $T^{4g-3}$ of the linear conductance predicted by renormalization group analysis Klesse and Stern (2000). At large bias voltage $u\gg\theta\gg 1$, we recover the zero-temperature result (10).

In the case $g=1/2$, Eq. (11) as well as the contribution to next order in $\theta^{-1}$ can be brought into a compact analytic form

[TABLE]

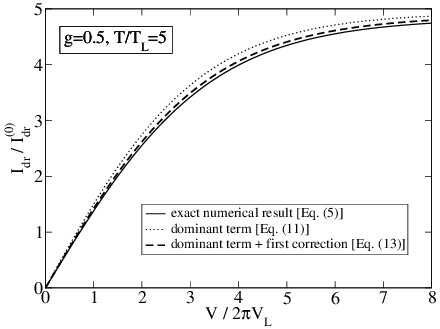

where $\Psi^{\prime}(z)=\text{d}^{2}\ln\Gamma(z)/\text{d}z^{2}$ denotes the trigamma function. The first term is Eq. (11) evaluated at $g=1/2$ (dotted curve in Fig. 5), and the second one is the dominant correction, which takes values within $[-I_{\mathrm{dr}}^{(0)}/\theta,0]$ (included in the dashed curve in Fig. 5). This illustrates that the first-order approximation already yields a nice qualitative description for the full numerical result, which makes us confident that Eq. (11) is a good high-temperature approximation also for $g\neq 1/2$.

In summary, we have analyzed two coupled quantum wires that exhibit both a finite intra-wire interaction and a finite inter-wire interaction. We have taken into account finite-length effects within the inhomogeneous TLL model that is known to capture the essential physics of quantum wires coupled to Fermi-liquid reservoirs. We have investigated how an asymmetry in the lengths of the wires changes the drag current and we have predicted a rich temperature dependence of the drag current that shows clear signatures of non-Fermi-liquid physics.

We would like to thank F. Dolcini, H. Grabert, M. Kindermann, Y. Nazarov, S. Tarucha, and M. Yamamoto for interesting discussions. This work was supported by the Swiss NSF and the NCCR Nanoscience.
