Annealed importance sampling of dileucine peptide

TL;DR

This paper demonstrates annealed importance sampling on a dileucine peptide, showing it can efficiently estimate equilibrium distributions during simulated annealing, with potential benefits for various molecular simulations.

Contribution

The paper introduces a simple implementation of annealed importance sampling for peptides, highlighting its efficiency and ease of use in molecular simulation contexts.

Findings

Equilibrium distributions are attainable with manageable cooling schedules.

The method is modestly more efficient than constant temperature simulation.

Naive implementation can be improved for better performance.

Abstract

Annealed importance sampling is a means to assign equilibrium weights to a nonequilibrium sample that was generated by a simulated annealing protocol. The weights may then be used to calculate equilibrium averages, and also serve as an ``adiabatic signature'' of the chosen cooling schedule. In this paper we demonstrate the method on the 50-atom dileucine peptide, showing that equilibrium distributions are attained for manageable cooling schedules. For this system, as naively implemented here, the method is modestly more efficient than constant temperature simulation. However, the method is worth considering whenever any simulated heating or cooling is performed (as is often done at the beginning of a simulation project, or during an NMR structure calculation), as it is simple to implement and requires minimal additional CPU expense. Furthermore, the naive implementation presented here can be improved.

Figures

Tables

Table 1. Table 1: Comparison of the efficiency of AIS between several cooling schedules. n 𝑛 n is given by Eq.  4 , t cost subscript 𝑡 cost t_{\text{cost}} is given by Eq.  6 . The efficiency gain is the total simulation time invested in each successful annealed structure t cost subscript 𝑡 cost t_{\text{cost}} divided by the time needed to generate an indepenendent structure by constant temperature simulation. The † indicates schedules for which data are presented in Figs.  1 and 2 .

T-steps	Annealing time	Successful	Fractional	Net cost	Efficiency
	$t_{\text{anneal}}$	structures	success rate		gain
$M$	$=\left(M-2\right)t_R$	$n$	$f\equiv n/N$	$t_{\text{cost}}$ (nsec)	$R$
$3^{†}$	$0.5$ psec	$7.1$	$4.4\times {10}^{-4}$	$1.94$	$1.5$
$5^{†}$	$1.5$ psec	$43.7$	$2.7\times {10}^{-3}$	$1.36$	$2.2$
${17}^{†}$	$1.5$ psec	$137.6$	$8.6\times {10}^{-3}$	$0.97$	$3.1$
$33$	$1.5$ psec	$46.2$	$2.9\times {10}^{-3}$	$1.32$	$2.3$
$9^{†}$	$3.5$ psec	$163.2$	$1.0\times {10}^{-2}$	$1.15$	$2.6$
$17$	$7.5$ psec	$205.3$	$1.3\times {10}^{-2}$	$1.38$	$2.2$
$17$	$15.0$ psec	$237.2$	$1.5\times {10}^{-2}$	$1.80$	$1.7$
$17$	$30.0$ psec	$353.8$	$2.2\times {10}^{-2}$	$2.16$	$1.4$

Equations

$$⟨A{⟩}_{M-1}{Z}_{M-1}=\int d\mathbf{x}A(\mathbf{x}){\pi }_{M-1}(\mathbf{x})=\int d\mathbf{x}A(\mathbf{x}){\pi }_M(\mathbf{x})w(\mathbf{x}),$$

$$w_j\equiv w({\mathbf{x}}_j(t_0))=\prod _{i=1}^M\frac{{\pi }_{i-1}({\mathbf{x}}_j(t_{i-1}))}{{\pi }_i({\mathbf{x}}_j(t_{i-1}))}.$$

$$⟨A{⟩}_0=\frac{{\sum }_{j=1}^N{w}_j{A}_j}{{\sum }_{j=1}^N{w}_j}$$

$$n\equiv \frac{{\sum }_{i=1}^N{w}_i}{w_{\text{max}}}\equiv fN,$$

$$t_{\text{anneal}}=t_R(M-2)$$

$$t_c={\tau }_M+t_{\text{anneal}}/f.$$

Full text

1 Introduction

Simulated annealing (SA) is used in a wide variety of biomolecular calculations. Crystallographic refinement protocols[2] and standard NMR structure calculations[3, 4, 5] both rely on SA to optimize a “target function,” constructed so that the global minimum of the target function corresponds to the native structure. Molecular dynamics calculations often begin by cooling a configuration from a high temperature ensemble to a lower temperature, at which the simulation is to be performed.

In this paper, we consider a different use for SA calculations. Since a set of structures that is generated by a series of SA trajectories is a nonequilibrium sample, they may not be used to calculate equilibrium averages. However, Neal demonstrated a simple procedure, called “annealed importance sampling” (AIS) that allows the nonequilibrium sample to be reweighted into an equilibrium one[1]. AIS is closely connected with the Jarzynski relation[6]. To our knowledge, the algorithm has only appeared once in the chemical physics literature[7], where it was used (along with sophisticated Monte Carlo techniques) to sample a one-dimensional potential. Here, we demonstrate an application of the AIS algorithm to generate an equilibrium sample of an implicitly solvated peptide, and discuss other uses for AIS which may of interest to the molecular simulation community.

The basic idea which underlies SA is also the motivation for other temperature based sampling methods, notably J-walking[8], simulated tempering[9, 10] and replica exchange/parallel tempering[11, 12]. By coupling a simulation to a high temperature reservoir, it is hoped that the low temperature simulation may explore the configuration space more thoroughly. This is achieved by thermally activated crossing of energetic barriers, which are large compared to the thermal energy scale of the lower temperature simulation, but are crossed more frequently at higher temperature. Simulated and parallel tempering differ in the way that the different temperature simulations are coupled. Simulated tempering heats and then cools the system, in a way that maintains an equilibrium distribution. Parallel tempering couples simulations run in parallel at different temperatures by occasionally swapping configuartions between temperatures, again in such a way that canonical sampling is maintained.

AIS offers yet another approach to utilizing a high temperature ensemble for equilibrium sampling at a lower temperature. A sample of a high temperature ensemble is annealed to a lower temperature, by alternating constant temperature simulation with steps in which the tempertaure is jumped to a lower value. Each annealed structure is assigned a weight, which depends on the trajectory that was traced during the annealing process. Equilibrium averages over the lower temperature ensemble may then be calculated by a simple weighted average. Furthermore, the distribution of trajectory weights contains useful information about the statistics of the annealed sample. Roughly, a schedule which quenches high temperature structures very rapidly to low temperature will result in a sample dominated by a few high weight structures, resulting in poor statistics. This connection between the distribution of weights and the extent to which the schedule is not adiabatic ought to be of interest to anyone who uses SA protocols—whether for equilibrium sampling or for structure calculation.

We have used the AIS method to generate $298$ K equilibrium ensembles of the dileucine peptide, by annealing structures from a $500$ K distribution with several different cooling schedules. For the most efficient schedule used, we found a modest gain (about a factor of $3$) over constant temperature simulation. This result is consistent with earlier observations on the expected efficiency of temperature-based sampling methods[13].

2 Theory

Consider a standard simulated annealing (SA) trajectory, in which a protein is slowly cooled from a conformation $\mathbf{x}$ at a (high) temperature $T_{M}$. The cooling is achieved by alternating constant temperature dynamics with “temperature jumps,” during which the temperature is lowered instantaneously. Usually, the system is cooled to a low temperature, since the aim of standard SA calculations is to find the global minimum on the energy landscape. But we can imagine instead ending the run at $T_{0}=300$ K—in fact, we can think of many such runs, all ending at $300$ K. We then have an ensemble of conformations, though clearly not distributed canonically at $T_{0}$. We would like to know if there is a way to reweight this distribution, so that it can be used to compute equilibrium averages at $T_{0}$. The affirmative answer is provided by the annealed importance sampling (AIS) method.

To make the discussion more concrete, consider many independent annealing trajectories $\mathbf{x}_{j}(t)$ which at time $t_{M-1}$ have just been cooled from inverse temperature $\beta_{M}$ to $\beta_{M-1}$. As usual, each temperature defines a distribution of conformations: $\pi_{i}(\mathbf{x})\propto\exp[-\beta_{i}U(\mathbf{x})]$. Immediately after $t_{M-1}$, before the system is allowed to relax to $\pi_{M-1}(\mathbf{x})$, we can compute the equilibrium average of an arbitrary quantity $A$ over $\pi_{M-1}(\mathbf{x})$ by using the weight $w(\mathbf{x})=\pi_{M-1}(\mathbf{x})/\pi_{M}(\mathbf{x})$:

[TABLE]

where $\langle A\rangle_{i}$ denotes an average over $\pi_{i}$, and $Z_{i}=\int d\mathbf{x}\,\pi_{i}(\mathbf{x})$. In other words, we may reweight the distribution $\pi_{M}(\mathbf{x})$ to calculate averages over $\pi_{M-1}(\mathbf{x})$, by multiplying by the ratio of Boltzmann factors.

Generalizing the argument to $M$ temperature steps is straightforward[1], by forming the product of weights for successive cooling steps:

[TABLE]

Equation 2 gives the weight for trajectory $j$, cooled at successive times $t_{M-1}$, $t_{M-2}$,… through inverse temperatures $\beta_{M}$, $\beta_{M-1}$,… to reach conformation $\mathbf{x}_{j}(t_{0})$. At each temperature, reweighting ensures that averages may be calculated for the appropriate canonical distribution, even though the system has not yet relaxed.

The AIS idea is easily turned into an algorithm for producing a canonical distribution from serially generated annealing trajectories:

(i) Generate a sample of the distribution $\pi_{M}(\mathbf{x})$, by a sufficiently long simulation at $T_{M}$.

(ii) Pull a conformation from $\pi_{M}(\mathbf{x})$ at random and anneal down to $\beta_{0}$, yielding conformation $\mathbf{x}_{1}(t_{0})$. Keep track of the weight $w(\mathbf{x}_{1}(t_{0}))$ for this trajectory by Eq. 2.

(iii) Repeat steps (iii) and (iv) $N$ times, yielding congiurations $\mathbf{x}_{j}$ and weights $w(\mathbf{x}_{j})\equiv w_{j}$ for $j=1,1,...,N$.

Equilibrium averages at temperature $T_{0}$ are then calculated by a weighted average:

[TABLE]

The cooling schedule is defined by the number and spacing of the temperature steps, as well as the duration of the constant temperature simulation at each step. As available resources necessarily limit the CPU time spent on each annealing trajectory, careful consideration of the schedule is in order. Clearly, a schedule in which high temperature configurations are quenched in one step to low temperature amounts to a single-step reweighting procedure[14]. We may expect that such a schedule would be quite ineffective for large temperature jumps, since very few configurations in the high temperature distribution have appreciable weight in the low temperature distribution. By introducing intermediate steps, the system is allowed to relax locally, bridging the high and low temperature distributions in a way that echoes replica exchange protocols[11, 12], simulated tempering[9, 10], and the multiple histogram method[15]. However, the “top-down” structure of the algorithm most closely resembles J-walking[8, 16].

3 Results

The dileucine peptide (ACE-[Leu]2-NME) is good choice for the validation of new algorithms, as it is small enough ($50$ atoms, including nonpolar hydrogens) that exhaustive sampling by standard simulation methods is possible, yet more akin to protein systems than a one- or two-dimensional “toy” model.

The high temperature ensemble was generated by $300$ nsec of Langevin dynamics at $T_{M}=500$ K, as implemented in Tinker v. $4.2.2$[17], with a timestep of $1.0$ fsec, and a friction constant of $91$ psec*-1*, and solvation was treated by the GB/SA method[18]. Frames were written every psec, resulting in a sample of $3\times 10^{4}$ frames in the high temperature sample.

The $500$ K sample was annealed down to $298$ K using $4$ different schedules, consisting of a total of $3$, $5$, $9$, and $17$ temperatures, including the endpoints. In each case, the temperatures were distributed geometrically. Following each temperature jump, the velocities were reinitialized by sampling randomly from the Maxwell-Boltzmann distribution, and then allowed to relax at constant temperature for a time $t_{R}=0.5$ psec (except where noted) with the protocol described above. A total of $N=1.6\times 10^{4}$ annealing trajectories were generated for each schedule. The control of the integration routine to effect the annealing, as well as the calculation of the trajectory weights, were implemented in a Perl script.

Figure 1 shows that the $298$ K distribution of energy is recovered by the AIS procedure. It is noteworthy that the $500$ K distribution (corresponding to the high $T$ sample) overlaps very little with the $298$ K distribution, and yet the $298$ K distribution is reproduced well for the two slowest schedules. Equally interesting is how poorly the algorithm performs when the structures are cooled too rapidly, especially on the low $E$ side of the distribution, where there is no overlap with the high $T$ distribution. We conclude that the schedules with $3$ or $5$ $T$-steps quench the structures too rapidly, resulting in many of the trajectories becoming “stuck” in high-energy states that are metastable at $298$ K.

This last observation may be quantified by asking, “How many of the annealed structures contribute appreciable weight to averages calculated with Eq. 3?” To address this question, for each schedule we estimated the number of configurations $n$ which contribute appreciable weight to the averages:

[TABLE]

where $w_{max}$ is the largest weight observed (see Table 1). If this number is near $1$, then a small number of trajectories dominate the average—see Eq. 3 —and poor results should be expected. The effective fraction of the annealing trajectories which generate “useful” or “successful” structures is denoteed by $f$.

A more complete picture is provided by the full distribution of the (logarithm of) trajectory weights (Fig. 2). For each schedule, the weights which contribute the most to the $T=298$ K sample are to the right, at large values of $w$. The trend is clear—as slower cooling is effected, the distribution narrows and shifts to the right. It has been shown that the accuracy of averages computed from this type of protocol is roughly related to the variance of the (adjusted) weights[1]. (The adjusted weight is the weight divided by the average weight.) This “rule of thumb” is borne out by the data in Fig. 2 and Table 1—as the cooling slows down the distribution of weights narrows, and the number of trajectories contributing to the equilibrium averages increases. This type of analysis may serve as a means of distinguishing between annealing schedules to decide on a cooling schedule which is slow enough to yield reasonable estimates of equilibrium averages. It is also essential for optimizing an AIS protocol for sampling efficiency, as discussed in the next few paragraphs.

How much better than standard simulation (if at all) is equilibrium sampling by AIS? In order to make a direct comparison between AIS and constant temperature simulation, we need to compare the CPU time invested per statistically independent configuration in each protocol. For the constant temperature simulation, this time may be estimated in several ways[19, 20], and is essentially the time needed for the simulation to “forget” where it has been. Following the convention for correlation times, we call this time $\tau_{i}=\tau(T_{i})$, where $i$ labels the temperature: $M$ for the high $T$ distribution, and [math] for the low $T$ distribution. For the system studied here, $\tau_{M}=0.8$ nsec and $\tau_{0}=3.0$ nsec, as estimated from timseries of the $\alpha\rightarrow\beta$ backbone dihedral transition[13].

The total cost to generate a structure in an AIS simulation is the sum of the costs of generating a structure in the high $T$ distribution plus that for the annealing phase. Of course, not every annealing trajectory contributes to thermodynamic averages(Eq. 3). What then is the total cost $t_{\text{cost}}$ of a “successful” annealed structure? The first part is from high temperature sampling—i.e., $\tau_{M}$. The second part is the cost of all the annealing trajectories, divided by the number which contribute to equilibrium averages. The time $t_{\text{anneal}}$ is the time spent annealing each structure:

[TABLE]

Recall that $t_{R}$ is the duration of the constant temperature relaxation steps, and there is no relaxation phase at the highest and lowest temperatures.

The total cost $t_{\text{cost}}$ is then the sum of $\tau_{M}$ and $t_{\text{anneal}}$:

[TABLE]

The efficiency of an AIS protocol may then be computed by taking the ratio $R\equiv\tau_{0}/t_{\text{cost}}$ (see Table 1), which gives the factor by which an AIS protocol is more or less efficient than constant temperature simulation. The data in Table 1 show that the best schedule used here offer a modest speedup over constant temperature simulation, of a factor of about $3$. These findings are in agreement with an analysis we have published of another temperature-based sampling protocol[13]. We note that an optimized AIS protocol would require tuning $N$ based on (perhaps preliminary) estimates of $f$.

It is instructive to compare the AIS results to simple reweighting—i.e., AIS with no intermediate temperature steps or relaxation. In this case, no computer time is spent annealing, and the efficiency gain is simply $\tau_{0}/\tau_{M}=3.75$. The fraction $f$ is of course reduced compared to any AIS protocol—when reweighting our $500$ K dileucine trajectory to $298$ K distribution, $f=1.3\times 10^{-4}$—but this has no impact on the efficiency, provided a sufficient number of snapshots are available for reweighting. However, it is clear that $f$ will be greatly reduced in systems which undergo a folding transition upon lowering the temperature. This is simply a reflection of the fact that there is negligible overlap between the folded and unfolded distributions. In such cases, a useful reweighting protocol would require the generation of astronomical numbers of structures in the $T_{M}$ distribution, and annealing is advised.

4 Conclusion

We have demonstrated the application of Neal’s annealed importance sampling (AIS) algorithm for equilibrium sampling of the dileucine peptide. AIS allows the calculation of equilibrium averages from a nonequilibrium sample of strutures that results from a simulated annealing protocol. To our knowledge, AIS has not previously been applied to a molecular system. While the method, as naïvely implemented here, represents only a modest improvement over constant temperature simulation, it is interesting for several reasons beyond equilibrium sampling.

First, in applications where simulated annealing is already in widespread use (most notably, NMR structure calculations[3, 4, 5]), the path weights may be used to calculate (perhaps noisy) equilibrium averages, and perhaps ultimately Boltzmann-distributed ensembles. The path weights also contain information that can be used to discriminate between different schedules, which may provide a way to optimize the schedule, based on the analysis of $t_{\text{ann}}$, the cost of annealing to “good” structures.

Second, it may be possible to improve considerably on the efficiency of the method by implementing a more sophisticated version, which uses a resampling procedure to prune the low weight paths at each cooling step. (For a detailed discussion of resampling methods, see the book by Liu[21].) In this approach, we first cool some number $N$ of structures from the high temperature ($T_{M}$) ensemble, yielding $N$ weighted structures at $T_{M-1}$. We then resample $N$ times from this $T_{M-1}$ ensemble, according to the cumulative distribution function of the weights, pruning the low weight paths without biasing the sample. This type of approach was recently applied successfully to sampling near native protein configurations of a discretized and coarse-grained model[22]. Nevertheless, we emphasize that the ultimate efficiency of any AIS protocol limited by the intrinsic sampling rate of the highest temperature, which may be modest; see Ref. LABEL:repex-note.

Finally, the AIS procedure could be naturally combined with “annealing” in the parameters of the Hamiltonian. Such a hybrid of AIS and Hamiltonian switching might be used, for example, to transform an NMR target function into a molecular mechanics potential function, over the course of a structure calculation. The result of such a calculation would be an equilibrium ensemble of structures, distributed according to the molecular mechanics potential. Such ensembles would find wide application, for instance in docking or homology modeling.

Acknowledgements The authors thank Gordon Rule for several enlightening discussions about NMR methodology. D. Z. thanks Chris Jarzynski for alerting him to Neal’s work on AIS. This research was supported by the NSF (MCB-0643456), the NIH (GM076569), and the Department of Computational Biology, University of Pittsburgh.

Figure Legends

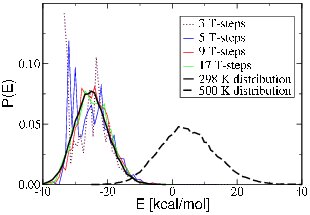

Figure 1.

Distribution of energies, from standard, constant temperature simulation and AIS. The dashed line is the $T=500$ K distribution that was used for the high $T$ ensemble. The other data compare a $300$ nsec, $T=298$ K constant temperature simulation to $298$ K ensembles generated by the AIS algorithm with different cooling schedules. The schedules are discussed in Table 1.

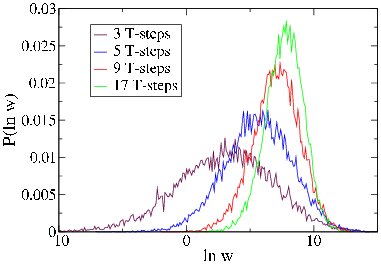

Figure 2.

Distribution of the logarithm of trajectory weights for the four cooling schedules used in Fig. 1 and discussed in Table 1.
