-deformed spin foam models of quantum gravity
Igor Khavkine1 and J. Daniel Christensen2
1 Department of Applied Mathematics, University of Western Ontario, London, Ontario, Canada
2 Department of Mathematics, University of Western Ontario, London, Ontario, Canada
E-mail: [email protected] and [email protected]
Abstract
We numerically study Barrett-Crane models of Riemannian quantum gravity. We have extended the existing numerical techniques to handle -deformed models and arbitrary space-time triangulations. We present and interpret expectation values of a few selected observables for each model, including a spin-spin correlation function which gives insight into the behaviour of the models. We find the surprising result that, as the deformation parameter goes to through roots of unity, the limit is discontinuous.
PACS numbers: 04.60.Pp
1 Introduction
Spin foam models were first introduced as a space-time alternative to the spin network description of states in loop quantum gravity [Baez-spinfoam]. The most studied spin foam models are due to Barrett and Crane [BC-riem, BC-lor]. A spin foam is a discretization of space-time where the fundamental degrees of freedom are the areas labelling its -dimensional faces.
An important goal in the investigation of spin foam models is to obtain predictions that can be compared to the large scale, classical, or semiclassical behavior of gravity. This work continues the numerical investigation of the physical properties of spin foam models of Riemannian quantum gravity begun in [CE, BC-pos, BCHT, BCE]. In this paper, we extend the computations to the -deformed Barrett-Crane model and to larger space-time triangulations.
The main applications of -deformation are two-fold. On the one hand, it can act as a regulator for divergent models, as is apparent in the link between the Ponzano-Regge [PR] and Turaev-Viro [TV] models. On the other hand, Smolin [Smolin-posCC] has argued that -deformation is necessary to account for a positive cosmological constant. Both of these aspects are explored in more detail in Section 2.2. A surprising result of our work is evidence that the limit, as the cosmological constant is taken to zero through positive values, is discontinuous.
Large triangulations are necessary to approximate semiclassical space-times. The possibility of obtaining numerical results from larger triangulations takes us one step closer to that goal and increases the number of facets from which the physical properties of a spin foam model may be examined. As an example, we are able to study how the spin-spin correlation varies with the distance between faces in the triangulation.
This paper is structured as follows. We begin in Section 2 by reviewing the basics of -deformation and discussing in detail its aforementioned applications. Section 3 reviews the details of the Barrett-Crane model, summarizes the necessary changes for its -deformation, and defines several observables associated to spin foams. In Section 4, we review the existing numerical simulation techniques and how they need to be generalized to handle -deformation and larger triangulations. Section 5 presents the results of our numerical simulations. In Section 6, we give our conclusions and list some avenues for future research. The Appendix briefly summarizes our notational conventions and useful formulas.
2 Deformation of
In this section, we describe the -deformation of the Lie algebra into the algebra (also denoted ), the representations of , and the applications of -deformation. The deformations of are then obtained through the isomorphism .
The following is part of the general subject of quantum groups [qg-ref]. Here we shall concentrate solely on the and cases.
2.1 The algebra and its representations
The Lie algebra is generated by the well known Pauli matrices , which obey the commutation relations
[TABLE]
where . The universal enveloping algebra of is the associative algebra generated by and subject to the above identities, with the Lie bracket being interpreted as .
The -deformed algebra is constructed by replacing with another generator. Formally, it is thought of as , where with the exceptions . The Lie bracket relations are replaced by the identities
[TABLE]
We can rewrite and think of as a small complex number. Then, formally at leading order in , the substitution reduces the deformed identities (2) to the standard Lie algebra relations (1). The associative algebra generated by and subject to the deformed identities (2) is the algebra .
For generic , that is, when is not a root of unity, the finite-dimensional irreducible representations of are classified by a half-integer, referred to as the spin, in direct analogy with the representations of and the theory of angular momentum. The dimension of the representation is . When is a th root of unity (ROU), where is an integer called the ROU parameter, the representations are still defined, but become reducible for . They decompose into a sum of representations with spin at most and so-called trace 0 ones, whose nature will be explained below.
For the purposes of this paper we are concerned only with intertwiners between representations of , i.e., linear maps commuting with the action of the algebra, and their (quantum) traces111When , this notion of trace reduces up to sign to the usual trace of a linear map, but is slightly different otherwise, cf. [CFS]*Chapter 4..
Any such intertwiner can be constructed from a small set of generators and elementary operations on them. These constructions, as well as traces, can be represented graphically. Such graphs are called (abstract) spin networks. Their calculus is well developed and is described in [KL], whose conventions we follow throughout the paper with one exception: we use spins (half-integers) instead of twice-spins (integers). A brief review of our notation and conventions can be found in the Appendix.
Trace 0 representations of are so called because the trace of an intertwiner from such a representation to itself is always zero. Thus, they can be freely discarded, as they do not contribute to the evaluation of -deformed spin networks.
2.2 Applications of -deformation
Deformation, especially with a th primitive ROU, is important for spin foam models for at least two reasons. Replacing by some ROU can act as a regulator for a model whose partition function and observable values are otherwise divergent. Also, spin networks222These are graphs embedded in a -manifold, labelled by representations of . They are similar to but distinct from the abstract spin networks referred to above. See [Baez] for the distinction. naturally appear when considering a positive cosmological constant in loop quantum gravity.
The original Ponzano-Regge model [PR] attempts to express the path integral for -dimensional Riemannian general relativity as a sum over labelled triangulations of a -manifold. The edges of the triangulation are labelled by discrete lengths, identified with spin labels of irreducible representations. Each tetrahedron contributes a -symbol factor to the summand, normalized to ensure invariance of the overall sum under change of triangulation. Unfortunately, the Ponzano-Regge model turned out to be divergent. Motivated by the construction of -manifold invariants, Turaev and Viro were able to regularize the Ponzano-Regge model [TV, AW] by replacing the -symbols with their -deformed analogs at a ROU . The key feature of the regularization is the truncation of the summation to only the irreducible representations of of non-zero trace, which leaves only a finite number of terms in the model’s partition function.
A version of the Barrett-Crane model, derived from a group field theory by De Pietri, Freidel, Krasnov and Rovelli [DFKR] (DFKR for short), was also found to be divergent. A -deformed version of the same model at a ROU is similarly regularized (see Section 3.2). Some numerical results for the regularized version of this model are given in Section 5.2.
The argument linking -deformation to the presence of a positive cosmological constant is due to Smolin [Smolin] and is given in more refined form in [Smolin-posCC]. It is briefly summarized as follows. Loop quantum gravity begins by writing the degrees of freedom of general relativity in terms of an connection on a spatial slice and the slice’s extrinsic curvature. A state in the Schrödinger picture, a wave function on the space of connections, can be constructed by integrating the Chern-Simons -form over the spatial slice. This state, known as the Kodama state, simultaneously satisfies all the canonical constraints of the theory and semiclassically approximates de Sitter spacetime, which is a solution of the vacuum Einstein equations with a positive cosmological constant. The requirement that the Kodama state also be invariant under large gauge transformations implies discretization of the cosmological constant, , with a positive integer. The coefficients of the Kodama state in the spin network basis are obtained by evaluating the labelled graph, associated to a basis state, as an abstract spin network. Here the deformation parameter is a ROU, , where the ROU parameter is identified with the discretization parameter of the cosmological constant.
Given the heuristic link [Baez] between spin networks of loop quantum gravity and spin foams, it is natural to -deform a spin foam model as an attempt to account for a positive cosmological constant. With this aim, Noui and Roche [NR] have given a -deformed version of the Lorentzian Barrett-Crane model. The possibility of -deformation has been with the Riemannian Barrett-Crane model since its inception [BC-riem] and all the necessary ingredients have been present in the literature for some time. In the next section these details are collected in a form ready for numerical investigation.
3 Deformation of the Barrett-Crane model
Consider a triangulated -manifold. Let denote the set of -dimensional simplices of the triangulation. The dual -skeleton is formed by associating a dual vertex, edge and polygonal face to each -simplex, tetrahedron, and triangle of the triangulation, respectively. A spin foam is an assignment of labels, usually called spins, to the dual faces of the dual -skeleton. Each dual edge has spins incident on it, while each dual vertex has . A spin foam model assigns amplitudes , and , that depend on all the incident spins, to each dual face, edge and vertex, respectively. The amplitude assigned to a spin foam is the product of the amplitudes for individual cells of the -complex, while the total amplitude assigned to a triangulation is obtained by summing over all spin foams based on the triangulation:
[TABLE]
Some models, such as those based on group field theory [DFKR, Perez, GFT], also include a sum over triangulations in the definition of the total partition function.
3.1 Review of the undeformed model
The Riemannian Barrett-Crane model was first proposed in [BC-riem]. Its relation to the Crane-Yetter [CY] spin foam model is analogous to the relation of the Plebanski [Plebanski] formulation of general relativity (GR) to -dimensional theory with as the structure group. Both theory and the Crane-Yetter model are topological and the latter is considered a quantization of the former [CY-BF]. In the Plebanski formulation, GR is a constrained version of theory. Similarly, the Barrett-Crane model restricts the spin labels summed over in the Crane-Yetter model. With this restriction, Barrett and Crane hoped to produce a discrete model of quantum (Riemannian) GR.
3.1.1 Dual vertex amplitude
All amplitudes are defined in terms of spin networks. However, given the isomorphism , all irreducible representations of can be written as tensor products of irreducible representations of . The Barrett-Crane model specifically limits itself to balanced representations, which are of the form , where is the irreducible representation of of spin . Since the tensor product corresponds to a juxtaposition of edges in a spin network, any spin network may be written as an spin network where an edge labelled is replaced by two parallel edges, each labelled . To avoid redundancy of notation, we use a single instead of to label spin network edges. We then distinguish them from networks by placing a bold dot at every vertex.
The Barrett-Crane vertex is an intertwiner between four balanced representations:
[TABLE]
The graphs on the right hand side of the definition are spin networks and the sum runs over all admissible labels . The graphical notation and the conditions for admissibility are defined in the Appendix.
The above expression defines the Barrett-Crane vertex in a way that breaks rotational symmetry. However, it can be shown that the vertex is in fact rotationally symmetric. Up to normalization, this property makes the Barrett-Crane vertex unique [BC-uniq]. The above formula defines a vertical splitting of the vertex. A ninety degree rotation will define an analogous horizontal splitting. Both possibilities are important in the derivation of the algorithm presented in Section 4.1.
Given a -simplex of a triangulation, the corresponding vertex of the dual -complex is assigned the amplitude
[TABLE]
This spin network is called the -symbol. The -simplex is bounded by five tetrahedra, which correspond to the vertices of the graph. The four edges incident on a vertex correspond to the four faces of the corresponding tetrahedron; the spin labels are assigned accordingly. The edge joining two vertices corresponds to the face shared by corresponding tetrahedra. Evaluation of the -symbol is discussed in Section 4.1. While the crossing structure depicted above is immaterial in the undeformed case, it is essential at nontrivial values of . It is given here for reference.
3.1.2 Dual edge and face amplitudes
The original paper of Barrett and Crane did not specify dual edge and face amplitudes. Three different dual edge and face amplitude assignments were considered in a previous paper [BCHT]. We concentrate on the same possibilities.
For the Perez-Rovelli model [PeRo], we have
[TABLE]
For the DFKR model [DFKR], we have
[TABLE]
For the Baez-Christensen model [BCHT], we have
[TABLE]
The bubble diagram, when translated into spin networks, corresponds to two bubbles (see Appendix)
[TABLE]
and evaluates to .
The so-called eye diagram simply counts the dimension of the space of -valent intertwiners, which is also the number of admissible -edges summed over in Equation (4). In symmetric form, it is given by
[TABLE]
where , , and .
3.2 The -deformed model
Thanks to graphical notation, the -deformation of the spin foam amplitudes described above is straightforward, with only a few subtleties. The main distinction is that -deformed graphs are actually ribbon (framed) graphs with braiding. Thus, any undeformed spin network has to be supplemented with information about twists and crossings before evaluation.
In [Yetter], Yetter generalized the Barrett-Crane -vertex for a -deformed version of . Since , there is a two parameter family of possible deformations of the Lie algebra, . Yetter singles out the one parameter family , restricted to balanced representations, since it preserves the invariance of the Barrett-Crane vertex under rotations. This family also has especially simple curl and twist identities:
[TABLE]
where the left factor of corresponds to and the right one to , and the -vertex is the obvious juxtaposition of two and -vertices. Once this deformation is adopted, the ribbon structure can be ignored [Yetter], so one only needs to specify the crossing structure for a given spin network to obtain a well-defined -evaluation.
There are three basic graphs needed to define the Barrett-Crane simplex amplitudes: the bubble, the eye, and the -symbol. The evaluation of the bubble graph, Equation (9), is , where the quantum integer is defined in the Appendix. Remarkably, the value of the eye diagram turns out not to depend on and its value is still given by Equation (10). The only exception is when is a ROU with parameter . Then, the dimension of the space of -valent intertwiners changes to
[TABLE]
where again , , and .
The -symbol is the only network with a non-planar graph. Originally, it was defined in terms of the -symbol from the Crane-Yetter model. This -symbol was defined with -deformation in mind, so its crossing and ribbon structure was fully specified [CKY]*Section 3. Adapted to the -graph, it can be summarized as follows: Consider a -simplex. The dual 1-skeleton of the boundary has five dual vertices and ten dual edges, and is the complete graph on these five dual vertices. If we remove one of the (non-dual) vertices from the boundary of the -simplex, what remains is homeomorphic to . For any such homeomorphism, the embedding of into can be projected onto a -dimensional plane. The crossing structure of the graph is defined by such a projection. It is illustrated in Equation (5). Although, with crossings, the graph is no longer manifestly invariant under permutations of its vertices, it can be shown to be so.
3.3 Observables
The definition of observables in a spin foam model of quantum gravity is still open to interpretation (see Section 6 of [BCHT] for a brief discussion). For a fixed spin foam, the half-integer spin labels of its faces are the fundamental variables of the model. Practically speaking, any observable of a spin foam model should be an expectation value of some function of the spin labels of a spin foam , averaged over all spin foams with amplitudes specified by Equation (3):
[TABLE]
In this paper we choose to concentrate on a few observables representative of the kind of quantities computable in a spin foam model. As before, fix a triangulation of a -manifold, let represent the set of its faces and let be the spin labelling. We define:
[TABLE]
where denotes a quantum half-integer (see Appendix), denotes cardinality, denotes the distance between faces, and is a normalization factor (see below for the definition of distance and ). These observables represent average spin per face, variance of spin per face, average area per face, and spin-spin correlation as a function of .
The choice of observables given above is somewhat arbitrary. For instance, there are several subtly distinct choices for the expression for . Fortunately, they all yield expectation values that are nearly identical. The expression given above has the technical advantage of falling into the class of so-called single spin observables. These are observables whose expectation value can be directly obtained from the knowledge of probability with which spin occurs on any face of a spin foam. All of , , and are single spin observables, while is not.
Note that on a fixed triangulation with no other background geometry, there is no physical notion of distance. We can, instead, define a combinatorial analog. For any two faces and of a given triangulation, let be the smallest number of face-sharing tetrahedra that connect to . Given the discrete structure of our spacetime model, it is conceivable that this combinatorial distance, multiplied by a fundamental unit of length, approximates some notion of distance derived from the dynamical geometry of the spin foam model.
The correlation function may be thought of as analogous to a normalized -point function of quantum field theory. The -degree of face is the number of faces such that . If the -degree of every face is the same, the normalization factor can be taken to be the number of terms in the sum (17), that is, the number of face pairs separated by distance . This choice ensures the inequality . If not all faces have the same -degree, then the normalization factor has to be modified to
[TABLE]
where is the maximum -degree of a face, which reduces to the simpler definition in the case of uniform -degree.
The choice of the -dependent expression , instead of simply using the half-integer , is motivated in Section 5.1. For some , the argument of the square root in may be negative or even complex. In that case, a branch choice will have to be made. Luckily, if , is a ROU, or is real, the expression under the square root is always non-negative.
4 Numerical simulation
The key development that made possible numerical simulation of variations of the (undeformed) Barrett-Crane model [BCHT, BCE] is the development by Christensen and Egan of a fast algorithm for evaluating -symbols [CE]. In this section, we show how this algorithm generalizes to the -deformed case and discuss numerical evaluation of observables for the previously described spin foam models.
4.1 The -deformation of the fast algorithm
The derivation of the Christensen-Egan algorithm given in [CE] is contingent on the possibility of splitting the Barrett-Crane -vertex as in Equation (4) and on the recoupling identity, Equation (43) of the Appendix. Both identities still hold in the -deformed case. The validity of the -vertex splitting was proved by Yetter [Yetter] and the recoupling identity is a standard part of representation theory.
The only remaining detail of the algorithm’s generalization is the crossing structure of the graph, which was established in Section 3.2. However, its only consequence is an extra factor from the twist implicit in the bubble diagram of Section 4 of [CE], cf. Equation (50) of the Appendix. We will not reproduce the derivation of the algorithm here. However, the way in which the twist arises is schematically illustrated in Figure 1. Note that the triviality of the twist for Yetter’s balanced representations, Equation (11), does not apply here since the twist occurs separately in distinct networks.
The algorithm itself can be summarized in the following form:
[TABLE]
The -symbol depends on the ten spins , (, ) specified in Equation (5). The overall prefactor depends on the total spin and the per-term prefactor is
[TABLE]
The exponents of and are always integers. The are matrices (not all of the same size) of dimensions compatible with the five-fold product and trace. Their matrix elements are
[TABLE]
The quantum integers , as well as the theta and tetrahedral spin networks are defined in the Appendix.
The quantities and are spin labels (half-integers). They are constrained by admissibility conditions (parity conditions and triangle inequalities). The parity of each index is determined by the conditions
[TABLE]
for and , where denotes equivalence mod and the second subscript of is taken mod . Summation bounds are determined by the triangle inequalities, which must be checked for each trivalent vertex introduced in the derivation of the algorithm. They boil down to
[TABLE]
for and , where we have used the notation
[TABLE]
When is a ROU, extra inequalities must be taken into account to exclude summation over reducible representations. These are
[TABLE]
where now
[TABLE]
If any of the parity constraints or inequalities cannot be satisfied, the -symbol evaluates to zero.
This algorithm has been implemented and tested in the and ROU cases, for both and up to several hundreds. Unfortunately, for generic , when , the quantum integers grow exponentially as . Such a rapid growth makes the sums involved in this algorithm numerically unstable. It is still possible to use this algorithm with close to or symbolically, using rational functions of instead of limited precision floating point numbers. Symbolic computation is, however, significantly slower (by up to a factor of ) than its floating point counterpart. The software library spinnet which implements these and other spin network evaluations is available from the authors and will be described in a future publication.
4.2 Positivity and statistical methods
The sums involved in evaluating expectation values of observables, as in Equation (13), are very high-dimensional. For instance, a minimal triangulation of the -sphere (seen as the boundary of a -simplex) contains faces. Hence, any brute force evaluation of an expectation value, even on such a small lattice, involves a sum over the -dimensional space of half-integer spin labels.
Fortunately, in the undeformed case, the total amplitude for a closed spin foam is never negative333We expect the same thing to hold in Lorentzian signature [BC-pos, CC]. [BC-pos]. The proof for the case generalizes to the ROU case. One need only realize two facts. The first is that, in the ROU case, quantum integers are non-negative. The second is that, for a ROU, an spin network evaluates to the complex conjugate of the corresponding spin network. The disjoint union of any two such spin networks evaluates to their product, the absolute value squared of either of them, and hence is non-negative. Then, the same positivity result follows as from Equation (1) of [BC-pos]. This positivity allows us to treat as a statistical distribution and use Monte Carlo methods to extract expectation values with much greater efficiency than brute force summation.
The main tool for evaluating expectation values is the Metropolis algorithm [Metrop, LB]. The algorithm consists of a walk on the space of spin labellings. Each step is randomly picked from a set of elementary moves and is either accepted or rejected based on the relative amplitudes of spin foam configurations before and after the move. An expectation value is extracted as the average of the observable over the configurations constituting the walk. Elementary moves for spin foam simulations are discussed in the next section.
A Metropolis-like algorithm is possible even if individual spin foam amplitudes are negative or even complex. However, if the total partition function sums to zero, then the expectation values in Equation (13) become ill defined. Moreover, in numerical simulations, if is even close to zero, expectation value estimates may exhibit great loss of precision and slow convergence. In the path-integral Monte Carlo literature, this situation is known as the sign problem [sgn-prob]. Still, the sign problem need not occur or, depending on the severity of the problem, there may be ways of effectively dealing with it.
Independent Metropolis runs can be thought of as providing independent estimates of a given expectation value. Thus, the error in the computed value of an observable can be estimated through the standard deviation of the results of many independent simulation runs [KI].
4.3 Elementary moves for spin foams
The choice of elementary moves for spin foam simulations must satisfy several criteria. Theoretically, the most important one is ergodicity. That is, any spin foam must be able to transform into any other one through a sequence of elementary moves which avoid configurations with zero amplitude. Practically, it is important that these moves usually preserve admissibility. A spin foam is called admissible if the associated amplitude is non-zero. If, starting with an admissible spin foam, most elementary moves produce an inadmissible spin foam, the simulation will spend a lot of time rejecting such moves without any practical benefit.
As before, consider a fixed triangulation of a compact -manifold. The parity conditions (23) imposed on the ,
[TABLE]
when taken together with the total spin foam amplitude (3), provide strong constraints on admissible spin foams. One can show that a move that changes spin labels by on each face of a closed surface in the dual -skeleton preserves the parity constraint. We take as the elementary moves the moves that change the spin labels by on the boundaries of the dual -cells of the dual -complex; the dual -cells correspond to the edges of the triangulation. If the manifold has non-trivial mod homology in dimension , additional moves would be necessary, but for the examples we consider the moves above suffice. From a practical point of view, extra moves might improve the simulation’s equilibration time. For instance, in the ROU case, parity preserving moves that change the spins from [math] to or were introduced, since spins close to either admissible extreme may have large amplitudes. This property of the Perez-Rovelli and Baez-Christensen models is illustrated in the following section.
Unfortunately, the inequalities constraining spin labels do not have a similar geometric interpretation and cannot be used to easily restrict the set of elementary moves in advance.
5 Results
Using methods described in the previous section, we ran simulations of the three variations of the Barrett-Crane model described in Section 3 and obtained expectation values for observables listed in Section 3.3. While previous work [BCHT] performed simulations only on the minimal triangulation of the -sphere, which we will refer to simply as the minimal triangulation, we have extended the same techniques to arbitrary triangulations of closed manifolds.
5.1 Discontinuity of the limit
The most striking result we can report is a discontinuity in the transition to the limit , where , a positive integer, is the ROU parameter with . As , the deformation parameter tends to its classical value . If we interpret the cosmological constant as inversely proportional to , , this limit also corresponds to , through positive values. For a fixed spin foam, the amplitudes and observables we study tend continuously to their undeformed values as . However, we find that observable expectation values do not tend to their undeformed values in the same limit, that is, as .

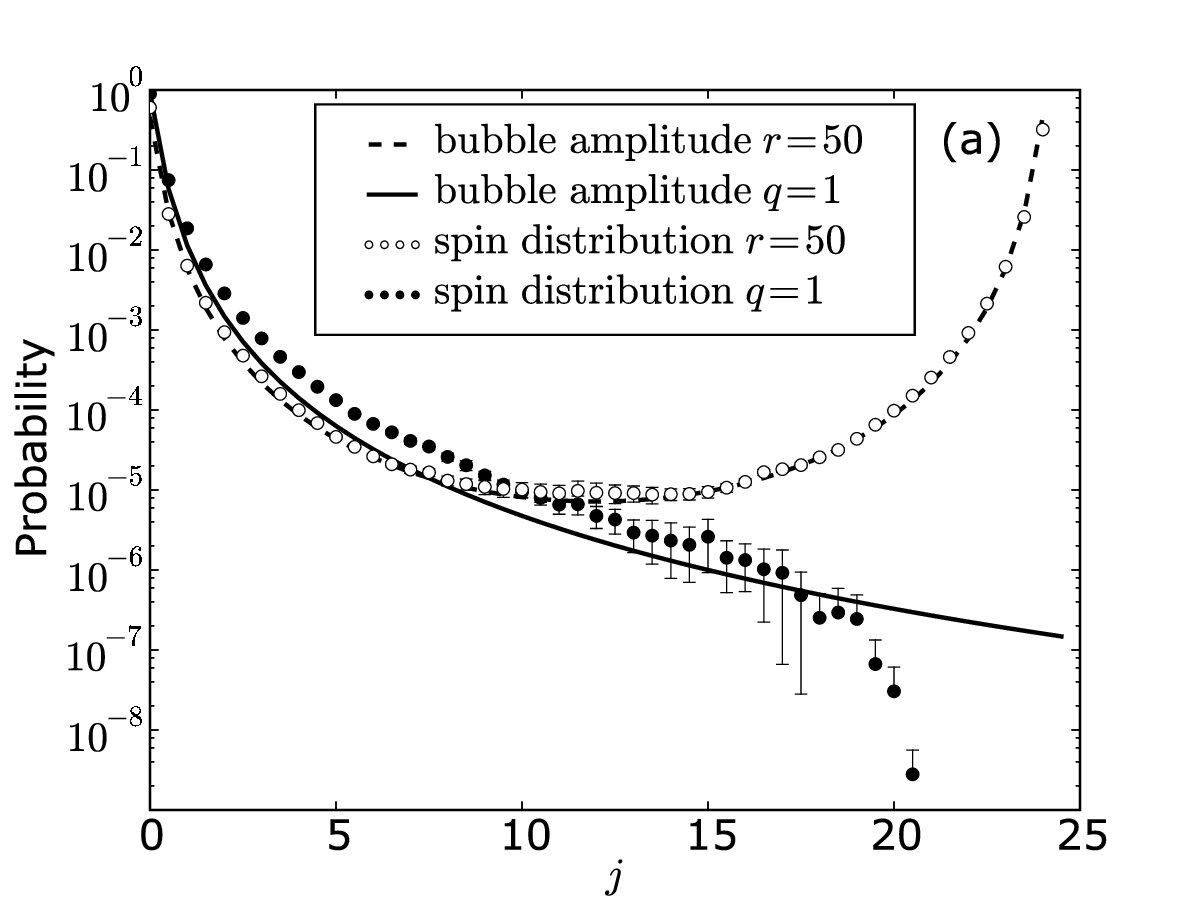

The discontinuity is most simply illustrated with the single spin distribution, that is the probability of finding spin at any spin foam face. This probability can be estimated from the histogram of all spin labels that have occurred during a Monte Carlo simulation. The points in Figure 2(a)
show the single spin distributions for the Baez-Christensen model with and . The curves show the corresponding single bubble amplitude. It is the amplitude of a spin foam with all spin labels zero, except for the boundary of an elementary dual -cell, whose faces are all labelled with spin . The amplitudes and distributions are normalized as probability distributions so their sums over yield . The similarity between the points and the continuous curves is consistent with the hypothesis that spin foams with isolated bubbles dominate the partition function sum. The behavior of the single spin distribution for the Perez-Rovelli model is very similar, except that its peaks are much more pronounced.
Note that the undeformed single spin distribution has a single peak at , while the case has two peaks, one at and the other at , the largest non-trace 0 irreducible representation. The bimodal nature of the single spin distribution has an important impact on the large behavior of observable expectation values, as is most easily seen with single spin observables (Section 3.3). For instance, if we consider the average, , of the half-integers , the large peak would dominate the expectation value and would diverge linearly in , as . On the other hand, since is the average of the quantum half-integers , at least approaches a constant in the same limit. This is illustrated in Figure 2(b).
However, as shown in Figure 3, this limit is not the same as the undeformed expectation value. At the same time, as can be seen from the plot of the Perez-Rovelli average area in the same figure, there are some observables whose large limits are at least very close to the undeformed values. The area observable summand is exactly zero at both and , while the spin observable summand is zero at but still positive at , Figure 2(b). The large peak of the Perez-Rovelli model is very narrow and thus the expectation value of a single spin observable is strongly influenced by its value at .
The data for larger triangulations is qualitatively similar.
5.2 Regularization of the DFKR model

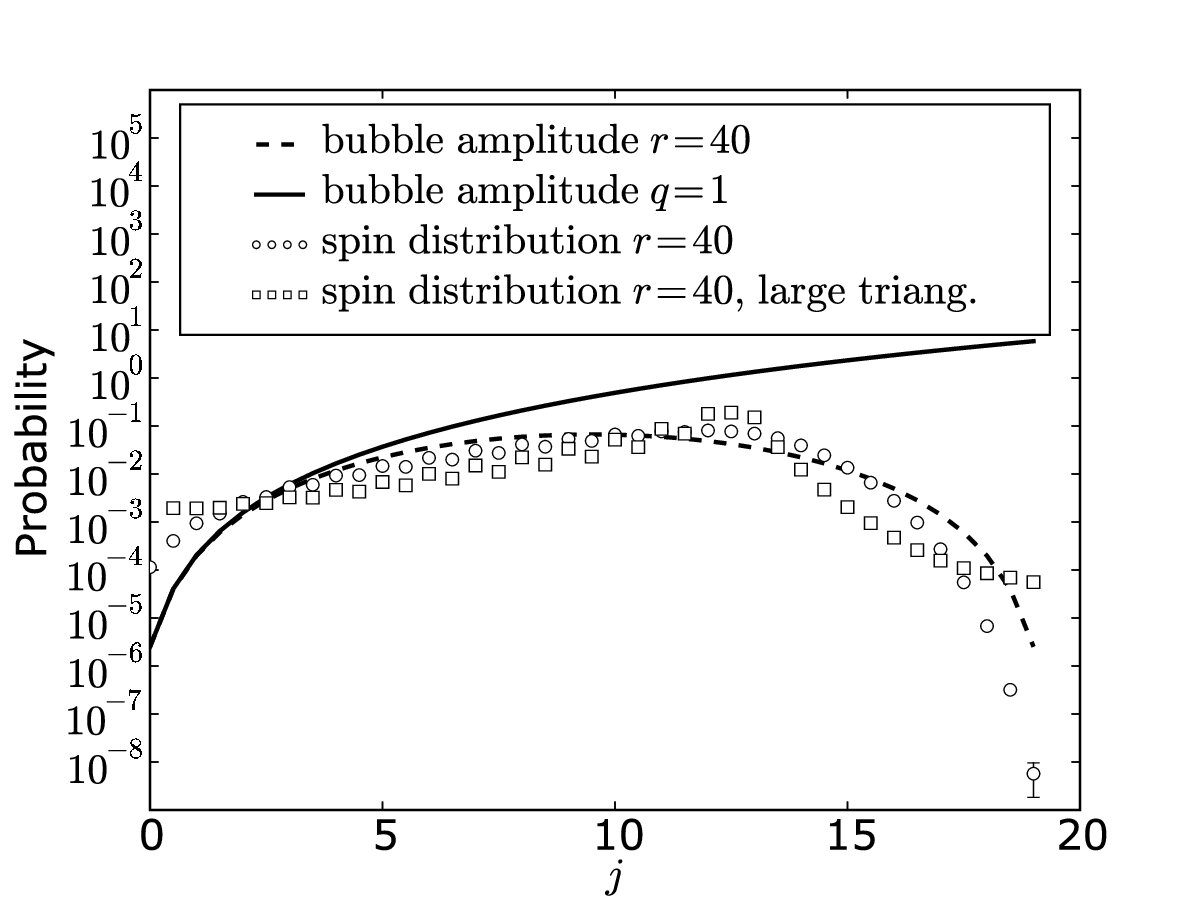

As expected, the ROU deformation of the DFKR model yields a finite partition function and finite expectation values. For instance, its single spin distribution for is illustrated in Figure 4. The divergence of the amplitude for large spins in the undeformed, , case makes numerical simulation impossible without an artificial spin cutoff. Thus, we do not have an undeformed analog of the single spin distribution. For the minimal triangulation, the ROU spin distribution deviates slightly from the single bubble amplitude close to the boundaries of admissible . For the larger triangulation, the deviation is much more pronounced and is not restricted to the edges. This suggests that there are other significant contributions to the partition function besides single bubble spin foams.
Note the large weight associated with spins around . Around this value of , both the area and the spin attain their maximal values and are proportional to . Thus, it is natural to expect their expectation values to grow linearly in , which is consistent with the divergent nature of the undeformed DFKR model. This is precisely the behavior shown in Figure 5. On the minimal triangulation, the best linear fits for the average spin expectation value and for the square root of the average spin variance are
[TABLE]
For larger triangulations, the dependence of these observables is also approximately linear in , with only slight variation in the effective slope.
5.3 Spin-spin correlation
The ability to work with larger lattices allows us to explore a broader range of observables. One of them is the spin-spin correlation function defined in Section 3.3. In general and for large . The decay of the correlation shows how quickly the spin labels on different spin foam faces become independent. A positive value of indicates that, on average, any two faces distance apart both have spins above (or both below) the mean . On the other hand, a negative value of indicates that, on average, any two faces distance apart have one spin above and one below the mean .
A small triangulation limits the maximum distance between faces. For example, the minimal triangulation has maximum distance . Larger triangulations of the -sphere were obtained by refining the minimal one by applying Pachner moves randomly and uniformly over the whole triangulation. We restricted the Pachner moves to those that did not decrease the number of simplices.

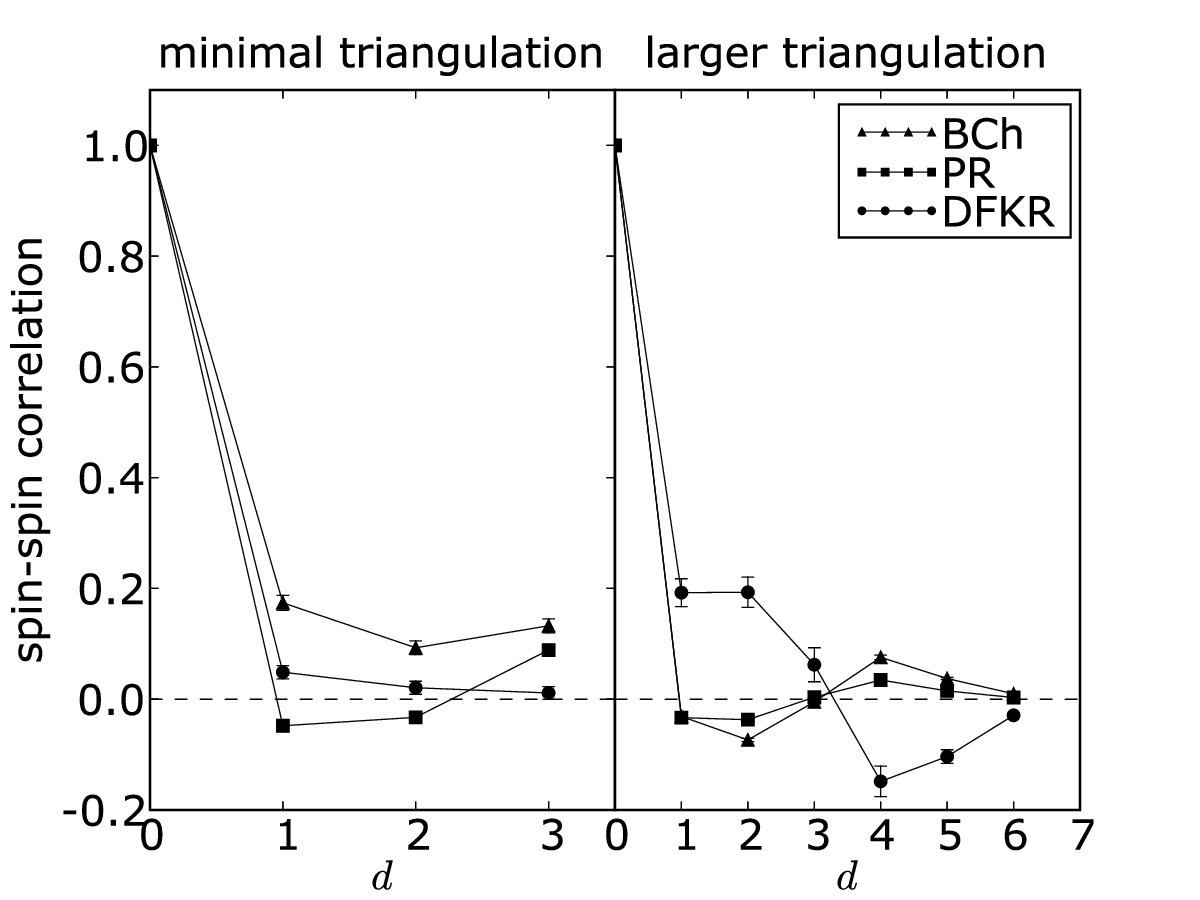

The largest triangulation we have used has maximum distance . Its correlations for different models are shown in Figure 6 along with those from the minimal triangulation. Correlation functions for different values of ROU parameter (including the case) and other triangulations are qualitatively similar.
Notice the small negative dip for small values of for the Perez-Rovelli and Baez-Christensen models. As discussed in previous sections, the partition functions of these models are dominated by spin foams with isolated bubbles. The correlation data is consistent with this hypothesis. The values of the spins assigned to faces of the bubble will be strongly correlated, while the values of the spins on two faces, one of which lies on the bubble and the other does not, should be strongly anti-correlated. Since a given face usually has fewer nearest neighbors that lie on the same bubble than that do not, on average, the short distance correlation is expected to be negative. At slightly larger distances, the correlation function turns positive again. This indicates that on a larger triangulations, spin foams with several isolated bubbles contribute strongly to the partition function. Although, with so few data points, it is difficult to extrapolate the behavior of the correlation function to larger triangulations and distances, its features are qualitatively similar to that of a condensed fluid, where the density-density correlation function exhibits oscillations on the scale of the molecular dimensions.
Note that the behavior of the DFKR correlation function is significantly different from the other two. This is also consistent with the already observed fact that its partition function has strong contributions from other than single or isolated bubble spin foams.
6 Conclusion
We have numerically investigated the behavior of physical observables for the Perez-Rovelli, DFKR, and Baez-Christensen versions of the Barrett-Crane spin foam model. Each version assigns different dual edge and face amplitudes to a spin foam, and these choices greatly affect the behavior of the resulting model. The behavior of the models was also greatly affected by -deformation.
The limiting behavior of observables was found to be discontinuous in the limit of large ROU parameter , i.e., close to its undeformed value of . This result is at odds with the physical interpretation of the relation between the cosmological constant and the ROU parameter. Finally, the behavior of the examined physical observables, especially of the spin-spin correlation function, indicates the dominance of isolated bubble spin foams in the Perez-Rovelli and Baez-Christensen partition functions, while less so for the the DFKR one.
Some questions raised by these results deserve attention. For instance, it is not known whether the same limit behavior will be observed when is taken through non-ROU values. While calculations with are numerically unstable, they should still be possible for .
Another important project is to perform a more extensive study of the effects of triangulation size in order to better understand the semi-classical limit.
Finally, all of this work should also be carried out for the Lorentzian models, which are physically much more interesting but computationally much more difficult.
These and other questions will be the subject of future investigations.
Acknowledgements
The authors would like to thank Wade Cherrington for helpful discussions. The first author was supported by NSERC and FQRNT postgraduate scholarships and the second author by an NSERC grant. Computational resources for this project were provided by SHARCNET.
Appendix A Spin network notation and conventions
Quantum integers are a -deformation of integers. For an integer , the corresponding quantum integer is denoted by and is given by
[TABLE]
In the limit , we recover the regular integers, . Note that is invariant under the transformation . When is a root of unity (ROU), for some integer , an equivalent definition is
[TABLE]
This expression is non-negative in the range . Quantum factorials are defined as
[TABLE]
In many cases, -deformed spin network evaluations can be obtained from their undeformed counterparts by simply replacing factorials with quantum factorials. For convenience, when dealing with half-integral spins, we also define quantum half-integers as
[TABLE]
when is a half-integer.
Abstract spin networks can be approached from two different directions. They can represent contractions and compositions of -invariant tensors and intertwiners [CFS]. At the same time, they can represent traces of tangles evaluated according to the rules of the Kauffman bracket [KL]. Either way, the computations turn out to be the same. We present here formulas for the evaluation of a few spin networks of interest.
The single bubble network evaluates to what is sometimes called the superdimension of the spin- representation:
[TABLE]
(As in the rest of the paper, the spin labels are half-integers.)
Up to a constant, there is a unique -valent vertex (corresponding to the Clebsch-Gordan intertwiner) whose normalization is fixed up to sign by the value of the -network:
[TABLE]
where . The -network is non-vanishing, together with the three-vertex itself, if and only if is an integer and the triangle inequalities are satisfied: , , and . In addition, when is a ROU, one extra inequality must be satisfied: . The triple of spin labels is called admissible if is non-zero.
The recoupling identity gives the transformation between different bases for the linear space of -valent tangles (or intertwiners):
[TABLE]
where the sum is over all admissible labels and the value of the tetrahedral network is
[TABLE]
where
[TABLE]
Due to parity constraints, the , , , , and are all integers.
Since the three-vertex is unique up to scale, its composition with with a braiding applied to two incoming legs yields a multiplicative factor:
[TABLE]
Note that the above braiding factor is not invariant under the transformation , while the bubble, tetrahedral and -networks are all invariant under this transformation, by virtue of their expressions in terms of quantum integers.
