Spinor dipolar Bose-Einstein condensates; Classical spin approach

TL;DR

This paper models magnetic dipole-dipole interaction dominated Bose-Einstein condensates using a classical spin vector approach, revealing novel spin textures influenced by trap geometry and long-range interactions.

Contribution

It introduces a classical spin vector framework derived from a large spin limit to analyze dipolar Bose-Einstein condensates, extending the non-linear sigma model.

Findings

Discovery of novel spin textures with coupled mass and spin densities

Dependence of spin textures on trap geometries

Insights into the effects of long-range dipole-dipole interactions

Abstract

Magnetic dipole-dipole interaction dominated Bose-Einstein condensates are discussed under spinful situations. We treat the spin degrees of freedom as a classical spin vector, approaching from large spin limit to obtain an effective minimal Hamiltonian; a version extended from a non-linear sigma model. By solving the Gross-Pitaevskii equation we find several novel spin textures where the mass density and spin density are strongly coupled, depending upon trap geometries due to the long-range and anisotropic natures of the dipole-dipole interaction.

Figures

Equations

$$H$$

$$H_0$$

$$V_{dd}({\mathbf{r}}_i,{\mathbf{r}}_j)$$

$$H$$

Full text

Bose-Einstein condensates (BEC) with internal degrees of freedom, the so-called spinor BEC have attract much attention experimentally and theoretically in recent years review . Spinor BEC opens up a new paradigm where the order parameter of condensates is described by a multi-component vector ohmi ; ho . This can be possible by optically trapping cold atoms where all hyperfine states are liberated, while magnetic trapping freezes its freedom. So far 23Na (the hyperfine state $F=1$), and 87Rb ($F=2$) are extensively investigated.

Griesmaier et al. griesmaier have recently succeeded in achieving BEC of 52Cr atom gases whose magnetic moment per atom is 3 $\mu_{B}$ (Bohr magneton). There has been already emerging stuhler several novel aspects associated with larger magnetic moment in 52Cr atom even in this magnetic trapping, where all spin moments are polarized along an external magnetic field. Namely the magnetic dipole-dipole (d-d) interaction, which is proportional to $F^{2}$ is expected to play an important role in a larger spin atom.

It is natural to expect realization of BEC with still larger spin atomic species under the spinful situations by optical trapping or control the d-d interaction via the Feshbach resonance relative to other interaction channels. There has already been existing a large amount of theoretical studies for dipolar BEC baranov . Most of them treat the polarized case where the dipolar moments are aligned along an external field. The intrinsic anisotropic or tensorial nature of the d-d interaction relative to the polarization axis manifests itself in various properties. The head-to-tail moment arrangement due to the d-d interaction is susceptible to a shape instability by concentrating atoms in the central region. We have seen already that tensorial and long-ranged d-d interaction is responsible for this kind of shape dependent phenomenon where the mass density is constrained by the polarization axis.

In contrast the theoretical studies of the spinor dipolar BEC are scarce, and just started with several impressive works kawaguchi ; pu ; diener ; cheng . They consider either the $F=1$ spinor BEC by taking into account the d-d interaction or $F=3$ for 52Cr atom gases in a realistic situation. Here one must handle a 7-component spinor with 5 different interaction channels $g_{0}$, $g_{2}$, $g_{4}$, $g_{6}$, and $g_{d}$. The parameter space to hunt is large and difficult enough to find a stable configuration. The situation becomes further hard towards a larger $F$ where the d-d interaction is more important and eventually dominant one among various channels.

Here we investigate generic properties of the spinor dipolar BEC under an optical trapping where the d-d interaction dominates other interactions except for the $s$-wave repulsive channel. A proposed model Hamiltonian is intended to capture essential properties of the spinor BEC system. We note that this long-ranged and anisotropic d-d interaction has fascinated researches for a long time, for example, Luttinger and Tisza in their seminal paper luttinger theoretically discussed the stable spin configurations of a spin model on a lattice where classical spins with a fixed magnitude are free to rotate on a lattice. The present paper is designed to generalize this lattice spin model to a dipolar BEC system. Here we are interested in the interplay between the spin degrees of freedom and the mass density through the d-d interaction.

We approach this problem from atomic species with large magnetic moment. This spinor dipole BEC with the hyper fine state $F$ ($F_{z}=-F,-F+1,\cdots,F$) is characterized by $2F+1$ components $\Psi_{\alpha}({\bf r})$. In general the number of the interaction channels are $F+1$. For example, the $F=1$ spinor BEC ohmi ; ho is characterized by the scattering lengths $a_{0}$ and $a_{2}$, leading to the spin independent repulsive interaction $g_{0}=4\pi\hbar^{2}(a_{0}+2a_{0})/3m$ and the spin dependent exchange interaction $g_{2}=4\pi\hbar^{2}(a_{2}-a_{0})/3m$. Since $a_{0}$ and $a_{2}$ are comparable, $g_{2}$ is actually small; $|g_{2}|/g_{0}\sim 1/10$ for 23Na stenger ; burke and $\sim 1/35$ for 87Rb barrett ; klausen . This tendency that, except for the dominant repulsive part $g_{0}$, other spin-dependent channels are nearly cancelled is likely to be correct for other $F$’s hirano .

We can take a view in this paper that instead of working with $\vec{\Psi}({\bf r})$ full quantum mechanical $2F+1$ components $(\Psi_{F},\Psi_{F-1},\cdots,\Psi_{-F})$ with the interaction parameters $g_{0}$, $g_{2}$, $g_{4}$, …, and $g_{2F}$, the order parameter can be simplified to $\vec{\Psi}({\bf r}_{i})=\psi({\bf r}_{i}){\vec{S}}({\bf r}_{i})$ where ${\vec{S}}({\bf r}_{i})$ is a classical vector with $|{\vec{S}}({\bf r}_{i})|^{2}=1$. Namely we can treat it as the classical spin vector whose magnitude $|\psi({\bf r}_{i})|^{2}$ is proportional to the local condensate density. In other words, we focus on long-wavelength and low energy textured solutions of a dipolar system which will manifest the interplay between the mass and spin density degrees of freedom.

We start with the following minimal model Hamiltonian

[TABLE]

[TABLE]

[TABLE]

where $\vec{e}_{ij}\equiv({\bf r}_{i}-{\bf r}_{j})/r_{ij}$ with $r_{ij}=|{\bf r}_{i}-{\bf r}_{j}|$. The uniaxially symmetric trap potential is given by $V_{\rm trap}({\bf r})=\frac{1}{2}m\omega^{2}\{\gamma(x^{2}+y^{2})+z^{2}\}$ with $\gamma$ being the anisotropy parameter. $\mu$ is the chemical potential. The repulsive ($g>0$) and the dipole-dipole ($g_{d}$) interaction are introduced. The classical spin vector $\vec{S}_{i}\equiv\vec{S}({\bf r}_{i})$ characterizes the internal degrees of freedom of the system at the site $i$ and is denoted by spherical coordinates ($\varphi({\bf r}_{i})$, $\theta({\bf r}_{i})$) with $|\vec{S}_{i}|^{2}=1$. A dimensionless form of this Hamiltonian may be written as

[TABLE]

with $|\psi({\bf r}_{i})|^{2}=n_{i}$. We note that the spin gradient term in the first line is a Non-linear sigma modelhaldane . Here it is extended to include the dipole-dipole interaction between the different parts of the spin density. The energy (length) is measured by the harmonic frequency $\omega$ (harmonic length $d\equiv 1/\sqrt{m\omega}$) with $\hbar=1$ The functional derivatives with respect to $\psi^{\ast}({\bf r}_{i})$, $\varphi({\bf r}_{i})$ and $\theta({\bf r}_{i})$ lead to the corresponding Gross-Pitaevskii equations.

In this paper under a fixed repulsive interaction ($g/\omega d^{3}=0.01$) we vary the d-d interaction $g_{d}$ in a range of $0\leq g_{d}\leq 0.4g$, beyond which the system is unstable. We consider two types of the confinement: A pancake ($\gamma=0.2$) and a cigar ($\gamma=5.0$) to see the shape dependence of the d-d interaction, which is long-ranged and anisotropic. The total particle number $\sim 10^{4}$. The three dimensional space is discretized into the lattice sites $\sim 2.5\times 10^{4}$. Using the imaginary time ($\tau$) evolution of Gross-Pitaevskii equations e.g. $\partial\psi_{i}/\partial\tau=-\delta H/\delta\psi^{\ast}_{i}$, we obtain stable configurations for spin and particle densities by starting with various initial patterns.

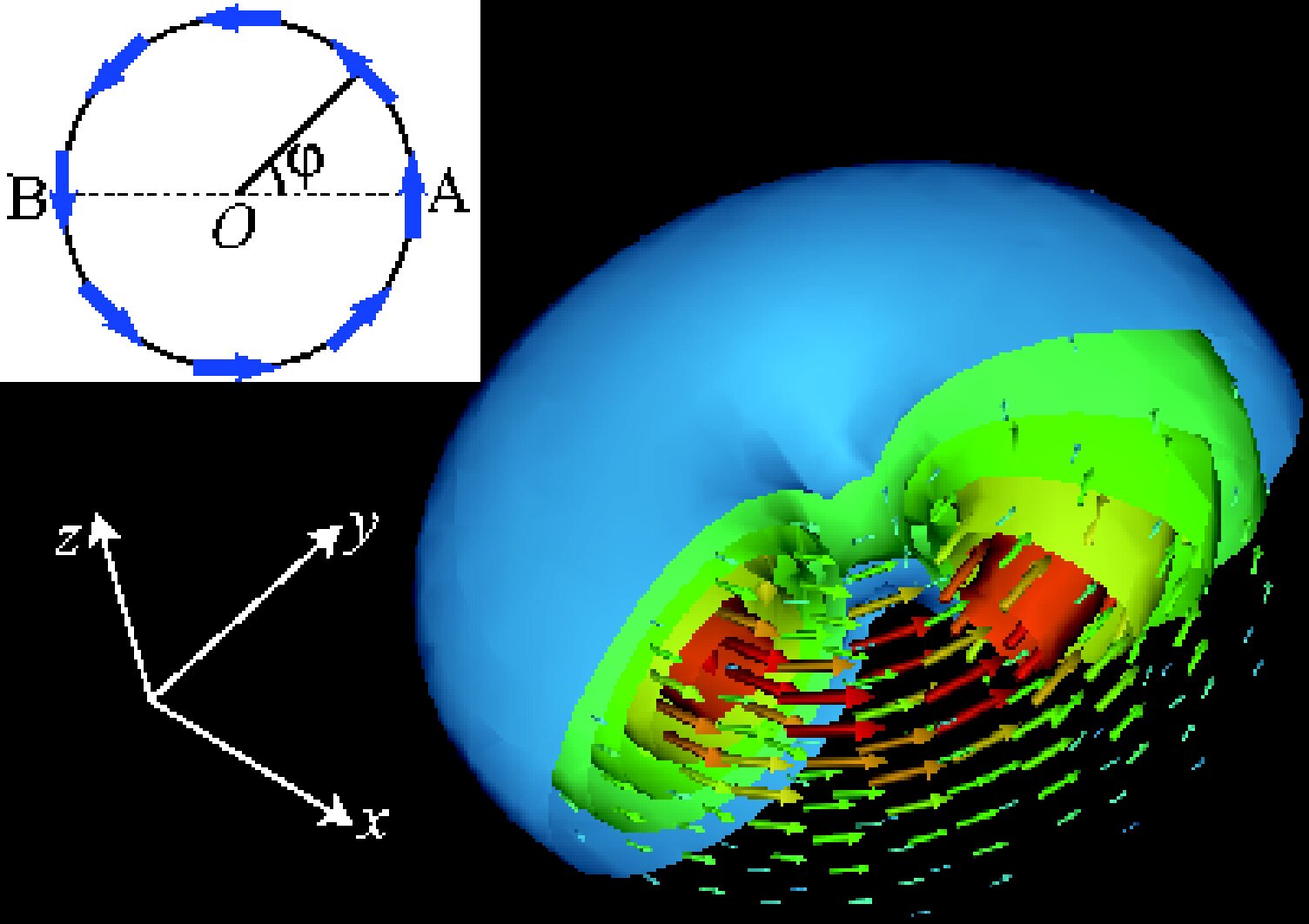

We start with the pancake shape ($\gamma=0.2$). Figure 1 shows a stereographic image of the particle density and spin distributions. We call it spin current texture, where the spin direction circulates around the origin and is confined into the $x$-$y$ plane without the third component, that is, a coplanar texture. It is seen that the particle density distribution is strongly coupled to the spin one; In the central region the particles are depleted over the coherent length $\xi_{d}$ of the d-d interaction. In the present case $\xi_{d}\sim 2.0\xi_{c}$ ($\xi_{c}$ is the ordinary coherent length of the repulsive interaction).

This spin current texture can be readily explained in the following way: (1) Locally, along the stream line of the spin current the head-to-tail configuration minimizes the energy. (2) Globally, the spins at A and B which are situated far apart about the origin $O$ shown in inset of Fig. 1 are orientated anti-parallel to minimize the d-d interaction. (3) When the two antiparallel spins at A and B come closer towards the origin $O$, the kinetic energy due to the spin modulation increases. To avoid this energy loss, the particle number is depleted in the central region at the cost of the harmonic potential energy.

For an alternative explanation of the spin current texture we rewrite the d-d interaction as $v_{dd}({\bf r}_{ij})\propto\frac{g_{d}}{r_{ij}^{3}}\sum_{\mu=-2}^{2}Y_{2\mu}(\cos\theta)\Sigma_{\mu}(ij)$ with $\Sigma_{\mu}(ij)$ being a rank 2 tensor consisting of the two spins at $i$ and $j$ sites, and $Y_{2\mu}(\cos\theta)$ a spherical harmonics pethick . $\theta$ is the polar angle in spherical coordinates of the system. The spin current texture shown in inset of Fig. 1 picks up the phase factor ${\rm e}^{2i\varphi}$ when winding around the origin. This is coupled to $Y_{2\pm 2}(\cos\theta)\propto\sin^{2}\theta$, meaning that this orbital moment dictates the number density depletion at the pancake center. The spin-orbit coupling directly manifests itself here. The total angular momentum consisting of the spin and orbit ones is a conserved quantity of the present axis-symmetric system, leading to the Einstein-de Haas effect kawaguchi . The spin current texture is stable for the wide range of anisotropy $\gamma$: $0.01\leq\gamma\leq 0.6$, beyond which it becomes unstable.

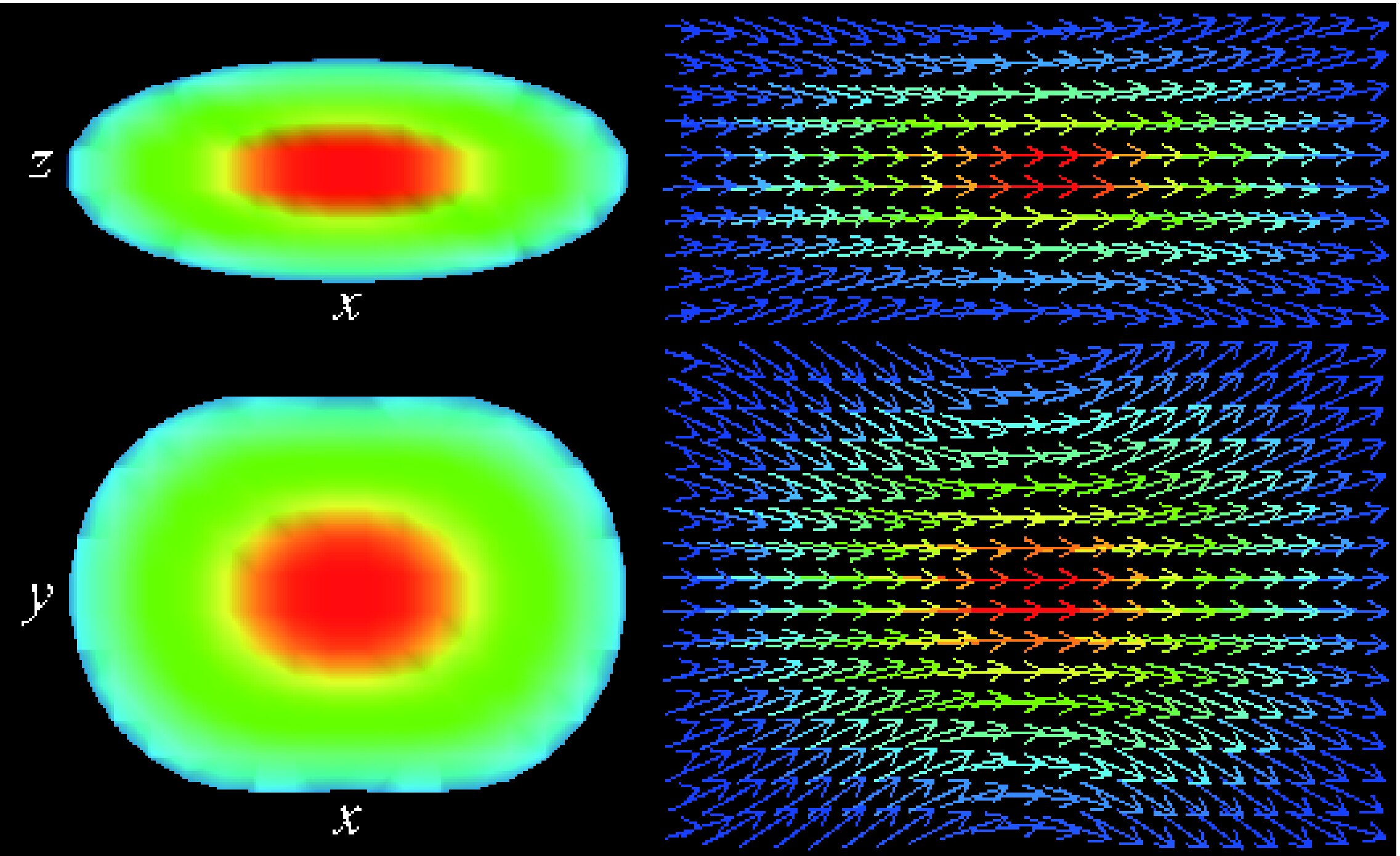

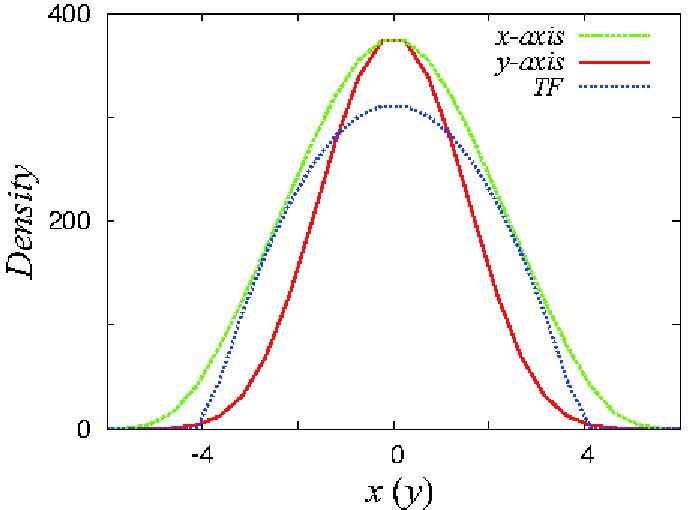

Figure 2 displays another stable configuration in a similar situation. The left (right) column shows the density plots of the particle number (the corresponding spin structure). The spins are almost parallel to the $x$-axis, but at the outer region they bent away. We call it r-flare texture, which is a non-coplanar spin arrangement. It is clearly seen that the axis-symmetry in the $x$-$y$ plane, which was originally circular, is spontaneously broken so that the circular shape is elongated along the $x$-axis and compressed along the $y$-axis. Figure 3 displays the $x$ and $y$-axis cross-sections of the particle density, compared with the Thomas-Fermi (TF) profile for $g_{d}=0$ with the same particle number. Because of the d-d interaction which favors the head-to-tail arrangement, the particle number is increased at the center. The bending tendency at the circumference increases with increasing $g_{d}$. Beyond a certain critical value $g_{d}\cong 0.27g$ for $\sim 10^{4}$ particles, the r-flare texture becomes unstable, indicating a quantum phase transition. Upon increasing the total particle number the r-flare is replaced by the spin current texture. We also note that the z-flare texture in which the polarization points to the $z$-axis is equally stable as we explain shortly.

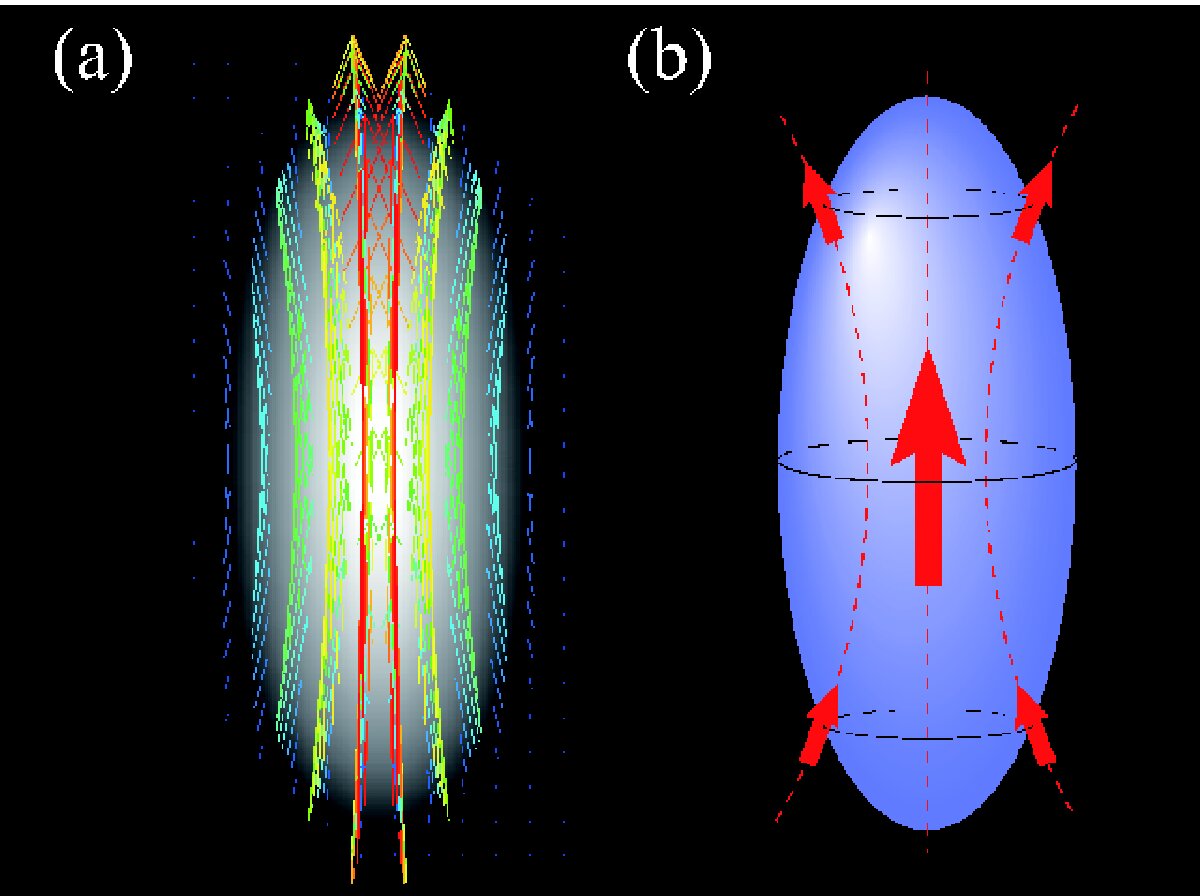

Let us turn to the cigar shape case elongated along the $z$-axis with the trap anisotropy $\gamma=5.0$. The stable configuration we obtain is shown in Fig. 4 where the spin structure is basically a flare spin texture which is a non-coplanar spin arrangement. Namely, the bending occurs radially so that the spin texture is a three dimensional object, but keeps axis-symmetry around the $z$-axis. The particle density is modified from the TF profile for $g_{d}=0$, elongated along the $z$ direction and compressed to the $z$-axis.

This can be understood by seeing Fig. 4 (b). The up-spin density near the center exerts the d-d force so as to align the outer spins parallel to the vector connecting the center and its position, taking the head-to-tail configuration. This results in a non-coplanar structure, but the axis-symmetry about the $z$-axis is preserved. This spin texture is stable for $g_{d}\leq 0.3g$ and robust for different aspect ratios: $\gamma$ = 0.2 and 1.5. The bending angle of the flare spin texture increases and the elongation along the $z$ direction becomes larger as $g_{d}$ increases (= 0.1 and 0.2).

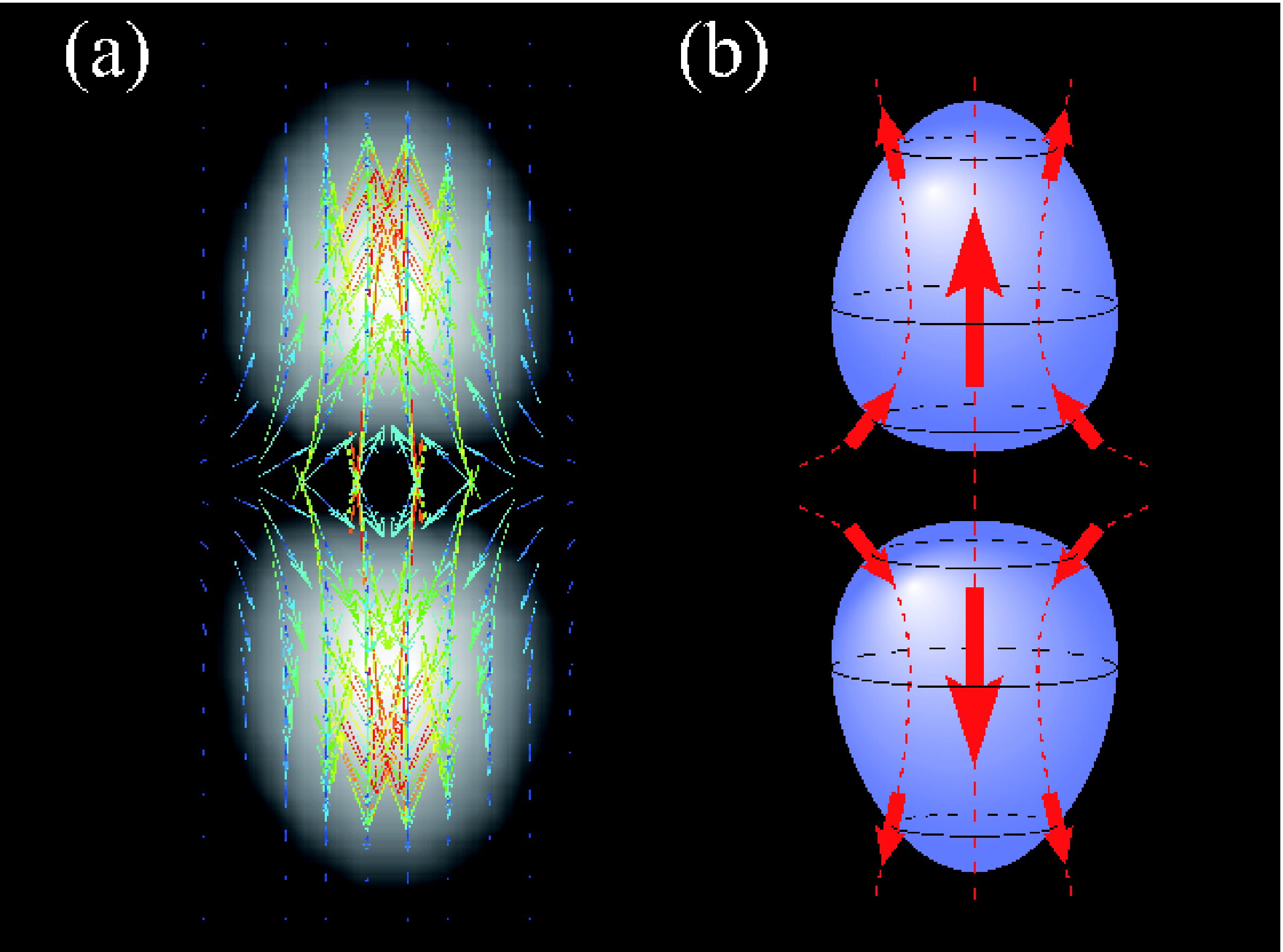

Finally we display an example to show how the model Hamiltonian admits many subtle spin textures with comparable energies. Figure 5 (a) shows the two-z-flares oppositely polarized stacked back to back. This configuration is stabilized starting with a hedgehog spin configuration, or skyrmion at the center from which all the spins point outward from the origin. In the end the two-z-flares oppositely polarized become stable, but at the central $z=0$ plane the antiparallel spins meet as seen from Fig. 5 (b). To avoid drastic changes of the spin direction, or the spin kinetic energy loss, the particle density decreases there. As a result even though the harmonic potential energy is minimal there, the two-z-flare spin textures oppositely polarized are stacked back to back, but two objects are almost split. This example illustrates strong coupling between the particle number and spin densities through the d-d interaction.

These spin textures can be observed directly via a novel phase-sensitive in situ detection review or indirectly via conventional absorption imaging for the number density. It is interesting to examine the vortex properties under rotation. For the spin current texture, the vortex entry into a system should be easy because in the central region the mass density is already depleted. We point out that the collective modes might be also intriguing because the mass density is tightly coupled with the spin degrees of freedom. These problems belong to future work.

In summary, we have introduced a model Hamiltonian to capture the essential nature of dipolar spinor BEC where the spin magnitude is large enough, focusing on long wavelength and low energy textured solutions. We show several typical stable configurations by solving the Gross-Pitaevshii equation where the spin and mass densities are strongly coupled due to the dipole-dipole interaction. The shape of the harmonic potential trapping is crucial to determine the spin texture. The model Hamiltonian is a minimal extension of the Non-linear sigma model with the d-d interaction, and yet complicate and versatile enough to explore further because it is expected that there are many stable configurations with comparable energies. Finally the model Hamiltonian is applicable literally for electric dipolar systems without further approximation. We expect that BEC of hetero-nuclear molecules with permanent electric dipole moment might be realized in near future molecule where the formation of such textures may be possible.

We thank Tarun K. Ghosh and W. Pogosov for useful discussions in the early stage of this research. This work of S. G. was supported by a grant of the Japan Society for the Promotion of Science.
