Partial cubes: structures, characterizations, and constructions

TL;DR

This paper explores the structures, characterizations, and construction methods of partial cubes, providing new insights and proofs, and analyzing how various operations affect their dimensions.

Contribution

It introduces new characterizations of partial cubes, offers alternative proofs of existing results, and studies the effects of operations like Cartesian product and pasting on their dimensions.

Findings

New characterizations of partial cubes and bipartite graphs.

Proofs of known results using new methods.

Calculations of isometric and lattice dimensions after operations.

Abstract

Partial cubes are isometric subgraphs of hypercubes. Structures on a graph defined by means of semicubes, and Djokovi\'{c}'s and Winkler's relations play an important role in the theory of partial cubes. These structures are employed in the paper to characterize bipartite graphs and partial cubes of arbitrary dimension. New characterizations are established and new proofs of some known results are given. The operations of Cartesian product and pasting, and expansion and contraction processes are utilized in the paper to construct new partial cubes from old ones. In particular, the isometric and lattice dimensions of finite partial cubes obtained by means of these operations are calculated.

Figures

Equations

$$(\{1\}\times A)\cup (\{2\}\times B).$$

$$d(P,Q)=|P\Delta Q|\text{for P,Q∈Pf.}$$

$$R_0=P,R_1,\dots ,R_n=Q$$

$$d(R_i,R_{i+1})=1\text{for all 0≤i<n,}\text{and}d(P,Q)=n.$$

$$R_0=P,R_1,\dots ,R_n=Q$$

$$\mathcal{F}=\{\varnothing ,\{a\},\{a,b\},\{a,b,c\},\{b,c\}\}$$

$$E_{\mathcal{F}}=\{\{P,Q\}\subseteq \mathcal{F}:|P\Delta Q|=1\}.$$

$$d(f(R),f(T))=|(R\Delta S)\Delta (T\Delta S)|=|R\Delta T|.$$

$$P\cap Q\subseteq R\subseteq P\cup Q.$$

$$d(P,R)+d(R,Q)=d(P,Q).$$

$$\mathcal{I}(P,Q)=\mathcal{F}\cap [P\cap Q,P\cup Q],$$

$$d(P,P_i)+d(P_i,Q)=d(P,Q)\text{for all 0≤i≤n.}$$

$$P=R_0,R=R_j,Q=R_n\text{ for some 0<j<n},$$

$$W_{ab}=\{w\in V:d(w,a)<d(w,b)\}.$$

$$d(x,a)=d(x,b)\iff x\notin W_{ab}\cup W_{ba}.$$

$$d(w,b)=d(w,a)+1.$$

$$W_{ab}=\{w\in V:d(w,b)=d(w,a)+1\}.$$

$$d(w,a)<d(w,b)\le d(w,a)+d(a,b)=d(w,a)+1.$$

$$e\theta f\iff \text{f joins a vertex in Wxy with a vertex in Wyx.}$$

$$e\Theta f\iff d(x,u)+d(y,v)\ne d(x,v)+d(y,u).$$

$$d(u,x)$$

$$=d(v,x)-1\le d(v,u)+d(u,x)-1=d(u,x).$$

$$d(x,u)+d(y,v)=d(x,v)-1+d(y,u)-1\ne d(x,v)+d(y,u).$$

$$d(x,u)+d(y,v)\ne d(x,v)+d(y,u),$$

$$d(x,u)+d(y,v)=d(y,u)-1+d(x,v)+1=d(x,v)+d(y,u),$$

$$d(x,u)+d(y,v)\ne d(x,v)+d(y,u),$$

$$xy\theta uv\iff \{W_{xy},W_{yx}\}=\{W_{uv},W_{vu}\}.$$

$$d(x_i,x_j)<d(x_i,x_{j+1})\text{and}d(x_{i+1},x_j)<d(x_{i+1},x_{j+1}),$$

$$W_{AB}=\{S\in \mathcal{F}:S\cap B\subseteq A\subseteq S\cup B\}.$$

$$d(Q,P)+d(P,R)=d(Q,R).$$

$$Q\cap R\subseteq P\subseteq Q\cup R.$$

Full text

The operations of Cartesian product and pasting, and expansion and contraction processes are utilized in the paper to construct new partial cubes from old ones. In particular, the isometric and lattice dimensions of finite partial cubes obtained by means of these operations are calculated.

Key words: Hypercube, partial cube, semicube

1 Introduction

A hypercube ${\cal H}(X)$ on a set $X$ is a graph which vertices are the finite subsets of $X$; two vertices are joined by an edge if they differ by a singleton. A partial cube is a graph that can be isometrically embedded into a hypercube.

There are three general graph-theoretical structures that play a prominent role in the theory of partial cubes; namely, semicubes, Djoković’s relation $\theta$, and Winkler’s relation $\Theta$. We use these structures, in particular, to characterize bipartite graphs and partial cubes. The characterization problem for partial cubes was considered as an important one and many characterizations are known. We list contributions in the chronological order: Djoković [9] (1973), Avis [2] (1981), Winkler [20] (1984), Roth and Winkler [18] (1986), Chepoi [6, 7] (1988 and 1994). In the paper, we present new proofs for the results of Djoković [9], Winkler [20], and Chepoi [6], and obtain two more characterizations of partial cubes.

The paper is also concerned with some ways of constructing new partial cubes from old ones. Properties of subcubes, the Cartesian product of partial cubes, and expansion and contraction of a partial cube are investigated. We introduce a construction based on pasting two graphs together and show how new partial cubes can be obtained from old ones by pasting them together.

The paper is organized as follows.

Hypercubes and partial cubes are introduced in Section 2 together with two basic examples of infinite partial cubes. Vertex sets of partial cubes are described in terms of well graded families of finite sets.

In Section 3 we introduce the concepts of a semicube, Djoković’s $\theta$ and Winkler’s $\Theta$ relations, and establish some of their properties. Bipartite graphs and partial cubes are characterized by means of these structures. One more characterization of partial cubes is obtained in Section 4, where so-called fundamental sets in a graph are introduced.

The rest of the paper is devoted to constructions: subcubes and the Cartesian product (Section 6), pasting (Section 7), and expansions and contractions (Section 8). We show that these constructions produce new partial cubes from old ones. Isometric and lattice dimensions of new partial cubes are calculated. These dimensions are introduced in Section 5.

Few words about conventions used in the paper are in order. The sum (disjoint union) $A+B$ of two sets $A$ and $B$ is the union

[TABLE]

All graphs in the paper are simple undirected graphs. In the notation $G=(V,E)$, the symbol $V$ stands for the set of vertices of the graph $G$ and $E$ stands for its set of edges. By abuse of language, we often write $ab$ for an edge in a graph; if this is the case, $ab$ is an unordered pair of distinct vertices. We denote $\langle U\rangle$ the graph induced by the set of vertices $U\subseteq V$. If $G$ is a connected graph, then $d_{G}(a,b)$ stands for the distance between two vertices $a$ and $b$ of the graph $G$. Wherever it is clear from the context which graph is under consideration, we drop the subscript $G$ in $d_{G}(a,b)$. A subgraph $H\subseteq G$ is an isometric subgraph if $d_{H}(a,b)=d_{G}(a,b)$ for all vertices $a$ and $b$ of $H$; it is convex if any shortest path in $G$ between vertices of $H$ belongs to $H$.

2 Hypercubes and partial cubes

Let $X$ be a set. We denote ${\cal P}_{f}(X)$ the set of all finite subsets of $X$.

Definition 2.1**.**

A graph ${\cal H}(X)$ has the set ${\cal P}_{f}(X)$ as the set of its vertices; a pair of vertices $PQ$ is an edge of ${\cal H}(X)$ if the symmetric difference $P\Delta Q$ is a singleton. The graph ${\cal H}(X)$ is called the hypercube on $X$ [9]. If $X$ is a finite set of cardinality $n$, then the graph ${\cal H}(X)$ is the $n$-cube $Q_{n}$. The dimension of the hypercube ${\cal H}(X)$ is the cardinality of the set $X$. **

The shortest path distance $d(P,Q)$ on the hypercube ${\cal H}(X)$ is the Hamming distance between sets $P$ and $Q$:

[TABLE]

The set ${\cal P}_{f}(X)$ is a metric space with the metric $d$.

Definition 2.2**.**

A graph $G$ is a partial cube if it can be isometrically embedded into a hypercube ${\cal H}(X)$ for some set $X$. We often identify $G$ with its isometric image in the hypercube ${\cal H}(X)$, and say that $G$ is a partial cube on the set $X$. **

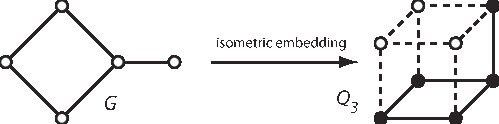

An example of a partial cube and its isometric embedding into the cube $Q_{3}$ is shown in Figure 2.1.

Clearly, a family ${\cal F}$ of finite subsets of $X$ induces a partial cube on $X$ if and only if for any two distinct subsets $P,Q\in{\cal F}$ there is a sequence

[TABLE]

of sets in ${\cal F}$ such that

[TABLE]

The families of sets satisfying condition (2.2) are known as well graded families of sets [10]. Note that a sequence $(R_{i})$ satisfying (2.2) is a shortest path from $P$ to $Q$ in ${\cal H}(X)$ (and in the subgraph induced by ${\cal F}$).

Definition 2.3**.**

A family ${\cal F}$ of arbitrary subsets of $X$ is a wg-family (well graded family of sets) if, for any two distinct subsets $P,Q\in{\cal F}$, the set $P\Delta Q$ is finite and there is a sequence

[TABLE]

of sets in ${\cal F}$ such that $|R_{i}\Delta R_{i+1}|=1$ for all $0\leq i<n$ and $|P\Delta Q|=n$. **

Example 2.1**.**

The induced graph can be a partial cube on a different set if the family ${\cal F}$ is not well graded. Consider, for instance, the family

[TABLE]

of subsets of $X=\{a,b,c\}$. The graph induced by this family is a path of length $4$ in the cube $Q_{3}$ (cf. Figure 2.2). Clearly, ${\cal F}$ is not well graded. On the other hand, as it can be easily seen, any path is a partial cube. **

Any family ${\cal F}$ of subsets of $X$ defines a graph $G_{\cal F}=({\cal F},E_{\cal F})$, where

[TABLE]

Theorem 2.1**.**

The graph $G_{\cal F}$ defined by a family ${\cal F}$ of subsets of a set $X$ is isomorphic to a partial cube on $X$ if and only if the family ${\cal F}$ is well graded.

Proof.

We need to prove sufficiency only. Let $S$ be a fixed set in ${\cal F}$. We define a mapping $f:{\cal F}\rightarrow{\cal P}_{f}(X)$ by $f(R)=R\Delta S$ for $R\in{\cal F}$. Then

[TABLE]

Thus $f$ is an isometric embedding of ${\cal F}$ into ${\cal P}_{f}(X)$. Let $(R_{i})$ be a sequence of sets in ${\cal F}$ such that $R_{0}=P$, $R_{n}=Q$, $|P\Delta Q|=n$, and $|R_{i}\Delta R_{i+1}|=1$ for all $0\leq i<n$. Then the sequence $(f(R_{i}))$ satisfies conditions (2.2). The result follows. ∎

A set $R\in{\cal P}_{f}(X)$ is said to be lattice between sets $P,Q\in{\cal P}_{f}(X)$ if

[TABLE]

It is metrically between $P$ and $Q$ if

[TABLE]

The following theorem is a well-known result about these two betweenness relations on ${\cal P}_{f}(X)$ (see, for instance, [3]).

Theorem 2.2**.**

Lattice and metric betweenness relations coincide on ${\cal P}_{f}(X)$.

Let ${\cal F}$ be a family of finite subsets of $X$. The set of all $R\in{\cal F}$ that are between $P,Q\in{\cal F}$ is the interval ${\cal I}(P,Q)$ between $P$ and $Q$ in ${\cal F}$. Thus,

[TABLE]

where $[P\cap Q,P\cup Q]$ is the usual interval in the lattice ${\cal P}_{f}$.

Two distinct sets $P,Q\in{\cal F}$ are adjacent in ${\cal F}$ if ${\cal J}(P,Q)=\{P,Q\}$. If sets $P$ and $Q$ form an edge in the graph induced by ${\cal F}$, then $P$ and $Q$ are adjacent in ${\cal F}$, but, generally speaking, not vice versa. For instance, in Example 2.1, the vertices $\varnothing$ and $\{b,c\}$ are adjacent in ${\cal F}$ but do not define an edge in the induced graph (cf. Figure 2.2).

The following theorem is a ‘local’ characterization of wg-families of sets.

Theorem 2.3**.**

A family ${\cal F}\subseteq{\cal P}_{f}(X)$ is well graded if and only if $d(P,Q)=1$ for any two sets $P$ and $Q$ that are adjacent in ${\cal F}$.

Proof.

(Necessity.) Let ${\cal F}$ be a wg-family of sets. Suppose that $P$ and $Q$ are adjacent in ${\cal F}$. There is a sequence $R_{0}=P,R_{1},\ldots,R_{n}=Q$ that satisfies conditions (2.2). Since the sequence $(R_{i})$ is a shortest path in ${\cal F}$, we have

[TABLE]

Thus, $P_{i}\in{\cal I}(P,Q)=\{P,Q\}$. It follows that $d(P,Q)=n=1$.

(Sufficiency.) Let $P$ and $Q$ be two distinct sets in ${\cal F}$. We prove by induction on $n=d(P,Q)$ that there is a sequence $(R_{i})\in{\cal F}$ satisfying conditions (2.2).

The statement is trivial for $n=1$. Suppose that $n>1$ and that the statement is true for all $k<n$. Let $P$ and $Q$ be two sets in ${\cal F}$ such that $d(P,Q)=n$. Since $d(P,Q)>1$, the sets $P$ and $Q$ are not adjacent in ${\cal F}$. Therefore there exists $R\in{\cal F}$ that lies between $P$ and $Q$ and is distinct from these two sets. Then $d(P,R)+d(R,Q)=d(P,Q)$ and both distances $d(P,R)$ and $d(R,Q)$ are less than $n$. By the induction hypothesis, there is a sequence $(R_{i})\in{\cal F}$ such that

[TABLE]

satisfying conditions (2.2) for $0\leq i<j$ and $j\leq i<n$. It follows that ${\cal F}$ is a wg-family of sets. ∎

We conclude this section with two examples of infinite partial cubes (more examples are found in [17]).

Example 2.2**.**

Let ${\cal Z}$ be the graph on the set $\mathbb{Z}$ of integers with edges defined by pairs of consecutive integers. This graph is a partial cube since its vertex set is isometric to the wg-family of intervals $\{(-\infty,m):m\in\mathbb{Z}\}$ in $\mathbb{Z}$. **

Example 2.3**.**

Let us consider $\mathbb{Z}^{n}$ as a metric space with respect to the $\ell_{1}$-metric. The graph ${\cal Z}^{n}$ has $\mathbb{Z}^{n}$ as the vertex set; two vertices in ${\cal Z}^{n}$ are connected if they are on the unit distance from each other. We will show in Section 6 (Corollary 6.1) that ${\cal Z}^{n}$ is a partial cube. **

3 Characterizations

Only connected graphs are considered in this section.

Definition 3.1**.**

Let $G=(V,E)$ be a graph and $d$ be its distance function. For any two adjacent vertices $a,b\in V$ let $W_{ab}$ be the set of vertices that are closer to $a$ than to $b$:

[TABLE]

Following [11], we call the sets $W_{ab}$ and induced subgraphs $\langle W_{ab}\rangle$ semicubes of the graph $G$. The semicubes $W_{ab}$ and $W_{ba}$ are called opposite semicubes. **

Remark 3.1**.**

The subscript $ab$ in $W_{ab}$ stands for an ordered pair of vertices, not for an edge of $G$. In his original paper [9], Djoković uses notation $G(a,b)$ (cf. [8]). We use the notation from [15]. **

Clearly, two opposite semicubes are disjoint. They can be used to characterize bipartite graphs as follows.

Theorem 3.1**.**

A graph $G=(V,E)$ is bipartite if and only if the semicubes $W_{ab}$ and $W_{ba}$ form a partition of $V$ for any edge $ab\in E$.

Proof.

Let us recall that a connected graph $G$ is bipartite if and only if for every vertex $x$ there is no edge $ab$ with $d(x,a)=d(x,b)$ (see, for instance, [1]). For any edge $ab\in E$ and vertex $x\in V$ we clearly have

[TABLE]

The result follows. ∎

The following lemma is instrumental and will be used frequently in the rest of the paper.

Lemma 3.1**.**

Let $G=(V,E)$ be a graph and $w\in W_{ab}$ for some edge $ab\in E$. Then

[TABLE]

Accordingly,

[TABLE]

Proof.

By the triangle inequality, we have

[TABLE]

The result follows, since $d$ takes values in $\mathbb{N}$. ∎

There are two binary relations on the set of edges of a graph that play a central role in characterizing partial cubes.

Definition 3.2**.**

Let $G=(V,E)$ be a graph and $e=xy$ and $f=uv$ be two edges of $G$.

1. (i)

(Djoković [9]) The relation $\theta$ on $E$ is defined by

[TABLE]

The notation can be chosen such that $u\in W_{xy}$ and $v\in W_{yx}$. 2. (ii)

(Winkler [20]) The relation $\Theta$ on $E$ is defined by

[TABLE]

It is clear that both relations $\theta$ and $\Theta$ are reflexive and $\Theta$ is symmetric.

Lemma 3.2**.**

The relation $\theta$ is a symmetric relation on $E$.

Proof.

Suppose that $xy\,\theta\,uv$ with $u\in W_{xy}$ and $v\in W_{yx}$. By Lemma 3.1 and the triangle inequality, we have

[TABLE]

Hence, $d(u,x)=d(v,x)-1$ and $d(v,y)=d(u,y)-1$. Therefore, $x\in W_{uv}$ and $y\in W_{vu}$. It follows that $uv\,\theta\,xy$. ∎

Lemma 3.3**.**

$\theta\subseteq\Theta$.

Proof.

Suppose that $xy\,\theta\,uv$ with $u\in W_{xy},\;v\in W_{yx}$. By Lemma 3.1,

[TABLE]

Hence, $xy\,\Theta\,uv$. ∎

Example 3.1**.**

It is easy to verify that $\theta$ is the identity relation on the set of edges of the cycle $C_{3}$. On the other hand, any two edges of $C_{3}$ stand in the relation $\Theta$. Thus, $\theta\not=\Theta$ in this case. **

Bipartite graphs can be characterized in terms of relations $\theta$ and $\Theta$ as follows.

Theorem 3.2**.**

A graph $G=(V,E)$ is bipartite if and only if $\theta=\Theta$.

Proof.

(Necessity.) Suppose that $G$ is a bipartite graph, two edges $xy$ and $uv$ stand in the relation $\Theta$, that is,

[TABLE]

and that edges $xy$ and $uv$ do not stand in the relation $\theta$. By Theorem 3.1, we may assume that $u,v\in W_{xy}$. By Lemma 3.1, we have

[TABLE]

a contradiction. It follows that $\Theta\subseteq\theta$. By Lemma 3.3, $\theta=\Theta$.

(Sufficiency.) Suppose that $G$ is not bipartite. By Theorem 3.1, there is an edge $xy$ such that $W_{xy}\cup W_{yx}$ is a proper subset of $V$. Since $G$ is connected, there is an edge $uv$ with $u\notin W_{xy}\cup W_{yx}$ and $v\in W_{xy}\cup W_{yx}$. Clearly, $uv$ does not stand in the relation $\theta$ to $xy$. On the other hand,

[TABLE]

since $u\notin W_{xy}\cup W_{yx}$ and $v\in W_{xy}\cup W_{yx}$. Thus, $xy\,\Theta\,uv$, a contradiction, since we assumed that $\theta=\Theta$. ∎

By Theorem 3.2, the relations $\theta$ and $\Theta$ coincide on bipartite graphs. For this reason we use the relation $\theta$ in the rest of the paper.

Lemma 3.4**.**

Let $G=(V,E)$ be a bipartite graph such that all its semicubes are convex sets. Then two edges $xy$ and $uv$ stand in the relation $\theta$ if and only if the corresponding pairs of mutually opposite semicubes form equal partitions of $V$:

[TABLE]

Proof.

(Necessity) We assume that the notation is chosen such that $u\in W_{xy}$ and $v\in W_{yx}$. Let $z\in W_{xy}\cap W_{vu}$. By Lemma 3.1, $d(z,u)=d(z,v)+d(v,u)$. Since $z,u\in W_{xy}$ and $W_{xy}$ is convex, we have $v\in W_{xy}$, a contradiction to the assumption that $v\in W_{yx}$. Thus $W_{xy}\cap W_{vu}=\varnothing$. Since two opposite semicubes in a bipartite graph form a partition of $V$, we have $W_{uv}=W_{xy}$ and $W_{vu}=W_{yx}$.

A similar argument shows that $W_{uv}=W_{yx}$ and $W_{vu}=W_{xy}$, if $u\in W_{yx}$ and $v\in W_{xy}$.

(Sufficiency.) Follows from the definition of the relation $\theta$. ∎

We need another general property of the relation $\theta$ (cf. Lemma 2.2 in [15]).

Lemma 3.5**.**

Let $P$ be a shortest path in a graph $G$. Then no two distinct edges of $P$ stand in the relation $\theta$.

Proof.

Let $i<j$ and $x_{i}x_{i+1}$ and $x_{j}x_{j+1}$ be two edges in a shortest path $P$ from $x_{0}$ to $x_{n}$. Then

[TABLE]

so $x_{i},x_{i+1}\in W_{x_{j}x_{j+1}}$. It follows that edges $x_{i}x_{i+1}$ and $x_{j}x_{j+1}$ do not stand in the relation $\theta$. ∎

The converse statement is true for bipartite graphs (we omit the proof); a counterexample is the cycle $C_{5}$ which is not bipartite.

Lemma 3.6**.**

Let $G=(V,E)$ be a bipartite graph. The following statements are equivalent

1. (i)

All semicubes of $G$ are convex. 2. (ii)

The relation $\theta$ is an equivalence relation on $E$.

Proof.

(i) $\Rightarrow$ (ii). Follows from Lemma 3.4.

(ii) $\Rightarrow$ (i). Suppose that $\theta$ is transitive and there is a nonconvex semicube $W_{ab}$. Then there are two vertices $u,v\in W_{ab}$ and a shortest path $P$ from $u$ to $v$ that intersects $W_{ba}$. This path contains two distinct edges $e$ and $f$ joining vertices of semicubes $W_{ab}$ and $W_{ba}$. The edges $e$ and $f$ stand in the relation $\theta$ to the edge $ab$. By transitivity of $\theta$, we have $e\,\theta f$. This contradicts the result of Lemma 3.5. Thus all semicubes of $G$ are convex. ∎

We now establish some basic properties of partial cubes.

Theorem 3.3**.**

Let $G=(V,E)$ be a partial cube. Then

1. (i)

$G$* is a bipartite graph.* 2. (ii)

Each pair of opposite semicubes form a partition of $V$. 3. (iii)

All semicubes are convex subsets of $V$. 4. (iv)

$\theta$* is an equivalence relation on $E$.*

Proof.

We may assume that $G$ is an isometric subgraph of some hypercube ${\cal H}(X)$, that is, $G=({\cal F},E_{\cal F})$ for a wg-family ${\cal F}$ of finite subsets of $X$. (i) It suffices to note that if two sets in ${\cal H}(X)$ are connected by an edge then they have different parity. Thus, ${\cal H}(X)$ is a bipartite graph and so is $G$. (ii) Follows from (i) and Theorem 3.1. (iii) Let $W_{AB}$ be a semicube of $G$. By Lemma 3.1 and Theorem 2.2, we have

[TABLE]

Let $Q,R\in W_{AB}$ and $P$ be a vertex of $G$ such that

[TABLE]

By Theorem 2.2,

[TABLE]

Since $Q,R\in W_{AB}$, we have

[TABLE]

which implies

[TABLE]

Hence, $P\in W_{AB}$, and the result follows.

(iv) Follows from (iii) and Lemma 3.6. ∎

Remark 3.2**.**

Since semicubes of a partial cube $G=(V,E)$ are convex subsets of the metric space $V$, they are half-spaces in $V$ [19]. This terminology is used in [6, 7]. **

The following theorem presents four characterizations of partial cubes. The first two are due to Djoković [9] and Winkler [20] (cf. Theorem 2.10 in [15]).

Theorem 3.4**.**

Let $G=(V,E)$ be a connected graph. The following statements are equivalent:

1. (i)

$G$* is a partial cube.* 2. (ii)

$G$* is bipartite and all semicubes of $G$ are convex.* 3. (iii)

$G$* is bipartite and $\theta$ is an equivalence relation.* 4. (iv)

$G$* is bipartite and, for all $xy,uv\in E$,*

[TABLE] 5. (v)

$G$* is bipartite and, for any pair of adjacent vertices of $G$, there is a unique pair of opposite semicubes separating these two vertices.*

Proof.

By Lemma 3.6, the statements (ii) and (iii) are equivalent and, by Theorem 3.3, (i) implies both (ii) and (iii).

(iii) $\Rightarrow$ (i). By Theorem 3.1, each pair $\{W_{ab},W_{ba}\}$ of opposite semicubes of $G$ form a partition of $V$. We orient these partitions by calling, in an arbitrary way, one of the two opposite semicubes in each partition a positive semicube. Let us assign to each $x\in V$ the set $W^{+}(x)$ of all positive semicubes containing $x$. In the next paragraph we prove that the family ${\cal F}=\{W^{+}(x)\}_{x\in V}$ is well graded and that the assignment $x\mapsto W^{+}(x)$ is an isometry between $V$ and ${\cal F}$.

Let $x$ and $y$ be two distinct vertices of $G$. We say that a positive semicube $W_{ab}$ separates $x$ and $y$ if either $x\in W_{ab},\;y\in W_{ba}$ or $x\in W_{ba},\;y\in W_{ab}$. It is clear that $W_{ab}$ separates $x$ and $Y$ if and only if $W_{ab}\in W^{+}(x)\Delta W^{+}(y)$. Let $P$ be a shortest path $x_{0}=x,x_{1},\ldots,x_{n}=y$ from $x$ to $y$. By Lemma 3.5, no two distinct edges of $P$ stand in the relation $\theta$. By Lemma 3.4, distinct edges of $P$ define distinct positive semicubes; clearly, these semicubes separate $x$ and $y$. Let $W_{ab}$ be a positive semicube separating $x$ and $y$, and, say, $x\in W_{ab}$ and $y\in W_{ba}$. There is an edge $f\in P$ that joins vertices in $W_{ab}$ and $W_{ba}$. Hence, $f$ stands in the relation $\theta$ to $ab$ and, by Lemma 3.4, $W_{ab}$ is defined by $f$. It follows that any semicube in $W^{+}(x)\Delta W^{+}(y)$ is defined by a unique edge in $P$ and any edge in $P$ defines a semicube in $W^{+}(x)\Delta W^{+}(y)$. Therefore, $d(W^{+}(x),W^{+}(y))=d(x,y)$, that is $x\mapsto W^{+}(x)$ is an isometry. Clearly, ${\cal F}$ is a wg-family of sets.

By Theorem 2.1, the family ${\cal F}$ is isometric to a wg-family of finite sets. Hence, $G$ is a partial cube.

(iv) $\Rightarrow$ (ii). Suppose that there exist an edge $ab$ such that semicube $W_{ba}$ is not convex. Let $p$ and $q$ be two vertices in $W_{ba}$ such that there is a shortest path $P$ from $p$ to $q$ that intersects $W_{ab}$. There are two distinct edges $xy$ and $uv$ in $P$ such that $x,u\in W_{ab}$ and $y,v\in W_{ba}$. Since $ab\,\theta\,xy$ and $ab\,\theta\,uv$, we have, by (3.1),

[TABLE]

Hence, $u\in W_{xy}$ and $v\in W_{yx}$. By Lemma 3.1,

[TABLE]

a contradiction, since $P$ is a shortest path from $p$ to $q$.

(ii) $\Rightarrow$ (iv). Follows from Lemma 3.4.

It is clear that (iv) and (v) are equivalent. ∎

4 Fundamental sets in partial cubes

Semicubes played an important role in the previous section. In this section we introduce three more classes of useful subsets of graphs. We also establish one more characterization of partial cubes.

Let $G=(V,E)$ be a connected graph. For a given edge $e=ab\in E$, we define the following sets (cf. [15, 16]):

[TABLE]

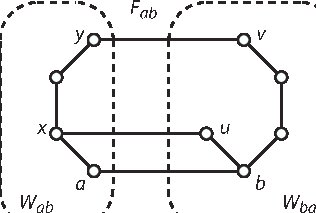

The five sets are schematically shown in Figure 4.1.

Remark 4.1**.**

In the case of a partial cube $G=(V,E)$, the semicubes $W_{ab}$ and $W_{ba}$ are complementary half-spaces in the metric space $V$ (cf. Remark 3.2). Then the set $F_{ab}$ can be regarded as a ‘hyperplane’ separating these half-spaces (see [17] where this analogy is formalized in the context of hyperplane arrangements). **

The following theorem generalizes the result obtained in [16] for median graphs (see also [15]).

Theorem 4.1**.**

Let $ab$ be an edge of a connected bipartite graph $G$. If the semicubes $W_{ab}$ and $W_{ba}$ are convex, then the set $F_{ab}$ is a matching and induces an isomorphism between the graphs $\langle U_{ab}\rangle$ and $\langle U_{ba}\rangle$.

Proof.

Suppose that $F_{ab}$ is not a matching. Then there are distinct edges $xu$ and $xv$ with, say, $x\in U_{ab}$ and $u,v\in U_{ba}$. By the triangle inequality, $d(u,v)\leq 2$. Since $G$ does not have triangles, $d(u,v)\not=1$. Hence, $d(u,v)=2$, which implies that $x$ lies between $u$ and $v$. This contradicts convexity of $W_{ba}$, since $x\in W_{ab}$. Therefore $F_{ab}$ is a matching.

To show that $F_{ab}$ induces an isomorphism, let $xy,uv\in F_{ab}$ and $xu\in E$, where $x,u\in U_{ab}$ and $y,v\in U_{ba}$. Since $G$ does not have odd cycles, $d(v,y)\not=2$. By the triangle inequality,

[TABLE]

Since $W_{ba}$ is convex, $d(v,y)\not=3$. Thus $d(v,y)=1$, that is, $vy$ is an edge. The result follows by symmetry. ∎

By Theorem 3.4(ii), we have the following corollary.

Corollary 4.1**.**

Let $G=(V,E)$ be a partial cube. For any edge $ab$ the set $F_{ab}$ is a matching and induces an isomorphism between induced graphs $\langle U_{ab}\rangle$ and $\langle U_{ba}\rangle$.

Example 4.1**.**

Let $G$ be the graph depicted in Figure 4.2. The set

[TABLE]

is a matching and defines an isomorphism between the graphs induced by subsets $U_{ab}=\{a,x,y\}$ and $U_{ba}=\{b,u,v\}$. The set $W_{ba}$ is not convex, so $G$ is not a partial cube. Thus the converse of Corollary 4.1 does not hold. **

We now establish another characterization of partial cubes that utilizes a geometric property of families $F_{ab}$.

Theorem 4.2**.**

For a connected graph $G$ the following statements are equivalent:

1. (i)

$G$* is a partial cube.* 2. (ii)

$G$* is bipartite and*

[TABLE]

for any $ab\in E$ and $xy,uv\in F_{ab}$.

Proof.

(i)$\Rightarrow$(ii). We may assume that $x,u\in W_{ab}$ and $y,v\in W_{ba}$. Since $\theta$ is an equivalence relation, we have $xy\,\theta\,uv\,\theta ab$. By Lemma 3.4, $W_{uv}=W_{xy}=W_{ab}$. By Lemma 3.1,

[TABLE]

We also have

[TABLE]

by the same lemma.

(ii)$\Rightarrow$(i). Suppose that $G$ is not a partial cube. Then, by Theorem 3.4, there exist an edge $ab$ such that, say, semicube $W_{ba}$ is not convex. Let $p$ and $q$ be two vertices in $W_{ba}$ such that there is a shortest path $P$ from $p$ to $q$ that intersects $W_{ab}$. Let $uv$ be the first edge in $P$ which belongs to $F_{ab}$ and $xy$ be the last edge in $P$ with the same property (see Figure 4.3).

Since $P$ is a shortest path, we have

[TABLE]

which contradicts condition (4.1). Thus all semicubes of $G$ are convex. By Theorem 3.4, $G$ is a partial cube. ∎

Remark 4.2**.**

One can say that four vertices satisfying conditions (4.1) define a rectangle in $G$. Then Theorem 4.2 states that a connected graph is a partial cube if and only if it is bipartite and for any edge $ab$ pairs of edges in $F_{ab}$ define rectangles in $G$. **

5 Dimensions of partial cubes

There are many different ways in which a given partial cube can be isometrically embedded into a hypercube. For instance, the graph $K_{2}$ can be isometrically embedded in different ways into any hypercube ${\cal H}(X)$ with $|X|>2$.

Following Djoković [9] (see also [8]), we define the isometric dimension, $\dim_{I}(G)$, of a partial cube $G$ as the minimum possible dimension of a hypercube ${\cal H}(X)$ in which $G$ is isometrically embeddable. Recall (see Section 2) that the dimension of ${\cal H}(X)$ is the cardinality of the set $X$.

Theorem 5.1**.**

(Theorem 2 in [9].)* Let $G=(V,E)$ be a partial cube. Then*

[TABLE]

where $\theta$ is Djoković’s equivalence relation on $E$ and $E/\theta$ is the set of its equivalence classes (the quotient-set).

The quotient-set $E/\theta$ can be identified with the family of all distinct sets $F_{ab}$ (see Section 4). If $G$ is a finite partial cube, we may consider it as an isometric subgraph of some hypercube $Q_{n}$. Then the edges in each family $F_{ab}$ are parallel edges in $Q_{n}$ (cf. Theorem 4.2). This observation essentially proves (5.1) in the finite case.

Let $G$ be a partial cube on a set $X$. The vertex set of $G$ is a wg-family ${\cal F}$ of finite subsets of $X$ (see Section 2). We define the retraction of ${\cal F}$ as a family ${\cal F}^{\prime}$ of subsets of $X^{\prime}=\cup\,{\cal F}\setminus\cap\,{\cal F}$ consisting of the intersections of sets in ${\cal F}$ with $X^{\prime}$. It is clear that ${\cal F}^{\prime}$ satisfies conditions

[TABLE]

Proposition 5.1**.**

The partial cubes induced by a wg-family ${\cal F}$ and its retraction ${\cal F}^{\prime}$ are isomorphic.

Proof.

It suffices to prove that metric spaces ${\cal F}$ and ${\cal F}^{\prime}$ are isometric. Clearly, $\alpha:P\mapsto P\cap X^{\prime}$ is a mapping from ${\cal F}$ onto ${\cal F}^{\prime}$. For $P,Q\in{\cal F}$, we have

[TABLE]

Thus, $d(\alpha(P),\alpha(Q))=d(P,Q)$. Consequently, $\alpha$ is an isometry. ∎

Let $G$ be a partial cube on some set $X$ induced by a wg-family ${\cal F}$ satisfying conditions (5.2), and let $PQ$ be an edge of $G$. By definition, there is $x\in X$ such that $P\Delta Q=\{x\}$. The following two lemmas are instrumental.

Lemma 5.1**.**

Let $PQ$ be an edge of a partial cube $G$ on $X$ and let $P\Delta Q=\{x\}$. The two sets

[TABLE]

form the same bipartition of the family ${\cal F}$ as semicubes $W_{PQ}$ and $W_{QP}$.

Proof.

We may assume that $Q=P+\{x\}$. Then, for any $R\in{\cal F}$,

[TABLE]

Hence, $|R\Delta P|<|R\Delta Q|$ if and only if $x\in R$. It follows that

[TABLE]

A similar argument shows that $W_{QP}=\{R\in{\cal F}:x\notin R\}$. ∎

Lemma 5.2**.**

If ${\cal F}$ is a wg-family of sets satisfying conditions (5.2), then for any $x\in X$ there are sets $P,Q\in{\cal F}$ such that $P\Delta Q=\{x\}$.

Proof.

By conditions 5.2, for a given $x\in X$ there are sets $S$ and $T$ in ${\cal F}$ such that $x\in S$ and $x\notin T$. Let $R_{0}=S,R_{1},\ldots,R_{n}=T$ be a sequence of sets in ${\cal F}$ satisfying conditions (2.2). It is clear that there is $i$ such that $x\in R_{i}$ and $x\notin R_{i+1}$. Hence, $R_{i}\Delta R_{i+1}=\{x\}$, so we can choose $P=R_{i}$ and $Q=R_{i+1}$. ∎

By Lemmas 5.1 and 5.2, there is one-to-one correspondence between the set $X$ and the quotient-set $E/\theta$. From Theorem 5.1 we obtain the following result.

Theorem 5.2**.**

Let ${\cal F}$ be a wg-family of finite subsets of a set $X$ such that $\cap\,{\cal F}=\varnothing$ and $\cup\,{\cal F}=X$, and let $G$ be a partial cube on $X$ induced by ${\cal F}$. Then

[TABLE]

Clearly, a graph which is isometrically embeddable into a partial cube is a partial cube itself. We will show in Section 6 (Corollary 6.1) that the integer lattice ${\cal Z}^{n}$ is a partial cube. Thus a graph which is isometrically embeddable into an integer lattice is a partial cube. It follows that a finite graph is a partial cube if and only if it is embeddable in some integer lattice. Examples of infinite partial cubes isometrically embeddable into a finite dimensional integer lattice are found in [17].

We call the minimum possible dimension $n$ of an integer lattice ${\cal Z}^{n}$, in which a given graph $G$ is isometrically embeddable, its lattice dimension and denote it $\dim_{Z}(G)$. The lattice dimension of a partial cube can be expressed in terms of maximum matchings in so-called semicube graphs [11].

Definition 5.1**.**

The semicube graph $\text{Sc}(G)$ has all semicubes in $G$ as the set of its vertices. Two vertices $W_{ab}$ and $W_{cd}$ are connected in $\text{Sc}(G)$ if

[TABLE]

If $G$ is a partial cube, then condition (5.3) is equivalent to each of the two equivalent conditions:

[TABLE]

where $\subset$ stands for the proper inclusion.

Theorem 5.3**.**

(Theorem 1 in [11].)* Let $G$ be a finite partial cube. Then*

[TABLE]

where $M$ is a maximum matching in the semicube graph $\text{{\rm Sc}}(G)$.

Example 5.1**.**

Let $G$ be the graph shown in Figure 2.1. It is easy to see that

[TABLE]

Example 5.2**.**

Let $T$ be a tree with $n$ edges and $m$ leaves. Then

[TABLE]

(cf. [8] and [14], respectively). **

Example 5.3**.**

For the cycle $C_{6}$ we have (see Figure 8.2)

[TABLE]

6 Subcubes and Cartesian products

Let $G$ be a partial cube. We say that $G^{\prime}$ is a subcube of $G$ if it is an isometric subgraph of $G$.

Clearly, a subcube is itself a partial cube. The converse does not hold; a subgraph of a graph $G$ can be a partial cube but not an isometric subgraph of $G$ (cf. Example 2.1).

If $G^{\prime}$ is a subcube of a partial cube $G$, then $\dim_{I}(G^{\prime})\leq\dim_{I}(G)$ and $\dim_{Z}(G^{\prime})\leq\dim_{Z}(G)$. In general, the two inequalities are not strict. For instance, the cycle $C_{6}$ is an isometric subgraph of the cube $Q_{3}$ (see Figure 8.2) and

[TABLE]

Semicubes of a partial cube are examples of subcubes. Indeed, by Theorem 3.4, semicubes are convex subgraphs and therefore isometric. In general, the converse is not true; a path connecting two opposite vertices in $C_{6}$ is an isometric subgraph but not a convex one.

Another common way of constructing new partial cubes from old ones is by forming their Cartesian products (see [15] for details and proofs).

Definition 6.1**.**

Given two graphs $G_{1}=(V_{1},E_{1})$ and $G_{2}=(V_{2},E_{2})$, their Cartesian product

[TABLE]

has vertex set $V=V_{1}\times V_{2}$; a vertex $u=(u_{1},u_{2})$ is adjacent to a vertex $v=(v_{1},v_{2})$ if and only if $u_{1}v_{1}\in E_{1}$ and $u_{2}=v_{2}$, or $u_{1}=v_{1}$ and $u_{2}v_{2}\in E_{2}$. **

The operation $\Box$ is associative, so we can write

[TABLE]

for the Cartesian product of graphs $G_{1},\ldots,G_{n}$. A Cartesian product $\prod_{i=1}^{n}G_{i}$ is connected if and only if the factors are connected. Then we have

[TABLE]

Example 6.1**.**

Let $\{X_{i}\}_{i=1}^{n}$ be a family of sets and $Y=\sum_{i=1}^{n}$ be their sum. Then the Cartesian product of the hypercubes ${\cal H}(X_{i})$ is isomorphic to the hypercube ${\cal H}(Y)$. The isomorphism is established by the mapping

[TABLE]

Formula (6.1) yields immediately the following results.

Proposition 6.1**.**

Let $H_{i}$ be isometric subgraphs of graphs $G_{i}$ for all $1\leq i\leq n$. Then the Cartesian product $\prod_{i=1}^{n}H_{i}$ is an isometric subgraph of the Cartesian product $\prod_{i=1}^{n}G_{i}$.

Corollary 6.1**.**

The Cartesian product of a finite family of partial cubes is a partial cube. In particular, the integer lattice ${\cal Z}^{n}$ (cf. Examples 2.2 and 2.3) is a partial cube.

The results of the next two theorems can be easily extended to arbitrary finite products of finite partial cubes.

Theorem 6.1**.**

Let $G=G_{1}\Box\,G_{2}$ be the Cartesian product of two finite partial cubes. Then

[TABLE]

Proof.

We may assume that $G_{1}$ (resp. $G_{2}$) is induced by a wg-family ${\cal F}_{1}$ (resp. ${\cal F}_{2}$) of subsets of a finite set $X_{1}$ (resp. $X_{2}$) such that $\cap\,{\cal F}_{1}=\varnothing$ and $\cup\,{\cal F}_{1}=X_{1}$ (resp. $\cap\,{\cal F}_{2}=\varnothing$ and $\cup\,{\cal F}_{2}=X_{1}$) (see Section 5). By Theorem 5.2,

[TABLE]

It is clear that the graph $G$ is induced by the wg-family ${\cal F}={\cal F}_{1}+{\cal F}_{2}$ of subsets of the set $X=X_{1}+X_{2}$ (cf. Example 6.1) with $\cap\,{\cal F}=\varnothing,\;\cup\,{\cal F}=X$. By Theorem 5.2,

[TABLE]

∎

Theorem 6.2**.**

Let $G=(V,E)$ be the Cartesian product of two finite partial cubes $G_{1}=(V_{1},E_{1})$ and $G_{2}=(V_{2},E_{2})$. Then

[TABLE]

Proof.

Let $W_{(a,b)(c,d)}$ be a semicube of the graph $G$. There are two possible cases:

(i) $c=a,\;bd\in E_{2}$. Let $(x,y)$ be a vertex of G. Then, by (6.1),

[TABLE]

and

[TABLE]

Hence,

[TABLE]

It follows that

[TABLE]

(ii) $d=b,\;ac\in E_{1}$. Like in (i), we have

[TABLE]

Clearly, two semicubes given by (6.2) form an edge in the semicube graph $\text{Sc}(G)$ if and only if their second factors form an edge in the semicube graph $\text{Sc}(G_{2})$. The same is true for semicubes in the form (6.3) with respect to their first factors. It is also clear that semicubes in the form (6.2) and in the form (6.3) are not connected by an edge in $\text{Sc}(G)$. Therefore the semicube graph $\text{Sc}(G)$ is isomorphic to the disjoint union of semicube graphs $\text{Sc}(G_{1})$ and $\text{Sc}(G_{2})$. If $M_{1}$ is a maximum matching in $\text{Sc}(G_{1})$ and $M_{2}$ is a maximum matching in $\text{Sc}(G_{2})$, then $M=M_{1}\cup M_{2}$ is a maximum matching in $\text{Sc}(G)$. The result follows from theorems 5.3 and 6.1. ∎

Remark 6.1**.**

The result of Corollary 6.1 does not hold for infinite Cartesian products of partial cubes, as these products are disconnected. On the other hand, it can be shown that arbitrary weak Cartesian products (connected components of Cartesian products [15]) of partial cubes are partial cubes. **

7 Pasting partial cubes

In this section we use the set pasting technique [5, ch.I, §2.5] to build new partial cubes from old ones.

Let $G_{1}=(V_{1},E_{1})$ and $G_{2}=(V_{2},E_{2})$ be two graphs, $H_{1}=(U_{1},F_{1})$ and $H_{2}=(U_{2},F_{2})$ be two isomorphic subgraphs of $G_{1}$ and $G_{2}$, respectively, and $\psi:U_{1}\rightarrow U_{2}$ be a bijection defining an isomorphism between $H_{1}$ and $H_{2}$. The bijection $\psi$ defines an equivalence relation $R$ on the sum $V_{1}+V_{2}$ as follows: any element in $(V_{1}\setminus U_{1})\cup(V_{2}\setminus U_{2})$ is equivalent to itself only and elements $u_{1}\in U_{1}$ and $u_{2}\in U_{2}$ are equivalent if and only if $u_{2}=\psi(u_{1})$. We say that the quotient set $V=(V_{1}+V_{2})/R$ is obtained by pasting together the sets $V_{1}$ and $V_{2}$ along the subsets $U_{1}$ and $U_{2}$. Since the graphs $H_{1}$ and $H_{2}$ are isomorphic, the pasting of the sets $V_{1}$ and $V_{2}$ can be naturally extended to a pasting of sets of edges $E_{1}$ and $E_{2}$ resulting in the set $E$ of edges joining vertices in $V$. We say that the graph $G=(E,V)$ is obtained by pasting together the graphs $G_{1}$ and $G_{2}$ along the isomorphic subgraphs $H_{1}$ and $H_{2}$. The pasting construction allows for identifying in a natural way the graphs $G_{1}$ and $G_{2}$ with subgraphs of $G$, and the isomorphic graphs $H_{1}$ and $H_{2}$ with a common subgraph $H$ of both graphs $G_{1}$ and $G_{2}$. We often follow this convention below.

Remark 7.1**.**

Note that in the above construction the resulting graph $G$ depends not only on graphs $G_{1}$ and $G_{2}$ and their isomorphic subgraphs $H_{1}$ and $H_{2}$ but also on the bijection $\psi$ defining an isomorphism from $H_{1}$ onto $H_{2}$ (see the drawings in Figures 7.1 and 7.2). **

In general, pasting of two partial cubes $G_{1}$ and $G_{2}$ along two isomorphic subgraphs $H_{1}$ and $H_{2}$ does not produce a partial cube even under strong assumptions about these subgraphs as the next example illustrates.

Example 7.1**.**

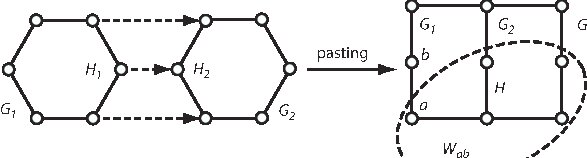

Pasting of two partial cubes $G_{1}=C_{6}$ and $G_{2}=C_{6}$ along subgraphs $H_{1}$ and $H_{2}$ is shown in Figure 7.3. The resulting graph $G$ is not a partial cube. Indeed, the semicube $W_{ab}$ is not a convex set. Note that subgraphs $H_{1}$ and $H_{2}$ are convex subgraphs of the respective partial cubes. **

In this section we study two simple pastings of connected graphs together, the vertex-pasting and the edge-pasting, and show that these pastings produce partial cubes from partial cubes. We also compute the isometric and lattice dimensions of the resulting graphs.

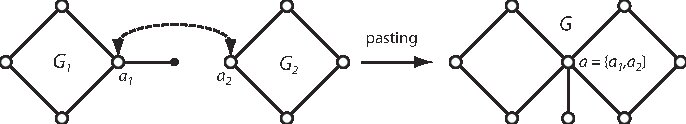

Let $G_{1}=(V_{1},E_{1})$ and $G_{2}=(V_{2},E_{2})$ be two connected graphs, $a_{1}\in V_{1}$, $a_{2}\in V_{2}$, and $H_{1}=(\{a_{1}\},\varnothing),\;H_{2}=(\{a_{2}\},\varnothing)$. Let $G$ be the graph obtained by pasting $G_{1}$ and $G_{2}$ along subgraphs $H_{1}$ and $H_{2}$. In this case we say that the graph $G$ is obtained from graphs $G_{1}$ and $G_{2}$ by vertex-pasting. We also say that $G$ is obtained from $G_{1}$ and $G_{2}$ by identifying vertices $a_{1}$ and $a_{2}$. Figure 7.4 illustrates this construction. Note that the vertex $a=\{a_{1},a_{2}\}$ is a cut vertex of $G$, since $G_{1}\cup G_{2}=G$ and $G_{1}\cap G_{2}=\{a\}$. (We follow our convention and identify graphs $G_{1}$ and $G_{2}$ with subgraphs of $G$.)

In what follows we use superscripts to distinguish subgraphs of the graphs $G_{1}$ and $G_{2}$. For instance, $W^{(2)}_{ab}$ stands for the semicube of $G_{2}$ defined by two adjacent vertices $a,b\in V_{2}$.

Theorem 7.1**.**

A graph $G=(V,E)$ obtained by vertex-pasting from partial cubes $G_{1}=(V_{1},E_{1})$ and $G_{2}=(V_{2},E_{2})$ is a partial cube.

Proof.

We denote $a=\{a_{1},a_{2}\}$ the vertex of $G$ obtained by identifying vertices $a_{1}\in V_{1}$ and $a_{2}\in V_{2}$. Clearly, $G$ is a bipartite graph. Let $xy$ be an edge of $G$. Without loss of generality we may assume that $xy\in E_{1}$ and $a\in W_{xy}$. Note that any path between vertices in $V_{1}$ and $V_{2}$ must go through $a$. Since $a\in W_{xy}$, we have, for any $v\in V_{2}$,

[TABLE]

which implies $V_{2}\subseteq W_{xy}$ and $W_{yx}\subseteq V_{1}$. It follows that $W_{xy}=W^{(1)}_{xy}\cup V_{2}$ and $W_{yx}=W^{(1)}_{yx}$. The sets $W^{(1)}_{xy},\;W^{(1)}_{yx}$ and $V_{2}$ are convex subsets of $V$. Since $W^{(1)}_{xy}\cap V_{2}=\{a\}$, the set $W_{xy}=W^{(1)}_{xy}\cup V_{2}$ is also convex. By Theorem 3.4(ii), the graph $G$ is a partial cube. ∎

The vertex-pasting construction introduced above can be generalized as follows. Let ${\cal G}=\{G_{i}=(V_{i},E_{i})\}_{i\in J}$ be a family of connected graphs and ${\cal A}=\{a_{i}\in G_{i}\}_{i\in J}$ be a family of distinguished vertices of these graphs. Let $G$ be the graph obtained from the graphs $G_{i}$ by identifying vertices in the set ${\cal A}$. We say that $G$ is obtained by vertex-pasting together the graphs $G_{i}$ (along the set ${\cal A}$).

Example 7.2**.**

Let $J=\{1,\ldots,n\}$ with $n\geq 2$,

[TABLE]

Clearly, each $G_{i}$ is $K_{2}$. By vertex-pasting these graphs along ${\cal A}$, we obtain the $n$-star graph $K_{1,n}$. **

Since the star $K_{1,n}$ is a tree it can be also obtained from $K_{1}$ by successive vertex-pasting as in Example 7.3.

Example 7.3**.**

Let $G_{1}$ be a tree and $G_{2}=K_{2}$. By vertex-pasting these graphs we obtain a new tree. Conversely, let $G$ be a tree and $v$ be its leaf. Let $G_{1}$ be a tree obtained from $G$ by deleting the leaf $v$. Clearly, $G$ can be obtained by vertex-pasting $G_{1}$ and $K_{2}$. It follows that any tree can obtained from the graph $K_{1}$ by successive vertex-pasting of copies of $K_{2}$ (cf. Theorem 2.3(e) in [12]). **

Any connected graph $G$ can be constructed by successive vertex-pasting of its blocks using its block cut-vertex tree [4] structure. Let $G_{1}$ be an endblock of $G$ with a cut vertex $v$ and $G_{2}$ be the union of the remaining blocks of $G$. Then $G$ can be obtained from $G_{1}$ and $G_{2}$ by vertex-pasting along the vertex $v$. It follows that any connected graph can be obtained from its blocks by successive vertex-pastings.

Let $G=(V,E)$ be a partial cube. We recall that the isometric dimension $\dim_{I}(G)$ of $G$ is the cardinality of the quotient set $E/\theta$, where $\theta$ is Djoković’s equivalence relation on the set $E$ (cf. formula (5.1)).

Theorem 7.2**.**

Let $G=(V,E)$ be a partial cube obtained by vertex-pasting together partial cubes $G_{1}=(V_{1},E_{1})$ and $G_{2}=(V_{2},E_{2})$. Then

[TABLE]

Proof.

It suffices to prove that there are no edges $xy\in E_{1}$ and $uv\in E_{2}$ which are in Djoković’s relation $\theta$ with each other. Suppose that $G_{1}$ and $G_{2}$ are vertex-pasted along vertices $a_{1}\in E_{1}$ and $a_{2}\in E_{2}$ and let $a=\{a_{1},a_{2}\}\in E$. Let $xy\in E_{1}$ and $uv\in E_{2}$ be two edges in $E$. We may assume that $u\in W_{xy}$. Since $a$ is a cut-vertex of $G$ and $u\in W_{xy}$, we have

[TABLE]

Hence, $d(a,x)<d(a,y)$, which implies

[TABLE]

It follows that $v\in W_{xy}$. Therefore the edge $xy$ does not stand in the relation $\theta$ to the vertex $uv$. ∎

The next result follows immediately from the previous theorem. Note that blocks of a partial cube are partial cubes themselves.

Corollary 7.1**.**

Let $G$ be a partial cube and $\{G_{1},\ldots,G_{n}\}$ be the family of its blocks. Then

[TABLE]

In the case of the lattice dimension of a partial cube we can claim only much weaker result than one stated in Theorem 7.2 for the isometric dimension. We omit the proof.

Theorem 7.3**.**

Let $G$ be a partial cube obtained by vertex-pasting together partial cubes $G_{1}$ and $G_{2}$. Then

[TABLE]

The following example illustrate possible cases for inequalities in Theorem 7.3. Let us recall that the lattice dimension of a tree with $m$ leaves is $\lceil m/2\rceil$ (cf. [14]).

Example 7.4**.**

The star $K_{1,6}$ can be obtained from the stars $K_{1,2}$ and $K_{1,4}$ by vertex-pasting these two stars along their centers. Clearly,

[TABLE]

The same star $K_{1,6}$ is obtained from two copies of the star $K_{1,3}$ by vertex-pasting along their centers. We have $\dim_{Z}(K_{1,3})=2,\;\dim_{Z}(K_{1,6})=3$, so

[TABLE]

Let us vertex-paste two stars $K_{1,3}$ along their two leaves. The resulting graph $T$ is a tree with four vertices. Therefore,

[TABLE]

We now consider another simple way of pasting two graphs together.

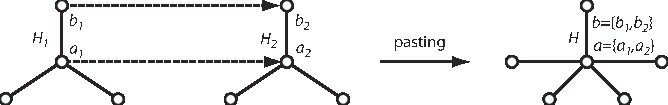

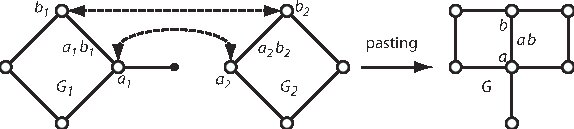

Let $G_{1}=(V_{1},E_{1})$ and $G_{2}=(V_{2},E_{2})$ be two connected graphs, $a_{1}b_{1}\in E_{1}$, $a_{2}b_{2}\in E_{2}$, and $H_{1}=(\{a_{1},b_{1}\},\{a_{1}b_{1}\}),\;H_{2}=(\{a_{2},b_{2}\},\{a_{2}b_{2}\})$. Let $G$ be the graph obtained by pasting $G_{1}$ and $G_{2}$ along subgraphs $H_{1}$ and $H_{2}$. In this case we say that the graph $G$ is obtained from graphs $G_{1}$ and $G_{2}$ by edge-pasting. Figures 7.1, 7.2, and 7.5 illustrate this construction.

As before, we identify the graphs $G_{1}$ and $G_{2}$ with subgraphs of the graph $G$ and denote $a=\{a_{1},a_{2}\},\;b=\{b_{1},b_{2}\}$ the two vertices obtained by pasting together vertices $a_{1}$ and $a_{2}$ and, respectively, $b_{1}$ and $b_{2}$. The edge $ab\in E$ is obtained by pasting together edges $a_{1}b_{1}\in E_{1}$ and $a_{2}b_{2}\in E_{2}$ (cf. Figure 7.5). Then $G=G_{1}\cup G_{2},\;V_{1}\cap V_{2}=\{a,b\}$ and $E_{1}\cap E_{2}=\{ab\}$. We use these notations in the rest of this section.

Proposition 7.1**.**

A graph $G$ obtained by edge-pasting together bipartite graphs $G_{1}$ and $G_{2}$ is bipartite.

Proof.

Let $C$ be a cycle in $G$. If $C\subseteq G_{1}$ or $C\subseteq G_{2}$, then the length of $C$ is even, since the graphs $G_{1}$ and $G_{2}$ are bipartite. Otherwise, the vertices $a$ and $b$ separate $C$ into two paths each of odd length. Therefore $C$ is a cycle of even length. The result follows. ∎

The following lemma is instrumental; it describes the semicubes of the graph $G$ in terms of semicubes of graphs $G_{1}$ and $G_{2}$.

Lemma 7.1**.**

Let $uv$ be an edge of $G$. Then

1. (i)

For uv\in E_{1},\quad$$a,b\in W_{uv}\quad\Rightarrow\quad W_{uv}=W_{uv}^{(1)}\cup V_{2},\;W_{vu}=W_{vu}^{(1)}. 2. (ii)

For uv\in E_{2},\quad$$a,b\in W_{uv}\quad\Rightarrow\quad W_{uv}=W_{uv}^{(2)}\cup V_{1},\;W_{vu}=W_{vu}^{(2)}. 3. (iii)

$a\in W_{uv}$, $b\in W_{vu}\quad\Rightarrow\quad W_{uv}=W_{ab}$.

Proof.

We prove parts (i) and (iii) (see Figure 7.6).

(i) Since any path from $w\in V_{2}$ to $u$ or $v$ contains $a$ or $b$ and $a,b\in W_{uv}$, we have $w\in W_{uv}$. Hence, $W_{uv}=W_{uv}^{(1)}\cup V_{2}$ and $W_{vu}=W_{vu}^{(1)}$.

(iii) Since $ab\,\theta\,uv$ in $G_{1}$, we have $W^{(1)}_{uv}=W^{(1)}_{ab}$, by Theorem 3.4(iv). Let $w$ be a vertex in $W^{(2)}_{uv}$. Then, by the triangle inequality,

[TABLE]

Since any shortest path from $w$ to $u$ contains $a$ or $b$, we have

[TABLE]

Therefore,

[TABLE]

Since $ab\,\theta\,uv$ in $G_{1}$, we have $d(a,u)=d(b,v)$, by Theorem 4.2. It follows that $d(w,a)<d(w,b)$, that is, $w\in W^{(2)}_{ab}$. We proved that $W^{(2)}_{uv}\subseteq W^{(2)}_{ab}$. By symmetry, $W^{(2)}_{vu}\subseteq W^{(2)}_{ba}$. Since two opposite semicubes form a partition of $V_{2}$, we have $W^{(2)}_{uv}=W^{(2)}_{ab}$. The result follows. ∎

Theorem 7.4**.**

A graph $G$ obtained by edge-pasting together partial cubes $G_{1}$ and $G_{2}$ is a partial cube.

Proof.

By Theorem 3.4(ii) and Proposition 7.1, we need to show that for any edge $uv$ of $G$ the semicube $W_{uv}$ is a convex subset of $V$. There are two possible cases.

(i) $uv=ab$. The semicube $W_{ab}$ is the union of semicubes $W^{(1)}_{ab}$ and $W^{(2)}_{ab}$ which are convex subsets of $V_{1}$ and $V_{2}$, respectively. It is clear that any shortest path connecting a vertex in $W^{(1)}_{ab}$ with a vertex in $W^{(2)}_{ab}$ contains vertex $a$ and therefore is contained in $W_{ab}$. Hence, $W_{ab}$ is a convex set. A similar argument proves that the set $W_{ba}$ is convex.

(ii) $uv\not=ab$. We may assume that $uv\in E_{1}$. To prove that the semicube $W_{uv}$ is a convex set, we consider two cases.

(a) $a,b\in W_{uv}$. (The case when $a,b\in W_{vu}$ is treated similarly.) By Lemma 7.1(i), the semicube $W_{uv}$ is the union of the semicube $W^{(1)}_{uv}$ and the set $V_{2}$ which are both convex sets. Any shortest path $P$ from a vertex in $V_{2}$ to a vertex in $W^{(1)}_{uv}$ contains either $a$ or $b$. It follows that $P\subseteq W_{uv}^{(1)}\cup V_{2}=W_{uv}$. Therefore the semicube $W_{uv}$ is convex.

(b) $a\in W_{uv}$, $b\in W_{vu}$. (The case when $b\in W_{uv}$, $a\in W_{vu}$ is treated similarly.) By Lemma 7.1(ii), $W_{uv}=W_{ab}$. The result follows from part (i) of the proof. ∎

Theorem 7.5**.**

Let $G$ be a graph obtained by edge-pasting together finite partial cubes $G_{1}$ and $G_{2}$. Then

[TABLE]

Proof.

Let $\theta$, $\theta_{1}$, and $\theta_{2}$ be Djoković’s relations on $E$, $E_{1}$, and $E_{2}$, respectively. By Lemma 7.1, for $uv,xy\in E_{1}$ (resp. $uv,xy\in E_{2}$) we have

[TABLE]

Let $uv\in E_{1}$, $xy\in E_{2}$, and $uv\,\theta\,xy$. Suppose that $(uv,ab)\notin\theta$. We may assume that $a,b\in W_{uv}$. By Lemma 7.1(i), $V_{2}\subset W_{uv}$, a contradiction, since $xy\in E_{2}$. Hence, $uv\,\theta\,xy\,\theta\,ab$. It follows that each equivalence class of the relation $\theta$ is either an equivalence class of $\theta_{1}$, an equivalence class of $\theta_{2}$ or the class containing the edge $ab$. Therefore

[TABLE]

The result follows, since the isometric dimension of a partial cube is equal to the cardinality of the set of equivalence classes of Djoković’s relation (formula (5.1)). ∎

We need some results about semicube graphs in order to prove an analog of Theorem 7.3 for a partial cube obtained by edge-pasting of two partial cubes.

Lemma 7.2**.**

Let $G$ be a partial cube and $W_{pq}W_{uv},\;W_{qp}W_{xy}$ be two edges in the graph $\text{Sc}(G)$. Then $W_{xy}W_{uv}$ is an edge in $\text{Sc}(G)$.

Proof.

By condition (5.4), $W_{qp}\subset W_{uv}$ and $W_{yx}\subset W_{qp}$. Hence, $W_{yx}\subset W_{uv}$. By the same condition, $W_{xy}W_{uv}\in\text{Sc}(G)$. ∎

As before, we identify partial cubes $G_{1}$ and $G_{2}$ with subgraphs of the partial cube $G$. Then $G_{1}\cup G_{2}=G$ and $G_{1}\cap G_{2}=(\{a,b\},\{ab\})=K_{2}$ (cf. Figure 7.6).

Lemma 7.3**.**

Let $G$ be a partial cube obtained by edge-pasting together partial cubes $G_{1}$ and $G_{2}$. Let $W_{uv}^{(1)}W_{xy}^{(1)}$ (resp. $W_{uv}^{(2)}W_{xy}^{(2)}$) be an edge in the semicube $\text{Sc}(G_{1})$ (resp. $\text{Sc}(G_{2})$). Then $W_{uv}W_{xy}$ is an edge in $\text{Sc}(G)$.

Proof.

It suffices to consider the case of $\text{Sc}(G_{1})$ (see Figure 7.7). By condition (5.4), $W_{vu}^{(1)}\subset W_{xy}^{(1)}$ and $W_{yx}^{(1)}\subset W_{uv}^{(1)}$. Suppose that $a\in W_{vu}^{(1)}$ and $b\in W_{yx}^{(1)}$ (the case when $b\in W_{vu}^{(1)}$ and $a\in W_{yx}^{(1)}$ is treated similarly). Then $ab\,\theta_{1}xy$ and $ab\,\theta_{1}uv$. By transitivity of $\theta_{1}$, we have $uv\,\theta_{1}xy$, a contradiction, since semicubes $W_{uv}^{(1)}$ and $W_{xy}^{(1)}$ are distinct. Therefore we may assume that, say, $a,b\in W_{uv}^{(1)}$. Then, by Lemma 7.1, $W_{vu}=W_{vu}^{(1)}\subset V_{1}$. Since $W_{vu}^{(1)}\subset W_{xy}^{(1)}\subseteq W_{xy}$, we have $W_{vu}\subset W_{xy}$. By condition (5.4), $W_{uv}W_{xy}$ is an edge in $\text{Sc}(G)$. ∎

Lemma 7.4**.**

Let $M_{1}$ and $M_{2}$ be matchings in graphs $\text{Sc}(G_{1})$ and $\text{Sc}(G_{2})$. There is a matching $M$ in $\text{Sc}(G)$ such that

[TABLE]

Proof.

By Lemma 7.3, $M_{1}$ and $M_{2}$ induce matchings in $\text{Sc}(G)$ which we denote by the same symbols. The intersection $M_{1}\cap M_{2}$ is either empty or a subgraph of the empty graph with vertices $W_{ab}$ and $W_{ba}$.

If $M_{1}\cap M_{2}$ is empty, then $M=M_{1}\cup M_{2}$ is a matching in $\text{Sc}(G)$ and the result follows.

If $M_{1}\cap M_{2}$ is an empty graph with a single vertex, say, in $M_{1}$, we remove from $M_{1}$ the edge that has this vertex as its end vertex, resulting in the matching $M^{\prime}_{1}$. Clearly, $M=M^{\prime}_{1}\cup M_{2}$ is a matching in $\text{Sc}(G)$ and $|M|=|M_{1}|+|M_{2}|-1$.

Suppose now that $M_{1}\cap M_{2}$ is the empty graph with vertices $W_{ab}$ and $W_{ba}$. Let $W_{ab}W_{uv},\;W_{ba}W_{pq}$ (resp. $W_{ab}W_{xy},\;W_{ba}W_{rs}$) be edges in $M_{1}$ (resp. $M_{2}$). By Lemma 7.2, $W_{xy}W_{rs}$ is an edge in $\text{Sc}(G_{2})$. Let us replace edges $W_{ab}W_{xy}$ and $W_{ba}W_{rs}$ in $M_{2}$ by a single edge $W_{xy}W_{rs}$, resulting in the matching $M^{\prime}_{2}$. Then $M=M_{1}\cup M^{\prime}_{2}$ is a matching in $\text{Sc}(G)$ and $|M|=|M_{1}|+|M_{2}|-1$. ∎

Corollary 7.2**.**

Let $M_{1}$ and $M_{2}$ be maximum matchings in $\text{Sc}(G_{1})$ and $\text{Sc}(G_{2})$, respectively, and $M$ be a maximum matching in $\text{Sc}(G)$. Then

[TABLE]

By Theorem 5.3, we have

[TABLE]

and

[TABLE]

where $M_{1}$ and $M_{2}$ are maximum matchings in $\text{Sc}(G_{1})$ and $\text{Sc}(G_{2})$, respectively, and $M$ is a maximum matching in $\text{Sc}(G)$. Therefore, by Theorem 7.5 and (7.1), we have the following result (cf. Theorem 7.3).

Theorem 7.6**.**

Let $G$ be a partial cube obtained by edge-pasting from partial cubes $G_{1}$ and $G_{2}$. Then

[TABLE]

Example 7.5**.**

Let us consider two edge-pastings of the stars $G_{1}=K_{1,3}$ and $G_{2}=K_{1,3}$ of lattice dimension $2$ shown in figures 7.1 and 7.2. In the first case the resulting graph is the star $G=K_{1,5}$ of lattice dimension $3$. Then we have

[TABLE]

In the second case the resulting graph is a tree with $4$ leaves. Therefore,

[TABLE]

Let $c_{1}a_{1}$ and $c_{2}a_{2}$ be edges of stars $G_{1}=K_{1,4}$ and $G_{2}=K_{1,4}$ (each of which has lattice dimension $2$), where $c_{1}$ and $c_{2}$ are centers of the respective stars. Let us edge-paste these two graphs by identifying $c_{1}$ with $c_{2}$ and $a_{1}$ with $a_{2}$, respectively. The resulting graph $G$ is the star $K_{1,7}$ of lattice dimension $4$. Thus,

[TABLE]

8 Expansions and contractions of partial cubes

The graph expansion procedure was introduced by Mulder in [16], where it is shown that a graph is a median graph if and only if it can be obtained from $K_{1}$ by a sequence of convex expansions (see also [15]). A similar result for partial cubes was established in [6] (see also [7]) as a corollary to a more general result concerning isometric embeddability into Hamming graphs; it was also established in [13] in the framework of oriented matroids theory.

In this section we investigate properties of (isometric) expansion and contraction operations and, in particular, prove in two different ways that a graph is a partial cube if and only if it can be obtained from the graph $K_{1}$ by a sequence of expansions.

A remark about notations is in order. In the product $\{1,2\}\times(V_{1}\cup V_{2})$, we denote $V^{\prime}_{i}=\{i\}\times V_{i}$ and $x^{i}=(i,x)$ for $x\in V_{i}$, where $i,j=1,2$.

Definition 8.1**.**

Let $G=(V,E)$ be a connected graph, and let $G_{1}=(V_{1},E_{1})$ and $G_{2}=(V_{2},E_{2})$ be two isometric subgraphs of $G$ such that $G=G_{1}\cup G_{2}$. The expansion of $G$ with respect to $G_{1}$ and $G_{2}$ is the graph $G^{\prime}=(V^{\prime},E^{\prime})$ constructed as follows from $G$ (see Figure 8.1):

1. (i)

$V^{\prime}=V_{1}+V_{2}=V^{\prime}_{1}\cup V^{\prime}_{2}$; 2. (ii)

$E^{\prime}=E_{1}+E_{2}+M$, where $M$ is the matching $\bigcup_{x\in V_{1}\cap V_{2}}\{x^{1}x^{2}\}$.

In this case, we also say that $G$ is a contraction of $G^{\prime}$. **

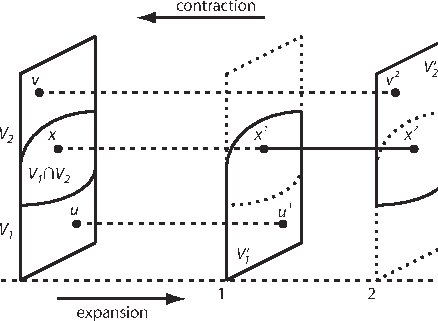

It is clear that the graphs $G_{1}$ and $\langle V^{\prime}_{1}\rangle$ are isomorphic, as well as the graphs $G_{2}$ and $\langle V^{\prime}_{2}\rangle$.

We define a projection $p:V^{\prime}\rightarrow V$ by $p(x^{i})=x$ for $x\in V$. Clearly, the restriction of $p$ to $V^{\prime}_{1}$ is a bijection $p_{1}:V^{\prime}_{1}\rightarrow V_{1}$ and its restriction to $V^{\prime}_{2}$ is a bijection $p_{2}:V^{\prime}_{2}\rightarrow V_{2}$. These bijections define isomorphisms $\langle V^{\prime}_{1}\rangle\rightarrow G_{1}$ and $\langle V^{\prime}_{2}\rangle\rightarrow G_{2}$.

Let $P^{\prime}$ be a path in $G^{\prime}$. The vertices of $G$ obtained from the vertices in $P^{\prime}$ under the projection $p$ define a walk $P$ in $G$; we call this walk $P$ the projection of the path $P^{\prime}$. It is clear that

[TABLE]

In this case, $P$ is a path in $G$ and either $P=p_{1}(P^{\prime})$ or $P=p_{2}(P^{\prime})$. On the other hand,

[TABLE]

and $P$ is not necessarily a path.

We will frequently use the results of the following lemma in this section.

Lemma 8.1**.**

(i)* For $u^{1},v^{1}\in V^{\prime}_{1}$, any shortest path $P_{u^{1}v^{1}}$ in $G^{\prime}$ belongs to $\langle V^{\prime}_{1}\rangle$ and its projection $P_{uv}=p_{1}(P_{u^{1}v^{1}})$ is a shortest path in $G$. Accordingly,*

[TABLE]

and $\langle V^{\prime}_{1}\rangle$ is a convex subgraph of $G^{\prime}$. A similar statement holds for $u^{2},v^{2}\in V^{\prime}_{2}$.

(ii)* For $u^{1}\in V^{\prime}_{1}$ and $v^{2}\in V^{\prime}_{2}$,*

[TABLE]

Let $P_{u^{1}v^{2}}$ be a shortest path in $G^{\prime}$. There is a unique edge $x^{1}x^{2}\in M$ such that $x^{1},x^{2}\in P_{u^{1}v^{2}}$ and the sections $P_{u^{1}x^{1}}$ and $P_{x^{2}v^{2}}$ of the path $P_{u^{1}v^{2}}$ are shortest paths in $\langle V^{\prime}_{1}\rangle$ and $\langle V^{\prime}_{2}\rangle$, respectively. The projection $P_{uv}$ of $P_{u^{1}v^{2}}$ in $G^{\prime}$ is a shortest path in $G$.

Proof.

(i) Let $P_{u^{1}v^{1}}$ be a path in $G^{\prime}$ that intersects $V^{\prime}_{2}$. Since $\langle V_{1}\rangle$ is an isometric subgraph of $G$, there is a path $P_{uv}$ in $G$ that belongs to $\langle V_{1}\rangle$. Then $p_{1}^{-1}(P_{uv})$ is a path in $\langle V^{\prime}_{1}\rangle$ of the same length as $P_{uv}$. By (8.1) and (8.2),

[TABLE]

Therefore any shortest path $P_{u^{1}v^{1}}$ in $G^{\prime}$ belongs to $\langle V^{\prime}_{1}\rangle$. The result follows.

(ii) Let $P_{u^{1}v^{2}}$ be a shortest path in $G^{\prime}$ and $P_{uv}$ be its projection to $V$. By (8.2),

[TABLE]

Since there is no edge of $G$ joining vertices in $V_{1}\setminus V_{2}$ and $V_{2}\setminus V_{1}$, a shortest path in $G$ from $u$ to $v$ must contain a vertex $x\in V_{1}\cap V_{2}$. Since $G_{1}$ and $G_{2}$ are isometric subgraphs, there are shortest paths $P_{ux}$ in $G_{1}$ and $P_{xv}$ in $G_{2}$ such that their union is a shortest path from $u$ to $v$. Then, by the triangle inequality and part (i) of the proof, we have (cf. Figure 8.1)

[TABLE]

The last two displayed formulas imply $d_{G^{\prime}}(u^{1},v^{2})=d_{G}(u,v)+1$.

Since $u^{1}\in V^{\prime}_{1}$ and $v^{2}\in V^{\prime}_{2}$ the path $P_{u^{1}v^{2}}$ must contain an edge, say $x^{1}x^{2}$, in $M$. Since this path is a shortest path in $G^{\prime}$, this edge is unique. Then the sections $P_{u^{1}x^{1}}$ and $P_{x^{2}v^{2}}$ of $P_{u^{1}v^{2}}$ are shortest paths in $\langle V^{\prime}_{1}\rangle$ and $\langle V^{\prime}_{2}\rangle$, respectively. Clearly, $P_{uv}$ is a shortest path in $G$. ∎

Let $a^{1}a^{2}$ be an edge in the matching $M=\cup_{x\in V_{1}\cap V_{2}}\{x^{1}x^{2}\}$. This edge defines five fundamental sets (cf. Section 4): the semicubes $W_{a^{1}a^{2}}$ and $W_{a^{2}a^{1}}$, the sets of vertices $U_{a^{1}a^{2}}$ and $U_{a^{2}a^{1}}$, and the set of edges $F_{a^{1}a^{2}}$. The next theorem follows immediately from Lemma 8.1. It gives a hint to a connection between the expansion process and partial cubes.

Theorem 8.1**.**

Let $G^{\prime}$ be an expansion of a connected graph $G$ and notations are chosen as above. Then

1. (i)

$W_{a^{1}a^{2}}=V^{\prime}_{1}$* and $W_{a^{2}a^{1}}=V^{\prime}_{2}$ are convex semicubes of $G^{\prime}$.* 2. (ii)

$F_{a^{1}a^{2}}=M$* defines an isomorphism between induced subgraphs $\langle U_{a^{1}a^{2}}\rangle$ and $\langle U_{a^{2}a^{1}}\rangle$, which are isomorphic to the subgraph $G_{1}\cap G_{2}$.*

The result of Theorem 8.1 justifies the following constructive definition of the contraction process.

Definition 8.2**.**

Let $ab$ be an edge of a connected graph $G^{\prime}=(V^{\prime},E^{\prime})$ such that

1. (i)

semicubes $W_{ab}$ and $W_{ba}$ are convex and form a partition of $V^{\prime}$; 2. (ii)

the set $F_{ab}$ is a matching and defines an isomorphism between subgraphs $\langle U_{ab}\rangle$ and $\langle U_{ba}\rangle$.

A graph $G$ obtained from the graphs $\langle W_{ab}\rangle$ and $\langle W_{ba}\rangle$ by pasting them along subgraphs $\langle U_{ab}\rangle$ and $\langle U_{ba}\rangle$ is said to be a contraction of the graph $G^{\prime}$. **

Remark 8.1**.**

If $G^{\prime}$ is bipartite, then semicubes $W_{ab}$ and $W_{ba}$ form a partition of its vertex set. Then, by Theorem 4.1, condition (i) implies condition (ii). Thus any pair of opposite convex semicubes in a connected bipartite graph defines a contraction of this graph. **

By Theorem 8.1, a graph is a contraction of its expansion. It is not difficult to see that any connected graph is also an expansion of its contraction.

The following three examples give geometric illustrations for the expansion and contraction procedures.

Example 8.1**.**

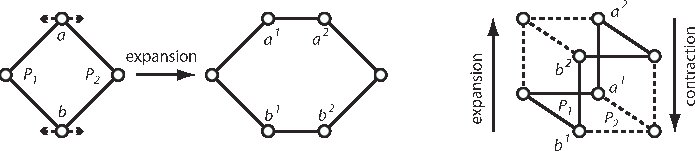

Let $a$ and $b$ be two opposite vertices in the graph $G=C_{4}$. Clearly, the two distinct paths $P_{1}$ and $P_{2}$ from $a$ to $b$ are isometric subgraphs of $G$ defining an expansion $G^{\prime}=C_{6}$ of $G$ (see Figure 8.2). Note that $P_{1}$ and $P_{2}$ are not convex subsets of $V$. **

Example 8.2**.**

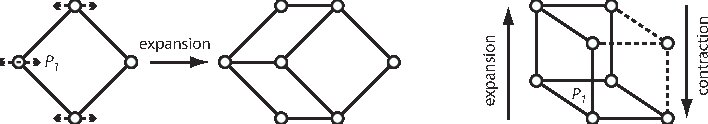

Another isometric expansion of the graph $G=C_{4}$ is shown in Figure 8.3. Here, the path $P_{1}$ is the same as in the previous example and $G_{2}=G$. **

Example 8.3**.**

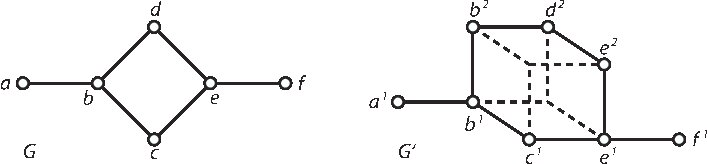

Lemma 8.1 claims, in particular, that the projection of a shortest path in an extension $G^{\prime}$ of a graph $G$ is a shortest path in $G$. Generally speaking, the converse is not true. Consider the graph $G$ shown in Figure 8.4 and two paths in $G$:

[TABLE]

The graph $G^{\prime}$ in Figure 8.4 is the convex expansion of $G$ with respect to $V_{1}$ and $V_{2}$. The path $abde\!f$ is a shortest path in $G$; it is not a projection of a shortest path in $G^{\prime}$. **

One can say that, in the case of finite partial cubes, the contraction procedure is defined by an orthogonal projection of a hypercube onto one of its facets.

By Theorem 8.1, the sets $V^{\prime}_{1}$ and $V^{\prime}_{2}$ are opposite semicubes of the graph $G^{\prime}$ defined by edges in $M$. Their projections are the sets $V_{1}$ and $V_{2}$ which are not necessarily semicubes of $G$. For other semicubes in $G^{\prime}$ we have the following result.

Lemma 8.2**.**

For any two adjacent vertices $u,v\in V$,

[TABLE]

Proof.

By Lemma 8.1,

[TABLE]

for $x\in V$ and $i,j=1,2$. The result follows. ∎

Corollary 8.1**.**

If $uv$ is an edge of $G_{1}\cap G_{2}$, then $W_{u^{1}v^{1}}=W_{u^{2}v^{2}}$.

The following lemma is an immediate consequence of Lemma 8.1. We shall use it implicitly in our arguments later.

Lemma 8.3**.**

Let $u,v\in V_{1}$ and $x\in V_{1}\cap V_{2}$. Then

[TABLE]

The same result holds for semicubes in the form $W_{u^{2}v^{2}}$.

Generally speaking, the projection of a convex subgraph of $G^{\prime}$ is not a convex subgraph of $G$. For instance, the projection of the convex path $b^{2}d^{2}e^{2}$ in Figure 8.4 is the path $bde$ which is not a convex subgraph of $G$. On the other hand, we have the following result.

Theorem 8.2**.**

Let $G^{\prime}=(V^{\prime},E^{\prime})$ be an expansion of a graph $G=(V,E)$ with respect to subgraphs $G_{1}=(V_{1},E_{1})$ and $G_{2}=(V_{2},E_{2})$. The projection of a convex semicube of $G^{\prime}$ different from $\langle V^{\prime}_{1}\rangle$ and $\langle V^{\prime}_{2}\rangle$ is a convex semicube of $G$.

Proof.

It suffices to consider the case when $W_{uv}=p(W_{u^{1}v^{1}})$ for $u,v\in V_{1}$ (cf. Theorem 8.2). Let $x,y\in W_{uv}$ and $z\in V$ be a vertex such that

[TABLE]

We need to show that $z\in W_{uv}$.

(i) $x,y\in V_{1}$ (the case when $x,y\in V_{2}$ is treated similarly). Suppose that $z\in V_{1}$. Then $x^{1},y^{1},z^{1}\in V^{\prime}_{1}$ and, by Lemma 8.1,

[TABLE]

Since $x^{1},y^{1}\in W_{u^{1}v^{1}}$ and $W_{u^{1}v^{1}}$ is convex, $z^{1}\in W_{u^{1}v^{1}}$. Hence, $z\in W_{uv}$.

Suppose now that $z\in V_{2}\setminus V_{1}$. Consider a shortest path $P_{xy}$ in $G$ from $x$ to $y$ containing $z$. This path contains vertices $x^{\prime},y^{\prime}\in V_{1}\cap V_{2}$ such that (see Figure 8.5)

[TABLE]

Since $P_{xy}$ is a shortest path in $G$, we have

[TABLE]

and

[TABLE]

Since $x,x^{\prime},y\in V_{1}$, we have $x^{1},x^{\prime 1},y^{1}\in V^{\prime}_{1}$. Because $x^{1},y^{1}\in W_{u^{1}v^{1}}$ and $W_{u^{1}v^{1}}$ is convex, $x^{\prime 1}\in W_{u^{1}v^{1}}$. Hence, $x^{\prime}\in W_{uv}$ and, similarly, $y^{\prime}\in W_{uv}$. Since $x^{\prime 2},y^{\prime 2},z^{2}\in V^{\prime}_{2}$ and $W_{u^{1}v^{1}}$ is convex, $z^{2}\in W_{u^{1}v^{1}}$. Hence, $z\in W_{uv}$.

(ii) $x\in V_{1}\setminus V_{2}$ and $y\in V_{2}\setminus V_{1}$. We may assume that $z\in V_{1}$. By Lemma 8.1,

[TABLE]

Since $x^{1},y^{2}\in W_{u^{1}v^{1}}$ and $W_{u^{1}v^{1}}$ is convex, $z^{1}\in W_{u^{1}v^{1}}$. Hence, $z\in W_{uv}$. ∎

By using the results of Lemma 8.1, it is not difficult to show that the class of connected bipartite graphs is closed under the expansion and contraction operations. The next theorem establishes this result for the class of partial cubes.

Theorem 8.3**.**

(i)* An expansion $G^{\prime}$ of a partial cube $G$ is a partial cube. (ii) A contraction $G$ of a partial cube $G^{\prime}$ is a partial cube.*

Proof.

(i) Let $G=(V,E)$ be a partial cube and $G^{\prime}=(V^{\prime},E^{\prime})$ be its expansion with respect to isometric subgraphs $G_{1}=(V_{1},E_{1})$ and $G_{2}=(V_{2},E_{2})$. By Theorem 3.4(ii), it suffices to show that the semicubes of $G^{\prime}$ are convex.

By Lemma 8.1, the semicubes $\langle V^{\prime}_{1}\rangle$ and $\langle V^{\prime}_{2}\rangle$ are convex, so we consider a semicube in the form $W_{u^{1}v^{1}}$ where $uv\in E_{1}$ (the other case is treated similarly). Let $P_{x^{\prime}y^{\prime}}$ be a shortest path connecting two vertices in $W_{u^{1}v^{1}}$ and $P_{xy}$ be its projection to $G$. By Theorem 8.2, $x,y\in W_{uv}$ and, by Lemma 8.1, $P_{xy}$ is a shortest path in $G$. Since $W_{uv}$ is convex, $P_{xy}$ belongs to $W_{uv}$. Let $z^{\prime}$ be a vertex in $P_{x^{\prime}y^{\prime}}$ and $z=p(z^{\prime})\in P_{xy}$. By Lemma 8.1,

[TABLE]

Since $G^{\prime}$ is a bipartite graph, $d_{G^{\prime}}(z^{\prime},u^{1})<d_{G^{\prime}}(z^{\prime},v^{1})$. Hence, $P_{x^{\prime}y^{\prime}}\subseteq W_{u^{1}v^{1}}$, so $W_{u^{1}v^{1}}$ is convex. (ii) Let $G=(V,E)$ be a contraction of a partial cube $G^{\prime}=(V^{\prime},E^{\prime})$. By Theorem 3.4, we need to show that the semicubes of $G$ are convex. By Theorem 8.2, all semicubes of $G$ are projections of semicubes of $G^{\prime}$ distinct from $\langle V^{\prime}_{1}\rangle$ and $\langle V^{\prime}_{2}\rangle$. By Theorem 8.2, the semicubes of $G$ are convex. ∎

Corollary 8.2**.**

(i)* A finite connected graph is a partial cube if and only if it can be obtained from $K_{1}$ by a sequence of expansions.*

(ii)* The number of expansions needed to produce a partial cube $G$ from $K_{1}$ is $\dim_{I}(G)$.*

Proof.

(i) Follows immediately from Theorem 8.3.

(ii) Follows from theorems 8.2 and 5.1 (see the discussion in Section 5 just before Theorem 5.2 ). ∎

The processes of expansion and contraction admit useful descriptions in the case of partial cubes on a set. Let $G=(V,E)$ be a partial cube on a set $X$, that is an isometric subgraph of the hypercube ${\cal H}(X)$. Then it is induced by some wg-family ${\cal F}$ of finite subsets of $X$ (cf. Theorem 2.1). We may assume (see Section 5) that $\cap\,{\cal F}=\varnothing$ and $\cup\,{\cal F}=X$.

In what follows we present proofs of the results of Theorem 8.3 and Corollary 8.2 given in terms of wg-families of sets.

The expansion process for a partial cube $G$ on $X$ can be described as follows: Let ${\cal F}_{1}$ and ${\cal F}_{2}$ be wg-families of finite subsets of $X$ such that ${\cal F}_{1}\cap{\cal F}_{2}\not=\varnothing$, ${\cal F}_{1}\cup{\cal F}_{2}={\cal F}$, and the distance between any two sets $P\in{\cal F}_{1}\setminus{\cal F}_{2}$ and $Q\in{\cal F}_{2}\setminus{\cal F}_{1}$ is greater than one. Note that $\langle{\cal F}_{1}\rangle$ and $\langle{\cal F}_{2}\rangle$ are partial cubes, $\langle{\cal F}_{1}\rangle\cap\langle{\cal F}_{2}\rangle\not=\varnothing$, and $\langle{\cal F}_{1}\rangle\cup\langle{\cal F}_{2}\rangle=\langle{\cal F}\rangle=G$. Let $X^{\prime}=X+\{p\}$, where $p\notin X$, and

[TABLE]

It is quite clear that the graphs $\langle{\cal F}^{\prime}_{2}\rangle$ and $\langle{\cal F}_{2}\rangle$ are isomorphic and the graph $G^{\prime}=\langle{\cal F}^{\prime}\rangle$ is an isometric expansion of the graph $G$.

Theorem 8.4**.**

An expansion of a partial cube is a partial cube.

Proof.

We need to verify that ${\cal F}^{\prime}$ is a wg-family of finite subsets of $X^{\prime}$. By Theorem 2.3, it suffices to show that the distance between any two adjacent sets in ${\cal F}^{\prime}$ is $1$. It is obvious if each of these two sets belong to one of the families ${\cal F}_{1}$ or ${\cal F}^{\prime}_{2}$. Suppose that $P\in{\cal F}_{1}$ and $Q+\{p\}\in{\cal F}^{\prime}_{2}$ are adjacent, that is, for any $S\in{\cal F}^{\prime}$ we have

[TABLE]

If $Q\in{\cal F}_{1}$, then

[TABLE]

since $p\notin P$. By (8.3), $Q=P$ implying $d(P,Q+\{p\})=1$.

If $Q\in{\cal F}_{2}\setminus{\cal F}_{1}$, there is $R\in{\cal F}_{1}\cap{\cal F}_{2}$ such that

[TABLE]

since ${\cal F}$ is well graded. By Theorem 2.2,

[TABLE]

which implies

[TABLE]

By (8.3), $R+\{p\}=Q+\{p\}$, a contradiction. ∎

It is easy to recognize the fundamental sets (cf. Section 4) in an isometric expansion $G^{\prime}$ of a partial cube $G=\langle{\cal F}\rangle$. Let $P\in{\cal F}_{1}\cap{\cal F}_{2}$ and $Q=P+\{p\}\in{\cal F}^{\prime}_{2}$ be two vertices defining an edge in $G^{\prime}$ according to Definition 8.1(ii). Clearly, the families ${\cal F}_{1}$ and ${\cal F}^{\prime}_{2}$ are the semicubes $W_{PQ}$ and $W_{QP}$ of the graph $G^{\prime}$ (cf. Lemma 5.1) and therefore are convex subsets of ${\cal F}^{\prime}$. The set $F_{PQ}$ is the set of edges defined by $p$ as in Lemma 5.1. In addition, $U_{PQ}={\cal F}_{1}\cap{\cal F}_{2}$ and $U_{QP}=\{R+\{p\}:R\in{\cal F}_{1}\cap{\cal F}_{2}\}$.

Let $G$ be a partial cube induced by a wg-family ${\cal F}$ of finite subsets of a set $X$. As before, we assume that $\cap\,{\cal F}=\varnothing$ and $\cup\,{\cal F}=X$. Let $PQ$ be an edge of $G$. We may assume that $Q=P+\{p\}$ for some $p\notin P$. Then (see Lemma 5.1)

[TABLE]

Let $X^{\prime}=X\setminus\{p\}$ and ${\cal F}^{\prime}=\{R\setminus\{p\}:R\in{\cal F}\}$. It is clear that the graph $G^{\prime}$ induced by the family ${\cal F}^{\prime}$ is isomorphic to the contraction of $G$ defined by the edge $PQ$. Geometrically, the graph $G^{\prime}$ is the orthogonal projection of the graph $G$ along the edge $PQ$ (cf. figures 8.2 and 8.3).

Theorem 8.5**.**

(i)* A contraction $G^{\prime}$ of a partial cube $G$ is a partial cube.*

(ii)* If $G$ is finite, then $\dim_{I}(G^{\prime})=\dim_{I}(G)-1$.*

Proof.

(i) For $p\in X$ we define ${\cal F}_{1}=\{R\in{\cal F}:p\notin R\}$, ${\cal F}_{2}=\{R\in{\cal F}:p\in R\}$, and ${\cal F}^{\prime}_{2}=\{R\setminus\{p\}\in{\cal F}:p\in R\}$. Note that ${\cal F}_{1}$ and ${\cal F}_{2}$ are semicubes of $G$ and ${\cal F}^{\prime}_{2}$ is isometric to ${\cal F}_{2}$. Hence, ${\cal F}_{1}$ and ${\cal F}^{\prime}_{2}$ are wg-families of finite subsets of $X^{\prime}$. We need to prove that ${\cal F}^{\prime}={\cal F}_{1}\cup{\cal F}^{\prime}_{2}$ is a wg-family. By Theorem 2.3, it suffices to show that $d(P,Q)=1$ for any two adjacent sets $P,Q\in{\cal F}^{\prime}$. This is true if $P,Q\in{\cal F}_{1}$ or $P,Q\in{\cal F}^{\prime}_{2}$, since these two families are well graded. For $P\in{\cal F}_{1}\setminus{\cal F}^{\prime}_{2}$ and $Q\in{\cal F}^{\prime}_{2}\setminus{\cal F}_{1}$, the sets $P$ and $Q+\{p\}$ are not adjacent in ${\cal F}$, since ${\cal F}$ is well graded and $Q\notin{\cal F}$. Hence there is $R\in{\cal F}_{1}$ such that

[TABLE]

and $R\not=P$. Since $p\notin R$, we have

[TABLE]

Since $R\not=P$ and $R\not=Q$, the sets $P$ and $Q$ are not adjacent in ${\cal F}^{\prime}$. The result follows.

(ii) If $G$ is a finite partial cube, then, by Theorem 5.2,

[TABLE]

∎

9 Conclusion

The paper focuses on two themes of a rather general mathematical nature.

1. The characterization problem. It is a common practice in mathematics to characterize a particular class of object in different terms. We present new characterizations of the classes of bipartite graphs and partial cubes, and give new proofs for known characterization results.

2. Constructions. The problem of constructing new objects from old ones is a standard topic in many branches of mathematics. For the class of partial cubes, we discuss operations of forming the Cartesian product, expansion and contraction, and pasting. It is shown that the class of partial cubes is closed under these operations.

Because partial cubes are defined as graphs isometrically embeddable into hypercubes, the theory of partial cubes has a distinctive geometric flavor. The three main structures on a graph—semicubes and Djoković’s and Winkler’s relations—are defined in terms of the metric structure on a graph. One can say that this theory is a branch of discrete metric geometry. Not surprisingly, geometric structures play an important role in our treatment of the characterization and construction problems.
